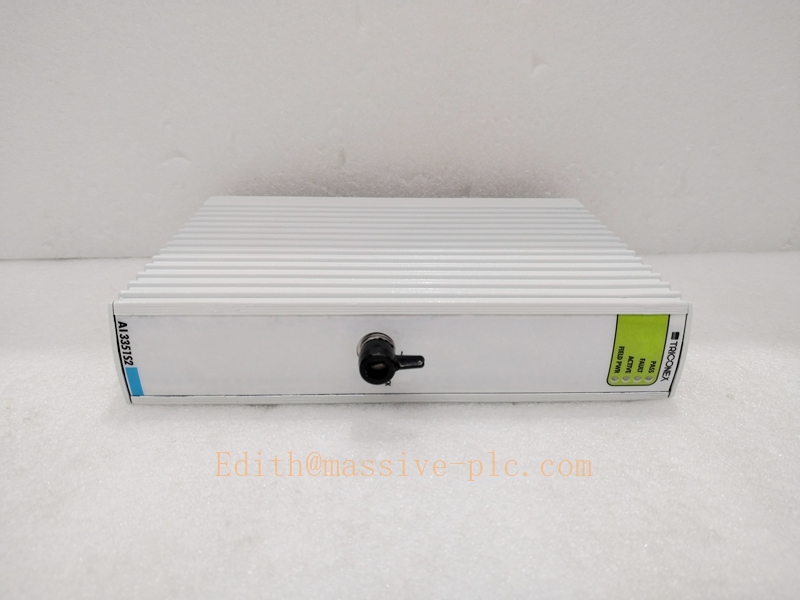

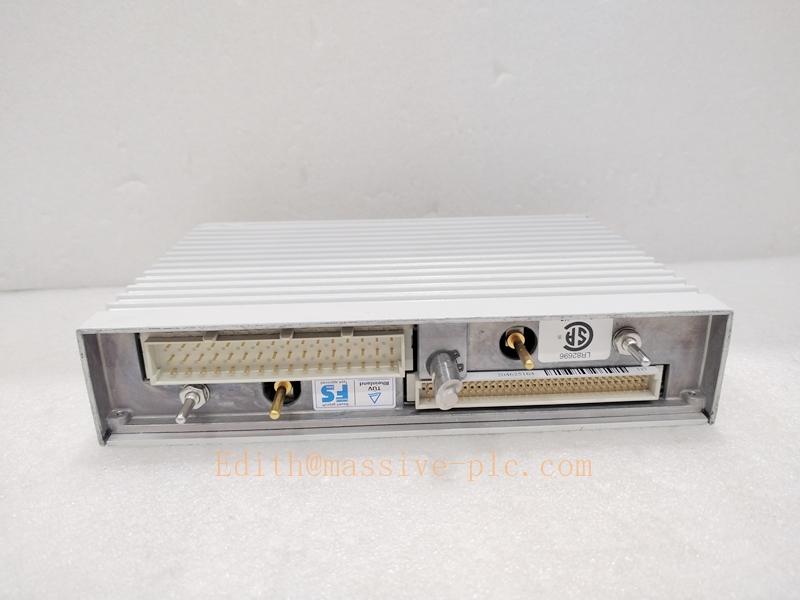

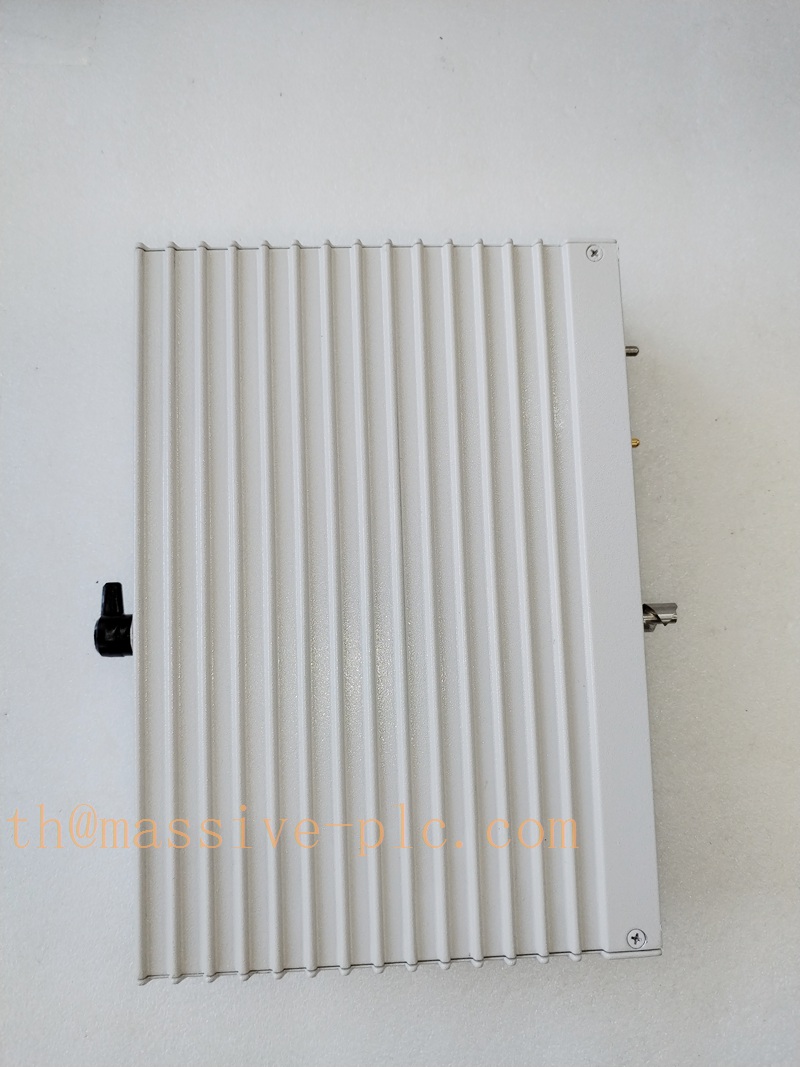

TRICONEX 5351S2 TMR Relay Output Module

Description

TRICONEX 5351S2 TMR Relay Output Module Product Introduction

Product Overview

The TRICONEX 5351S2 is a high-reliability TMR Triple Modular Redundancy Relay Output Module designed for TRICONEX Tricon and Trident series Safety Instrumented Systems (SIS). As a safety-grade passive contact output unit, it is dedicated to dry contact switch output for critical safety interlock, trip and alarm signals. The upgraded S2 version optimizes relay contact stability, enhances anti-arc and anti-interference performance, upgrades full-coverage fault diagnosis logic, and improves long-term switching reliability, perfectly adapting to 24/7 continuous operation in harsh high-risk industrial environments.

Adopting a standard three-channel TMR redundant hardware architecture, the 5351S2 performs synchronous logic judgment, signal comparison and 2oo3 hardware voting for all relay output commands. It effectively eliminates single-point faults, contact jitter and transient interference risks, ensuring zero misoperation and zero false tripping of safety loop contacts. With SIL 3 IEC 61508 functional safety certification and industrial-grade isolation protection, the module is widely applied in petrochemical, natural gas, thermal power and coal chemical industries for ESD emergency shutdown systems, FGS fire and gas protection systems and large rotating machinery protection systems.

Core Technical Parameters

Model Version Definition

1. Model Positioning: The 5351S2 is an upgraded S2-version SIL3 safety relay output module for TRICONEX SIS systems, specially designed for passive dry contact safety interlock and alarm output loops;

2. Version Upgrade Advantages: The S2 version adopts upgraded relay core components, optimizes contact anti-oxidation and arc suppression capability, improves fault diagnosis accuracy for contact adhesion and circuit abnormality, and enhances long-term operational stability compared with standard versions;

3. System Matching: Fully compatible with Tricon/Trident series racks, 5101S2 main controllers, communication modules and full series of SIS I/O modules, supporting single and redundant system configuration modes;

4. Safety Level: Complies with SIL3 highest industrial safety standards, providing fault-tolerant and ultra-reliable contact output for critical safety protection loops.

Core Functions and Product Advantages

4.1 Full TMR Fault-Tolerant Contact Output

The 5351S2 adopts a complete three-channel independent redundant hardware architecture. All safety interlock and alarm output commands are synchronously executed, compared and voted by three independent channels via 2oo3 logic. Any single-channel hardware failure, relay contact abnormality or transient field interference will be automatically isolated and corrected. It completely avoids false contact action, missing action and output deviation caused by single-point faults, ensuring absolute reliability of safety trip and alarm loops.

4.2 Passive Dry Contact Isolated Output

Equipped with 8-channel independent SPDT relay contacts, the module provides passive dry contact output with completely isolated internal and external circuits. It does not require external power supply for signal output, and is compatible with DCS system signal acquisition, intermediate relay drive and on-site alarm loop docking. The isolated design effectively isolates field interference and common-mode voltage, ensuring pure and stable safety signal transmission.

4.3 Enhanced Arc Suppression & Anti-Aging Performance

The S2 upgraded version optimizes relay contact materials and internal arc suppression circuits. It effectively suppresses electric arc generated by frequent switching of inductive and resistive loads, reduces contact ablation and oxidation, and significantly prolongs relay service life. It maintains stable contact resistance and reliable switching performance during long-term high-frequency operation, adapting to long-cycle industrial safety monitoring scenarios.

4.4 Online Hot-Swap & High System Availability

The module supports online hot-swap replacement during normal system and production operation. Daily maintenance, inspection and module replacement can be completed without disabling safety interlock logic or stopping production, minimizing system downtime and operational safety risks. Combined with TMR redundant architecture, it realizes seamless contact switching and automatic fault recovery, ensuring continuous and effective operation of safety loops.

4.5 Full-Coverage Intelligent Fault Diagnosis

Built with upgraded multi-dimensional self-diagnosis functions, the 5351S2 can real-timely monitor relay contact status, circuit open/short circuit, contact adhesion, overload abnormality and module hardware operation status. It accurately records fault codes and event logs, supports rapid positioning of on-site loop faults and module failures, greatly improving system maintainability and troubleshooting efficiency.

Application Scenarios

The TRICONEX 5351S2 safety relay output module is widely used in SIL3-level safety instrumented systems in petrochemical, natural gas, coal chemical, thermal power and other high-risk industries. It is mainly applied in ESD emergency shutdown systems, FGS fire and gas linkage systems and large rotating machinery protection systems, providing passive dry contact output for equipment trip interlock, fault alarm, system state transfer and remote signal feedback, ensuring reliable execution of industrial safety protection logic.

Installation and Maintenance Guidelines

1. Installation Specification: Installed in standard SIS rack slots, matched with redundant power supply and main controller to ensure stable TriBus bus connection;

2. Loop Configuration: Reasonably set NO/NC contact logic according to safety loop requirements, prioritize fail-safe de-energized trip mode for critical interlock loops;

3. Load Protection: Match on-site load specifications reasonably, avoid long-term overload operation and frequent high-current switching to prevent contact damage;

4. Field Wiring: Adopt shielded cables for signal wiring, separate from strong-current power cables to avoid electromagnetic interference and ensure contact signal stability;

5. Daily Maintenance: Regularly check module status indicators, fault logs and contact switching conditions, clean dust to ensure heat dissipation and long-term stable operation;

6. System Debugging: Complete contact action testing and interlock logic verification after module replacement or system upgrade to ensure accurate and reliable safety loop output.
