3500/22M 146031-02 Transient Data Interface (TDI) Module Backboard

Description

Bently Nevada 3500/22M (146031-02) Transient Data Interface (TDI) Rear Panel Module Product Introduction

Product Overview

The Bently Nevada 3500/22M (146031-02) is a dedicated TDI Transient Data Interface Rear Panel Module matching the 3500/22M main board, serving as the official rear I/O backplane for Bently Nevada 3500 machinery condition monitoring system. As the physical interface carrier for all transient data communication and signal wiring of the TDI module, it undertakes external cable docking, signal isolation, bus conversion and data transmission docking functions for the 3500/22M main module. The 146031-02 is the mature and stable upgraded rear panel revision, optimizing wiring terminal structure, enhancing contact durability and anti-oxidation performance, and improving on-site wiring adaptability, fully meeting long-term stable wiring and data transmission requirements of industrial rotating equipment monitoring systems.

Cooperating with the 3500/22M TDI main module, the 146031-02 rear panel realizes external output of high-speed transient waveform data, fault snapshot data and system communication signals. It provides standard physical interfaces for upper computer monitoring system docking, completes signal isolation and anti-interference processing between field cables and system internal bus, and effectively avoids signal distortion and interference crosstalk caused by wiring links. Widely applicable to thermal power, petrochemical, natural gas and metallurgical industries, it supports safe and stable operation of key monitoring systems for turbines, compressors and other large rotating units.

Core Technical Parameters

Version Upgrade Definition (146031-02 Rear Panel)

1. Version Positioning: 146031-02 is the latest upgraded rear panel revision for 3500/22M TDI module, specially optimized for industrial long-term wiring and high-frequency data transmission scenarios;

2. Core Upgrade Advantages: Optimizes terminal contact material, enhances anti-oxidation and anti-corrosion capability, avoids poor contact caused by long-term environmental erosion; optimizes internal signal routing layout, reduces signal transmission loss and crosstalk interference, and improves overall data transmission stability;

3. Structural Upgrade: Upgrades terminal locking structure, improves wiring firmness, effectively prevents loose wiring and signal interruption caused by equipment vibration, and adapts to high-vibration industrial working conditions of rotating units;

4. Compatibility Upgrade: Fully compatible with all 3500/22M main board versions and 3500 system racks, supports full-function matching of transient data acquisition, transmission and fault snapshot, with strong universal applicability.

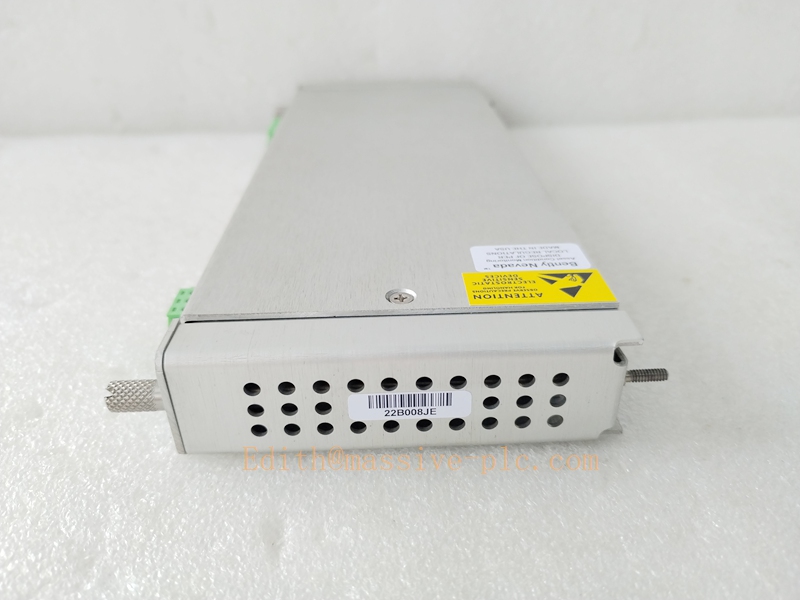

3500/22M 146031-01

Core Functions and Product Advantages

4.1 Professional TDI Signal Docking & Transmission

The 146031-02 rear panel is specially customized for 3500/22M TDI module, undertaking all external signal wiring and data transmission tasks of the TDI system. It stably transmits high-speed transient vibration waveforms, shaft displacement data, speed fluctuation signals and equipment fault snapshot data collected by the main module to the upper monitoring system. The optimized internal wiring design ensures low-loss and low-delay signal transmission, avoiding data distortion and packet loss in the wiring link, and guaranteeing the authenticity and integrity of equipment monitoring data.

4.2 Enhanced Vibration Resistance & Stable Wiring Structure

Aiming at the high-vibration working environment of industrial rotating equipment such as turbines and compressors, the 146031-02 rear panel adopts reinforced terminal locking structure and high-strength board fixing design. It effectively resists equipment operation vibration, prevents terminal looseness and wiring falling off, solves the problem of intermittent signal disconnection of old rear panels in vibration environments, and ensures 24/7 continuous and stable signal connection of the monitoring system.

4.3 Multi-Dimensional Signal Anti-Interference Protection

The rear panel integrates built-in signal isolation, surge suppression and electromagnetic crosstalk suppression circuits. It effectively isolates external industrial strong electromagnetic interference, static noise and voltage fluctuation, filters out clutter interference in signal transmission, ensures pure and stable TDI transient data signals, and provides reliable link protection for high-precision fault diagnosis and trend analysis of rotating equipment.

4.4 Perfect System Compatibility & Plug-and-Play

The 146031-02 rear panel is fully matched with the 3500/22M TDI main module and 3500 series system racks, with accurate pin definition and standard structural size. It supports direct plug-and-play installation, no additional wiring modification or parameter matching is required. It is compatible with all 3500 system functional modules and upper computer monitoring software, realizing seamless docking of the entire monitoring link.

4.5 Durable Industrial Anti-Aging Performance

Adopting industrial-grade anti-corrosion, anti-oxidation and high-temperature resistant materials, the upgraded 146031-02 version has excellent environmental adaptability. The terminals maintain stable contact resistance for a long time, avoiding signal instability caused by oxidation and corrosion. It adapts to long-cycle uninterrupted operation of industrial equipment, greatly reducing rear panel failure rate and system maintenance frequency.

4.6 Cooperate With Hot-Swap Function to Improve System Availability

The rear panel supports the online hot-swap function of the 3500/22M main module. During system operation, the main module can be replaced online without disassembling the rear panel or cutting off signal wiring, which will not interrupt equipment monitoring and data transmission functions. It eliminates monitoring blind spots caused by maintenance, ensures continuous and safe operation of key rotating units, and improves the overall availability of the machinery monitoring system.

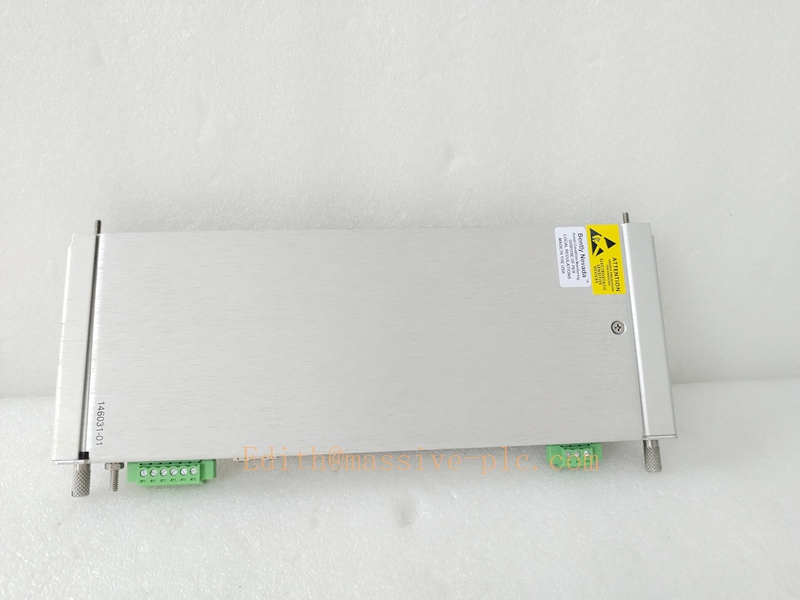

350022M 146031-01

Application Scenarios

The Bently Nevada 3500/22M 146031-02 TDI rear panel module is widely used in industrial fields with high requirements for rotating equipment monitoring, including thermal power, petrochemical, natural gas, metallurgy and chemical industry. It is mainly supporting the 3500/22M TDI system of large-scale key equipment such as steam turbines, gas turbines, centrifugal compressors, axial compressors and industrial blowers. It provides stable physical wiring interface and signal transmission guarantee for equipment transient data monitoring, fault snapshot recording, abnormal vibration analysis and predictive maintenance, ensuring the safe and stable operation of industrial core rotating equipment.

Installation and Maintenance Guidelines

1. Installation Specification: Installed on the rear side of Bently 3500 system rack, accurately aligned with the 3500/22M main module card position, firmly fixed to ensure precise pin docking and stable signal transmission;

2. Wiring Standard: Follow standard TDI signal wiring specifications, use shielded cables for external wiring, distinguish signal terminals accurately, avoid wrong wiring and empty wiring, and separate from strong-current cables to prevent crosstalk;

3. Vibration Prevention Treatment: Fasten wiring terminals and fixing screws tightly for vibration working conditions to prevent loose contact caused by equipment operation vibration;

4. Daily Inspection: Regularly check terminal contact status, board surface integrity and signal transmission stability, timely clean dust and dirt on the rear panel;

5. Environmental Protection: Keep the rack environment dry and ventilated, avoid dampness, high temperature and corrosive gas erosion to prevent terminal oxidation and circuit damage;

6. System Debugging: After rear panel installation or maintenance, verify TDI transient data, waveform display and fault snapshot functions to ensure complete and accurate signal transmission of the entire link.
