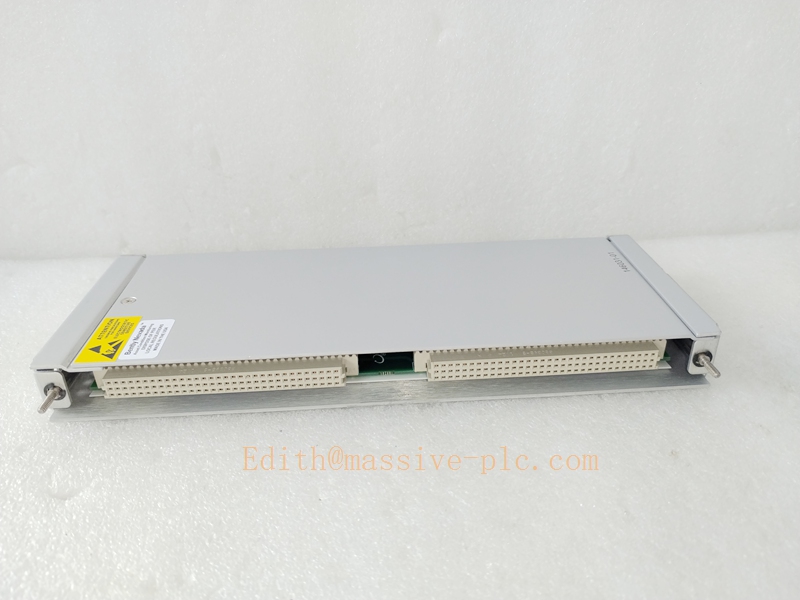

Rear card of 3500/22M 146031-02 Transient Data Interface (TDI) module

Description

3500/22M 146031-02 is a 100Base FX fiber optic Ethernet I/O back card that is compatible with Bentley Nevada Transient Data Interface (TDI) modules and is a dedicated supporting board for the 3500 monitoring system.

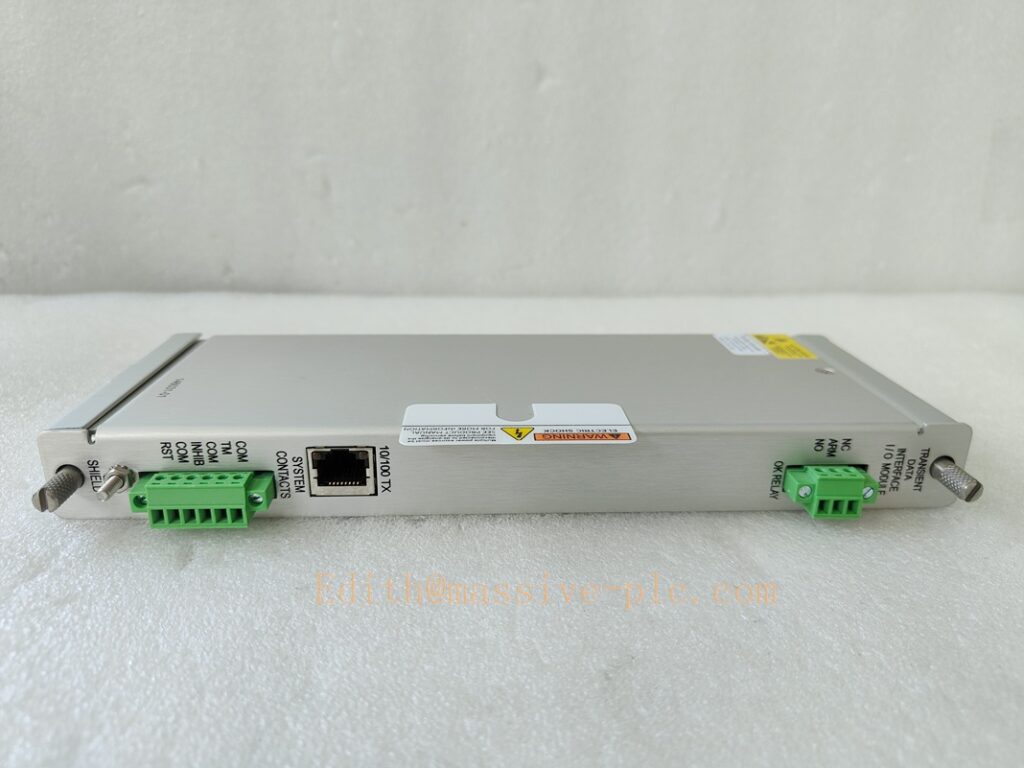

3500/22M 146031-02

Core functions
As a supporting rear card for TDI front card, responsible for providing 100Base FX fiber optic Ethernet communication interface to the outside world, transmitting the collected steady-state and transient waveform data to the upper monitoring software such as System 1, realizing the monitoring and diagnosis of rotating machinery status.

Key parameters

Interface type: 100Base FX fiber optic Ethernet
Compatible models: Compatible with 3500/22M TDI front card, can be used with M-series monitors such as 3500/40M, 3500/42M, etc
Power consumption: Combined with the entire TDI module, the total power consumption is 10.5W
Installation method: Install in the corresponding slot of the 3500 rack backplane and match it one-to-one with the TDI front card
Key points of installation and operation and maintenance
ESD electrostatic protection should be done well, as electrostatic discharge can easily damage the internal storage units of the board
During installation, align the backplane connector with the front card and fully insert it to lock the fixing screw
When troubleshooting for network link failures, prioritize checking for fiber link connectivity and switch port configuration
The transient data acquisition function requires the installation of an optional dynamic data enable disk to function properly
