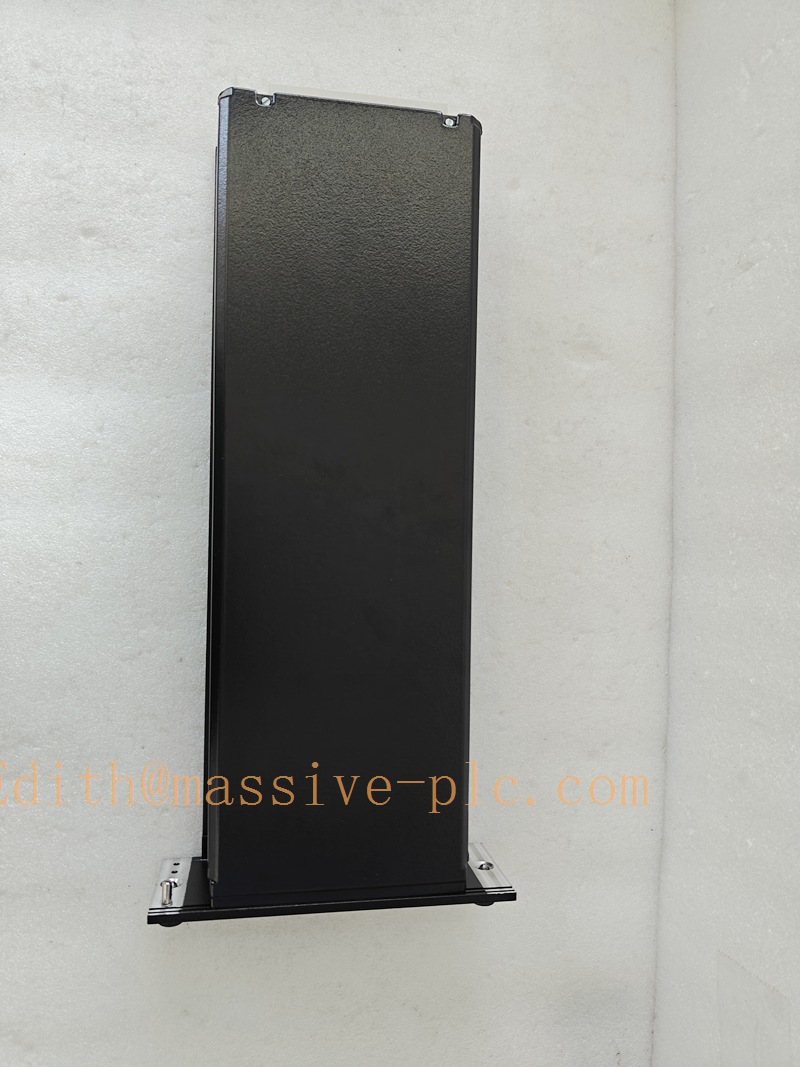

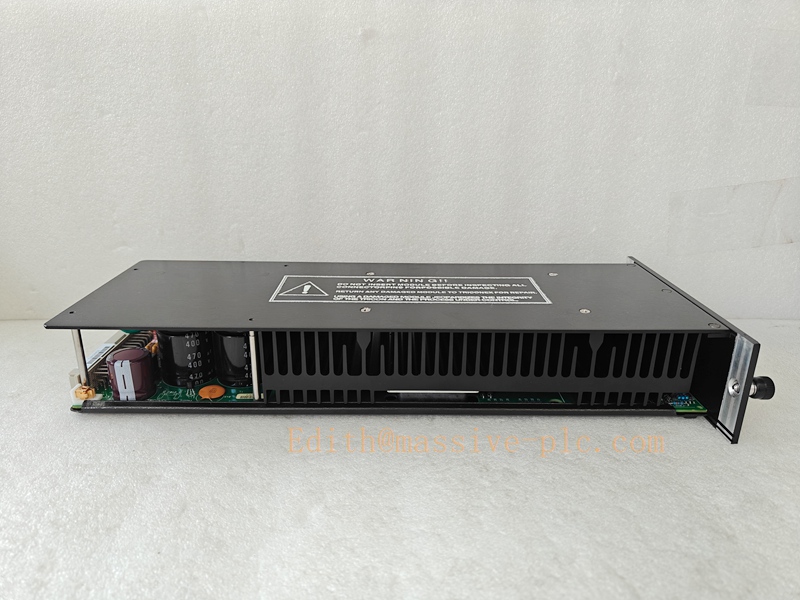

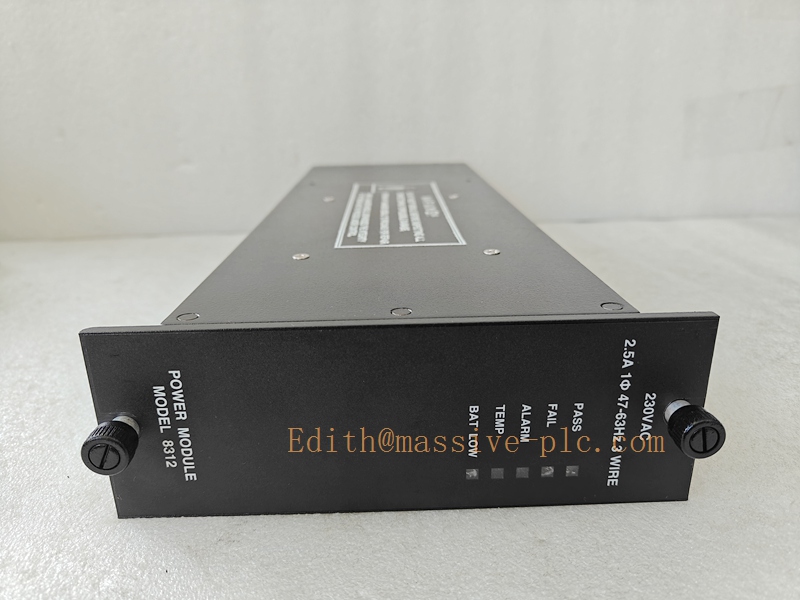

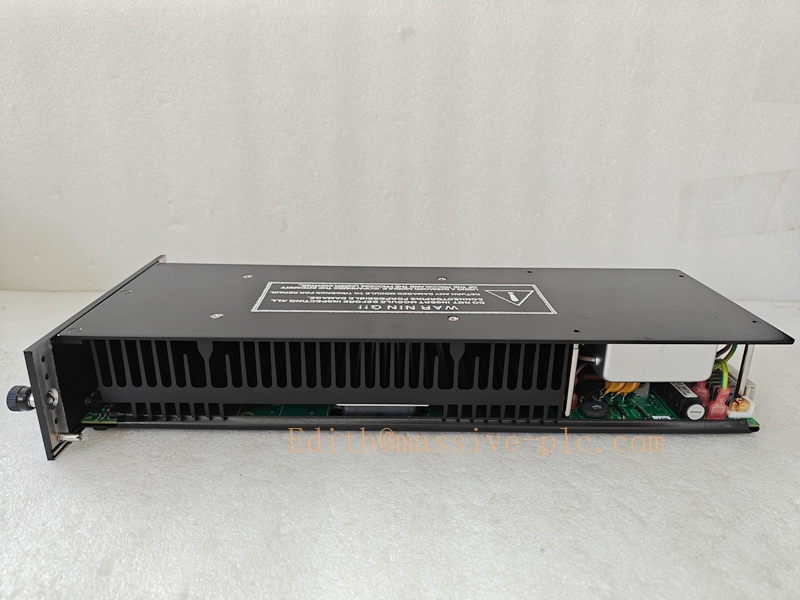

TRICONEX 8312 TMR System Power Supply Module

Description

TRICONEX 8312 TMR System Power Supply Module Product Introduction

TRICONEX 8312

ct Overview

The TRICONEX 8312 is a high-reliability TMR Triple Modular Redundancy System Power Supply Module exclusively designed for TRICONEX Tricon and Trident series Safety Instrumented Systems (SIS). As the core power guarantee unit for the entire safety control rack, it provides stable, isolated and fault-tolerant DC power for main controllers, I/O modules, communication modules and all on-board equipment. Adopting industrial-grade redundant power conversion technology, the module features high conversion efficiency, ultra-low output ripple, strong surge suppression and complete overcurrent/overvoltage protection, ensuring 24/7 continuous and stable power supply for critical safety systems in harsh process industrial environments.

Compliant with TMR safety design principles, the 8312 power module supports system-level redundant hot-backup configuration, effectively eliminating single-point power supply faults. It strictly meets SIL 3 IEC 61508 functional safety standards and industrial EMC electromagnetic compatibility specifications. Widely deployed in petrochemical, natural gas, thermal power and coal chemical high-risk industries, it serves core safety systems such as ESD emergency shutdown, FGS fire and gas linkage, and large rotating machinery protection systems, providing uninterrupted and high-quality power foundation for SIS system safe operation.

Core Technical Parameters

Model Version Definition

1. Model Positioning: The TRICONEX 8312 is a dedicated SIL3 safety-grade system power supply module for Tricon/Trident SIS racks, serving as the core power source for the entire safety instrumented system;

2. Product Advantages: It adopts high-efficiency digital power conversion technology, featuring low ripple, low heat generation and high anti-interference capability. The built-in multi-dimensional protection circuit avoids power fluctuation and sudden power failure risks, ensuring long-term stable power output of the safety rack;

3. System Matching: Fully compatible with all Tricon/Trident series rack devices, perfectly matching 5101S2 main controllers and all SIS I/O modules, supporting dual redundant power supply configuration;

4. Safety Level: Meets SIL3 highest industrial functional safety standards, eliminating single-point power faults and ensuring zero power failure of critical safety loops.

TRICONEX 8312

Core Functions and Product Advantages

4.1 Redundant Fault-Tolerant Power Supply Design

The 8312 power module supports dual-module redundant parallel operation. When a single power module fails or outputs abnormally, the backup module can complete seamless switching instantaneously without causing system power failure or safety logic interruption. Cooperating with the TMR system architecture, it completely eliminates single-point power supply faults and improves the overall reliability of the SIS system.

4.2 High-Efficiency & Ultra-Stable Output Performance

Adopting advanced digital rectification and voltage stabilization technology, the module achieves high power conversion efficiency and ultra-low ripple 24VDC output. It maintains stable voltage and current output under full-load and long-term continuous operation, effectively avoiding signal jitter, data deviation and module abnormal restart caused by power fluctuation, and provides pure and reliable power guarantee for high-precision safety I/O modules and controllers.

4.3 Full-Range Safety Protection Mechanism

Built with complete overvoltage, overcurrent, overload, short-circuit and surge suppression protection circuits, the 8312 module can automatically trigger protection and cut off abnormal output in case of field power grid fluctuation and load abnormality. The delayed fuse design and 20ms power hold time effectively avoid instantaneous power off and system misoperation, realizing fault self-protection and system safety isolation.

4.4 Intelligent Real-Time Monitoring Function

Equipped with standard RS-485 communication interface, the module supports real-time upload of operating parameters such as output voltage, output current, module temperature and fault status. It realizes remote monitoring and data tracing of power supply status, facilitates on-site personnel to grasp the power system operation status in real time, and improves system intelligent management level.

4.5 Online Hot-Swap & High Maintainability

The module supports online hot-swap replacement under normal system operating conditions. Daily maintenance, fault replacement and equipment upgrade can be completed without stopping production or powering off the safety rack, effectively reducing system downtime and operational safety risks, and improving the overall availability of industrial safety systems.

4.6 Ultra-Wide Temperature Industrial Adaptability

Designed with industrial wide-temperature hardware, the module can operate stably in the range of -40℃ to +70℃, adapting to extreme temperature environments such as outdoor chemical plants, thermal power workshops and open-air skids. It features strong environmental adaptability and long service life, meeting 24/7 uninterrupted industrial operation requirements.

Application Scenarios

The TRICONEX 8312 safety power supply module is widely used in SIL3-level safety instrumented systems in petrochemical, natural gas, coal chemical, thermal power and other high-risk industries. It is specially used for centralized power supply of Tricon/Trident SIS system racks, providing stable and fault-tolerant power support for ESD emergency shutdown systems, FGS fire and gas linkage systems, large rotating machinery protection systems and process safety interlock systems, ensuring the continuous and reliable operation of core industrial safety equipment.

Installation and Maintenance Guidelines

1. Installation Specification: Installed in the dedicated power slot of standard SIS rack, fixed firmly and connected with system bus to ensure reliable power transmission;

2. Redundant Configuration: It is recommended to adopt dual 8312 redundant power supply configuration for key safety racks to realize fault backup and seamless switching;

3. Power Wiring: Standard AC power wiring is adopted, matched with industrial power distribution protection devices to avoid grid surge and interference;

4. Heat Dissipation Inspection: Regularly check the rack ventilation and module heat dissipation status, clean dust to avoid heat accumulation affecting power conversion efficiency;

5. Status Monitoring: Real-time monitor module voltage, current and fault alarm information through upper computer software, and troubleshoot abnormal status in time;

6. Daily Maintenance: Regularly inspect fuse status and output stability, replace aging modules regularly to ensure long-term reliable power supply of the system.
