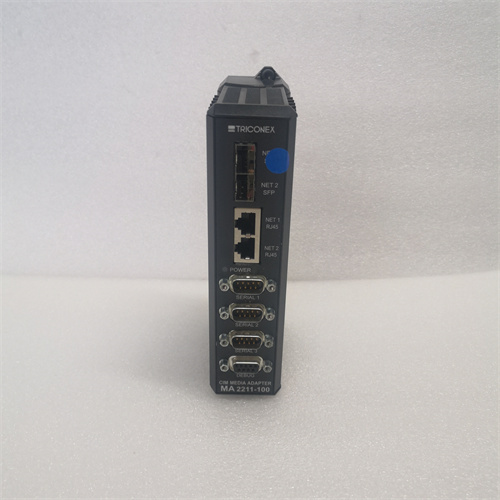

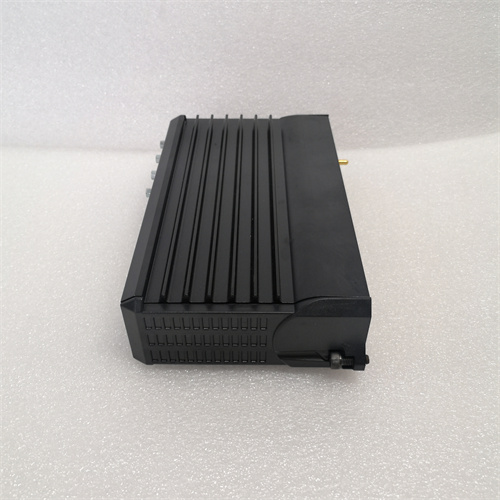

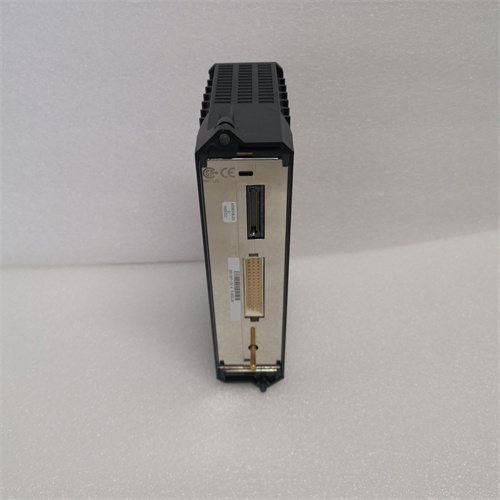

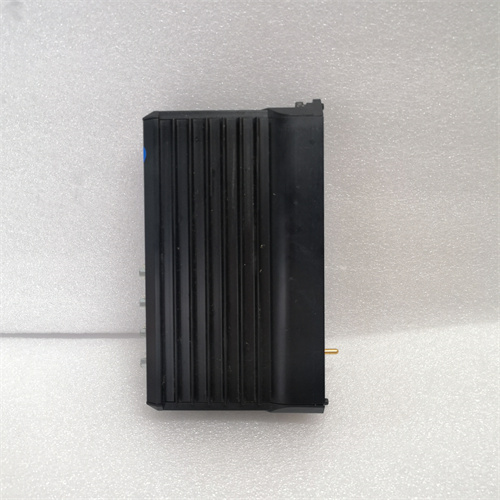

TRICONEX MA2211-100S2 System Expansion Interface Module

Description

TRICONEX MA2211-100S2 System Expansion Interface Module Product Introduction

Product Overview

The TRICONEX MA2211-100S2 is a high-reliability industrial system expansion interface module designed for TRICONEX Tricon and Trident series Safety Instrumented Systems (SIS). As an essential auxiliary communication and bus expansion unit, it realizes signal bridging, system bus extension and peripheral device docking for the SIS safety control system. This S2 upgraded version optimizes bus transmission stability, anti-interference performance and long-distance signal transmission capability compared with conventional versions, fully adapting to long-term continuous operation in harsh industrial process environments.

Complying with TMR (Triple Modular Redundancy) safety system specifications, the MA2211-100S2 supports safe signal interaction between the main controller, remote I/O racks and third-party auxiliary equipment. It effectively expands the system’s wiring and communication capacity, solves the limitation of local rack I/O expansion, and ensures synchronous, accurate and safe transmission of system logic signals. With industrial-grade EMC certification and strict safety design, it is widely deployed in petrochemical, natural gas, thermal power and other high-risk industries for ESD, FGS and unit interlock protection systems.

Core Technical Parameters

Model Version Definition

1. Model Positioning: MA2211-100S2 is an upgraded S2-version system bus expansion interface module of TRICONEX SIS system, optimized for long-distance transmission and high-interference industrial scenarios;

2. Version Upgrade Advantages: The S2 version enhances bus signal anti-interference capability, optimizes long-distance transmission attenuation control, improves signal synchronization stability, and reduces communication error rate compared with ordinary versions;

3. System Matching: Fully compatible with TRICONEX Tricon and Trident series racks, 5101S2 main controllers and all supporting I/O modules, supporting local and remote rack expansion configuration;

4. Application Orientation: Specialized for SIS system bus expansion and remote signal bridging, ensuring the overall safety and stability of SIL3-level safety instrumented systems.

Core Functions and Product Advantages

4.1 Professional System Bus Expansion

The MA2211-100S2 module undertakes core bus expansion and signal bridging tasks of the SIS system. It effectively expands the system’s I/O access capacity, solves the problem of insufficient local rack slots and limited signal interfaces, and supports flexible expansion of remote I/O racks. It ensures seamless data interaction between the main controller and distributed I/O modules, realizing integrated management of the whole system’s safety logic signals.

4.2 High-Stability Long-Distance Signal Transmission

The S2 upgraded version optimizes internal circuit and signal processing algorithm, significantly improving long-distance transmission stability. It effectively suppresses signal attenuation and delay in long-distance wiring scenarios, ensures high synchronization and low error rate of safety signal transmission, and avoids system logic misjudgment caused by signal distortion.

4.3 Isolated Anti-Interference Design

Adopting industrial-grade electrical isolation and shielding design, the module isolates internal system bus signals from external field interference signals. It resists strong electromagnetic interference, voltage fluctuation and environmental noise in industrial sites, guarantees the independence and stability of safety system signals, and adapts to harsh production environments in process industries.

4.4 Support Hot-Swap Maintenance & High Availability

The module supports online hot-swap replacement during system normal operation. Maintenance can be completed without shutting down the system or stopping production, which greatly reduces system downtime and operation and maintenance costs. It cooperates with the TMR redundant architecture to realize fault self-isolation and seamless signal switching, ensuring continuous and reliable operation of the safety interlock system.

4.5 Excellent System Compatibility & Scalability

It is fully compatible with TRICONEX mainstream SIS system hardware and firmware, matching 5101S2 series main controllers, redundant power modules and various analog/digital I/O modules. It supports multi-module cascading expansion, flexible construction of large-scale distributed safety monitoring systems, and has strong system integration and secondary expansion capabilities.

Application Scenarios

The TRICONEX interface expansion module is widely used in SIL3-level safety instrumented systems in petrochemical, natural gas, coal chemical, thermal power and other high-risk industries. It is mainly applicable to system bus expansion, remote I/O rack signal bridging and long-distance safety signal transmission for ESD emergency shutdown systems, FGS fire and gas linkage systems, and large rotating machinery anti-surge protection systems, providing stable signal transmission guarantee for industrial safety interlock control.

Installation and Maintenance Guidelines

1. Installation Specification: Adopt standard SIS rack slot installation, ensure reliable backplane bus contact, and match the system’s redundant power supply configuration;

2. Version Matching: Prefer S2 upgraded version for new projects and system upgrades to ensure compatibility with the latest main controller firmware;

3. Wiring Standard: Standardize long-distance signal wiring, separate strong and weak current cables, and avoid parallel wiring with high-power interference equipment;

4. Daily Maintenance: Regularly check module running status, bus communication status and signal transmission quality, and clean dust to ensure heat dissipation and stability;

5. Fault Handling: In case of communication interruption or signal abnormality, check module status, bus link and remote rack matching in sequence;

6. System Debugging: Complete signal synchronization and communication debugging after installation or replacement to ensure consistent data interaction of the whole system.
