TRICONEX 5401S2 TMR Analog Output Module

Description

TRICONEX 5401S2 TMR Analog Output Module Product Introduction

Product Overview

The TRICONEX 5401S2 is a high-reliability TMR Triple Modular Redundancy Analog Output Module designed for TRICONEX Tricon and Trident series Safety Instrumented Systems (SIS). Serving as the core safety analog output unit, it converts internal safety logic control commands into standard 4–20 mA field analog signals for regulating valves, actuators and process control equipment. As an optimized S2 upgraded version, it features higher output precision, lower signal drift, enhanced EMI resistance and comprehensive fault diagnosis functions, ensuring long-term stable analog drive output in harsh industrial process environments.

Adopting a full three-channel TMR redundant hardware architecture, the 5401S2 executes synchronous signal calculation, comparison and 2oo3 hardware voting for all analog output commands. It effectively eliminates single-point hardware and signal faults, preventing output drift, jitter or false action. With SIL 3 IEC 61508 functional safety certification and full industrial isolation protection, the module is widely applied in petrochemical, natural gas, thermal power and coal chemical industries for ESD emergency shutdown, process interlock and precision regulation control systems.

Core Technical Parameters

Model Version Definition

1. Model Positioning: The 5401S2 is an upgraded S2-versionsafety-grade 4–20mA analog output module exclusive for TRICONEX SIS systems, used for field actuator drive and process analog regulation;

2. Version Upgrade Advantages: The S2 version optimizes DAC output stability, greatly reduces long-term signal drift, enhances dynamic response consistency, and upgrades fault diagnosis logic for open/short circuit and abnormal output, delivering higher operational reliability than ordinary versions;

3. System Matching: Fully compatible with Tricon/Trident series racks, 5101S2 main controllers, communication modules and SIS I/O series modules, supporting dual redundant system configuration;

4. Safety Level: Complies with SIL3 industrial safety standards, ensuring fault-tolerant and error-free analog output for critical process control loops.

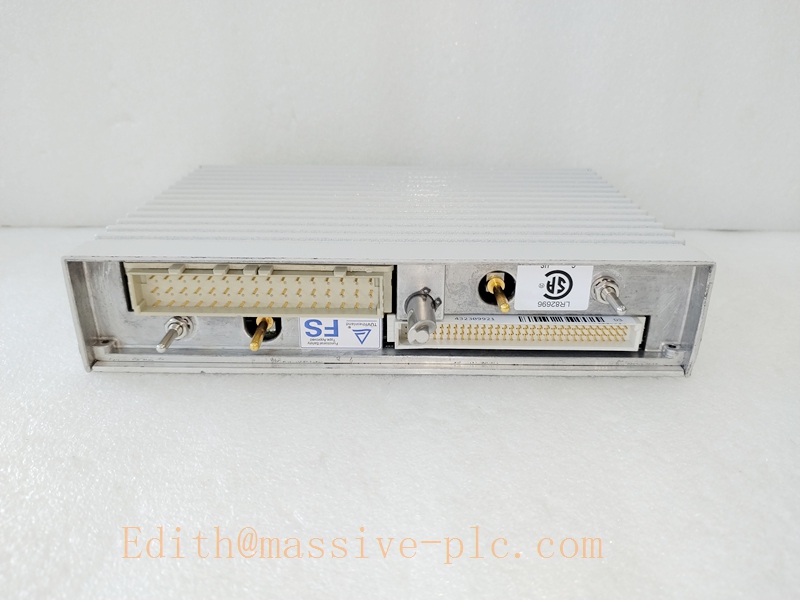

TRICONEX 3401

Core Functions and Product Advantages

4.1 Full TMR Fault-Tolerant Output Control

The 5401S2 adopts three-channel fully independent redundant output architecture. All analog control commands are synchronously calculated and output by three hardware channels, with final output determined by 2oo3 safety voting logic. Any single-channel failure or signal abnormality will be automatically isolated and corrected without causing output deviation or equipment misoperation, ensuring absolute safety of process regulation and interlock control.

4.2 High-Stability & Low-Drift Analog Output

Equipped with upgraded high-precision DAC chips and optimized signal conditioning circuits, the 5401S2 achieves ultra-stable 4–20mA current output. It features minimal temperature drift and excellent long-term output consistency, precisely driving field control valves, positioning actuators and regulating equipment. It effectively guarantees accurate closed-loop regulation of temperature, pressure, flow and liquid level in industrial processes.

4.3 Independent Channel Isolation & Strong Anti-Interference

Each output channel adopts isolated circuit design, completely isolating field load interference, common-mode voltage and electromagnetic noise from the internal safety system. Enhanced EMC electromagnetic compatibility and surge protection enable the module to maintain stable output accuracy in complex industrial environments, avoiding signal jitter and control loop fluctuation caused by field interference.

4.4 Online Hot-Swap Maintenance & High Availability

The module supports online hot-swap replacement during normal system and production operation. Maintenance can be performed without disabling safety interlock logic or stopping process production, effectively reducing system downtime and operational risks. Combined with TMR redundant architecture, it realizes seamless output switching and automatic fault recovery.

4.5 Comprehensive Fault Self-Diagnosis

The S2 upgraded version integrates enhanced diagnostic algorithms, supporting real-time monitoring of output circuit open circuit, short circuit, overload, signal over-range and module hardware status. It accurately records fault codes and event logs, enabling rapid on-site troubleshooting and greatly improving system maintainability and operational transparency.

Application Scenarios

The TRICONEX 5401S2 analog output module is widely used in SIL3-level safety instrumented systems in petrochemical, natural gas, coal chemical and thermal power industries. It is mainly applied in ESD emergency shutdown systems, process safety interlock systems and auxiliary regulation control systems, providing standard 4–20mA drive signals for field regulating valves, actuators and auxiliary process equipment to ensure stable and safe operation of industrial process loops.

Installation and Maintenance Guidelines

1. Installation Specification: Installed in standard SIS rack slots, matched with redundant power supply and main controller to ensure reliable TriBus bus connection;

2. Field Wiring: Use shielded twisted-pair cables for analog output wiring, separately laid from strong-current cables to prevent electromagnetic interference;

3. Output Calibration: Perform regular zero-point and full-scale calibration to eliminate long-term drift and ensure output accuracy;

4. Load Inspection: Regularly check field actuator load status to avoid overload, short circuit and open circuit damage to module channels;

5. Daily Maintenance: Inspect module status indicators, output signal stability and fault logs periodically, and clean dust for heat dissipation;

6. System Debugging: Complete output signal testing and loop verification after module replacement or system upgrade to ensure consistent and accurate control loop response.
