3500/22M 138607-01 Key Components of 3500 Mechanical Protection Monitoring System

Description

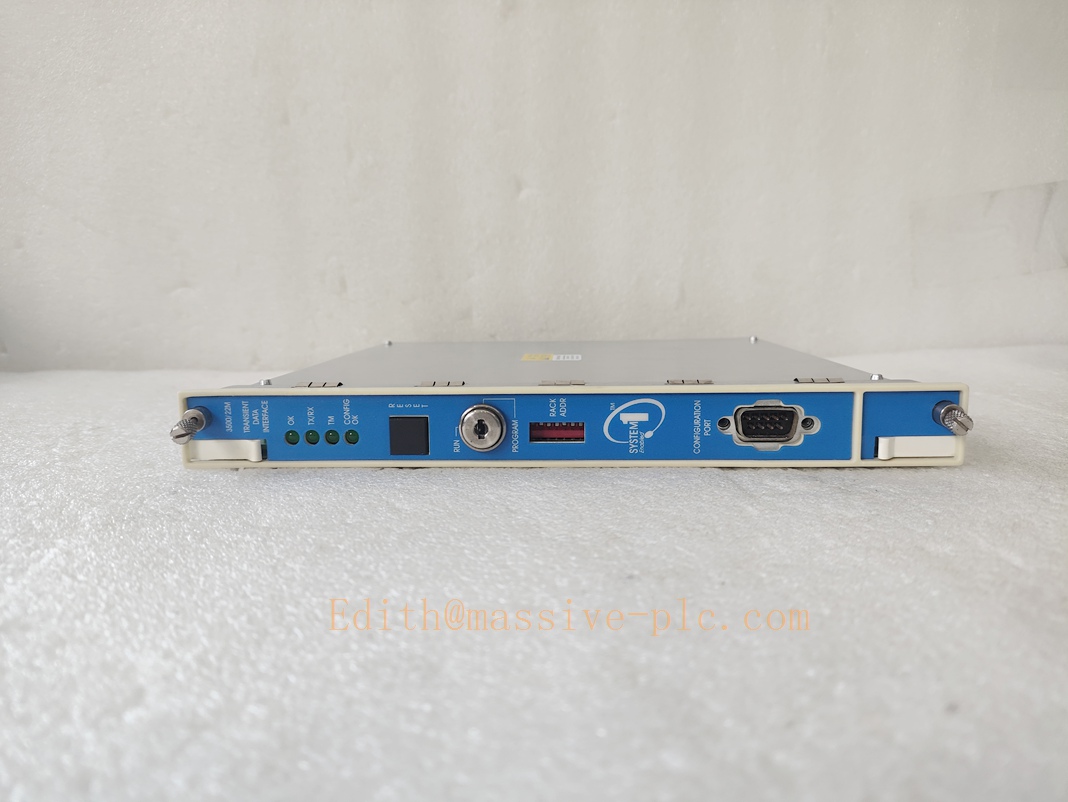

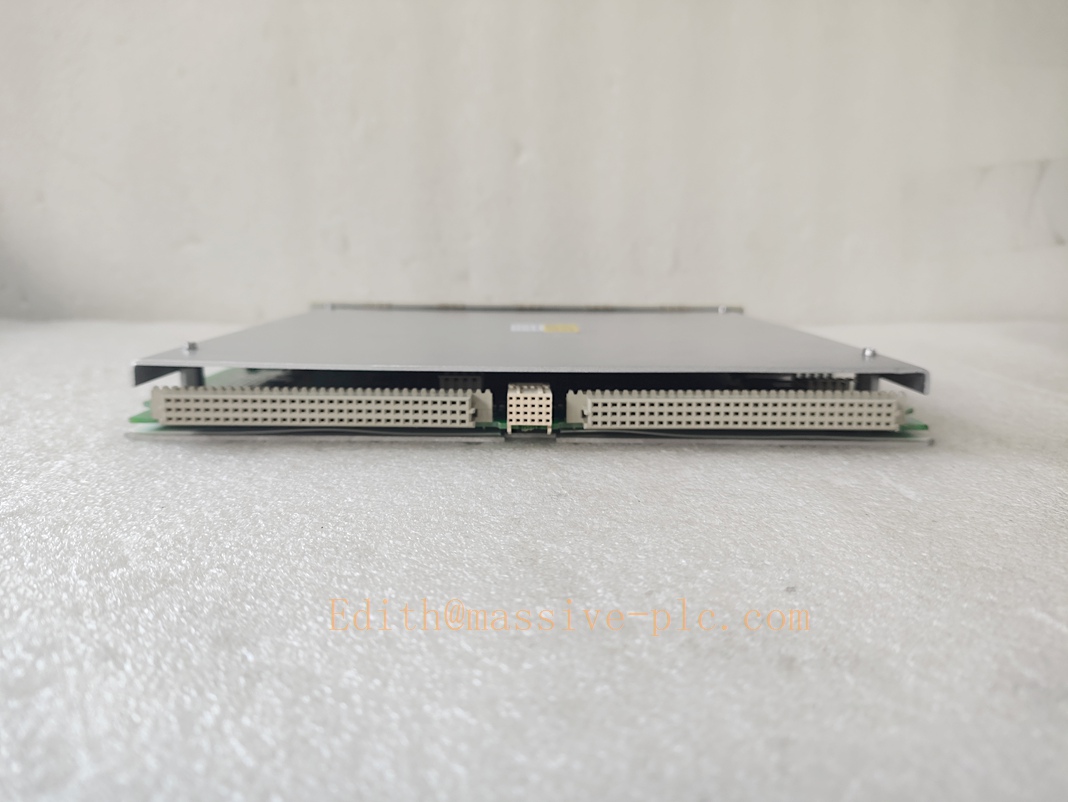

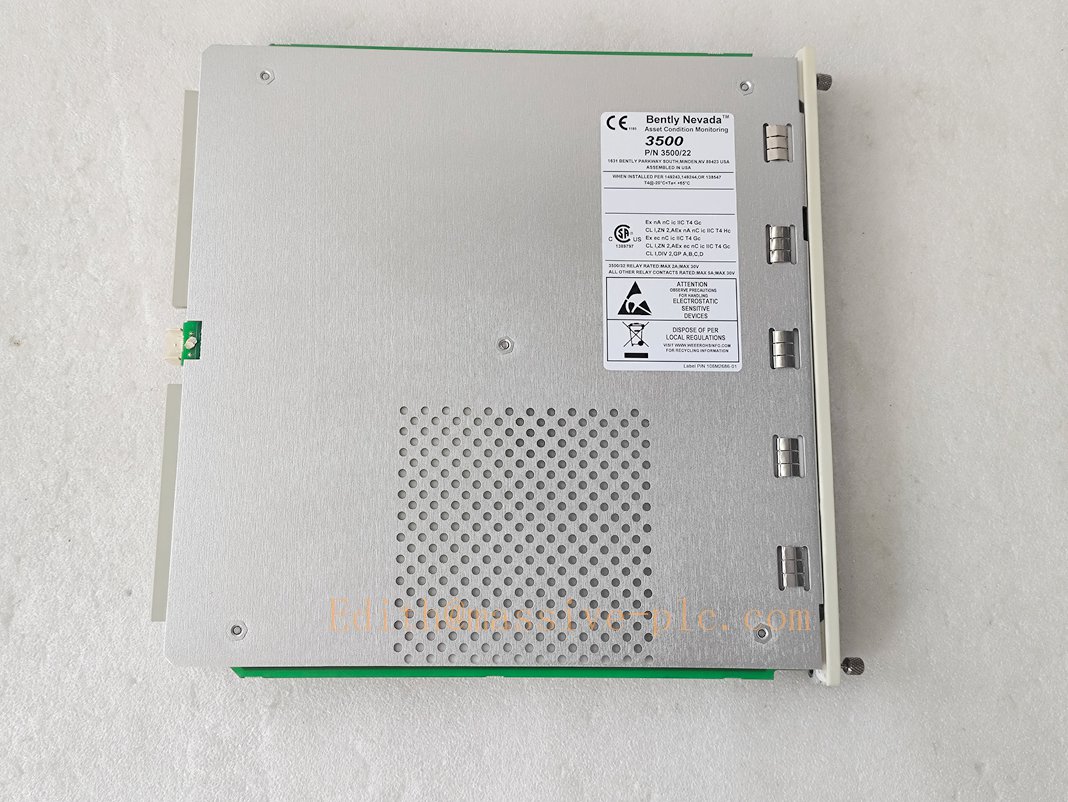

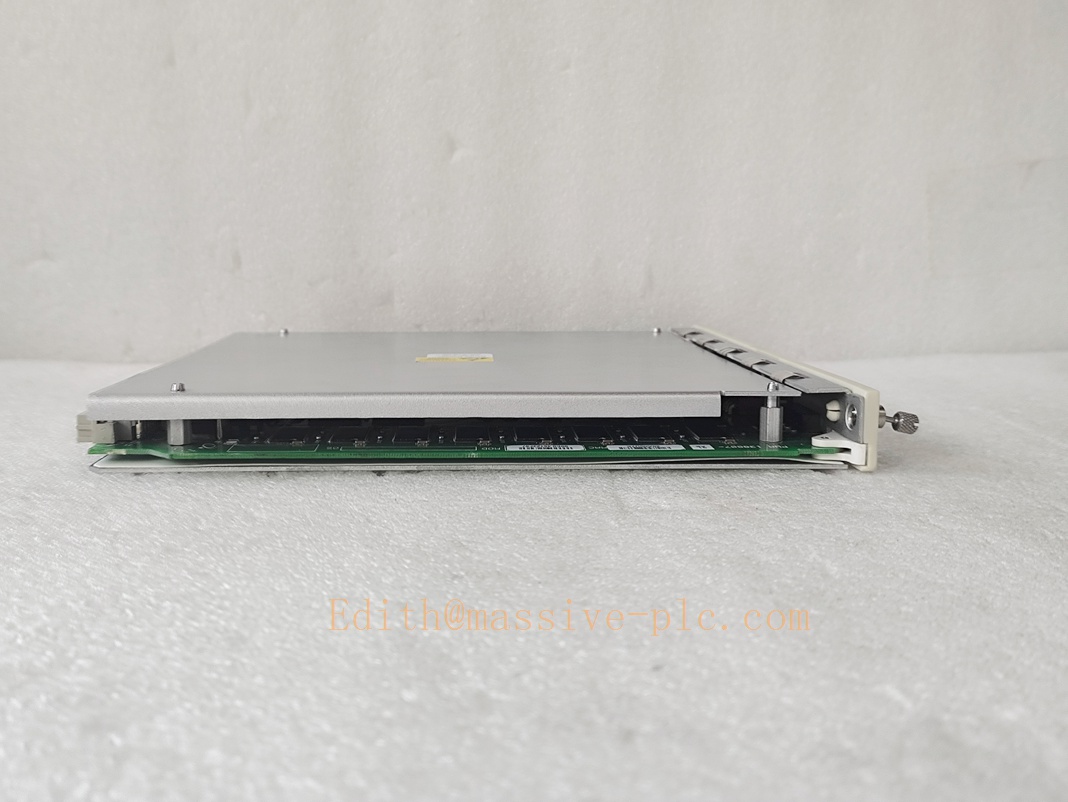

Bently Nevada 3500/22M (138607-01) Transient Data Interface (TDI) Module Product Introduction

Product Overview

The Bently Nevada 3500/22M (138607-01) is the core standard Transient Data Interface (TDI) main module of the 3500 machinery protection and condition monitoring system, serving as the pivotal communication gateway component for the entire 3500 rack. Integrating the full functions of traditional Rack Interface Module (RIM) and high-speed transient data processor, it replaces the independent 3500/20 RIM module and TDXnet communication processor, realizing unified rack management, system configuration and high-precision transient data transmission. As a core functional component of 3500 system, it undertakes the key tasks of rack-level data convergence, protocol conversion, upper computer docking and fault data snapshot.

The 138607-01 version is the classic standard TDI main board for 3500/22M series, perfectly matching the supporting 146031-02 rear panel. It stably connects the 3500 monitoring rack with mainstream upper monitoring platforms including System 1 condition diagnosis software and 3500 configuration software. It supports real-time upload of static process data, dynamic vibration waveforms, start-stop transient data and fault snapshot records of rotating equipment. Widely deployed in thermal power, petrochemical, natural gas and metallurgical industries, it guarantees high-reliability operation and predictive maintenance of key rotating units such as turbines and compressors.

Core Technical Parameters

Version Definition & Core Positioning

1. Core Positioning: 138607-01 is the standard core main board version of 3500/22M TDI module and an indispensable key component of 3500 machinery protection monitoring system, undertaking rack core management and full data communication tasks;

2. Integrated Upgrade Features: This version highly integrates traditional independent RIM module and TDXnet communication processor functions, simplifying rack structure, reducing hardware failure points, and improving the overall integration and operation stability of the monitoring system;

3. Version Matching: Perfectly compatible with 146031-02 supporting rear panel, fully adapted to all 3500 series monitoring modules, power supplies and rack accessories, supporting complete system configuration and data transmission functions;

4. Industrial Value: As the core data interaction hub of the 3500 system, it realizes unified management of rack configuration, real-time transmission of monitoring data and complete recording of fault information, which is the core guarantee for equipment condition monitoring and fault diagnosis.

Core Functions and Product Advantages

4.1 Dual Integration of RIM Management + High-Speed Data Transmission

The 3500/22M 138607-01 module innovatively integrates rack interface management and high-speed transient data processing functions. It replaces two independent hardware units of the traditional solution, centrally completing 3500 rack parameter configuration, program download, operation status monitoring and fault diagnosis. Meanwhile, it efficiently collects dynamic vibration, displacement, speed and transient mutation data of all monitoring channels in the rack, realizing one-stop management and transmission of system data, greatly simplifying system architecture and improving operation efficiency.

4.2 Professional Transient Fault Snapshot & Complete Data Recording

As the core data recording component of the 3500 system, it supports high-precision capture of equipment start-stop transient waveforms, abnormal vibration mutation signals and alarm trigger snapshots. It completely records pre-fault and post-fault full-cycle data, makes up for the deficiency of static data monitoring, provides complete and accurate data basis for equipment accident root cause analysis and fault troubleshooting, and strongly supports industrial equipment predictive maintenance.

4.3 Stable Docking With Professional Monitoring Software

The module is specially adapted to Bently Nevada professional supporting software, including System 1 equipment condition diagnosis platform and 3500 system configuration software. It realizes stable upload of real-time monitoring data, trend curve display, waveform playback, alarm event record query and system remote configuration, forming a complete closed-loop system of “field monitoring-data transmission-upper analysis-operation management”.

4.4 High System Integration & Low Failure Rate

Compared with the traditional separate configuration of RIM and communication processor, the integrated design of 138607-01 reduces intermediate link faults, simplifies on-site wiring and system debugging steps, and effectively reduces equipment operation and maintenance costs. The industrial-grade optimized circuit design ensures long-term stable operation in high-vibration and strong-interference industrial environments, with excellent anti-aging and anti-interference performance.

4.5 Online Hot-Swap & Zero Monitoring Blind Spot

Supporting online hot-swap maintenance, the module can be replaced and debugged during normal operation of the 3500 system without shutting down the rack or interrupting equipment monitoring functions. It avoids monitoring blind spots caused by equipment maintenance, ensures 24/7 uninterrupted monitoring of key rotating equipment, and improves the overall availability and safety of the machinery protection system.

4.6 Full Rack Intelligent Diagnosis & Status Monitoring

As the core management unit of the rack, it centrally monitors the operating status of all modules in the 3500 rack, including power supply status, module communication status, channel signal abnormality and hardware faults. It automatically generates fault codes and event logs, supports rapid positioning of system faults, simplifies on-site operation and maintenance work, and improves system management intelligence.

Application Scenarios

As the core key component of Bently Nevada 3500 machinery protection monitoring system, the 3500/22M 138607-01 TDI module is widely used in high-risk and high-precision monitoring industries such as thermal power, petrochemical, natural gas and metallurgy. It is mainly applied to condition monitoring, safety protection and fault diagnosis of large core rotating equipment including steam turbines, gas turbines, centrifugal compressors, axial compressors and industrial blowers. It provides core data transmission and system management support for equipment safety early warning, abnormal vibration analysis and predictive maintenance, ensuring long-term safe and stable operation of industrial key units.

Installation and Maintenance Guidelines

1. Installation Specification: Installed in the dedicated RIM slot of 3500 system rack, precisely docked with 146031-02 rear panel, firmly fixed to ensure stable backplane bus communication;

2. System Configuration: Complete rack parameter configuration and software docking through 3500 configuration software after installation, verify data transmission and waveform acquisition functions;

3. Wiring Standard: Cooperate with matched rear panel for standard shielded cable wiring, separate strong and weak current lines to avoid electromagnetic crosstalk and signal interference;

4. Daily Inspection: Regularly check module running status indicators, rack communication link status and fault log records;

5. Environmental Maintenance: Keep the rack dry, ventilated and dust-free, avoid high temperature, humidity and corrosive gas erosion to ensure stable circuit operation;

6. Regular Debugging: Periodically verify transient data snapshot, waveform display and alarm record functions to ensure complete and accurate system data acquisition and transmission.
