TRICONEX 3700A TMR Analog Input Module

Description

TRICONEX 3700A TMR Analog Input Module Product Introduction

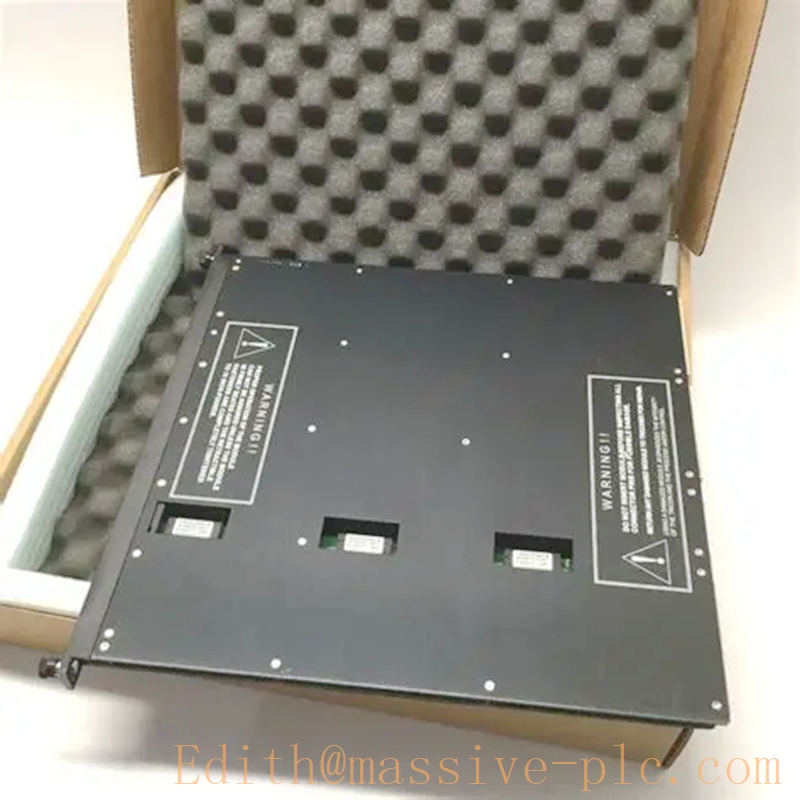

TRICONEX 3700A

Product Overview

The TRICONEX 3700A is a high-precision TMR Triple Modular Redundancy Analog Input Module developed for TRICONEX Tricon series Safety Instrumented Systems (SIS). Designed for high-density and high-stability field analog signal acquisition, it supports both standard 4–20 mA current signals and 0–5V voltage signals from industrial transmitters. Adopting a strict three-channel fully redundant hardware design and 2oo3 fault-tolerant voting logic, the module eliminates single-point faults and transient signal interference, ensuring ultra-reliable sampling of critical process parameters.

Featuring 12-bit high-resolution ADC conversion, excellent common-mode rejection capability and full-channel isolation protection, the 3700A delivers precise and stable data acquisition in harsh industrial environments. Fully compliant with IEC 61508 SIL 3 functional safety standards and TÜV certified, it is widely applied in petrochemical, natural gas, thermal power and coal chemical industries for ESD emergency shutdown systems, FGS fire and gas monitoring systems, and large rotating machinery safety protection systems.

Core Technical Parameters

Model Version Definition

1. Model Positioning: The 3700A is a high-density SIL3 safety-grade universal analog input module for classic TRICONEX Tricon SIS systems, compatible with both current and voltage field analog signals;

2. Version Advantages: The 3700A features upgraded signal conditioning circuits, higher sampling accuracy and stronger environmental adaptability compared with ordinary versions. It optimizes high-frequency interference filtering and low-drift sampling performance, ensuring long-term stable operation in G3-level harsh industrial environments;

3. System Matching: Fully compatible with Tricon CX/EX series racks, mainstream main processors and full range of SIS I/O modules, supporting single and redundant system configuration modes;

4. Safety Level: Complies with IEC 61508 SIL3 highest industrial safety standards, realizing fault-tolerant and high-precision acquisition of core process analog signals.

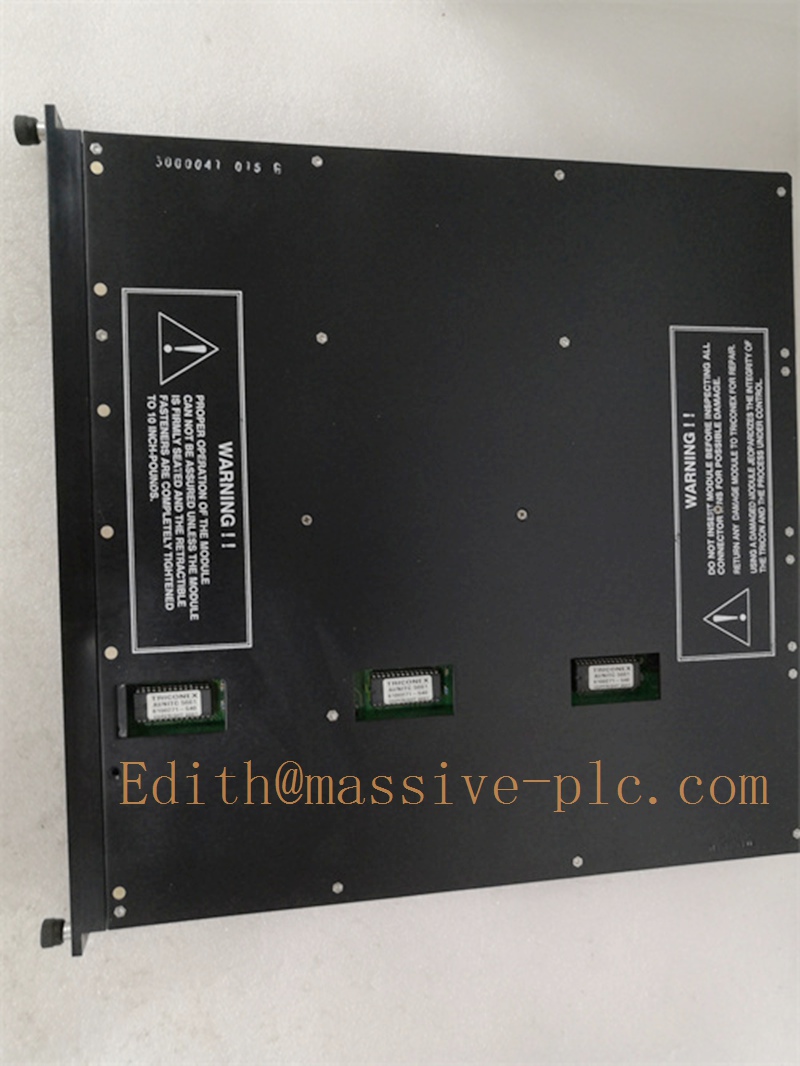

TRICONEX 3700A

Core Functions and Product Advantages

4.1 Full TMR Fault-Tolerant Sampling Architecture

The 3700A adopts three completely independent redundant signal acquisition channels. All field analog signals are synchronously collected, compared and verified via 2oo3 hardware voting logic. Any single-channel hardware failure, signal deviation or transient interference will be automatically isolated and corrected. It effectively avoids data misjudgment or loss caused by single-point faults, guaranteeing the absolute reliability of safety interlock data.

4.2 Dual Signal Compatibility & High Density

Supporting both 4–20mA current and 0–5V voltage analog input, the module adapts to most industrial field transmitters and sensor equipment. With 32 isolated channels integrated in a single unit, it greatly improves on-site signal acquisition density, saves SIS rack slot resources and reduces overall system construction costs, perfectly meeting large-scale process signal collection demands.

4.3 High-Precision & Low-Drift Acquisition Performance

Equipped with 12-bit high-resolution ADC chips and optimized signal filtering algorithms, the 3700A achieves full-scale accuracy within 0.15%. The ultra-high input impedance design reduces load interference to field instruments, while excellent common-mode rejection capability suppresses on-site electromagnetic noise. It maintains stable and consistent sampling precision under long-term full-load and wide-temperature operating conditions.

4.4 High-Isolation & Harsh Environment Adaptability

Each channel features 1500VDC independent electrical isolation, completely isolating field loop interference, common-mode voltage and static noise from the system internal bus. With G3 industrial harsh environment grade design, wide temperature tolerance and strong EMC electromagnetic compatibility, the module operates stably in chemical, thermal power and other high-interference and extreme temperature scenarios.

4.5 Online Hot-Swap & High System Availability

The module supports online hot-swap replacement during normal system and production operation. Daily maintenance, fault inspection and module replacement can be completed without disabling safety interlock logic or stopping production, minimizing system downtime and operational safety risks, and improving the continuous operation capability of industrial safety systems.

4.6 Full-Coverage Intelligent Fault Diagnosis

Built with comprehensive self-diagnosis functions, the 3700A can real-timely monitor channel open circuit, short circuit, signal over-range, hardware abnormality and communication status. It accurately records fault codes and event logs, supports rapid positioning of field wiring faults and module failures, greatly improving on-site troubleshooting efficiency and system maintainability.

Application Scenarios

The TRICONEX 3700A high-density analog input module is widely used in SIL3-level safety instrumented systems in petrochemical, natural gas, coal chemical, thermal power and other high-risk industries. It is mainly used for real-time acquisition of process analog parameters such as field pressure, temperature, flow and liquid level, serving core systems including ESD emergency shutdown, FGS fire and gas linkage, and large unit equipment protection systems, providing high-precision and high-reliability data support for industrial safety interlock judgment.

Installation and Maintenance Guidelines

1. Installation Specification: Installed in standard Tricon SIS rack slots, firmly fixed with reliable backplane bus connection to ensure synchronous data transmission;

2. Signal Wiring: Adopt shielded twisted-pair cables for analog signal wiring, separate from strong-current cables to avoid electromagnetic crosstalk and signal jitter;

3. Signal Configuration: Select matching current/voltage input mode according to field transmitter type to ensure signal acquisition accuracy;

4. Regular Calibration: Perform periodic zero-point and full-scale calibration to eliminate long-term operating drift and maintain sampling precision;

5. Daily Maintenance: Regularly check module operating status, fault logs and heat dissipation conditions, clean dust to avoid signal instability caused by poor heat dissipation;

6. System Debugging: Complete channel signal testing and data verification after module replacement or system upgrade to ensure consistent and accurate acquisition of all analog points.
