Bently Nevada 3701/60A Wind Turbine Monitor

Description

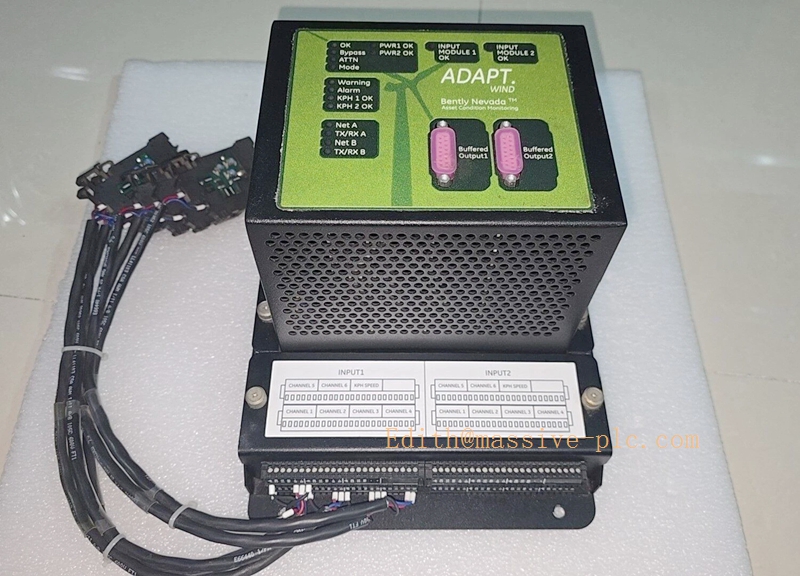

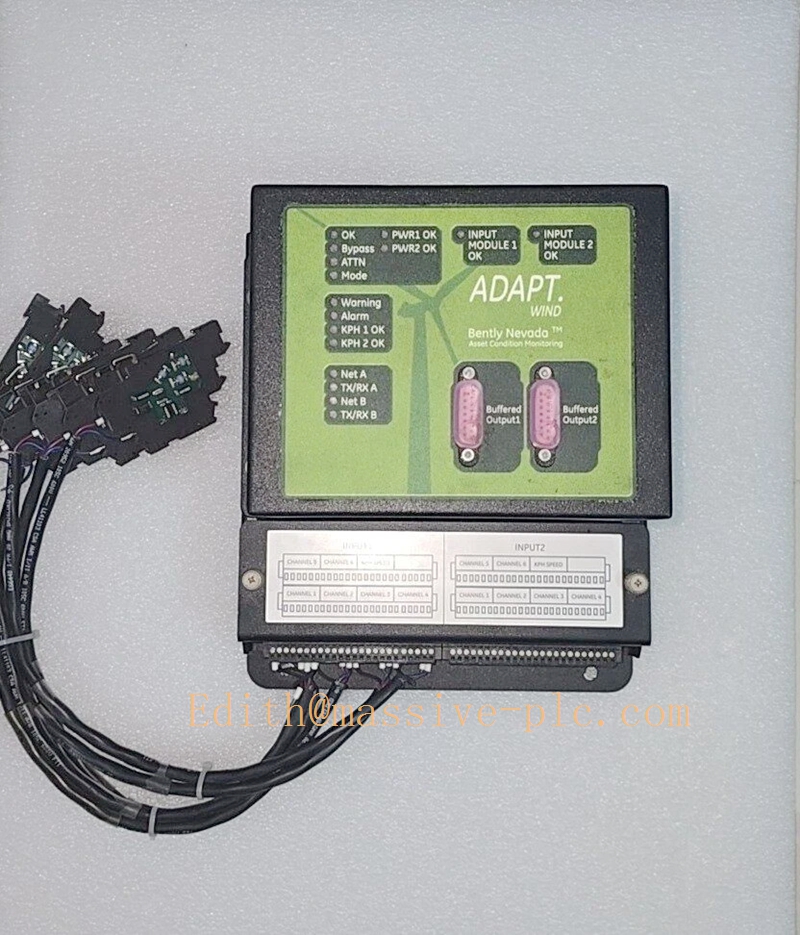

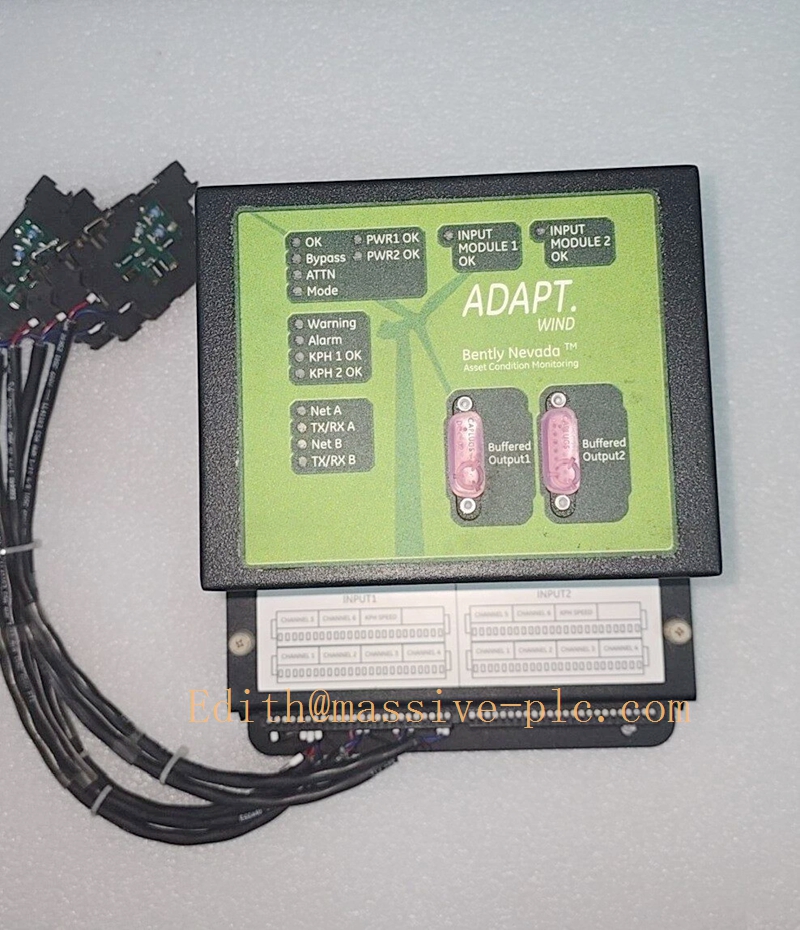

Bently Nevada 3701/60A Wind Turbine Monitor

Model Introduction

Model: 3701/60A Wind Turbine Monitor Part Number: 3701/60A Device Type: Rugged stand‑alone condition‑monitoring unit within ADAPT‑3701 platform, next‑generation successor of legacy 3701/60 (177989‑02) Manufacturer: Bently Nevada (Baker Hughes)

System Compatibility: ‑ Wall‑mount / cabinet‑mount unit for wind‑turbine nacelle; not safety trip ESD device, not 3500 rack module. ‑ Supports IEPE accelerometer, proximity probe, keyphasor/speed, 4‑20 mA process signals. ‑ Configuration via BNMC (Bently Nevada Monitor Configuration) software; native integration with System‑1 Evolution asset management platform. ‑ Dual‑Ethernet + RS485; Modbus‑TCP / Modbus‑RTU for SCADA / wind‑farm control system connection. ‑ Hardware & firmware not fully backward‑compatible with old 3701/60 (177989‑02); cannot direct drop‑in replacement without project re‑configuration.

Application Scenarios: On‑shore & offshore wind turbines. Monitor main bearing, gearbox (planet gear, intermediate shaft, high‑speed shaft), generator bearing. Advanced envelop detection, order‑tracking FFT, time‑waveform capture for early detection of bearing spalling, gear tooth damage, shaft misalignment; support condition‑based maintenance strategy. Country of Origin: United States Lifecycle Status: Active production, new units & spare parts available.

Important note: ‑ 3701/60A = condition monitoring CM only, no safety overspeed trip function. If overspeed protection required, deploy independent 3701/55 TMR‑ESD controller. ‑ When retrofitting old 3701/60‑177989‑02 sites: sensor wiring may reuse, but configuration project must be rebuilt in BNMC software.

Technical Introduction

Core Functions

‑ Multi‑channel sensor input: IEPE accelerometer, proximity displacement probe, keyphasor/speed, 4‑20 mA analog process signals. ‑ 24‑bit high‑resolution ADC sampling; advanced wind‑turbine optimized algorithms: order‑tracking filter, envelop analysis, variable‑speed FFT spectrum, time‑domain waveform recording. ‑ Per‑channel configurable Alert / Danger thresholds, alarm delay, latching mode, transducer fault detection (open‑circuit / short‑circuit). ‑ Large‑onboard storage: historical trending data, event log, fault snapshot waveforms for post‑failure root‑cause analysis. ‑ Dual‑Ethernet port for network redundancy; RS485 Modbus‑RTU; Modbus‑TCP for wind‑farm SCADA integration. ‑ USB service port for local BNMC software configuration & diagnostics. ‑ Rugged mechanical design for nacelle high‑vibration, wide‑temperature working environment.

Key Technical Specifications

Mechanical Feature

Heavy‑duty metal reinforced enclosure, wall‑mount / cabinet‑mount installation inside wind‑turbine nacelle cabinet. Rear terminal blocks for sensor, power and communication wiring; front‑panel USB service port. Non hot‑swap; power‑off before modifying field wiring.

Adaptive Quality Assurance & Test Protocol

3.1 Factory Adaptive QA Procedure

1. Full unit power‑on self‑diagnostic verification.
2. Signal‑injection test for accelerometer, proximity probe, speed input; validate measurement accuracy, order‑tracking & envelop algorithm performance.
3. 4‑20 mA analog‑input channel accuracy test.
4. Alarm threshold, delay and transducer fault simulation test (open / short‑circuit).
5. Event‑log & fault‑waveform snapshot recording verification.
6. Modbus‑TCP / RTU & System‑1 Evolution communication interoperability test.
7. Environmental screening: wide‑range temperature cycling, vibration‑shock test, EMC noise‑immunity test.
8. Serial‑number traceability, full functional‑test report archived.

3.2 On‑site Acceptance Test Protocol

1. Visual inspection: Check enclosure, terminal blocks and connectors for mechanical damage.
2. Wiring check: Vibration sensors, speed signal, 24VDC power supply, Modbus communication cables.
3. Power‑on unit; confirm self‑test completes without hardware fault.
4. Connect PC over USB; download site project via BNMC software, configure channel parameters, alarm thresholds, operating‑condition trigger rules.
5. Inject simulated sensor signals channel‑by‑channel; verify reading, alarm trigger, event‑log and waveform capture.
6. Cross‑check measurement data consistency between unit and wind‑farm SCADA via Modbus.
7. Simulate sensor open‑circuit / short‑circuit to validate fault‑alarm response.
8. Record part‑number, firmware‑version, backup project source file for site QA archive.

Bently Nevada 370160A

Field Engineer Technical Notes

Installation Guidance

‑ Install inside nacelle cabinet; avoid direct solar radiation; maintain ventilation. ‑ Sensor cables must be shielded; physically separate from frequency‑converter high‑power cables; apply single‑end shielding grounding to minimize EMI noise. ‑ Retrofit note: replacing legacy 3701/60 (177989‑02) with 3701/60A: field sensor cables may reuse, but old project files cannot be imported; re‑configure all parameters in BNMC software. ‑ 3701/60A is condition‑monitoring unit only; safety overspeed protection must be realized by separate 3701/55 TMR‑ESD.

Field note: 3701/60A is factory recommended hardware for new‑build wind‑farm CM systems and legacy‑unit upgrade projects.

Commissioning Tips

‑ All channel parameters, spectrum setup and alarm logic are configured within BNMC software; securely archive project source file. ‑ Configure operating‑condition triggers (wind‑speed, generator power) for variable‑speed wind turbine operation to suppress false alarms. ‑ Cross‑validate local unit readings against remote SCADA / System‑1 Evolution readings.

Troubleshooting Common Issues

1. Unit no power: Check 18‑36 VDC power supply and rear‑terminal connection.
2. Channel transducer fault: Inspect accelerometer / probe field cables for open‑circuit or short‑circuit, verify sensor excitation power.
3. Modbus communication drop‑out: Verify Ethernet / RS485 wiring, slave address, baud‑rate, parity and bus termination resistor.

Diagnostic: Retrieve event log and stored fault waveforms using BNMC software for detailed fault analysis.

Maintenance & Spare‑part Recommendation

‑ No field‑repairable internal assemblies; replace complete unit upon hardware failure. ‑ Spare‑part suggestion: maintain spare 3701/60A unit; spare‑unit firmware version shall match site running version. ‑ Preventive inspection during turbine shutdown: check mounting fastener torque, terminal‑block tightness and cable‑shield integrity.
