Description
TRICONEX 3604E Triple Modular Redundancy (TMR) Digital Output Module
TRICONEX 3604E is a highly reliable TMR triple digital output module used in the safety instrumented system SIS of TRICONEX Tricon. The module receives instructions from three main controllers and performs a two out of three vote to convert the internal interlocking logic of the system into a 24VDC on-site drive signal, driving on-site execution components such as solenoid valves, motor starters, alarm relays, etc; Each channel has a complete triple redundant hardware architecture, eliminating single point of failure and meeting SIL3 safety level. It is widely used in ESD emergency shutdown, F&G fire and gas, and HIPPS high-voltage protection safety circuits.

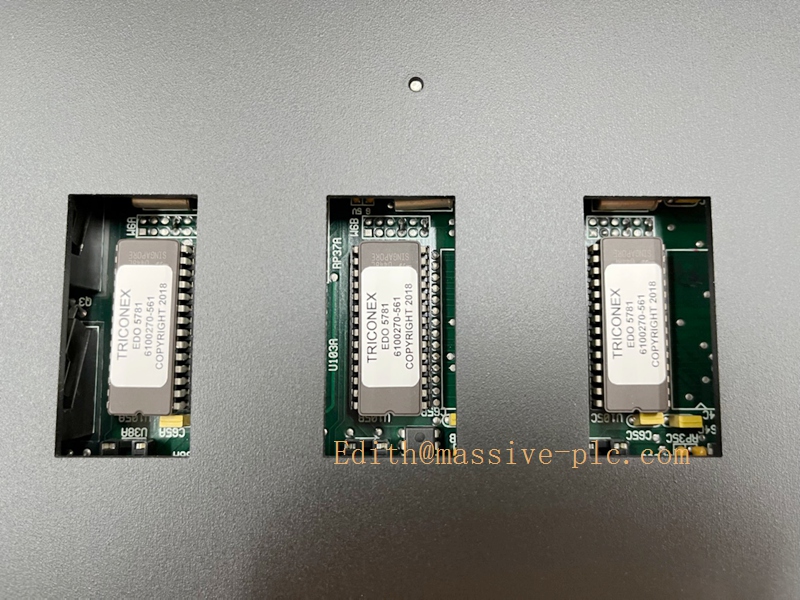

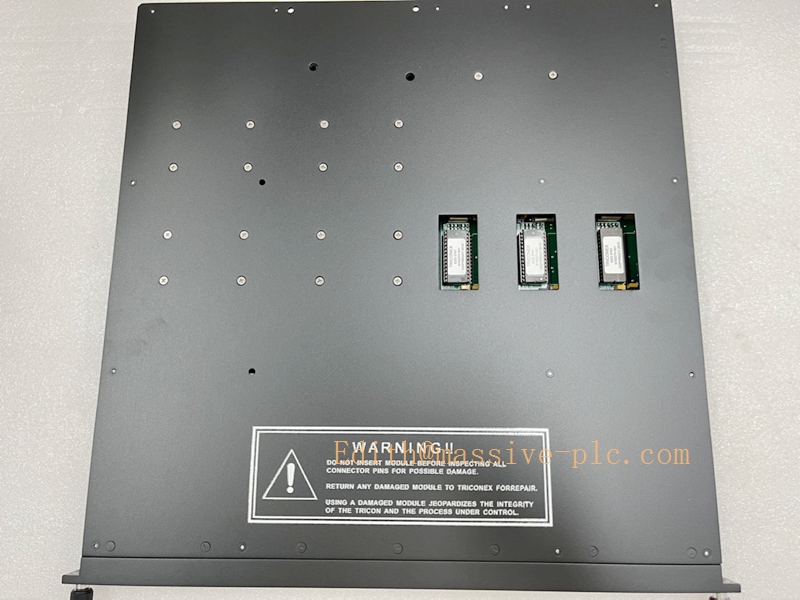

TRICONEX 3604E
| Parameter Name | Parameter Value |
|---|---|
| Product Model | TRICONEX 3604E |
| Manufacturer | TRICONEX (Schneider Electric) |
| Product Family | Tricon TMR Safety Instrumented System (SIS) |
| Primary Function | 16‑Channel TMR digital output module, opto‑isolated, non‑commoned sourcing output |
| Channel Quantity | 16 independent output channels |
| Rated Working Voltage | 24 VDC (operating range:22‑45 VDC) |
| Per‑Channel Rating | 2 A continuous, 10 A surge (10 ms maximum) |
| Isolation Specification | 1500 VDC point‑to‑point optical isolation |
| Field Fuse | 2.5 A fast‑acting fuse per channel (on field termination panel) |
| Diagnostics | Loop‑back on‑state verification, open‑circuit / short‑circuit load detection, fuse failure alarm, module health status monitoring |
| Hot‑Swap Support | Yes, hot‑swappable under online running condition |
| LED Indicators | Module RUN, FAULT indicator; per‑channel status LED |
| Operating Temperature | -40 ℃ ~ +70 ℃ |
| Humidity | 5‑95 % non‑condensing |
| Safety Certification | IEC 61508 SIL 3, TÜV, UL 864, CE certified |
| Form Factor | Full‑size plug‑in module for Tricon chassis backplane |
| Power Supply | Supplied by system rack backplane |
Core Features
- Triple Modular Redundancy & 2‑of‑3 Voting Every output channel contains three independent hardware circuits. Output is activated only when at least two of three processors issue consistent commands, preventing false trips or command loss caused by single component fault. Faulty slices can be isolated while the module keeps working without process interruption.
- Comprehensive Loop Diagnostics Supports output on‑state verification; can detect field wiring open‑circuit, short‑circuit and blown fuse. Diagnostics covers the whole safety loop from logic solver to field load, supporting predictive maintenance for safety instrumented functions.
- Optical Isolated Non‑Commoned Output 16 non‑commoned sourcing outputs with 1500 VDC galvanic isolation between channels. Eliminates cross‑channel interference and simplifies field wiring for multi‑group independent loads.
- Hot‑swappable & Mechanical Keying Module can be replaced online without system shutdown. Mechanical key prevents wrong‑slot insertion to avoid mis‑configuration risk.

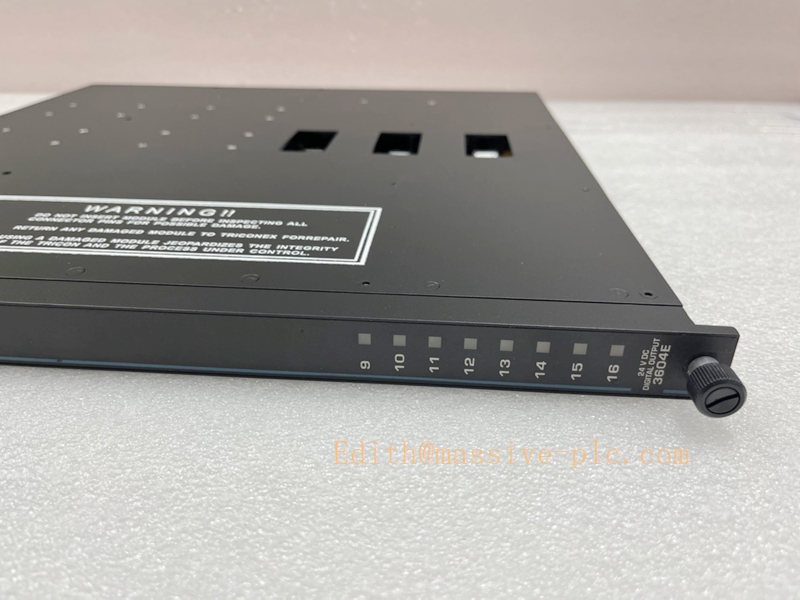

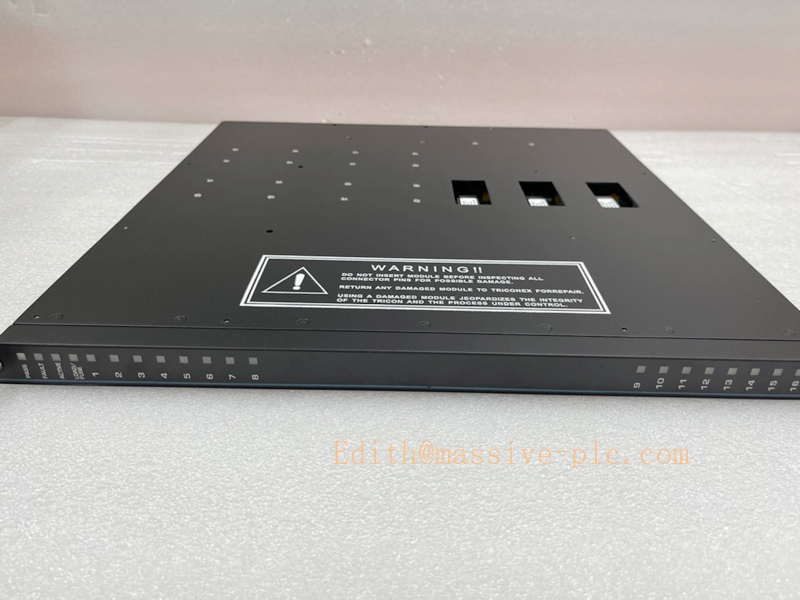

TRICONEX 3604E
Typical Application Scenarios
The TRICONEX 3604E is widely deployed for safety critical output in oil‑gas, petrochemical, power generation and offshore platforms:
- Emergency Shutdown System (ESD): Drive ESD solenoid valves, vent valves and isolation valves for compressor and process unit trip.
- Fire & Gas System (F&G): Activate fire suppression equipment, alarm annunciators and ventilation interlock devices.
- HIPPS High‑Integrity Pressure Protection System: Execute over‑pressure shutdown action.
- Thermal Power / Nuclear Auxiliary Safety Interlock: Control trip relays, solenoids for boiler and turbine auxiliary systems.
- Off‑shore & On‑site Process Plant: Safety interlock outputs for hazardous‑area final actuators.
Matching Accessories
- Tricon system chassis and redundant backplane;
- TRICONEX ETP field termination panel with 2.5 A channel fuses;
- Tricon main processor modules;
- TriStation engineering software for logic configuration, point mapping and diagnostic monitoring;
- 24 VDC field power supply, field cables for solenoids & actuators.
