Bently Nevada 330980‑71‑05 — 3300‑XL NSv Proximitor® Sensor

Description

Bently Nevada 330980‑71‑05 — 3300‑XL NSv Proximitor® Sensor

Product Overview

The 330980‑71‑05 is a Proximitor® sensor belonging to the Bently Nevada 3300‑XL NSv (Narrow‑Side‑View) eddy‑current transducer family, with 7‑meter total system length, DIN‑rail mounting and multi‑hazardous‑area certifications. It serves as the signal‑conditioning unit for non‑contact proximity measurement systems, converting impedance variation between NSv‑series probe tip and metallic rotating target into calibrated DC gap‑voltage output for static position and dynamic vibration monitoring.

Compared with 330980‑51‑05 (5 m DIN‑rail NSv proximitor), this variant supports 7‑meter total system cable length, for field sites with intermediate wiring distance between machine probes and instrument cabinets. The NSv series is optimized for confined installation space, small‑diameter shafts and counter‑bore probe mounting conditions where standard 8 mm /11 mm probes cannot physically fit.

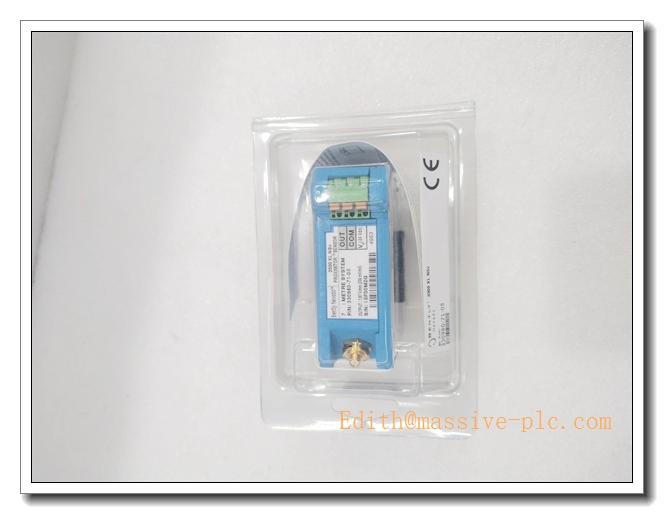

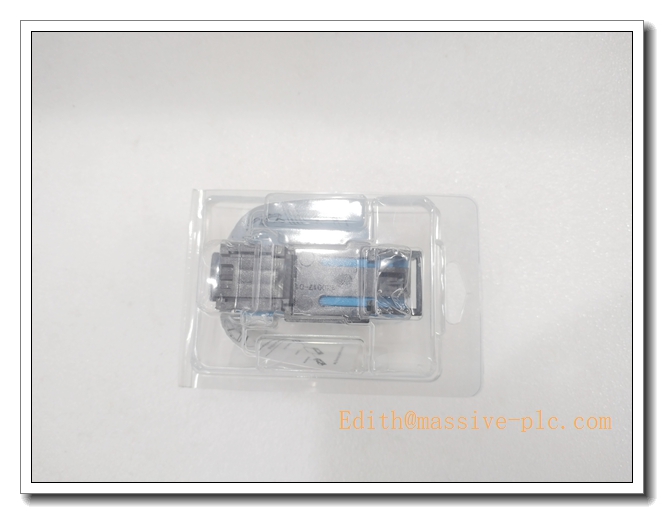

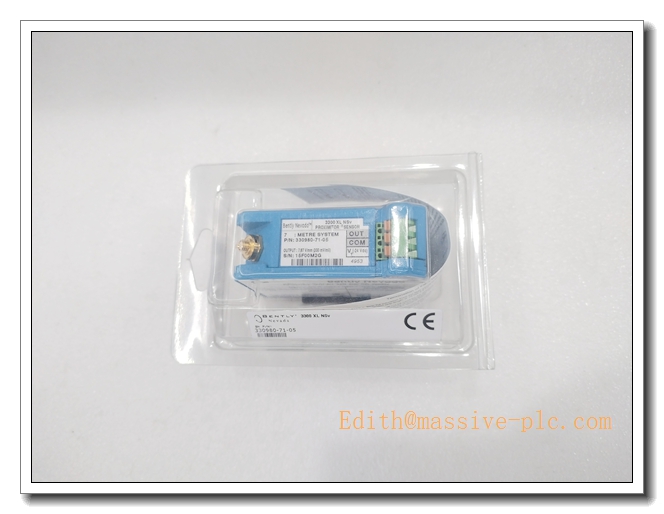

330980-71-05

Specific Application Information

Work with matched 3300‑XL NSv proximity probe and extension cable for non‑contact measurement on metallic rotating components:

1. Radial shaft vibration: AC output component captures shaft vibration amplitude for journal‑bearing health monitoring, especially for small‑diameter shafts below 51 mm.
2. Axial thrust / shaft position: DC gap‑voltage monitors static thrust‑shaft displacement, detecting thrust‑bearing degradation risk.
3. Keyphasor® speed & phase reference: Cooperates with NSv notch‑probe to generate tachometer pulses for RPM calculation and rotor phase analysis.
4. Confined‑space retrofit: Drop‑in spare for legacy 7‑meter NSv proximity loops, solving narrow counter‑bore / limited side‑view mechanical installation constraints.

Key Specifications

Main Features

• 7‑meter matched total‑system length: Designed for intermediate wiring‑distance sites; sum of probe cable plus extension cable must strictly equal 7 m to guarantee scale‑factor accuracy.
• NSv narrow‑side‑view architecture: Optimized for counter‑bore installation, limited side‑clearance and small‑shaft applications where standard‑size probes cannot be assembled.
• High RFI/EMI immunity: Superior radio‑frequency interference resistance, stable performance inside fiberglass cabinets without extra metallic shielding requirements.
• API‑670 compliant performance: Suitable for turbomachinery protection loops under heavy industrial electrical disturbance.
• Dual‑mount mechanical design: Clip‑on 35 mm DIN‑rail for high‑density cabinet layout; bulk‑head mounting holes for legacy‑footprint retrofit.
• Built‑in diagnostic logic: Not‑OK / Signal‑Defeat circuit prevents false alarms caused by open‑circuit, short‑circuit or loose coaxial connectors; Power‑Up Inhibit suppresses power‑on transient false trips.
• Dual‑purpose signal outputs: Terminal‑block DC gap‑voltage for monitor rack; coaxial PROX‑OUT port outputs raw dynamic vibration waveform for oscilloscope or portable diagnostic instruments.
• Potted rugged aluminum housing: Resists humidity, cabinet‑level shock and vibration, fit for petrochemical, power‑plant and offshore environments.
• Test‑input pin: Supports loop simulation test via function generator; no mechanical shaft intervention required during commissioning verification.
• Intrinsic‑safety hazardous‑area ratings: ATEX / IECEx Ex ia IIC certification for Zone 0 / Zone 1 classified hazardous locations.
• Integrated isolation base: 500 Vrms isolation between unit and DIN‑rail, eliminating requirement for separate insulating mounting plates.

Typical Application Scenarios

• Steam / gas turbine protection with counter‑bore probe installation and medium field‑to‑cabinet wiring distance
• Centrifugal compressors, refrigeration compressors in refinery, petrochemical and LNG facilities
• Critical pumps, fans and motors with small‑diameter rotating shafts (<51 mm)
• Off‑shore platform rotating‑machinery condition‑monitoring loops with narrow mechanical installation space
• Pulp‑and‑paper, steel‑mill heavy rotating‑equipment with limited probe mounting clearance
• Hazardous‑area classified sites requiring ATEX / IECEx intrinsic‑safety certification
• Retrofit and spare‑part replacement for existing 7‑meter 3300‑XL NSv proximity‑measurement loops

Related & Recommended Alternative Models

Compatible Components & Accessories

1. 3300‑XL NSv proximity probes: e.g. 330901‑xx‑xx‑xx‑xx‑xx series; must be NSv family for 7‑meter total‑system configuration.
2. Matched 3300‑XL NSv extension cables: 330931‑xx‑xx‑00 series; probe cable + extension‑cable total length =7 m.
3. Bently Nevada monitor modules: 3500/42M, 3300/12, 3300/15 monitor racks for gap‑voltage acquisition, alarm and trip logic.
4. Shielded twisted‑pair field wiring: 22 AWG shielded cable for power and signal; single‑end shield grounding only at monitor‑rack side.
5. 35 mm standard DIN‑rail: for cabinet DIN‑clip installation.
6. Calibration test fixture: static gap‑calibration tool for commissioning and periodic‑maintenance verification.

Installation and Configuration Guide

Warning: Installation must be performed by qualified instrumentation technicians. Always refer to original Bently Nevada 3300‑XL NSv official user manual as primary authority.

1. Mechanical Mounting
   • Install proximitor inside clean, ventilated instrument cabinet; avoid mounting adjacent to high‑power contactors or variable‑frequency drives to minimize EMI interference.
   • Snap unit onto standard 35 mm DIN‑rail or fasten through bulk‑head mounting holes. Ensure isolation base is fully seated; reserve peripheral clearance for heat dissipation.
2. 7‑Meter System‑Length & NSv‑Family Matching
   • Confirm probe and extension‑cable are genuine NSv‑series parts, not standard 8 mm /11 mm transducer components. Sum of probe‑cable length plus extension‑cable length must equal exactly 7 meters. Mismatched family or length will cause measurement failure.
   • Torque coaxial connectors to manufacturer‑specified torque value; avoid over‑tightening. Do not connect / disconnect coaxial cables while power is applied.
3. Electrical Wiring
   • Supply negative‑polarity DC power: ‑17.5 VDC ~ ‑26 VDC to power terminals. Positive‑polarity supply will permanently damage the proximitor.
   • Deploy shielded twisted‑pair for power and signal wiring. Connect cable shield only at monitor‑rack end, leave shield floating at proximitor side to eliminate ground‑loop noise.
   • Terminate PROX‑OUT coaxial port to diagnostic instrument when dynamic waveform capture is needed; cap unused PROX‑OUT connector.
4. Commissioning & Gap‑Voltage Adjustment
   • Adjust mechanical NSv probe installation gap to nominal mid‑range working point (target gap‑voltage approx. ‑10 VDC for AISI‑4140 steel target).
   • Measure DC gap‑voltage between SIG and COM terminals with high‑impedance multimeter, confirm operating point lies within linear zone (‑1 VDC ~ ‑17 VDC).
   • Perform static gap calibration; validate Not‑OK fault indication by simulating probe open‑circuit failure.
5. System Integration
   • Feed DC gap‑voltage output to Bently Nevada monitor channel. Configure monitor scale‑factor to 7.87 V/mm (200 mV/mil). Set alarm and trip thresholds following machinery OEM specification.
   • Use Test‑Input pin to inject simulated gap‑signal for loop‑function test without machine intervention.
6. Maintenance & Troubleshooting
   • Periodically inspect coaxial connections for looseness or corrosion.
   • Monitor Not‑OK status flag; Not‑OK assertion indicates failure of probe, extension‑cable or connector.
   • Internal potted assembly cannot be repaired in‑field; replace complete unit upon hardware fault.
7. Hazardous‑Area Special Requirement
   • For Ex ia IIC hazardous‑area installation, strictly comply with ATEX / IECEx rules for cable type, grounding and enclosure rating.

Supplementary Remark

330980‑71‑05 is mature 3300‑XL NSv‑series hardware, widely stocked as spare‑part for global existing turbomachinery assets with narrow‑mount constraints. Before site deployment, cross‑verify nameplate marking, NSv‑transducer family, total‑system‑length marking and agency approvals.
