ABB PU515A — Real-Time Accelerator (RTA) Board



Product Title

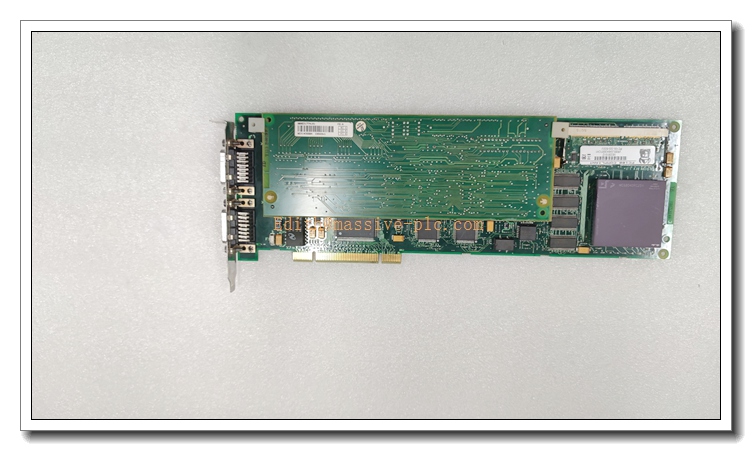

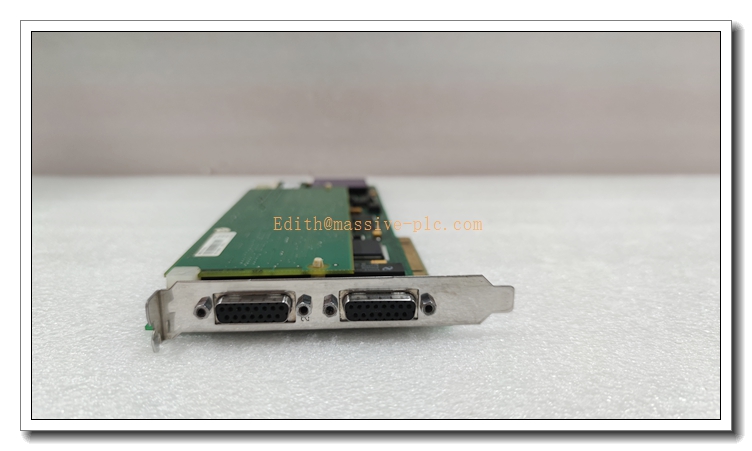

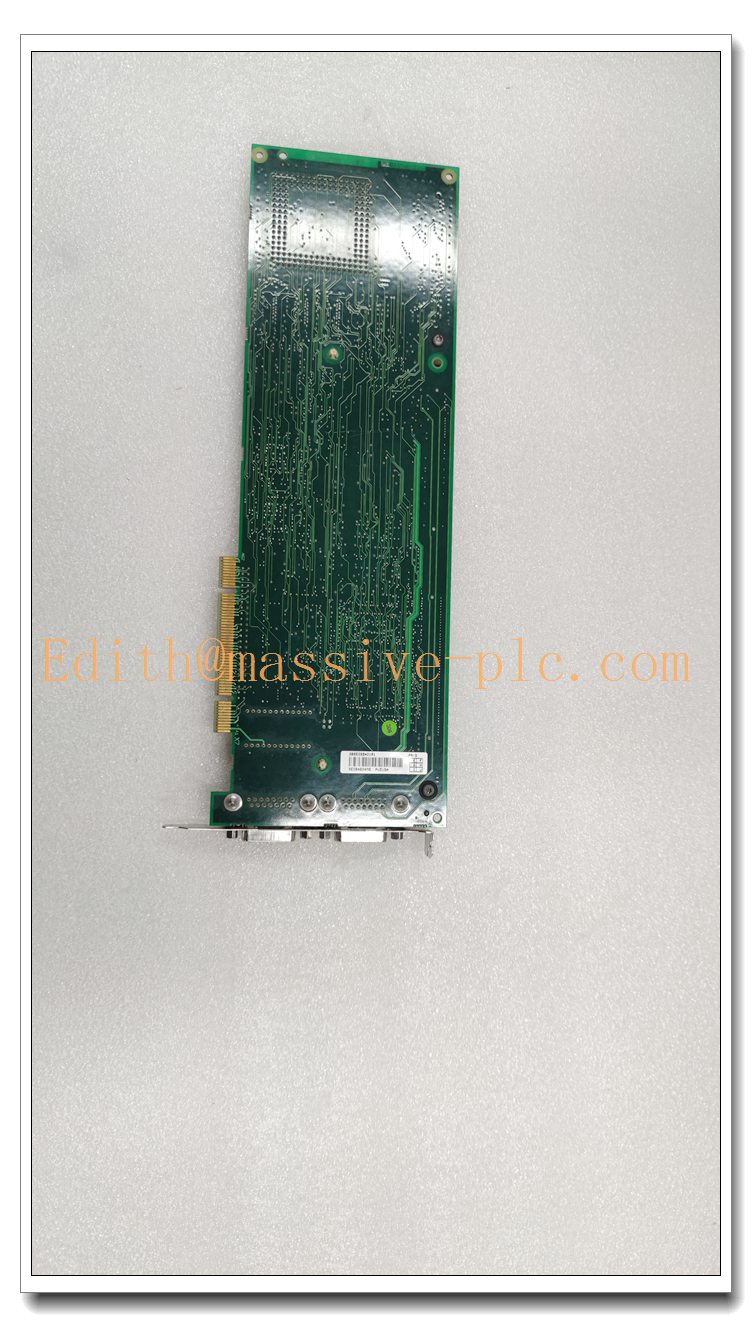

ABB PU515A (3BSE032401R1) Real-Time Accelerator / Processor Unit — Advant OCS Series



Product Detailed Description

The ABB PU515A is a Real-Time Accelerator (RTA) board / processor unit belonging to the ABB Advant OCS (Open Control System) platform, used in the Advant Station 500 Series engineering and operator stations. Its core job is to offload real-time task processing from the main controller CPU, so the control system can respond quickly and deterministically to field signals, events and process-variable polling. It carries the MB300 (MasterBus 300) / eDCN communication interface that links Unix-based operator and engineering stations to the controller sub-systems over a proprietary control bus, delivering low-latency (<10 ms class) command acknowledgment and data exchange. The board is widely used as a drop-in upgrade path replacing the older PU514 module in legacy Advant installations.

PU515A

Technical Parameters

Item Specification
Manufacturer ABB
Model / Order No. PU515A / 3BSE032401R1
Product Type Real-Time Accelerator (RTA) Board / Processor Unit
Series Advant OCS / Advant Station 500 Series
Core Function Real-time task offload, bus communication management
Bus Interface MB300 (MasterBus 300) / eDCN control bus interface
Host Connection PCI-style card interface for Advant Station / workstation
Processor Platform 32-bit class real-time processor (per 500-series)
Communication Latency Sub-10 ms class command / polling response
Redundancy Dual-channel MB300 interface on certain configs
Memory RAM per config (upgraded vs. predecessor PU514)
Operating Temperature 0 °C ~ +60 °C (typical industrial)
Mounting Rack/PCI slot in Advant Station unit
Country of Origin Sweden / ABB production



Compatibility & Installation Traps

Compatibility

  1. Designed for ABB Advant OCS / Advant Station 500 Series operator & engineering stations.
  2. Drop-in upgrade replacing ABB PU514 in compatible Advant Station racks.
  3. Interfaces with MB300 / eDCN bus to Advant Controller 400/500 and Advant Master control networks.
  4. Legacy-HMI (Unix-based workstation) front-ends are supported; verify OS/driver version before use.
  5. Not compatible with AC 800M (800xA) controller backplanes, which use different processor/power modules.

Installation Traps & Common Pitfalls

  1. Bus/network conflict: MB300/eDCN segment addressing must match the controller network; mismatched node addresses cause no-communication without an obvious alarm.
  2. Driver/OS version: RTA boards are OS/driver sensitive; installing into a workstation with an unsupported OS build leads to boot failure or non-recognition.
  3. ESD handling: The card is ESD-sensitive; handle by edges and use anti-static wrist strap — a discharge can silently corrupt the real-time processor.
  4. Slot selection: Insert only into the dedicated RTA slot; wrong slot prevents bus handshake.
  5. Firmware match: RTA firmware must match the controller-side communication firmware; always confirm revision before commissioning.

PU515A

Standard Operating Procedures (SOP)

  1. Pre-installation: Power down the workstation. Verify bus address and firmware revision against the controller. Confirm slot type and OS compatibility.
  2. ESD-safe handling: Ground yourself, remove card by edges only.
  3. Mechanical install: Insert card fully into the RTA slot; secure bracket screws to guarantee seating.
  4. Bus connection: Connect MB300/eDCN cable to the designated port; verify termination and node address.
  5. Power-on & boot: Restart the station; observe card LEDs for hardware OK status.
  6. Driver/config: Load matching driver; configure bus address, protocol and data-exchange parameters in the Advant engineering tool.
  7. Validation: Ping/read process variables between station and controller; confirm sub-10 ms response and no frame loss.
  8. Record & handover: Log parameters for maintenance file; run continuous operation test before formal use.



Typical Application Scenarios

  • Advant OCS operator and engineering station communication
  • Legacy Advant Master / Advant Controller 400/500 system upgrades
  • Unix-based SCADA / Enterprise Historian station interfaces
  • Distributed SCADA outposts requiring deterministic /eDCN links
  • Control-room migration projects replacing PU514 hardware
  • Real-time data exchange in industrial process and power plants



Matching Supporting Components

  • ABB Advant Station 500 Series workstation / rack chassis
  • (eDCN) control-bus communication cables
  • Advant engineering & operator station software (with matching drivers)
  • Advant Controller 400/500 series controllers on the bus
  • Redundant station power supply for the workstation
  • ESD-safe installation tooling / wrist strap



Related Woodward–Style / Related ABB Model Recommendations

  1. PU514: Direct predecessor; replace with for the drop-in performance upgrade.
  2. PU512 / PU513: Earlier Advant OCS RTA / communication units; check slot & firmware compatibility before interchange.
  3. PM856 / PM861 (AC 800M): Modern 800xA processor modules — not a drop-in for , but the current-generation alternative on a different platform.
  4. CI854 / CI867 (800xA): Communication interfaces for the newer 800xA platform where legacy Advant systems migrate.
