Name: VE3008 CE3008 KJ2005X1-MQ DeltaV MQ Process Controller, Emerson Distributed Control System Main Controller with Redundancy & HART Pass‑Through for Process Automation - MASSIVE
Brand: EMERSON

Description

VE3008 CE3008 KJ2005X1-MQ DeltaV MQ Process Controller, Emerson Distributed Control System Main Controller with Redundancy & HART Pass‑Through for Process Automation

Product Application

The DeltaV MQ controller is the core process control node of Emerson DeltaV DCS platform, responsible for field signal acquisition, real‑time control strategy execution, interlock logic calculation and bidirectional data communication between I/O subsystems and DeltaV control network. It is widely deployed in oil & gas refineries, petrochemical plants, power generation stations, pulp & paper mills, water treatment facilities and pharmaceutical process factories. This controller supports batch control, model predictive control, neural network advanced control, sequence of event (SOE) recording and HART field device asset management. Certified for hazardous area installation (Class I Div 2 / ATEX Zone 2), it can be installed in field remote control cabinets close to process skids. Redundant dual‑controller configuration eliminates single point of failure for critical process loops, guaranteeing uninterrupted continuous production.

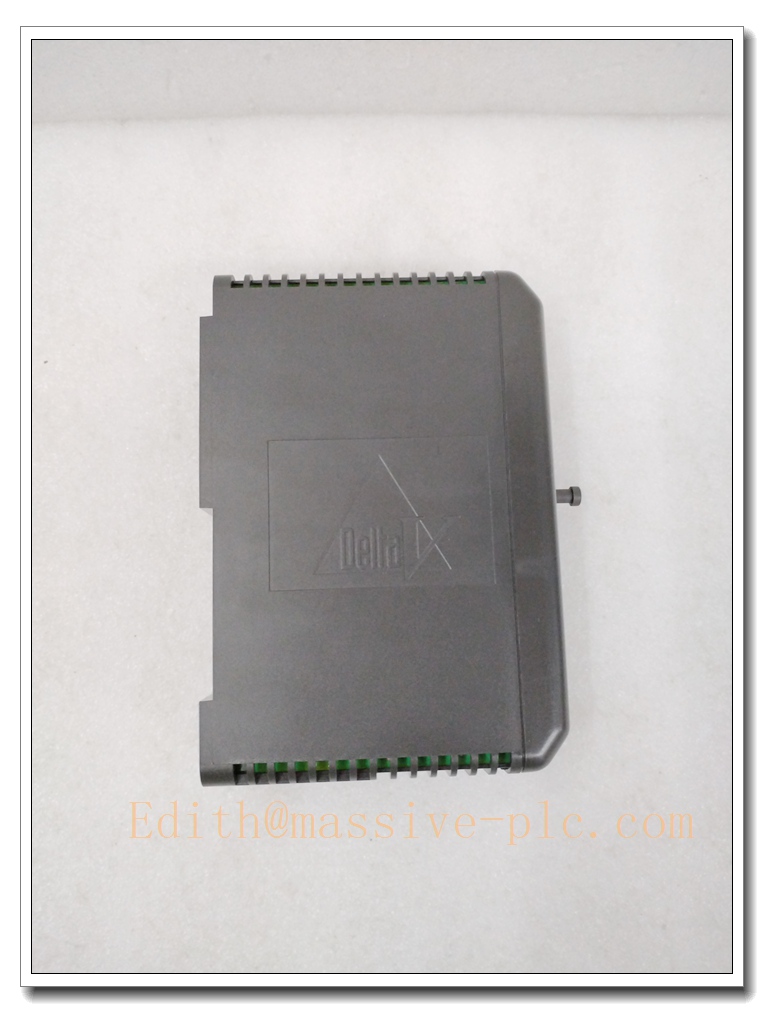

VE3008 CE3008 K2005X1-MQ

Product Specifications

Order Code: VE3008
Hardware Marking: CE3008, KJ2005X1-MQ
Product Family: DeltaV MQ Controller
Control Tag Capacity: Starts from 50 DSTs, expandable up to 750 DSTs via software license

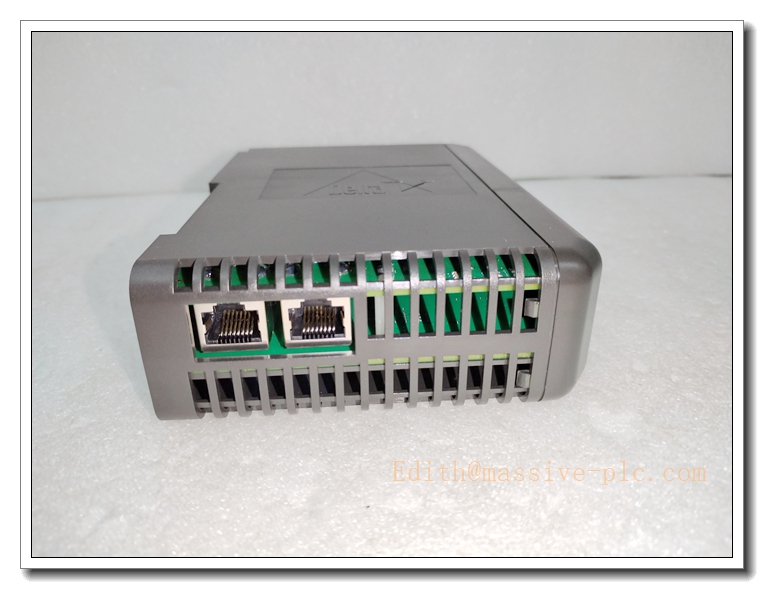

Communication Ports: Dual full‑duplex 100 Mbps Ethernet control network ports; LocalBus interface for I/O rack connection
Supported Protocol: DeltaV native protocol, HART pass‑through for AMS asset management
Redundancy: Supports 1:1 hot standby redundant configuration, bumpless switchover
Hot Swap: Hot‑swappable within DeltaV controller rack
Hazardous Area Certification: FM Class I Division 2; ATEX II 3G Ex ec IIC T4 Gc; IECEx
Mounting: Standard DeltaV controller rack slot installation
Cooling: Natural convection cooling
Protection: IP20 for cabinet‑mount application

Core Technical Parameters

Control Scan Rate: Minimum 100ms configurable control cycle
SOE Resolution: 1 ms high‑precision sequence‑of‑event timestamp recording
Memory: Equivalent memory capacity as MD Plus controller
Communication Speed: 10/100 Mbps auto‑negotiation, full duplex Ethernet
Operating Temperature: -20 ℃ ~ +60 ℃
Storage Temperature: -40 ℃ ~ +85 ℃
Relative Humidity: 5%–95%, non‑condensing
Power Supply: Powered via DeltaV rack backplane LocalBus (+5 VDC)
Self‑addressing: Automatic network identification after power‑on, no DIP switch setting

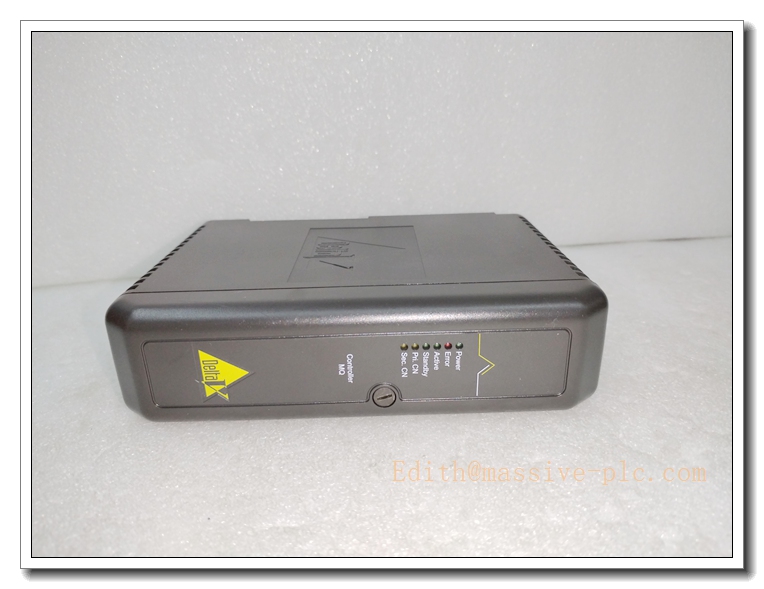

Status Indication: Multi‑colour front panel LED for network, run, fault status
Programming Languages: IEC 61131‑3, ladder logic, structured text, function block diagram

Recommended Matching Models (8 Models)

Common supporting modules and I/O cards to build complete DeltaV control rack:

KJ3002X1-BA1 DeltaV Analog Input Module
KJ3007X1-BA1 Analog Output Card
KJ3221X1-BA1 Digital Output Module
KJ3242X1-BK1 Digital Input Module
KJ1501X1-BC2 Redundant Rack Power Supply
VE4001S2T2B4 Remote I/O Interface Module
KJ4001X1-CA1 DeltaV Firewall Communication Module
12P2532X062 Controller Backplane Assembly

VE3008 CE3008 K2005X1-MQ

Product Features

✅ Seamless Redundant Bumpless Switchover 1:1 redundant controller architecture. The standby controller synchronizes full control strategy and real‑time data with primary controller. Once main controller fails, standby unit takes over control automatically without process bump or output disturbance.

✅ HART Pass‑Through for Smart Device Management Built‑in HART transparent transmission channel. Operators can remotely access, calibrate and diagnose HART smart transmitters through DeltaV AMS Device Manager without visiting field instruments.

✅ High‑Speed Dual Ethernet Network Dual 100Mbps full‑duplex Ethernet ports for redundant control network connection, reduce network congestion and lower CPU loading for large control strategies.

✅ Automatic Self‑Addressing & Self‑Locating Plug‑and‑play network design. No manual IP address setting after power‑on, the controller automatically registers itself to DeltaV control network. LED flash function helps maintenance engineer quickly locate physical rack position.

✅ Rich Advanced Control Function Library Supports DeltaV batch processing function, model predictive control, neural network advanced control, ideal for complex continuous process and batch production process optimization.

✅ 1ms High Precision SOE Recording Captures sequence of process alarm, interlock and digital events with 1ms timestamp, convenient for post‑trip root‑cause analysis of plant shutdown.

✅ Hazardous Area Certified Suitable for installation in Zone 2 / Division 2 explosive gas area, flexible cabinet layout close to field process equipment to shorten field signal wiring length.

Installation Guidelines

Power off the DeltaV controller rack before non‑redundant controller replacement. Redundant online replacement can be implemented following DeltaV operation procedure.
Insert VE3008 MQ controller vertically into dedicated controller slot of DeltaV rack, lock front panel fastener to ensure reliable backplane connector contact.
Connect dual Ethernet cables to redundant DeltaV control network, use industrial shielded Ethernet cable and single‑point grounding.
Confirm LocalBus connection between controller and I/O rack backplane for I/O signal data exchange.
Reserve sufficient clearance around controller for natural convection ventilation, do not block air circulation path.
Power on the rack, wait for automatic network registration, verify front‑panel RUN LED steady on and no fault alarm.
Download DeltaV control strategy to MQ controller, assign DST tag licence, perform loop test for I/O channels.
For redundant deployment: Complete primary‑standby synchronization test and simulate main controller failure to verify bumpless switchover function before putting online.

Maintenance Instructions

Daily Maintenance Check front‑panel LED indicators of MQ controller, confirm network communication and running status. Inspect cabinet temperature and ventilation. Check Ethernet cable connectors for looseness.

Periodic Maintenance Every 6–12 months: Export controller event log and SOE records. Back up the whole DeltaV control strategy. Inspect dust accumulation on circuit board and ventilation gap. Check rack power supply stability.

Fault Maintenance

Controller fault LED alarm: Check network cable status, backplane LocalBus communication and rack power supply.
Redundancy synchronization failure: Verify primary‑standby controller firmware version consistency.
Communication offline: Restart controller; inspect backplane connector oxidation. Replace spare controller and restore downloaded control program.
Static protection is mandatory during module handling. Do not disassemble controller housing privately.

Long‑Term Operation Tips Keep control cabinet dry and dust‑free. Avoid frequent power‑cycle of controller rack. Regularly upgrade controller firmware version according to Emerson recommendation.
