Name: TRICONEX MP6004 Main Processor Module - MASSIVE
Brand: Triconex

Description

TRICONEX MP6004 Main Processor Module Product Introduction

The TRICONEX MP6004 is a high-performance TMR (Triple Modular Redundancy) main processor module developed for Triconex Tricon v9/v10 generation safety instrumented control systems. Serving as the core computing and logic control hub of modern SIS controllers, this module adopts industrial fault-tolerant architecture and high-speed processing technology to undertake full-system safety logic operation, I/O data scheduling, fault judgment and multi-protocol communication management. Fully compliant with IEC 61508 SIL 3 functional safety standards, the MP6004 delivers ultra-high operational reliability, comprehensive system diagnostics and uninterrupted safety control capabilities for high-risk industrial process systems.

Product Applications

The TRICONEX MP6004 is widely deployed in safety-critical process industries requiring high-availability and high-integrity safety control, including oil & gas, petrochemical, chemical processing, thermal power generation, energy and pharmaceutical industries. It acts as the core processing unit for SIS, ESD, F&G and HIPPS systems, with typical application scenarios as follows:

Emergency Shutdown (ESD) System Core Control: Executes complex customized safety interlock logic, monitors real-time operating status of all field safety loops, and triggers accurate emergency shutdown and equipment isolation actions once process parameters exceed safety thresholds, preventing major production and equipment accidents.
Fire & Gas (F&G) Safety Management: Processes fire detection and flammable/toxic gas monitoring signals, realizes hazard level judgment, graded alarm output and linkage protection logic, and controls fire suppression, ventilation and isolation equipment to ensure on-site environmental safety.
High-Integrity Pressure Protection (HIPPS): Supports high-speed logic judgment and fast response output for high-pressure process protection loops, meeting ultra-high reliability and low-delay control requirements of high-grade industrial safety protection systems.
Full-System I/O Data Scheduling & Processing: Synchronously collects, verifies and votes on all analog and digital I/O module data in real time, completes precise safety logic calculation, and issues accurate control instructions to field actuators to ensure loop operation consistency.
Multi-System Collaborative Communication: Acts as the core communication scheduling node of the SIS system, supporting stable data interaction and coordinated control with DCS, SCADA and third-party industrial control platforms, realizing unified management of internal and external system data.
Large-Scale Safety System Integrated Operation: Adapts to large-scale industrial safety systems with massive I/O points and complex interlock logic, supporting long-term cyclic stable operation, system function iteration and capacity expansion.

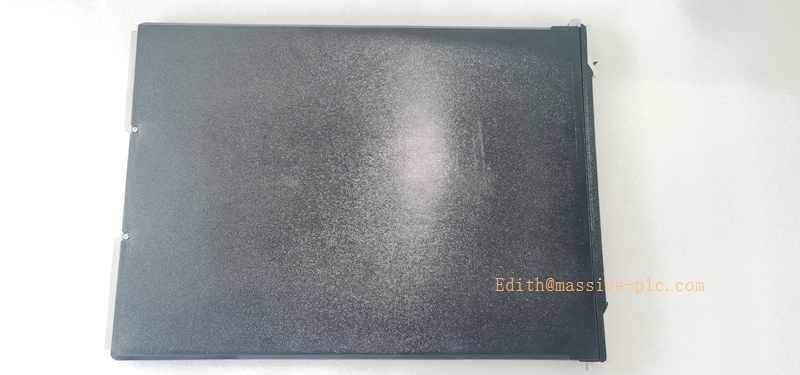

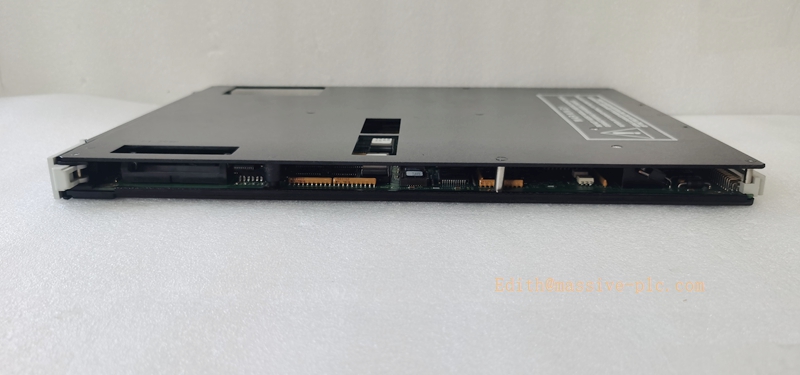

TRICONEX MP6004

Technical Specifications & Parameters

The TRICONEX MP6004 adopts upgraded industrial high-speed processing architecture and standard TMR triple redundant fault-tolerant design, with standardized electrical, environmental and mechanical parameters. It features powerful computing performance, stable system scheduling capability and ultra-high diagnostic coverage, fully meeting SIL 3 high-standard safety control requirements. Detailed specifications are listed below:

2.1 Core Computing & Electrical Parameters

Module Type: TMR triple redundant main processor module
Applicable System: Triconex Tricon v9 / v10 generation safety controller system
Processing Architecture: Three-channel synchronous fault-tolerant computing + 2-out-of-3 hardware voting mechanism
Core Performance: High-speed industrial dedicated processor, supporting complex multi-loop safety logic operation
System Bus: High-speed dedicated TriBus internal safety bus for real-time I/O data interaction
Supported Protocols: Triconex proprietary safety protocol, Modbus TCP/RTU and other mainstream industrial protocols
Rated Power Supply: 24VDC industrial standard backplane power supply
Operating Voltage Range: 15VDC to 30VDC wide voltage tolerance
Diagnostic Coverage: Ultra-high full-coverage diagnosis for system hardware, software and communication links
Fault Tolerance: Zero single-point failure risk, automatic isolation and recovery of single-channel faults

2.2 Environmental Parameters

Operating Temperature: -40°C to +70°C
Storage Temperature: -40°C to +85°C
Relative Humidity: 5% to 95% (non-condensing)
Environmental Resistance: Compliant with IEC industrial vibration, shock and EMC electromagnetic interference resistance standards
Structural Performance: Industrial reinforced dust-proof, moisture-proof and anti-aging design for long-term continuous operation

2.3 Mechanical & Certification Parameters

Installation Method: Standard slot mounting for Triconex TMR system chassis
Hot-Swap Support: Supports online module replacement without SIS system shutdown
System Compatibility: Fully compatible with Triconex v9/v10 series chassis, I/O modules and TriStation software
Safety Certification: IEC 61508 SIL 3 certified, TÜV, CE, UL, ATEX compliant
Design Service Life: More than 10 years under standard industrial operating conditions

Core Product Features

3.1 Standard TMR Triple Modular Redundancy Fault-Tolerant Architecture

The MP6004 adopts three completely independent synchronous computing channels with built-in hardware two-out-of-three voting logic. The three channels synchronously execute safety logic operation, data calculation and control command output. Any single-channel hardware failure, calculation deviation or transient signal interference will be automatically identified, isolated and shielded. The module maintains accurate and stable system operation through healthy channel consensus, completely eliminating single-point failure risks and ensuring zero interruption of industrial safety system operation.

3.2 High-Efficiency Computing & Strong Logic Processing Capability

Equipped with upgraded high-speed industrial processor core, the delivers stronger logic operation and data scheduling performance compared with conventional processors. It supports large-scale complex safety interlock programs, multi-point loop synchronous monitoring and high-frequency data iteration, ensuring fast response and accurate execution of safety commands, and fully meeting the real-time and high-precision control requirements of modern large-scale industrial safety systems.

3.3 Full-Coverage Intelligent System Diagnosis

The module integrates comprehensive full-state self-diagnosis function, which can real-timely monitor processor operating status, internal circuit health, TriBus bus communication, I/O channel status and power supply fluctuation. It can accurately locate potential faults, output detailed fault codes and upload alarm information to the upper monitoring platform in real time, realizing proactive early warning and rapid troubleshooting, and greatly improving system safety transparency and maintainability.

3.4 Multi-Protocol Compatible Communication Scheduling

As the core communication hub of the SIS system, the supports multiple mainstream industrial communication protocols. It can seamlessly dock with various communication modules, upper monitoring platforms and third-party control equipment, realizing efficient interaction and unified scheduling of internal and external system data. It effectively solves multi-device and multi-protocol compatibility problems and improves the flexibility of system network architecture.

3.5 Strict Fail-Safe Protection Mechanism

Following industrial safety fail-safe design principles, the will automatically switch to a predefined safe state and trigger alarm signals in case of voting mismatch, hardware abnormality, communication interruption or power supply failure. It locks the safety operating status of production equipment, effectively avoiding system misjudgment and misoperation, and maximizing the safety integrity of industrial production processes.

3.6 Harsh Environment Adaptability & Convenient Maintenance

Adopting industrial-grade reinforced hardware and wide-temperature design, the module can operate stably in extreme environments such as high temperature, low temperature, high humidity, strong vibration and complex electromagnetic interference. It supports online hot-swap replacement without system shutdown, realizing zero-downtime equipment maintenance, reducing on-site operation risks and maintenance costs, and adapting to long-term unattended continuous operation of process industrial plants.

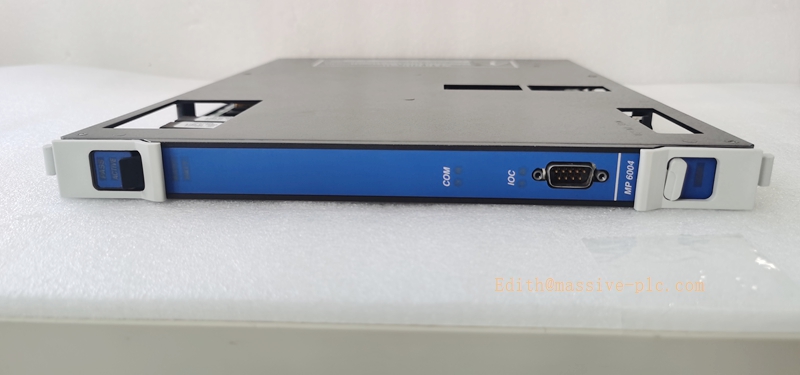

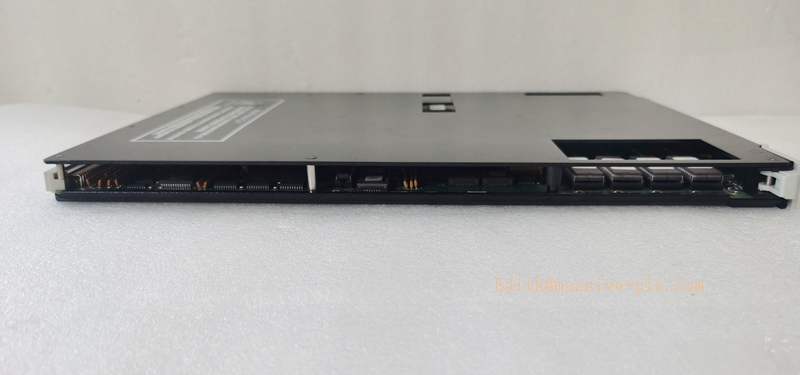

TRICONEX MP6004

Similar Series Models

Triconex mainstream processor series covers full-performance core control modules for TMR safety systems, adapting to different system versions and scale requirements. The mainstream matching and alternative models of TRICONEX are as follows:

TRICONEX 3009X / 3101: Classic mainstream processor modules, suitable for conventional medium and small-scale Triconex safety system configurations.
TRICONEX 3102: Enhanced high-performance processor, for large-scale complex safety logic operation and high-data-volume processing scenarios.
TRICONEX 4355X: Multi-protocol TCM communication module, matched with to realize high-speed network transmission and multi-device docking.
TRICONEX PM6301A: High-reliability power supply module, providing stable purified power for long-term computing operation.
TRICONEX DI3301S2 / PI3381: High-precision signal acquisition modules, providing accurate field data for safety logic judgment.
TRICONEX 3625A: High-density digital output module, executing safety interlock commands calculated by processor.

Product Summary

The TRICONEX is a new-generation SIL 3-grade TMR main processor module tailored for Triconex v9/v10 series safety instrumented systems. With triple modular redundant fault-tolerant architecture, high-efficiency high-speed computing performance, full intelligent diagnosis capability and multi-protocol communication compatibility, it provides more stable and efficient core control support for modern industrial SIS safety systems. As the core brain of ESD, F&G and HIPPS safety control loops, it effectively avoids system single-point failures and operational errors, ensures long-term reliable operation of high-risk process equipment, and is widely applied in global petrochemical, power and energy safety control fields.
