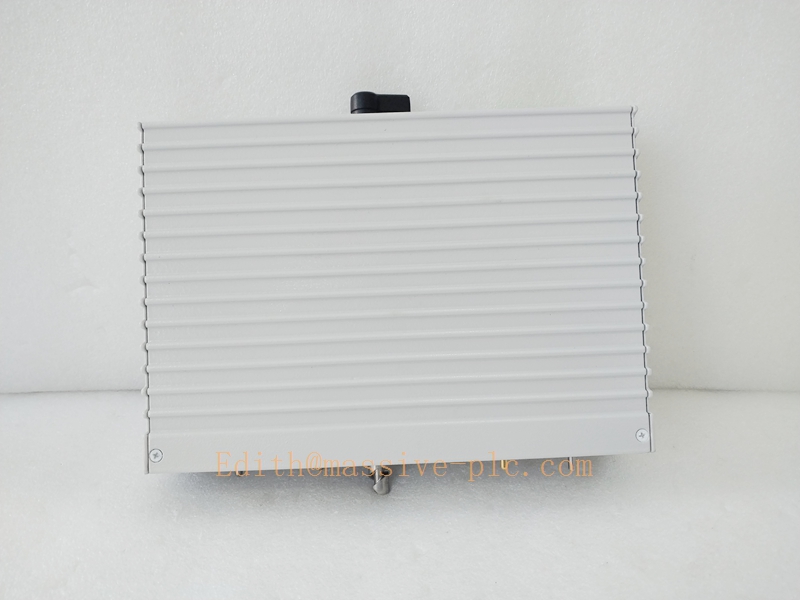

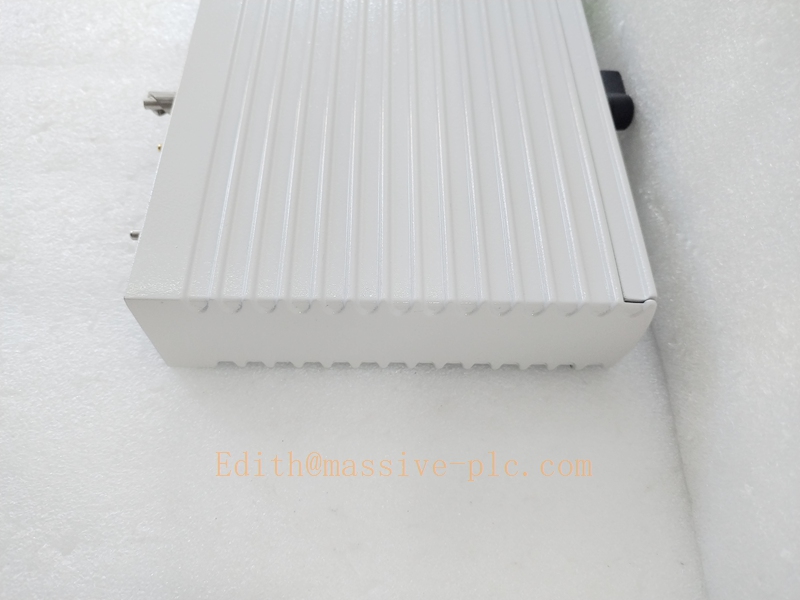

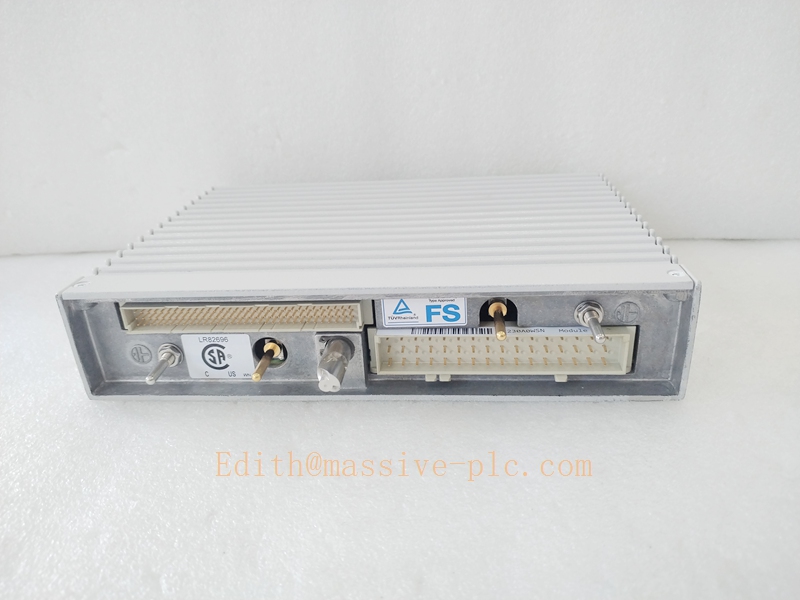

TRICONEX 5382-1S2 High-Current TMR Analog Output Module

Description

TRICONEX 5382-1S2 High-Current TMR Analog Output Module Product Introduction

Product Overview

The TRICONEX 5382-1S2 is a high-performance TMR Triple Modular Redundancy High-Current Analog Output Module customized for TRICONEX Tricon and Trident series Safety Instrumented Systems (SIS). Differentiated from standard analog output modules, this unit is specially designed for high-current drive scenarios of heavy-load field actuators. The upgraded S2 version optimizes high-current output stability, enhances load surge suppression capability, improves output precision consistency under long-term heavy load, and upgrades full-range fault diagnosis mechanism, ensuring reliable and accurate analog drive output for critical safety control loops in harsh industrial environments.

Adopting a strict full three-channel TMR redundant hardware architecture, the 5382-1S2 performs synchronous signal calculation, comparison and 2oo3 hardware voting for all high-current analog output commands. It realizes near-field safety voting judgment, effectively eliminating single-point hardware faults, signal deviation and transient interference risks. With SIL 3 IEC 61508 functional safety certification and high-voltage isolation protection design, the module is widely deployed in petrochemical, natural gas, thermal power and coal chemical industries for high-load valve regulation, large actuator drive and key process safety interlock control systems.

Core Technical Parameters

Model Version Definition

1. Model Positioning: The 5382-1S2 is an upgraded S2-version high-current safety analog output module exclusive for TRICONEX SIS systems, designed for heavy-load actuator drive scenarios that require higher output current stability;

2. Version Upgrade Advantages: The S2 version upgrades high-current load drive circuits, optimizes thermal dissipation design for long-term heavy-load operation, enhances anti-surge and anti-fluctuation capability during load switching, and improves fault diagnosis accuracy for overload and circuit abnormality compared with standard versions;

3. System Matching: Fully compatible with Tricon/Trident series racks, 5101S2 main controllers, communication modules and full series of SIS I/O modules, supporting single and redundant system configuration modes;

4. Safety Level: Complies with SIL3 highest industrial safety standards, ensuring stable and fault-tolerant high-current analog output for heavy-load safety control loops.

Core Functions and Product Advantages

4.1 Near-Field TMR Fault-Tolerant Voting

Different from conventional logic-side voting modules, the 5382-1S2 completes safety voting judgment at the nearest field I/O side, which can quickly capture and shield abnormal signals and hardware faults in field heavy-load loops. Adopting three-channel full redundant synchronous output and 2oo3 voting logic, it automatically isolates single-channel failures, completely avoiding output deviation, jitter or false action caused by single-point faults, and ensuring the absolute safety of heavy-load regulation loops.

4.2 High-Current Heavy-Load Stable Drive

Optimized for industrial heavy-load actuators, valves and regulating equipment, the module features enhanced current drive capability and stable output impedance. It maintains 0.1% ultra-high output precision under long-term continuous heavy-load operation, effectively solving the problems of insufficient drive capacity and signal attenuation of ordinary analog modules. It ensures accurate response and stable regulation of large field execution equipment.

4.3 Enhanced Thermal & Surge Protection Design

The S2 upgraded version adopts optimized heat dissipation structure and high-power resistance circuit design, which effectively solves the heat accumulation problem of long-term high-current operation. Equipped with built-in overload, overvoltage and surge suppression circuits, it resists instantaneous current impact generated by heavy-load equipment switching, protects module circuits from damage, and improves long-term operational reliability in complex industrial environments.

4.4 High-Isolation Anti-Interference Performance

With 2500Vrms high-strength electrical isolation between field loops and system internal bus, the module completely isolates strong electromagnetic interference, common-mode voltage and load fluctuation noise generated by heavy-load equipment. The enhanced EMC electromagnetic compatibility design ensures stable and pure output signals without distortion or drift in high-power industrial workshops.

4.5 Intelligent Full-Coverage Fault Diagnosis

Built with upgraded multi-dimensional self-diagnosis functions, the 5382-1S2 can real-timely monitor channel overload, overcurrent, open/short circuit, load abnormality and module hardware operating status. It accurately records fault codes and event logs, supports rapid positioning of heavy-load loop faults and module hidden dangers, greatly improving system maintainability and on-site troubleshooting efficiency.

4.6 Online Hot-Swap & High System Availability

The module supports online hot-swap replacement during normal system and production operation. Maintenance and module replacement can be completed without disabling safety interlock logic or stopping production, minimizing system downtime and operational safety risks. Combined with TMR redundant architecture, it realizes seamless output switching and automatic fault recovery, ensuring continuous and stable operation of heavy-load safety loops.

Application Scenarios

The TRICONEX 5382-1S2 high-current analog output module is widely used in SIL3-level safety instrumented systems in petrochemical, natural gas, coal chemical, thermal power and other high-risk industries. It is specially applicable to drive large heavy-load regulating valves, high-power actuators and key process execution equipment. It serves core systems such as ESD emergency shutdown systems, process safety interlock systems and unit load regulation systems, providing high-stability and high-precision current drive guarantee for heavy-duty industrial safety control loops.

Installation and Maintenance Guidelines

1. Installation Specification: Installed in standard SIS rack slots, matched with redundant power supply and main controller to ensure stable TriBus bus connection and reliable backplane power supply;

2. Load Matching: Strictly match field heavy-load equipment parameters, avoid long-term overcurrent operation, and reserve reasonable load margin to protect module channels;

3. Field Wiring: Adopt high-quality shielded twisted-pair cables for analog output wiring, separate from high-power strong-current cables to avoid electromagnetic crosstalk and signal interference;

4. Heat Dissipation Maintenance: Regularly clean module dust and check rack ventilation to avoid heat accumulation caused by long-term heavy-load operation;

5. Signal Calibration: Perform regular zero-point and full-scale calibration to eliminate tiny drift generated by heavy-load operation and ensure long-term output accuracy;

6. System Debugging: Complete heavy-load output testing and loop response verification after module replacement or system upgrade to ensure stable and reliable drive of field execution equipment.
