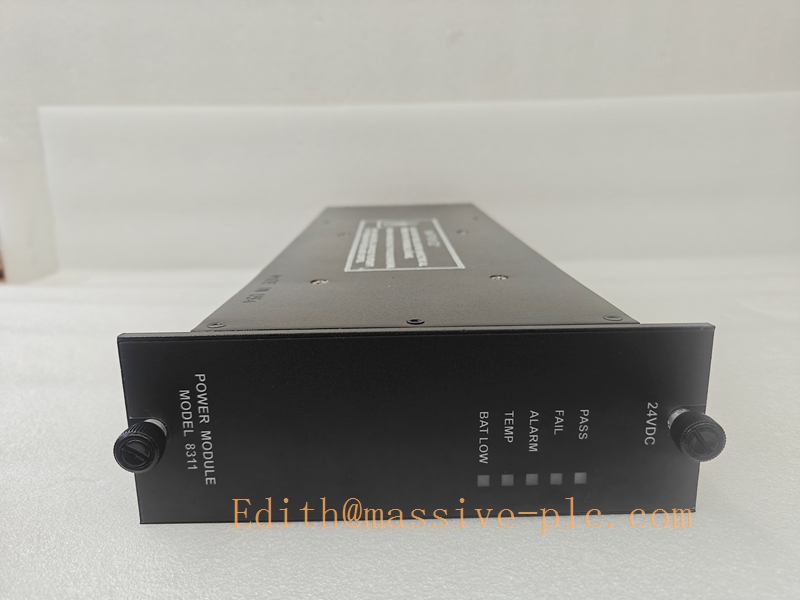

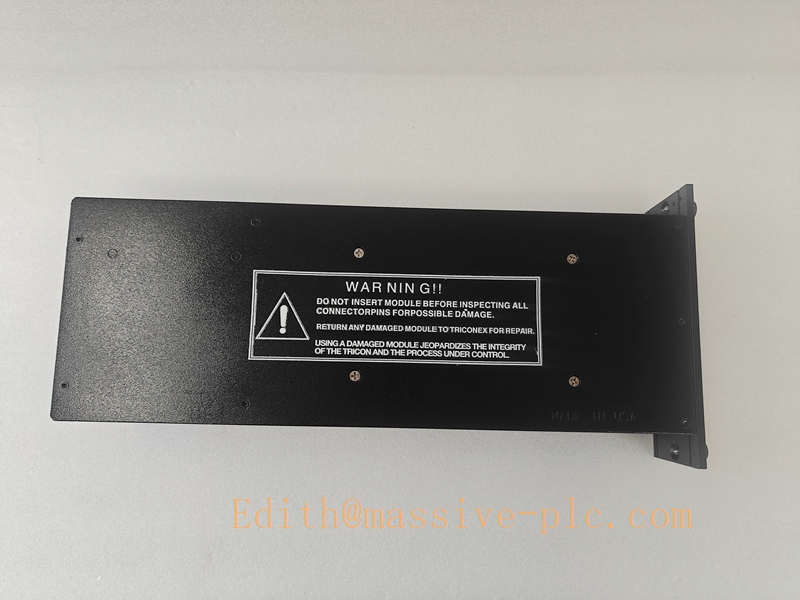

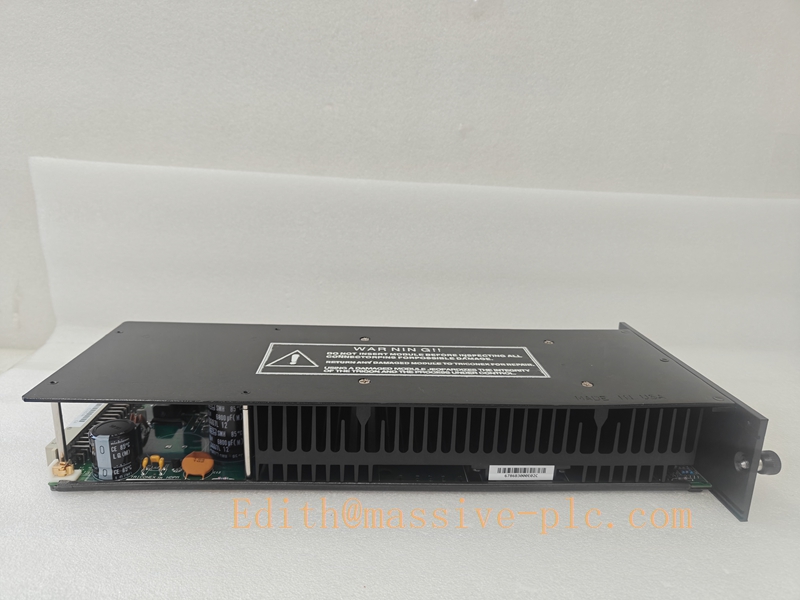

TRICONEX HD8311 High Density Power Supply Module

Description

TRICONEX HD8311 High Density Power Supply Module Product Introduction



Product Overview

The TRICONEX HD8311 is a high-efficiency High-Density TMR Power Supply Module designed exclusively for Tricon and Trident Safety Instrumented Systems (SIS). As an upgraded compact power supply unit for classic SIS racks, it provides stable, fault-tolerant and high-density power distribution for main processors, communication cards and all I/O modules. Optimized for space-limited and full-load system configurations, the HD8311 efficiently converts industrial wide-range AC input into stable low-voltage bus power for the entire safety rack, supporting long-term uninterrupted operation of high-risk safety control loops.

Adopting advanced triple modular redundant power conversion architecture and 2oo3 fault-tolerant voting logic, the HD8311 eliminates all single-point power failure risks. It features high power density, low heat generation, wide grid voltage adaptation, multi-layer safety protection and full real-time self-diagnosis functions. Certified with IEC 61508 SIL 3 functional safety and TÜV safety approval, the module supports online hot-swap and multi-module redundant parallel operation. With compact structure and high load capacity, it is widely applied in petrochemical, natural gas, thermal power and other high-risk industrial SIS systems, serving as the core stable power guarantee for compact and high-density safety racks.



Same-Series Model Classification & Peer Models

The TRICONEX HD8311 belongs to the Tricon 83xx High-Density Safety Power Supply Series, positioned as an upgraded compact high-density power supply module, solving the power supply demand of high-density I/O configuration and limited rack space scenarios, with obvious differentiated advantages compared with conventional power modules:

2.1 Product Positioning: High-density compact TMR safety power supply module, featuring smaller installation size, higher power density and stronger unit load capacity. It is specially used for space-constrained SIS racks and full-load high-density I/O configuration systems, realizing efficient and stable power supply for miniaturized and integrated safety control racks.

2.2 Same-Series Typical Peer Models

8305A: Standard universal power supply module with conventional volume and power density, suitable for conventional standard racks, larger size than HD8311 and lower space utilization.

8306: Low-power compact power supply with limited load capacity, unable to support full-load high-density I/O rack operation, weaker overall performance than .

8310: High-power enhanced power supply for large-scale ultra-full configuration racks, oversized power margin, more suitable for super-large racks rather than compact high-density scenarios.

3008 Main Processor: Matching core processing unit; provides continuous and stable fault-tolerant power support for main control operation and redundant signal interaction.

2.3 System Compatibility: Fully compatible with classic Tricon series racks and Trident safety systems, perfectly matched with 3006/3008 main processors and all series I/O and communication modules. It supports full-version TriStation 1131 system identification, status monitoring and online debugging, realizing plug-and-play upgrade and replacement for old and new compact SIS rack power supply modules.

Core Technical Specifications & Product Specifications

Parameter Item	Technical Specifications
Product Model	High Density TMR Power Supply Module
Safety Architecture	Full Triple Modular Redundancy (TMR), 2oo3 fault-tolerant power voting logic
Input Voltage Range	90~264V AC wide industrial grid voltage input
Rated Output Voltage	6.5VDC stable system bus output
Max Output Current	27A high large-current output capacity
Power Density	High-density integrated design, smaller size and higher power efficiency
Conversion Efficiency	High-efficiency power conversion, low heat generation and low energy consumption
Protection Mechanism	Over-voltage, over-current, over-temperature, short-circuit automatic lock protection
Diagnostic Function	Input voltage anomaly, output overload, module overheating, full-status self-diagnosis
Safety Certification	IEC 61508 SIL 3, TÜV Functional Safety Certified, CE/CSA compliant
Hot-Swap Function	Support online hot-swap replacement, zero system downtime maintenance
Redundant Operation	Support multi-module parallel redundant power supply, seamless switching
Isolation Performance	1500V high-strength electrical isolation, anti-surge and anti-electromagnetic interference
Operating Temperature	-40℃ ~ +70℃ ultra-wide industrial temperature range
Working Humidity	5%~95% RH, non-condensing
Industrial Grade	G3 harsh environment grade, enhanced EMC anti-interference and vibration resistance design



Core Product Features

4.1 TMR Triple Redundant Fault-Tolerant Power Supply

The adopts three completely independent power conversion and output units, strictly implementing 2oo3 fault-tolerant voting logic for all power output links. When a single power unit fails, overheats or outputs abnormally due to industrial interference, the module instantly isolates the faulty unit, and the remaining redundant units continue to provide stable and continuous power supply. This design completely eliminates single-point power failure risks, ensures that the SIS system will not crash or stop safety logic operation due to power abnormality, and fully meets SIL3 high-level safety integrity requirements.

4.2 High-Density Compact Integrated Design

As an upgraded high-density power supply module, the optimizes internal circuit layout and component integration structure. It achieves higher power output capacity in a smaller installation volume, greatly saving SIS rack internal space and improving equipment integration density. It perfectly solves the power supply bottleneck of high-density I/O configuration racks and space-limited industrial cabinet scenarios, realizing efficient matching of compact safety control systems.

4.3 Wide Voltage Adaptation & High-Stability Output

Supporting 90~264V AC ultra-wide grid input range, the module adapts to complex industrial power grid fluctuation and unstable voltage environments. It outputs stable 6.5VDC system bus voltage with 27A super-large current load capacity, which can fully meet the full-load operation power demand of high-density I/O modules and multi-communication module configuration racks. The optimized power conversion circuit effectively suppresses voltage ripple and power fluctuation, ensuring stable operation of high-precision safety signal acquisition and logic control.

4.4 Full-Range Multi-Dimensional Safety Protection

The integrates perfect over-voltage, over-current, short-circuit and over-temperature four-in-one protection mechanism. In case of field load short circuit, loop overload, grid surge impact or module overheating, the module will automatically trigger protection locking and fault alarm, effectively protecting rear-end main control chips, I/O circuits and precision equipment from damage. The built-in 1500V high-strength electrical isolation design completely isolates external grid interference and surge penetration, improving the overall anti-interference ability of the safety system.

4.5 Redundant Parallel Seamless Switching

The module supports multiple modules working in parallel for redundant power supply. It has automatic load balancing and seamless switching functions. When a single module fails or is replaced online, the standby power module instantly takes over the full load without voltage drop, power interruption or system logic pause. It realizes 100% uninterrupted power supply of the safety rack and provides reliable power guarantee for 24/7 continuous operation of high-risk industrial safety systems.

4.6 Intelligent Full-Condition Fault Diagnosis

Equipped with real-time full-status monitoring and diagnosis functions, the continuously tracks input grid voltage, output current, internal operating temperature and power conversion status. It can accurately identify common faults such as grid voltage abnormality, system overload, module aging and heat dissipation failure, and automatically generate standard fault codes and detailed operation logs. It supports local indicator alarm and upper computer remote diagnosis, helping operation and maintenance personnel quickly locate faults and eliminate hidden dangers in advance.

4.7 Harsh Environment Super Adaptability

Adopting industrial-grade high-temperature resistant, anti-aging and vibration-resistant components, the module passes strict G3-level harsh environment tests and EMC electromagnetic compatibility certification. It operates stably in -40℃~+70℃ ultra-wide temperature range and high-humidity non-condensing environment, resisting industrial strong electromagnetic interference, mechanical vibration, dust and corrosion. It is suitable for long-term uninterrupted operation in harsh industrial scenarios such as petrochemical, thermal power and natural gas.

Industrial Application Scenarios

The TRICONEX high-density TMR safety power supply module is widely used in SIL3-level high-risk industrial safety instrumented systems, serving as the core power supply unit for compact high-density SIS racks, covering petrochemical, natural gas gathering and transportation, LNG terminal, thermal power generation, coal chemical and other key process industries.

Specific application scenarios include: stable power supply for compact ESD emergency shutdown systems and FGS fire and gas safety systems; power guarantee for high-density I/O integrated safety control racks in space-limited industrial cabinets; redundant power backup for key safety control units of high-risk equipment; power supply support for on-site safety system renovation, compact system upgrading and full-load high-density configuration projects. It provides high-efficiency, stable and fault-tolerant power foundation for all safety logic operation and signal transmission of miniaturized high-integration industrial safety systems.



Standard Installation Guidelines

6.1 Pre-Installation Preparation

Before installation, verify the module model and rack power configuration matching, check the circuit board for damage, pin oxidation and accessory integrity. Confirm that the on-site grid voltage is within the module specification range, cut off the rack auxiliary power supply, prepare industrial high-power power cables and anti-static tools. Ensure the installation environment is dust-free, dry and well-ventilated to avoid static damage and poor heat dissipation of the high-density power module.

6.2 Rack Installation Steps

Adopt standard Tricon rack plug-in installation. Align the high-density module with the dedicated power slot guide rail, push it horizontally and smoothly into the slot until it is closely fitted with the backplane bus, and tighten the fixing screws on both sides. For redundant power supply configuration, install multiple modules in corresponding power slots in turn to ensure balanced load distribution and stable parallel operation of the system.

6.3 On-Site Wiring Specification

Use high-power industrial dedicated shielded power cables for input wiring, standardize positive and negative pole wiring and reliable grounding treatment. Strictly separate power input lines from safety signal lines to avoid electromagnetic crosstalk interference. Ensure firm terminal connection without virtual connection, bare wire exposure or short circuit hidden dangers. Complete insulation test and voltage resistance test after wiring to guarantee safe and stable power input.

6.4 Post-Installation Debugging

Slowly power on the rack after installation and wiring, observe the module running indicators to confirm normal power-on status. Connect TriStation 1131 software to view real-time operating parameters including input voltage, output current and module temperature. Test redundant power switching, full-load operation stability and fault diagnosis alarm functions to ensure the module meets the power supply demand of high-density rack configuration.



Daily Maintenance & Fault Maintenance Guidelines

7.1 Daily Routine Maintenance

Regularly check the module indicator status, rack temperature and humidity, and real-time power operating parameters. Clean dust on the module surface and rack heat dissipation channels regularly to avoid affecting heat dissipation efficiency and power conversion stability of high-density modules. Inspect power wiring firmness and grounding stability to prevent grid fluctuation caused by poor contact. Regularly back up system power operation logs to ensure traceability of abnormal records.

7.2 Common Fault Diagnosis & Maintenance

Input Voltage Abnormality Alarm: Caused by unstable on-site grid voltage, loose power wiring or aging lines. Check grid quality, re-tighten terminals, replace aging cables, and eliminate input voltage fluctuation and abnormal power supply faults.

Output Overload Alarm: Triggered by excessive rack load or rear-end module short circuit. Check the operating status of I/O and main control modules, eliminate short-circuit and overload faults, and appropriately adjust system load rate to restore normal power output.

Module Overheating Alarm: Mainly caused by dust accumulation, poor rack ventilation or long-term full-load operation. Clean heat dissipation channels, optimize cabinet ventilation environment, and avoid long-term over-rated load operation of the module.

Redundant Switching Abnormality: Check the parameter consistency and load matching of parallel power modules, recalibrate output parameters, and ensure seamless switching and balanced load operation between redundant modules.

7.3 Hot-Swap Replacement Maintenance

For faulty modules that cannot be repaired online, perform hot-swap replacement under normal system operation. Loosen the fixing screws, smoothly pull out the faulty module, insert the new module in place and lock it tightly. The system automatically completes power parameter matching and redundant synchronization. After replacement, test full-load operation stability and fault protection functions to ensure continuous and reliable power supply of the high-density rack.

7.4 Spare Module Storage & Aging Maintenance

Spare modules need to be stored in constant-temperature, dry, dust-free and anti-static environment to prevent moisture and static damage to internal high-density integrated circuits and power devices. For long-term operating modules, regularly detect output load capacity, power conversion efficiency and protection sensitivity, and replace aging modules in advance to avoid system power supply failure.



Common FAQs

8.1 What is the core advantage of ?

The is a high-density upgraded version of Tricon SIS power supply module. Compared with conventional power modules, it features smaller size, higher power density and stronger unit load capacity. It is specially designed for space-limited cabinets and high-density I/O configuration racks, realizing more efficient and compact system power distribution while maintaining SIL3 safety level and TMR fault-tolerant performance.

8.2 What is the difference between and 8305A?

The 8305A is a standard universal power supply with conventional volume and power density, suitable for standard ordinary racks. The adopts high-density integrated optimization design, with smaller installation space and higher effective load efficiency, more suitable for compact cabinets and full-load high-density I/O systems, and has better environmental adaptability and anti-interference performance.

8.3 Does support redundant parallel operation?

Yes. The supports multiple modules parallel redundant power supply, with automatic load balancing and seamless switching functions. No power interruption or voltage drop occurs during single module failure or replacement, ensuring 24/7 uninterrupted power supply of the safety system.

8.4 Can be hot-swapped online?

Yes. The module supports standard online hot-swap function. It can be replaced and maintained during normal system and production operation without rack power-off, system shutdown or safety logic interruption, realizing zero-downtime maintenance of power supply links.

8.5 What scenarios is suitable for?

It is mainly applicable to SIL3-level high-risk industrial SIS systems with limited cabinet space and high-density I/O configuration, including compact ESD/FGS safety systems, renovated and upgraded miniaturized safety racks, and full-load integrated safety control projects in petrochemical, natural gas and thermal power industries.

8.6 What safety certifications does have?

The has passed IEC 61508 SIL 3 functional safety certification, TÜV safety approval, CE and CSA industrial certification. It fully complies with international industrial safety standards and is suitable for high-risk process industry safety instrumented system applications.
