Description

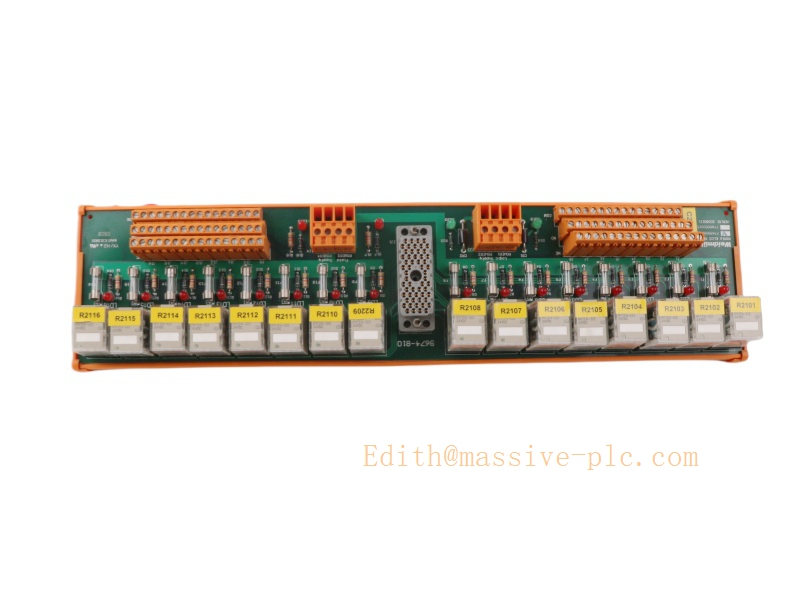

TRICONEX 9674-810 Digital Output Terminal Board

The TRICONEX 9674-810 is a dedicated field-proven Digital Output External Terminal Panel (DO ETP) designed for Triconex Tricon Classic and 9000 series SIS safety systems. Serving as the official physical wiring interface between TMR digital output modules and field actuators, this terminal board provides standardized signal termination, built-in surge suppression, field loop isolation and reliable power distribution. Manufactured to strict industrial safety specifications and fully compliant with IEC 61508 SIL 3 and ISA S84 functional safety standards, the 9674-810 guarantees error-free transmission of safety trip, interlock and ESD control signals, protecting SIS output loops from field surge, short-circuit and electromagnetic interference in high-risk process environments.

Product Applications

The TRICONEX 9674-810 is widely deployed in safety-critical industrial sectors that require standardized, protected and traceable SIS output loop wiring, including oil & gas onshore/offshore facilities, petrochemical complexes, coal chemical plants, thermal power stations and pharmaceutical fine chemical projects. As a dedicated supporting terminal accessory for Triconex DO modules, it undertakes core field signal termination and loop protection functions for safety systems, with typical application scenarios as follows:

ESD Emergency Shutdown Loop Termination: Provides standardized screw-terminal wiring for ESD solenoid valves, trip relays, emergency shutdown actuators and valve position feedback loops, ensuring stable and consistent execution of SIS emergency trip commands.
F&G Fire and Gas Safety Linkage: Terminates fire alarm output, toxic and flammable gas linkage isolation, ventilation control and fire suppression trigger signals, supporting rapid and reliable safety linkage responses during hazard detection.
Process Interlock Executive Loop Protection: Applies to critical interlock loops of process pumps, fans, regulating valves and safety isolation valves, providing surge protection and loop isolation to prevent field electrical faults from damaging core SIS output modules.
Standardized SIS Cabinet Engineering: Enables centralized, classified and clearly marked termination of multi-channel digital output signals, standardizing on-site cabinet wiring specifications, simplifying daily inspection and greatly improving troubleshooting efficiency during system maintenance.
Harsh On-Site Anti-Interference Wiring: Adapts to strong electromagnetic interference, ground potential difference and voltage surge environments in chemical plants and offshore platforms, effectively restraining field noise and ensuring long-term stable operation of safety output loops.
Long-Term Unattended Safety System Operation: Features industrial anti-aging, moisture-proof and corrosion-resistant design, suitable for 7×24h unattended operation of remote gas fields, offshore platforms and automated process units, reducing hidden loop failure risks.

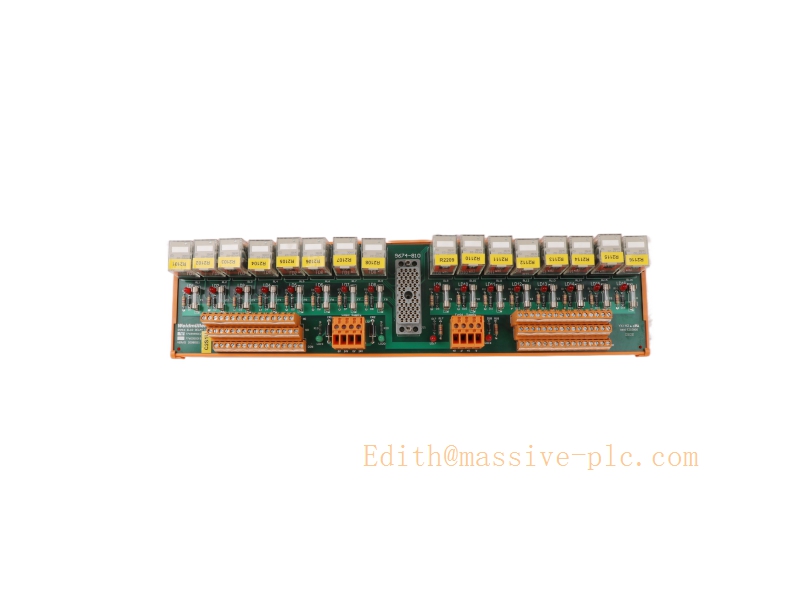

TRICONEX 9674-810

Technical Specifications & Parameters

The TRICONEX 9674-810 adopts Triconex official standard industrial circuit design, built-in multi-stage surge suppression and independent loop isolation structure. With precise matching for Tricon TMR digital output modules, ultra-low contact resistance and strict SIL 3 safety compliance, it meets high-reliability safety loop wiring and protection requirements for industrial SIS systems. Detailed authoritative specifications are listed below:

2.1 Electrical & Wiring Parameters

Product Type: SIS Digital Output External Terminal Panel (DO ETP)
Fully Compatible Modules: Triconex 3601E, 3601T, 3617E, 3625A series TMR digital output modules
Applicable Signal Range: Standard 24VDC / 115VAC industrial safety digital output signals
Contact Resistance: ≤ 10 mΩ ultra-low contact resistance, ensuring minimal signal attenuation
Built-In Protection: Multi-stage surge suppression, over-current limiting and field loop isolation protection
Isolation Performance: Industrial-grade galvanic isolation, blocking ground potential difference and fault backflow
Terminal Structure: Anti-loose screw terminal blocks with unified signal marking, anti-oxidation and anti-corrosion
Signal Performance: Zero signal distortion, zero delay drift for safety interlock and trip signals
PCB Material: High-strength flame-retardant industrial substrate, anti-breakdown and anti-aging

2.2 Environmental Parameters

Operating Temperature: -20°C to +60°C official rated working range
Storage Temperature: -40°C to +85°C
Relative Humidity: 5% to 95% (non-condensing)
EMC Performance: Compliant with industrial EMC electromagnetic immunity, vibration and mechanical shock resistance standards
Environmental Resistance: Dust-proof, moisture-proof, salt-spray resistant and anti-corrosion reinforced design
Working Condition: Suitable for long-term continuous operation in closed industrial safety cabinets

2.3 Mechanical & Certification Parameters

Overall Dimensions: 171mm × 89mm × 46mm (standard official size)
Net Weight: 1.0kg (standard configuration)
Installation Method: Standard cabinet fixed mounting, compact rack layout
Appearance Feature: Gray-green safety dedicated color, easy to distinguish in SIS cabinet racks
Safety Certification: IEC 61508 SIL 3, ISA S84, CE, UL, RoHS international full certification
Design Service Life: More than 10 years of stable service life under standard industrial operating conditions

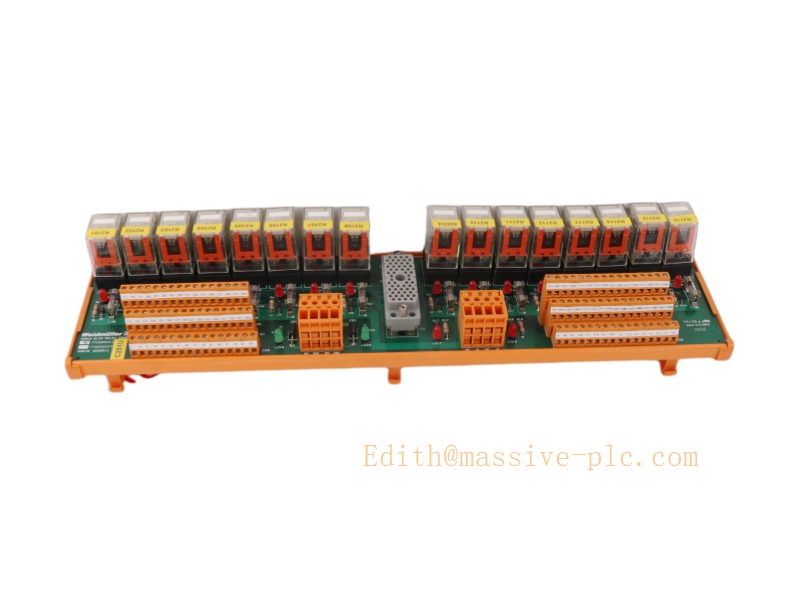

TRICONEX 9674-810

Core Product Features

3.1 Official Triconex SIS Loop Dedicated Matching

The 9674-810 is an officially matched terminal board for Triconex SIS digital output loops, with circuit parameters, signal load characteristics and loop protection logic fully optimized for TMR output modules. It avoids signal mismatch, insufficient load capacity and incomplete protection defects of universal terminal boards, ensuring 100% compatibility with SIS safety logic output characteristics and completely guaranteeing the integrity and execution accuracy of safety trip loops.

3.2 Multi-Stage Surge & Fault Isolation Protection

Equipped with built-in surge suppression, over-current limiting and galvanic isolation circuits, the terminal board builds a multi-layer safety barrier between SIS core modules and field actuators. It can effectively absorb instantaneous voltage surges, isolate on-site ground potential difference interference, and block fault current backflow caused by field short circuits. This mechanism thoroughly protects expensive SIS output modules from burnout and greatly enhances the anti-risk capability of safety output loops.

3.3 Ultra-Low Resistance & High-Stability Signal Transmission

Adopting high-precision conductive terminals with ultra-low contact resistance, the 9674-810 achieves negligible signal attenuation and zero waveform distortion during long-term safety signal transmission. It maintains stable and consistent output of interlock and trip commands under frequent switching and long-term load operation, effectively preventing safety refusal action or misaction caused by signal loss, ensuring high reliability of safety loop execution.

3.4 Standardized Cabinet Wiring & Easy Maintenance

With standardized centralized terminal grouping and clear unified signal marking design, the product realizes orderly classification and termination of multi-channel DO signals. It solves the problems of messy wiring, confusing signal definition and difficult fault troubleshooting in traditional cabinet construction. The standardized layout improves overall engineering quality, simplifies daily inspection work, and supports single-channel independent maintenance without affecting the normal operation of other safety loops.

3.5 Industrial Harsh Environment Super Adaptability

Using flame-retardant anti-aging PCB substrate and anti-corrosion terminal materials, the 9674-810 passes strict industrial tests including high and low temperature alternation, damp heat, mechanical vibration and salt spray corrosion. It can stably operate in harsh industrial environments such as strong electromagnetic interference, high humidity and corrosive gas, adapting to long-term unattended operation of offshore platforms and chemical plants.

3.6 Strict SIL 3 Safety Certification & High Availability

As a safety-level terminal board certified by IEC 61508 SIL 3 and ISA S84 industrial safety standards, all circuit design and performance indicators meet the highest industrial functional safety specifications. Different from ordinary non-certified civil terminal accessories, it eliminates hidden safety hazards in the output loop link, realizes full-link safety guarantee of SIS system, and improves the overall safety integrity and operational availability of ESD and interlock systems.

Matching System Modules & Similar Accessories

The 9674-810 forms a complete high-reliability SIS digital output loop solution with Triconex core modules and supporting accessories. The mainstream matching and alternative products are as follows:

Matching Digital Output Modules: 3601E, 3601T, 3617E, 3625A (full-series Triconex TMR safety DO modules)
Matching Relay Output Module: 3825X relay output module, for high-isolation contact control loop termination protection
Supporting Communication Modules: 5351, ACM4609, 4355X, realizing remote upload and linkage scheduling of output loop status
Compatible Controller Platforms: Tricon Classic Series, 4200 Compact SIS Controller, 9000 Series High-End SIS Platforms
Supporting I/O Modules: 3501T, 3506X, 3503C1, 3703E, forming complete system signal acquisition and safety execution closed loop

Product Summary

The TRICONEX 9674-810 is a SIL 3-grade dedicated digital output terminal board exclusively for Triconex SIS safety systems. Featuring official module matching design, multi-stage surge isolation protection, ultra-low resistance stable signal transmission, standardized engineering wiring and harsh environment resistance, it solves the common defects of ordinary terminal boards such as insufficient protection, poor compatibility and low safety level. As an indispensable core accessory for SIS digital output loops, it provides reliable field protection and stable signal transmission guarantee for ESD emergency shutdown, F&G fire and gas linkage and process safety interlock systems, and is widely applied in global high-risk process industrial safety control projects.
