Description
Product Applications
The Tricon CX 8131X is a versatile I/O expansion chassis designed for Tricon CX Safety Instrumented Systems (SIS). It serves as the physical interface for connecting field instruments to the safety controller. Typical applications include:
- Emergency Shutdown Systems (ESD) and Fire & Gas (F&G) Systems.
- Critical Process Control in oil & gas, petrochemical, power, and nuclear industries.
- System Expansion: Adding I/O capacity to a Tricon CX main chassis (8120X) via a fault-tolerant I/O bus.
- Distributed I/O Architecture: When used with the Triconex Safety Intelligent Enclosure (SIE), it enables “near-process” deployment to reduce field wiring and cabinet space.

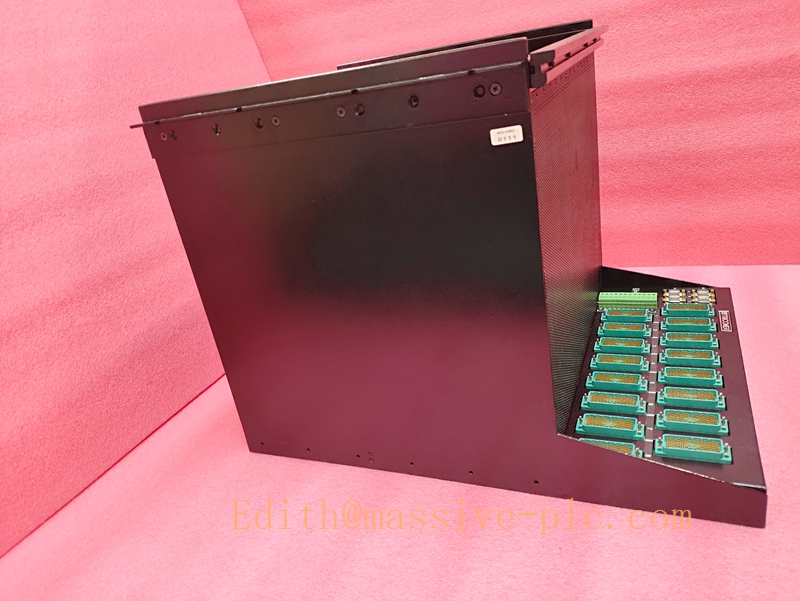

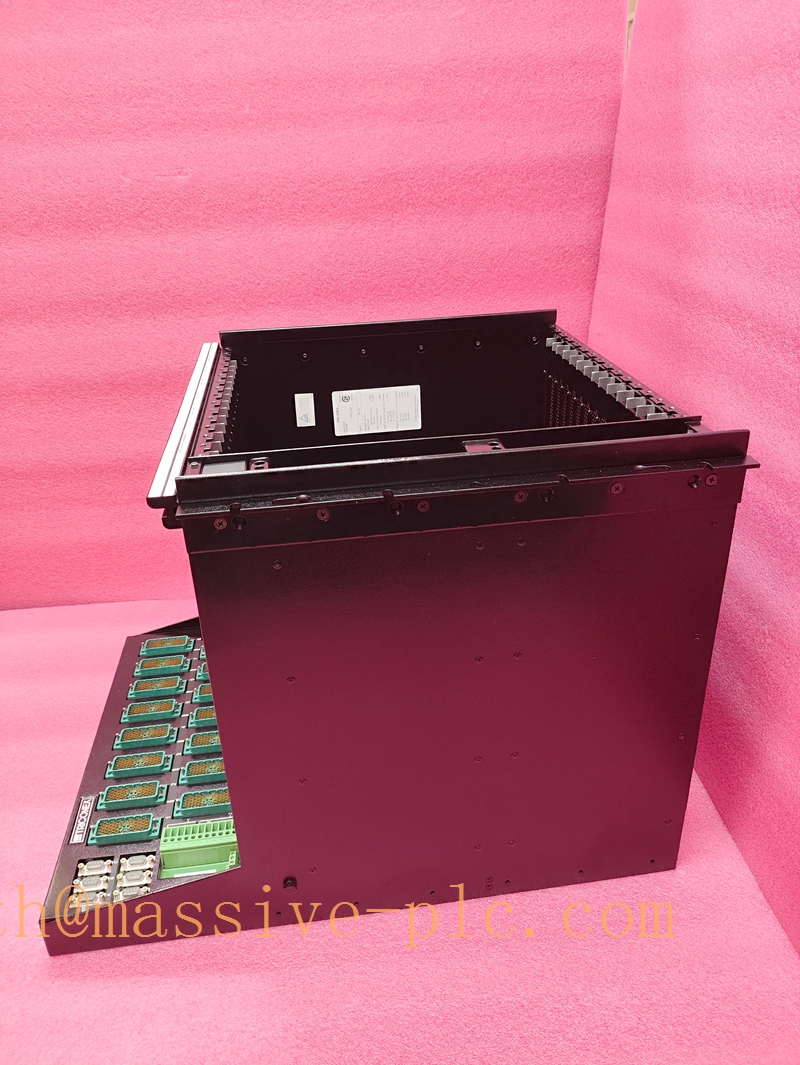

TRICONEX 8111
Specifications & Key Features
The 8131X is engineered for flexibility, high availability, and seamless integration within the Tricon CX ecosystem.
| Feature | Specification |
|---|---|
| Product Type | I/O Expansion Chassis |
| Slot Capacity | 6 Configurable I/O Slots |
| Installation | Panel Mount or 19-inch Rack Mount |
| I/O Bus Support | Fault-Tolerant RS-485, Ethernet, and Serial Buses |
| Expansion Capacity | Up to 15 chassis (RS-485) / 31 chassis (Ethernet) |
| Key Input Feature | Monitoring Digital Input with 1 ms Sequence of Events (SOE) resolution |
| Analog Performance | Analog Input modules with 5 ms update rate |
| Protocol Support | Built-in HART communication for analog modules |
| System Compatibility | Tricon CX and legacy Tricon systems (with appropriate firmware) |
Key Characteristics:
- Universal I/O Slots: All six slots are configurable, allowing for a flexible mix of digital, analog, HART, and communication modules within a single chassis.
- Multiple Bus Options: Supports three types of fault-tolerant I/O buses, providing design flexibility for different application needs and distances. The Ethernet I/O bus supports high-speed 1 Gbps communication.
- High-Performance Monitoring: Features specialized monitoring digital inputs with 1 ms SOE resolution, crucial for diagnosing the precise sequence of events during a process upset or shutdown.
- Hot-Swappable: Supports online module replacement without interrupting the safety system or process, maximizing plant availability.
- SIE Integration: Designed to be the core I/O component of the Triconex Safety Intelligent Enclosure (SIE), a pre-assembled, wall-mountable solution that uses fiber optics and software-defined I/O to simplify engineering and installation.

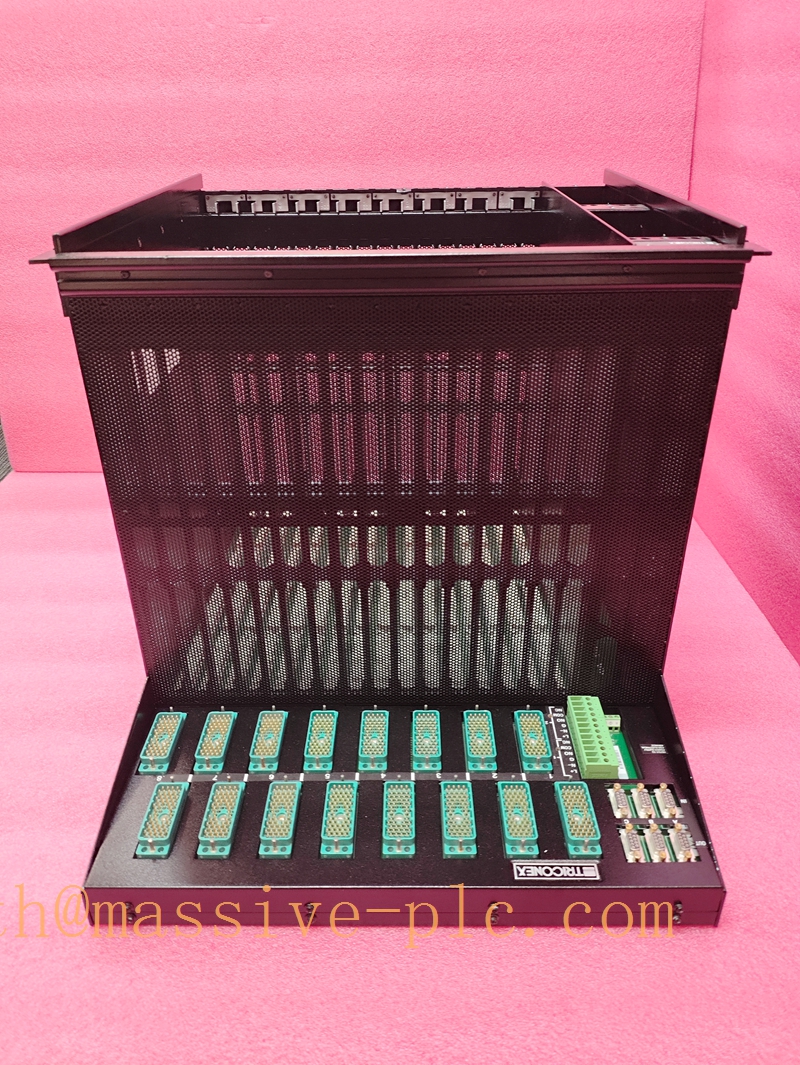

TRICONEX 8111
Related Series Models
When designing or upgrading a Tricon CX system, consider these related chassis and components:
- 8120X: The Tricon CX Main Chassis, housing the triple-redundant main processors, communication modules, and power supplies. The 8131X expands from this chassis.
- Triconex Safety Intelligent Enclosure (SIE): A complete, pre-wired solution that integrates the 8131X chassis, power supplies, and fiber optic connectivity for simplified field deployment.
- Tricon CX I/O Modules: A wide range of modules compatible with the 8131X, including Universal Safety I/O, HART Analog I/O, and high-speed digital I/O modules.
