TRICONEX 7400206‑100 (CM2201 Communication Baseplate)

Product Overview

The TRICONEX 7400206‑100 is the baseplate hardware for CM2201 communication module, designed for Tricon 3000 series Triple Modular Redundant (TMR) Safety Instrumented System (SIS). It serves as the physical carrier and signal interface for communication modules, providing multiple external communication ports and backplane inter‑connect connectors. It establishes data links between Tricon main processors, communication modules and external automation systems, supporting SIL‑3 safety‑critical application environments. This legacy baseplate enables multi‑protocol external communication for Tricon SIS platform。

Typical Applications

ESD Emergency Shutdown System: Real‑time safety data exchange between Tricon SIS and plant DCS, HMI or SCADA systems in refinery and petrochemical plants.
BMS Burner Management System: Transmit safety status, alarm and diagnostic data to upper monitoring platform.
Fire & Gas System: Interface for safety event upload and remote monitoring for oil‑gas on‑shore & off‑shore facilities.
Power Generation Turbine & Compressor Protection: Inter‑system communication for turbine safety control cabinets.
Chemical Process Safety: Bridge SIS safety logic and plant‑wide control network for reactor interlock systems.
System Expansion Configuration: Used in main chassis and expansion chassis for multi‑chassis Tricon system layout.

Technical Specifications

Item	Parameter
Part Number	7400206‑100 (CM2201 Baseplate)
Product Type	Communication Module Baseplate
Compatible Module	CM2201 communication module
Supported System	Tricon 3000 series SIS chassis
External Ports	Multiple RJ45 Ethernet ports, RS‑232 / RS‑485 serial DB connectors
Backplane Interface	Tricon proprietary high‑speed TMR backplane connectors
Backplane Power	24 VDC from system chassis backplane
Operating Temperature	0 °C ~ +60 °C
Storage Temperature	‑40 °C ~ +85 °C
Humidity	5 %‑95 % RH, non‑condensing
Dimension	230 × 247 × 42 mm
Net Weight	1.28 kg
Isolation Voltage	2500 V RMS backplane isolation
Mechanical Feature	Hot‑swap capable baseplate slot; mechanical key anti‑misplug
Safety Compliance	Matches IEC 61508 SIL‑3 qualified Tricon system
Installation Environment	Cabinet‑only mounting, IP20 protection

Key Features

Diversified Communication Interfaces: Integrates Ethernet and multi‑channel serial ports, supports interconnection with DCS, PLC, SCADA and host monitoring equipment.
TMR Backplane Compatibility: Designed for Tricon triple‑voting backplane bus, ensures consistent data transmission for three redundant processor branches.
Hot‑Swap Support: Baseplate slot supports hot‑swap of CM2201 communication module; module replacement does not shut down the SIS safety system.
Mechanical Keying Protection: Physical keyed slot prevents wrong‑type module insertion, avoids hardware damage caused by mis‑installation.
High‑strength Industrial PCB Construction: Multi‑layer heavy‑duty PCB, anti‑vibration, anti‑EMI, adapts to heavy‑industry cabinet electromagnetic environment.
Integrated Diagnostic Signal Routing: Routes module fault and diagnostic signals to system backplane, faults can be viewed via Tricon engineering software.
Chassis Modular Layout: Installs inside standard Tricon chassis, supports multi‑baseplate deployment for multi‑channel communication requirements.

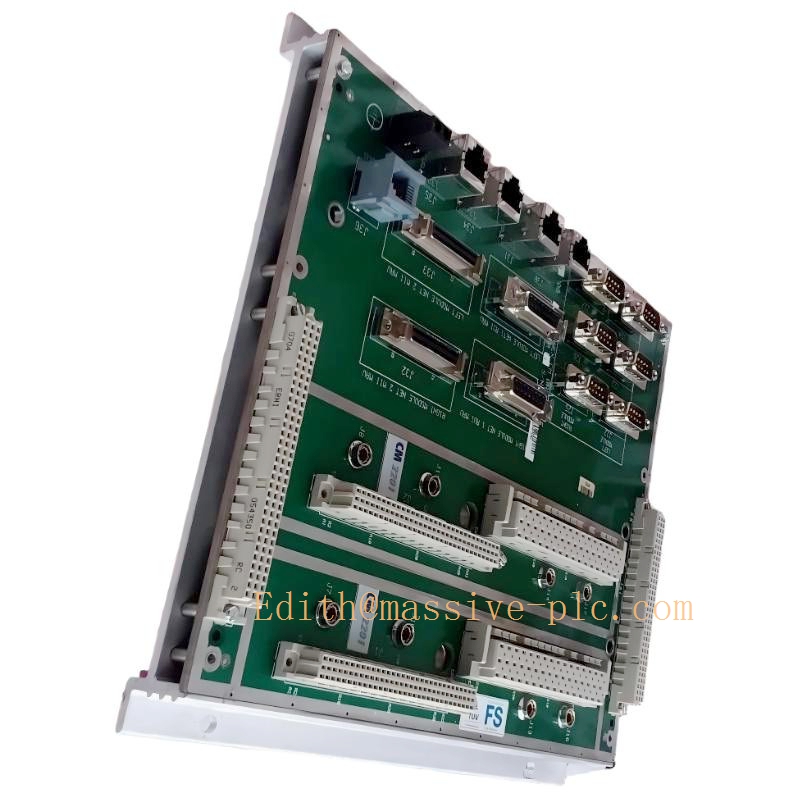

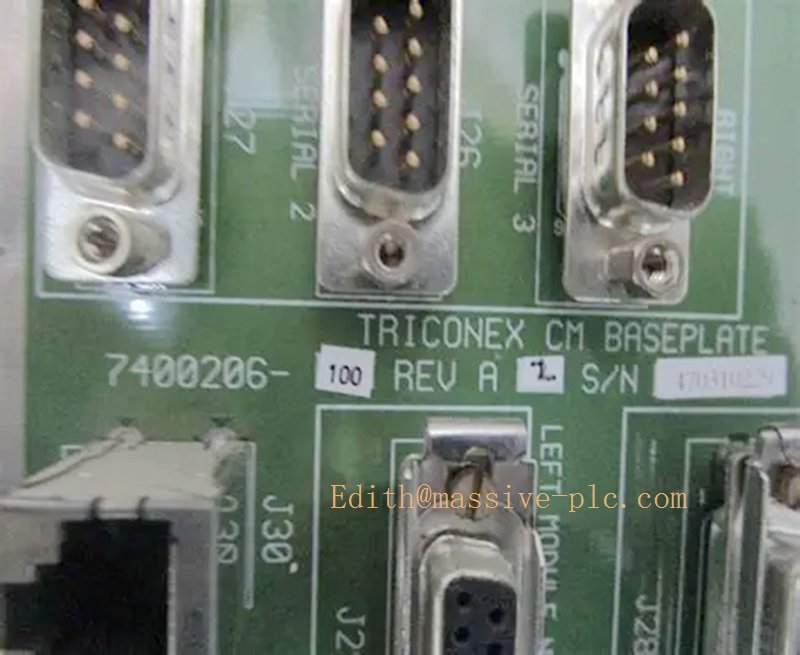

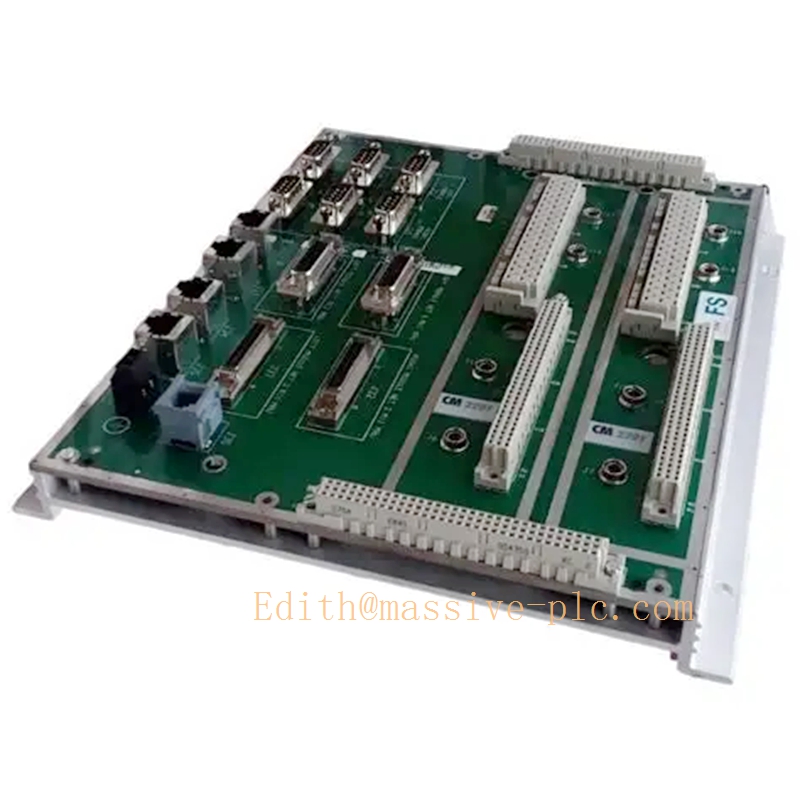

TRICONEX 7400206-100

Installation Guidelines

Pre‑installation Inspection: Verify part number revision; inspect PCB, connectors and metal frame for physical damage. Follow ESD anti‑static handling rules.
Chassis Slot Installation: Insert 7400206‑100 baseplate into designated communication slot of Tricon main / expansion chassis, lock front mounting latches firmly.
Module Insertion: Align CM2201 communication module with baseplate internal connector, push fully seated and lock the module latch.
External Communication Wiring: Connect Ethernet network cables and serial communication cables to corresponding front‑panel ports. Separate communication signal cables from high‑power motor/VFD cables to reduce EMI interference.
System Configuration: Complete communication protocol, baud rate, IP address setting inside Tricon engineering tool. Perform communication loop test to verify data exchange between SIS and external systems.
Environment Requirement: Install inside indoor control cabinet; avoid direct sunlight, moisture, corrosive gas; keep operating temperature within 0 °C ~ +60 °C.
Maintenance Note: For hot‑swap operation, only pull out the module; do not remove the 7400206‑100 baseplate while system is powered on.
