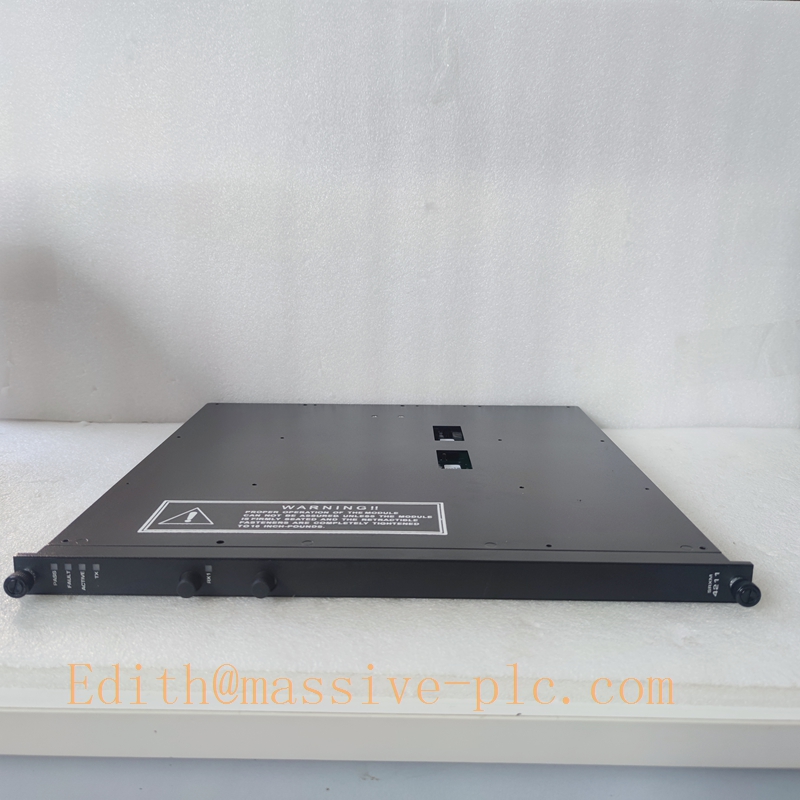

TRICONEX 4409 TMR Safety Manager Module
The TRICONEX 4409 (officially designated SMM4409) is a high-integrity Triple Modular Redundant (TMR) Safety Manager Module under Schneider Electric’s TRICONEX brand, purpose-built for Tricon and Trident series Safety Instrumented Systems (SIS). It integrates high-density digital I/O processing and safety logic management functions, fully compliant with IEC 61508 SIL3 functional safety standards for high-risk industrial operations.
Core Technical Specifications
| Specification Item | Technical Details |
|---|---|
| Manufacturer | TRICONEX (Schneider Electric) |
| Product Category | TMR Safety Manager / Digital I/O Module |
| I/O Channel Count | 32 digital inputs + 32 digital outputs |
| Input/Output Voltage Range | -30 VDC to +30 VDC |
| Nominal Working Voltage | 24 VDC / 120 VAC dual support |
| Response Time | 50 microseconds |
| Operating Temperature | -40°C to +70°C |
| Protection Rating | IP20 (cabinet-mounted) |
| Dimensions | 123 mm × 17.5 mm × 177 mm |
| Net Weight | ~0.45 kg (1 pound) |
| Safety Rating | IEC 61508 SIL3 certified |
Key Design Features
- True TMR 2oo3 Fault Tolerance Architecture: Three independent redundant processing channels run in parallel, with hardware-level 2-out-of-3 voting for all signal processing and logic decisions. The system continues uninterrupted even if one channel fails completely, eliminating all single-point failure risks for safety loops.
- Ultra-High Density I/O Integration: 64 total digital I/O points are integrated into a compact standard module footprint, drastically reducing total system chassis slot usage and cabinet footprint for large-scale safety loop deployment.
- Microsecond-Level Fast Response: The 50μs ultra-short response time supports rapid safety interlock actions for high-speed process control scenarios, preventing equipment damage and accident expansion during abnormal conditions.
- Full Onboard Diagnostics: Built-in real-time fault detection automatically identifies internal circuit anomalies, field wiring open-circuit and short-circuit issues, and records device operation parameters, fault codes and operation logs for post-maintenance traceability.
- Hot-Swap Capability: Supports online replacement during system runtime without shutting down the core safety controller, minimizing planned maintenance downtime for continuous-process facilities.
- Harsh Environment Adaptability: Optimized for high-temperature, high-humidity, high-vibration and strong electromagnetic interference industrial environments, delivering stable 24/7 continuous operation.

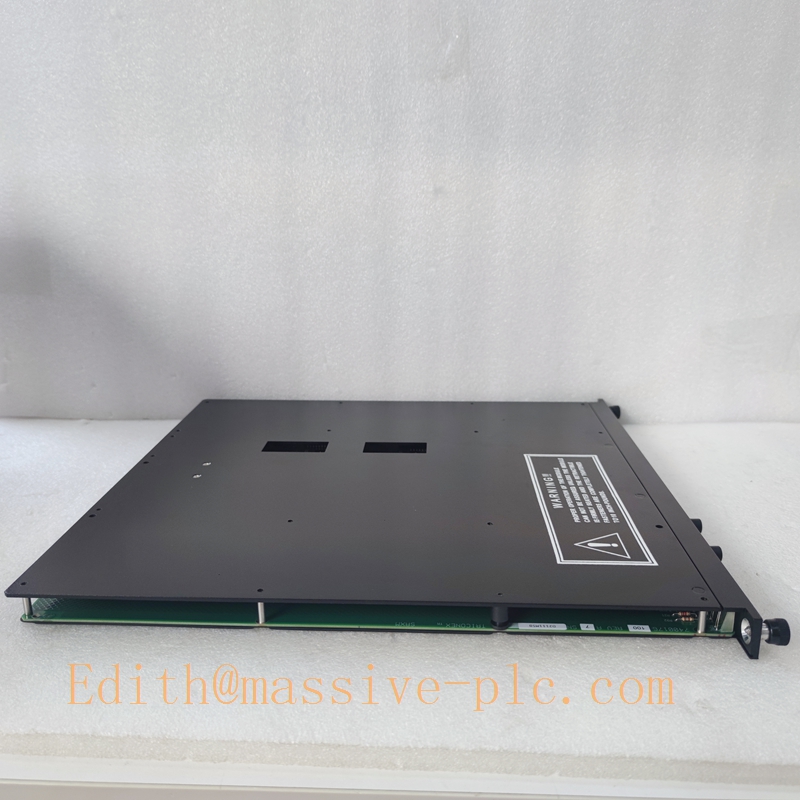

TRICONEX 4211
Typical Application Scenarios
The 4409 is widely deployed across global high-risk industries as a core safety management and signal processing unit:
- Oil & Gas Facilities: Manages ESD (Emergency Shutdown) system signal processing and F&G (Fire & Gas) detection interlock logic for refineries and long-distance pipeline networks
- Power Generation Plants: Executes boiler safety control and turbine protection interlock logic for thermal power and nuclear power auxiliary systems
- Petrochemical & Chemical Plants: Monitors and controls safety interlock loops for high-pressure reactors and distillation units
- Offshore Oil Platforms: Delivers reliable performance in corrosive, high-vibration offshore environments
- Mining & Metallurgy: Supports hoist safety interlock and metallurgical process protection control tasks
Supporting Components
The 4409 works seamlessly with standard Tricon system components to form a complete safety control solution:
- Tricon Main Chassis: 16-slot standard cabinet that provides backplane communication and power distribution for the module
- MP3008 Main Processor: The core logic solver that interacts with the 4409 to execute complex safety control algorithms
- Dedicated Terminal Boards: Field wiring interface that connects the 4409 I/O channels to on-site sensors, valves and actuators
- Redundant 24 VDC Power Supply Unit: Delivers stable, uninterrupted power input for the module to avoid unexpected operation anomalies

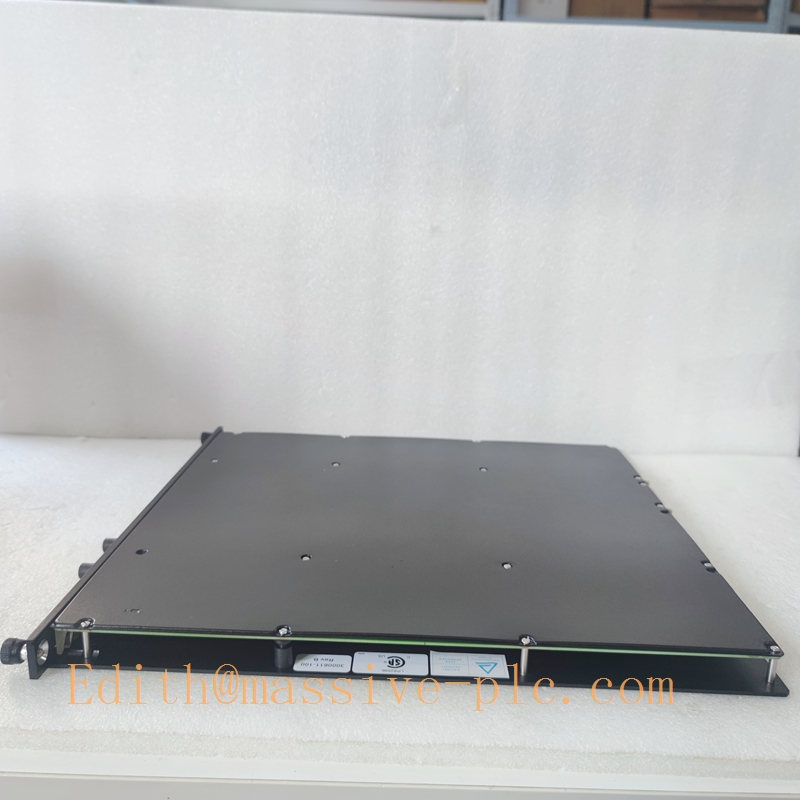

TRICONEX 4211
Related Tricon Series Models
The 4409 belongs to TRICONEX’s Tricon TMR safety manager family, with peer models tailored for different deployment requirements:
- 3401: TMR digital output module, for standard-density discrete safety control scenarios
- DI3301: 32-channel TMR digital input module, for dedicated high-density discrete signal acquisition
- 3504E: Modern 32-channel TMR digital input module, the successor for latest Tricon v10/v11 systems
