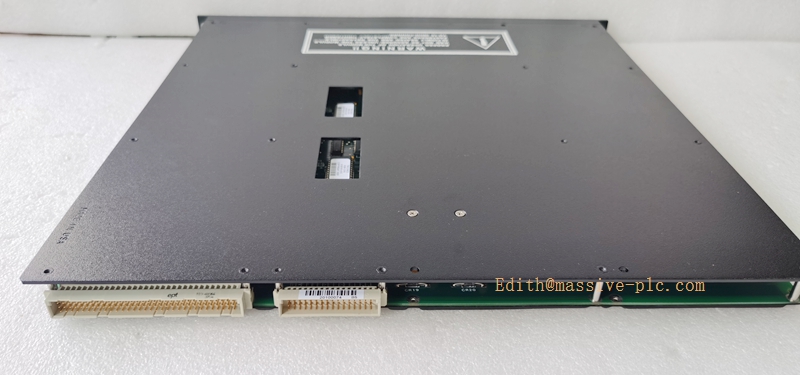

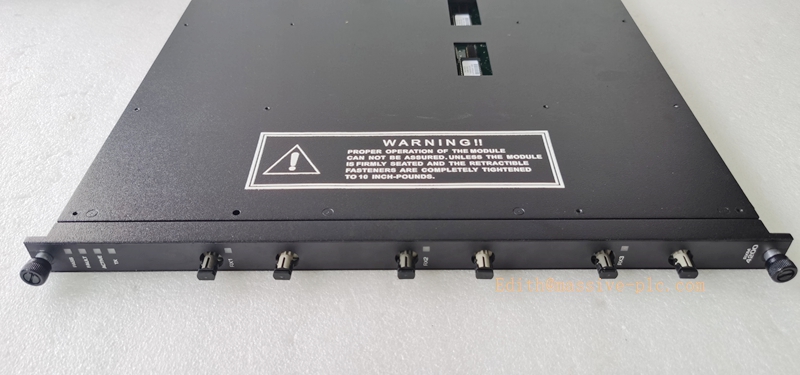

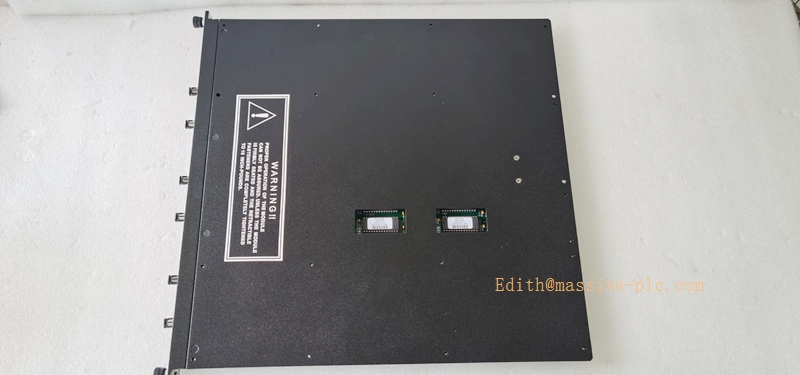

TRICONEX 4200 Compact TMR SIS Safety Controller

The TRICONEX 4200 is a compact, cost-effective TMR (Triple Modular Redundancy) safety controller developed for small-to-medium Safety Instrumented System (SIS) applications. As a streamlined high-integrity safety platform in the Triconex product lineup, it inherits field-proven triple redundant fault-tolerant technology, integrating safety logic solving, I/O management and multi-protocol communication functions in a compact chassis. Fully compliant with IEC 61508 SIL 3 functional safety standards, the 4200 controller delivers reliable, low-latency safety interlock control for skid-mounted equipment, small process units and distributed safety loops, balancing ultra-high safety performance and economical deployment costs for medium-risk industrial scenarios.

Product Applications

The TRICONEX 4200 is widely applied in medium-risk process industries requiring compact, standalone and high-reliability safety control, including oil & gas skid packages, chemical auxiliary units, pharmaceutical production lines, water treatment systems and renewable energy power facilities. It serves as the core standalone safety control unit for decentralized small-scale SIS systems, with typical application scenarios as follows:

Skid-Mounted Equipment Safety Control: Undertakes integrated ESD emergency shutdown, interlock protection and status monitoring for factory-assembled skid equipment such as compression skids, pumping skids and heat exchange skids, realizing independent safety management of single skid units.
Small-Scale ESD Emergency Shutdown Systems: Applies to medium-risk process units with limited I/O points, executing accurate safety trip logic, over-limit protection and emergency isolation actions to prevent equipment damage and process safety accidents.
BMS Burner Management Auxiliary Control: Supports flame detection, ignition sequence control and combustion fault shutdown for small and medium-sized industrial burners, ensuring safe and stable operation of combustion equipment and avoiding deflagration risks.
Decentralized F&G Local Safety Monitoring: Realizes localized fire and toxic gas signal acquisition, alarm judgment and linkage output for regional factory areas, cooperating with central control systems to complete hierarchical safety disposal.
Independent Process Interlock Protection: Provides dedicated safety logic operation for auxiliary process systems such as raw material delivery, waste gas treatment and circulating water systems, preventing auxiliary equipment faults from affecting main process production stability.
Compact Unattended Safety Scenarios: Adapts to remote unmanned small stations and distributed process units, realizing long-term autonomous safety monitoring and intelligent fault diagnosis with minimal manual maintenance.

TRICONEX 4200

Technical Specifications & Parameters

The TRICONEX 4200 adopts integrated compact TMR triple redundant architecture, optimized high-efficiency safety processor and integrated communication design. Featuring flexible I/O expansion, fast logic scanning, comprehensive self-diagnosis and industrial harsh environment adaptability, it fully meets SIL 3 high-standard safety control requirements for small and medium-sized industrial safety loops. Detailed core specifications are listed below:

2.1 System Performance & Control Parameters

System Architecture: Compact integrated Triple Modular Redundancy (TMR) fault-tolerant structure
Safety Integrity Level: IEC 61508 SIL 3 full-system certified
Logic Scan Cycle: Fast millisecond-level scanning, supporting rapid safety response
Control Mode: Three-channel synchronous operation + 2-out-of-3 hardware voting, single-point fault non-stop operation
I/O Expansion Capacity: Supports flexible matching of Triconex standard I/O modules, adapting to small and medium-scale point requirements
Logic Editing Mode: Graphical configuration via dedicated safety software, supporting standard safety logic programming
Fault Diagnosis Rate: High-coverage system-level and channel-level intelligent fault diagnosis
Safety Response Mechanism: Standard fail-safe design, automatic safe-state locking upon system failure

2.2 Communication & Interface Parameters

Built-In Protocols: Modbus RTU/TCP, dedicated Triconex communication protocol
Communication Interfaces: Industrial serial ports and Ethernet ports, supporting multi-system docking
Data Interaction: Supports real-time safety data upload, remote command download and fault log upload
Network Adaptation: Compatible with mainstream DCS, SCADA and upper monitoring platforms
Time Synchronization: Supports system clock synchronization to ensure consistent data timestamp tracing

2.3 Environmental Parameters

Operating Temperature: -40°C to +70°C industrial wide temperature range
Storage Temperature: -40°C to +85°C
Relative Humidity: 5% to 95% (non-condensing)
Environmental Resistance: Compliant with IEC EMC electromagnetic immunity, industrial vibration and mechanical shock standards
Protection Grade: IP20 industrial protection rating, dust-proof and moisture-proof reinforced design
Installation Method: Standard DIN rail and chassis mounting, convenient for compact cabinet deployment

2.4 Certification & Reliability Parameters

Safety Certification: TÜV, CE, UL, ATEX, IEC 61508 SIL 3 international full certification
Maintenance Mode: Supports hot-swap replacement of matching I/O modules, zero-downtime local maintenance
System Availability: Ultra-high industrial availability rate, adapting to 7×24h uninterrupted operation
Design Service Life: More than 10 years of stable service life under standard industrial working conditions
Compatibility: Fully compatible with Triconex classic series I/O modules and configuration software

TRICONEX 4200

Core Product Features

3.1 Compact Integrated TMR Fault-Tolerant Architecture

The TRICONEX 4200 integrates the classic TMR triple redundant safety architecture into a compact chassis, retaining three independent synchronous operating control channels and hardware 2-out-of-3 voting logic. It automatically isolates single-channel faults such as processor deviation and circuit abnormality, realizing non-stop operation with single-point failures. The streamlined structural design eliminates redundant hardware while retaining full SIL 3 safety performance, perfectly solving the problem of excessive cost and space waste of large SIS systems for small-scale safety loop scenarios.

3.2 Cost-Effective Small-Scale Safety Solution

Positioned as an economical high-integrity safety controller, the 4200 model lowers the deployment threshold of standard SIL 3 safety systems. It avoids the resource redundancy of large-scale Tricon and 9000 series platforms for skid-mounted and decentralized small-unit scenarios, greatly reducing initial investment, cabinet space occupation and later spare part maintenance costs. It is the preferred standard safety control platform for medium-risk industrial auxiliary systems and skid EPC projects.

3.3 Flexible I/O Expansion & Strong Compatibility

The 4200 controller supports free matching of mainstream Triconex I/O modules, including digital input, analog input, digital output and relay output modules. Users can flexibly configure I/O point types and quantities according to on-site interlock demands, realizing customized safety loop construction. It maintains full compatibility with TriStation configuration software, consistent programming logic and debugging methods with large systems, reducing engineering learning costs and improving project replication efficiency.

3.4 Multi-Protocol Stable Communication Networking

Built-in Modbus and dedicated safety communication protocols enable the 4200 to seamlessly dock with mainstream DCS and SCADA systems. It stably uploads interlock status, alarm information and system fault data, and receives remote reset and monitoring commands from upper systems. The bidirectional high-reliability data interaction realizes unified centralized monitoring of distributed small safety units and overall plant safety management, ensuring data transparency and linkage consistency.

3.5 Full-Coverage Intelligent Self-Diagnosis

The system supports full-state intelligent diagnosis of controller hardware, communication links and field I/O loops. It accurately identifies hidden faults such as module aging, communication timeout, loop abnormality and voting mismatch, and actively uploads fault codes and health status. Proactive early warning and precise fault location effectively eliminate dormant failures of small safety loops, solve the pain point of difficult daily monitoring of decentralized safety equipment, and improve system maintainability.

3.6 Industrial Harsh Environment Adaptability

Adopting industrial wide-temperature hardware and reinforced environmental protection design, the 4200 controller can stably operate in high-temperature, low-temperature, high-humidity and strong electromagnetic interference environments. It passes strict industrial vibration and shock tests, adapting to harsh working conditions such as field skid installation, outdoor decentralized deployment and chemical corrosive environments, ensuring long-term stable and reliable operation of compact safety systems.

Matching System Modules & Similar Models

The TRICONEX 4200 supports full series of classic Tricon I/O modules and communication accessories, and has differentiated positioning with large-scale safety platforms. The mainstream matching and alternative models are as follows:

Matching Digital Modules: 3501T, 3506X, 3601E, 3625A (compatible with AC/DC supervised and conventional discrete loops)
Matching Analog Modules: 3503C1, 3703E, 3723X (supporting current/voltage precision signal acquisition)
Matching Communication Modules: 5351, ACM4609 (realizing multi-protocol and cross-brand DCS docking)
High-End Alternative Model: Triconex 9000 Series (for large-scale, high-I/O and SIL4 ultra-high safety scenarios)
Classic Platform Model: Tricon Classic Series (for traditional large-scale integrated SIS system transformation and expansion)

Product Summary

The TRICONEX 4200 is a SIL 3-grade compact economical TMR safety controller tailored for small and medium-scale industrial safety scenarios. It inherits Triconex’s mature fault-tolerant safety technology, and balances high safety integrity, compact deployment and low operation and maintenance costs. With integrated control logic, flexible I/O expansion, multi-protocol communication and full intelligent diagnosis capabilities, it perfectly meets the safety control demands of skid-mounted equipment, decentralized process units and medium-risk auxiliary systems. As the core economical safety platform in the Triconex product line, it is widely applied in global small and medium-sized process industrial safety construction and skid EPC projects.
