Name: TRICONEX 4119A Enhanced Intelligent Communication Module - MASSIVE
Brand: Triconex

Description

TRICONEX 4119A Enhanced Intelligent Communication Module Product Introduction

The TRICONEX 4119A is a high-performance, TMR-based Enhanced Intelligent Communication Module (EICM) designed for Triconex Triple Modular Redundancy Safety Instrumented Systems (SIS). Serving as a multi-functional external communication gateway, this module integrates configurable serial interfaces and parallel port transmission capability, realizing seamless data exchange between Tricon SIS controllers, engineering workstations, third-party PLCs, SCADA platforms and field intelligent devices. Adopting industrial-grade fault-tolerant design and complying with IEC 61508 SIL 3 functional safety standards, it delivers stable, low-latency and high-reliability communication services for critical industrial safety and process control systems.

Product Applications

The TRICONEX 4119A is widely deployed in safety-critical industrial scenarios requiring multi-protocol, multi-interface cross-system data interaction, covering oil & gas, petrochemical, chemical processing, thermal power generation, energy and pharmaceutical industries. It acts as a core communication bridge for SIS system debugging, data uploading and cross-device linkage, with typical application scenarios as follows:

SIS System Engineering & Debugging: Establishes stable communication links between Triconex SIS controllers and TriStation engineering workstations, supporting program downloading, online debugging, logic modification and real-time system status monitoring.
Cross-System Data Interconnection: Realizes data interaction between SIS safety systems and conventional DCS, PLC and SCADA systems via multi serial protocols, completing safety parameter uploading, control command downlink and system coordinated control.
Field Intelligent Device Communication: Connects with on-site intelligent transmitters, safety controllers and monitoring devices through configurable RS-232/RS-422/RS-485 interfaces, collecting field operating data and realizing remote device management.
Emergency Shutdown (ESD) & F&G System Data Transmission: Supports real-time upload of safety loop status, fault alarm information and hazard monitoring data, ensuring timely early warning and rapid linkage response of safety systems.
Industrial Automatic Control Expansion: Provides extended communication ports for large-scale integrated automation systems, solving the problem of insufficient system communication interfaces and improving the scalability of industrial control networks.

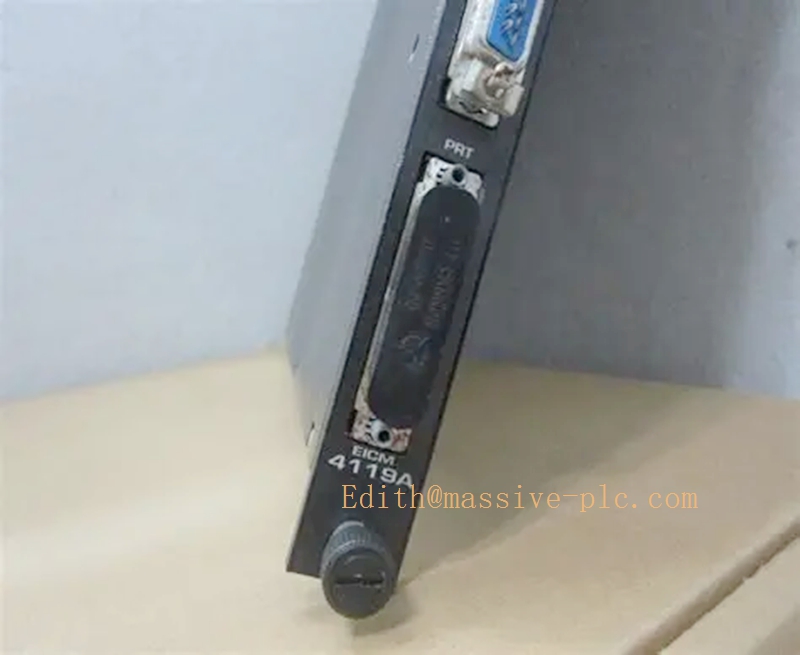

TRICONEX 4119A

Technical Specifications & Parameters

The TRICONEX 4119A features industrial-grade multi-interface and multi-protocol design, with standardized electrical, environmental and mechanical parameters. It adapts to harsh industrial operating conditions and meets high-stability communication requirements of SIL 3 safety systems. Detailed specifications are listed below:

2.1 Communication & Electrical Parameters

Module Type: TMR fault-tolerant enhanced intelligent communication module (EICM)
Serial Interfaces: 4 configurable independent serial ports
Serial Port Configuration: Software configurable for RS-232, RS-422, RS-485 modes
Parallel Interface: 1 isolated Centronics parallel port for high-speed data transmission
Supported Protocols: Triconex dedicated communication protocol, Modbus RTU, mainstream industrial serial protocols
Maximum Baud Rate: Up to 9600 bps for stable serial data transmission
Rated Operating Voltage: 24VDC industrial standard power supply
Operating Voltage Range: 15VDC to 30VDC wide voltage tolerance
Isolation Design: Full galvanic isolation for all communication ports, effectively isolating external interference and protecting system internal circuits

2.2 Environmental Parameters

Operating Temperature: -20°C to +70°C
Storage Temperature: -40°C to +85°C
Relative Humidity: 5% to 95% (non-condensing)
Environmental Resistance: Compliant with IEC industrial vibration, shock and EMC electromagnetic interference resistance standards
Protection Performance: Industrial dust-proof and moisture-proof design, suitable for long-term continuous on-site operation

2.3 Mechanical & Certification Parameters

Installation Method: Standard Triconex TMR chassis slot mounting
System Compatibility: Fully compatible with all Triconex TMR series controllers, chassis and TriStation supporting software
Safety Certification: IEC 61508 SIL 3 certified, CE, UL compliant
Design Service Life: More than 10 years under standard industrial operating conditions

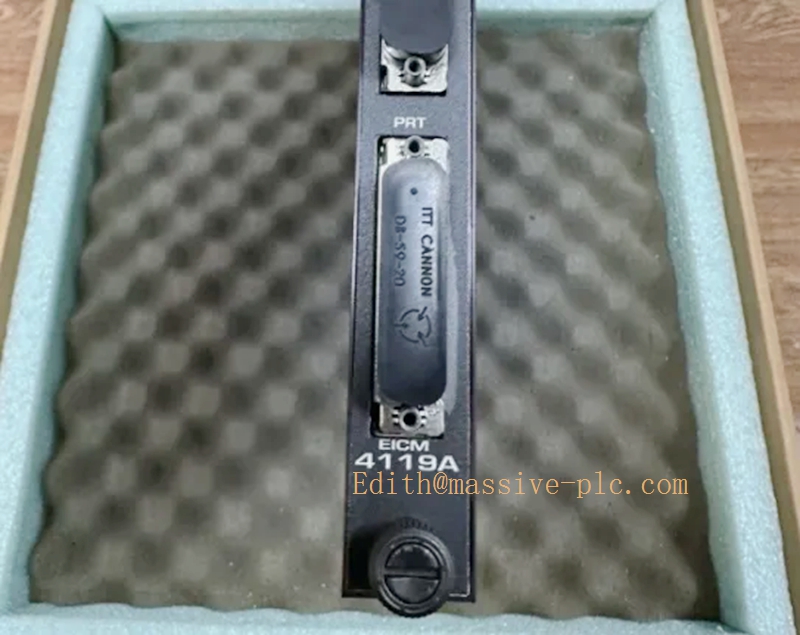

TRICONEX 4119A

Core Product Features

3.1 TMR Triple Modular Redundancy Fault-Tolerant Architecture

The TRICONEX 4119A adopts exclusive Triconex TMR triple redundant architecture, with three independent internal communication processing channels and a built-in two-out-of-three voting mechanism. All channels synchronously process data transceiving and verification. Single-channel communication failure, data deviation or hardware abnormality will be automatically identified and masked without interrupting overall system communication, eliminating single-point failure risks and ensuring continuous and stable data transmission of safety loops.

3.2 Multi-Interface Flexible Configurable Communication

Equipped with four multi-mode configurable serial ports and one high-speed parallel port, the module supports free switching of RS-232, RS-422 and RS-485 signal modes through software configuration. It can adapt to different communication interface requirements of engineering debugging, device docking and system interconnection, solving the compatibility problem of multi-brand and multi-type industrial equipment communication and greatly improving system integration flexibility.

3.3 Multi-Protocol Adaptive Compatibility

It supports Triconex proprietary communication protocol and universal Modbus RTU industrial protocol, realizing seamless docking between Tricon SIS systems and most mainstream industrial automation equipment. The built-in protocol parsing and data forwarding functions simplify cross-system configuration, reduce docking difficulty, and ensure accurate and error-free data interaction between different devices and platforms.

3.4 Comprehensive Intelligent Self-Diagnosis Function

The module integrates full-coverage real-time diagnosis functions, which can accurately monitor communication link disconnection, protocol matching errors, data transmission exceptions, port faults and power supply abnormalities. All fault information and communication status data are uploaded to the upper controller and monitoring system in real time, supporting precise fault location, early warning of hidden dangers and rapid troubleshooting, and improving system operation safety and maintainability.

3.5 Excellent Industrial Environmental Adaptability

Adopting industrial-grade reinforced hardware design and full-port isolation technology, the 4119A has strong anti-electromagnetic interference, vibration resistance and temperature fluctuation resistance. It can operate stably in harsh industrial environments such as high humidity, dust pollution and complex electromagnetic fields, ensuring long-term trouble-free communication transmission of critical safety systems.

3.6 Convenient Maintenance & Strong Scalability

Fully compatible with the complete Triconex TMR system ecosystem, supporting online module replacement and hot maintenance without system shutdown. The modular design supports free expansion of system communication ports, meeting the communication upgrade and expansion needs of large-scale industrial control systems in the later stage, with low maintenance cost and high system flexibility.

Similar Series Models

Triconex 4000 series covers high-performance intelligent communication and expansion modules for TMR safety systems. The mainstream similar and matching models of the TRICONEX 4119A are listed below for system configuration, replacement and expansion reference:

TRICONEX 4119: Standard intelligent communication module, with basic multi-serial-port communication function, suitable for conventional system debugging and simple equipment docking scenarios.
TRICONEX 4219A: Enhanced high-speed communication module, with upgraded transmission rate and multi-device concurrent connection capability, applicable to large-scale multi-terminal interconnected systems.
TRICONEX 5101S2: Dual-Ethernet safety communication module, matched with 4119A to realize serial and Ethernet dual-channel redundant communication.
TRICONEX 3301: 32-channel digital input module, cooperating with 4119A to complete field signal acquisition and remote data uploading.
TRICONEX 3411: Solid-state digital output module, realizing remote safety command transmission and equipment linkage control through 4119A communication links.
TRICONEX 3704E: High-precision analog input module, supporting analog process data upload via 4119A multi-protocol transmission.

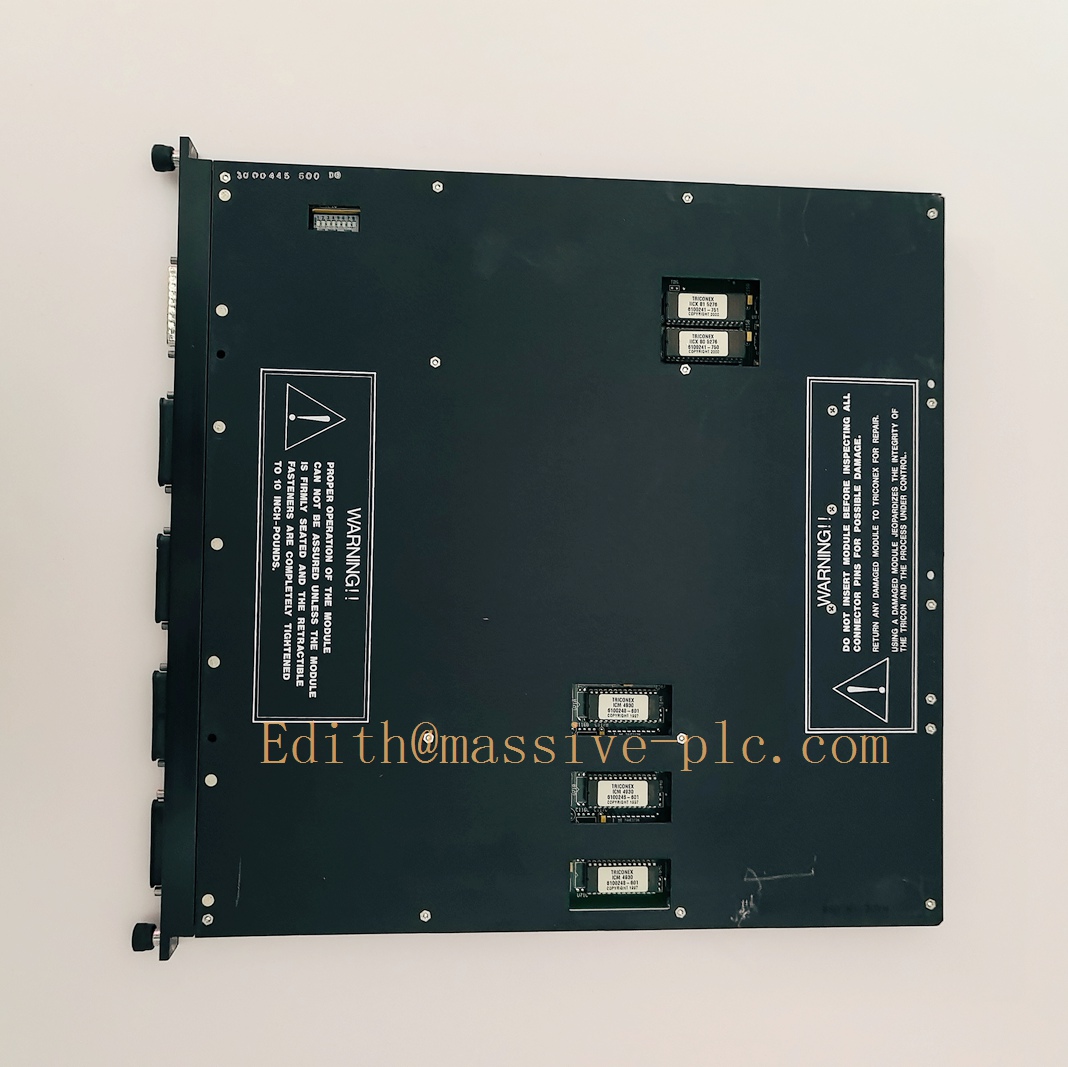

TRICONEX 4119A

Product Summary

The TRICONEX 4119A is a high-reliability SIL 3-grade enhanced intelligent communication module in the Triconex TMR safety system product line. With triple modular redundant fault-tolerant architecture, multi-interface configurable design and multi-protocol adaptive compatibility, it solves the problems of single communication mode and poor cross-system compatibility of traditional modules. It serves as a core communication gateway for SIS system debugging, field device docking and upper platform data interaction, providing stable, efficient and safe data transmission guarantee for industrial safety control systems. With outstanding environmental adaptability, convenient maintenance and strong scalability, it is widely used in high-risk process industries and is an indispensable core component of Triconex TMR safety instrumented systems.
