Name: TRICONEX 3825X Relay Output Module - MASSIVE
Brand: Triconex

Description

TRICONEX 3825X Relay Output Module Product Introduction

The TRICONEX 3825X is a high-reliability TMR (Triple Modular Redundancy) relay output module designed for Triconex Tricon Safety Instrumented Systems (SIS). As a core contact-type output unit for safety interlock control, this module features mechanical relay switch output, strong load driving capability and complete isolation protection. Adopting triple redundant fault-tolerant architecture and full-channel self-diagnosis technology, the 3825X complies strictly with IEC 61508 SIL 3 functional safety standards. It provides safe, stable and reliable contact switching control for critical ESD, F&G and process interlock loops in high-risk industrial environments.

Product Applications

The TRICONEX 3825X is widely deployed in safety-critical process industries requiring contact-type switch output and high-isolation safety control, including oil & gas, petrochemical, chemical processing, thermal power generation, energy and pharmaceutical industries. It undertakes key safety execution tasks in SIS safety systems, with typical application scenarios as follows:

ESD Emergency Shutdown Execution Control: Outputs relay contact signals to control emergency shutdown valves, trip relays and key equipment power-off loops, accurately executing system emergency shutdown commands to avoid major production safety accidents.
F&G Fire and Gas Linkage Control: Drives fire alarm equipment, gas hazard linkage valves, ventilation exhaust systems and fire suppression units, realizing rapid safety response and hazard isolation when fire or gas leakage risks occur.
Process Interlock Protection Output: Executes interlock switch actions for production process parameters exceeding limits, controlling pump stop, fan shutdown, pipeline cut-off and other protection actions to ensure safe and stable operation of process units.
High-Isolation Cross-System Switching: Uses mechanical relay complete isolation characteristics to realize signal switching and electrical isolation between SIS safety system and external field equipment, effectively isolating interference and fault transmission between different systems.
High-Current Load Safety Driving: Adapts to on-site medium-current load equipment control scenarios that cannot be driven by ordinary transistor output modules, providing stable and durable switch driving capability for industrial execution units.

Technical Specifications & Parameters

The TRICONEX 3825X adopts industrial-grade mechanical relay output design, standard TMR triple redundant processing mechanism and high-strength electrical isolation. With strong load capacity, long service life and excellent environmental adaptability, it fully meets SIL 3 high-reliability safety loop output requirements. Detailed specifications are listed below:

2.1 Electrical & Output Parameters

Module Type: TMR triple redundant relay output module (RO)
Channel Density: 8 independent isolated relay output channels
Output Mode: Mechanical normally open relay contact output
Rated Load Voltage: 24VDC / 120VAC / 240VAC universal industrial load
Single Channel Rated Current: 2A continuous rated load current per channel
Switching Mechanism: Triple-channel synchronous control + 2-out-of-3 hardware voting output
Isolation Performance: Complete electrical isolation between channels and between internal system and external load
Anti-Arcing Design: Industrial relay anti-arc and surge suppression circuit, extending contact service life
Backplane Bus: High-speed dedicated TriBus safety bus for reliable command transmission
Diagnostic Function: Real-time detection of relay adhesion, circuit open/short circuit and voting mismatch faults

2.2 Environmental Parameters

Operating Temperature: -40°C to +70°C
Storage Temperature: -40°C to +85°C
Relative Humidity: 5% to 95% (non-condensing)
Anti-Interference Performance: Compliant with IEC industrial EMC, vibration and shock resistance standards
Working Adaptability: Industrial dust-proof, moisture-proof and anti-corrosion design, suitable for long-term on-site continuous operation

2.3 Mechanical & Certification Parameters

Installation Method: Standard slot mounting for Triconex TMR system chassis
Hot-Swap Support: Supports online module replacement without SIS system shutdown
System Compatibility: Fully compatible with Triconex TMR controllers, chassis and TriStation software suite
Safety Certification: IEC 61508 SIL 3 certified, TÜV, CE, UL, ATEX compliant
Design Service Life: More than 10 years under standard industrial operating conditions

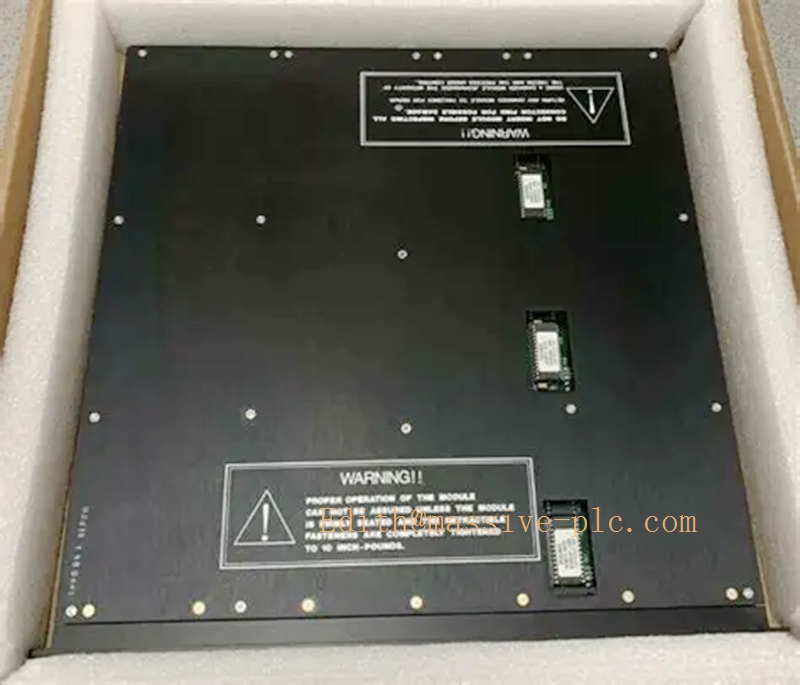

TRICONEX 3625A

Core Product Features

3.1 TMR Triple Modular Redundancy Fault-Tolerant Architecture

The 3825X inherits Triconex exclusive triple modular redundancy safety design, with three fully independent internal control channels synchronously executing output commands and hardware voting judgment. When a single channel fails, relays adhere or signals deviate abnormally, the faulty channel is automatically isolated and shielded, and the module outputs consistent and correct switch status based on valid channel consensus. This architecture completely eliminates single-point failure risks and ensures zero misoperation of safety output loops.

3.2 Mechanical Relay High-Isolation Output

Different from conventional transistor output modules, the 3825X adopts mechanical relay contact output, realizing complete physical electrical isolation between the safety system internal circuit and external field load. It can effectively isolate external surge voltage, load short-circuit faults and electromagnetic interference, preventing external equipment abnormalities from penetrating and damaging the core SIS system, and greatly improving system safety and anti-risk capability.

3.3 Strong Load Driving & Wide Voltage Adaptation

With 2A single-channel continuous load capacity and support for multi-specification AC/DC load voltage, the module adapts to various industrial on-site execution equipment driving requirements. It can stably drive intermediate relays, solenoid valves, alarm horns and switch-type execution units, solving the problem of insufficient load capacity of ordinary output modules and expanding the application range of safety loop control.

3.4 Full-Channel Intelligent Fault Diagnosis

The 3825X supports per-channel real-time full-state diagnosis, accurately identifying common faults such as relay contact adhesion, line open circuit, load short circuit and internal voting mismatch. All fault information and channel status are uploaded to the upper monitoring system in real time with accurate fault codes, realizing proactive early warning, precise fault location and rapid maintenance, and improving system operation transparency and maintainability.

3.5 Strict Fail-Safe Safety Mechanism

Following industrial safety fail-safe design principles, the module will automatically reset to the predefined safe off-state and lock the output when encountering module failure, communication interruption or voting abnormality. It effectively avoids abnormal action of field safety equipment caused by system faults, locks the production safety state, and maximizes the safety integrity of industrial process loops.

3.6 Zero-Downtime Hot-Swap Maintenance

Supports online hot-swap replacement during SIS system operation without shutting down the safety system or affecting the normal output of other safety loops. It realizes zero-downtime maintenance of output modules, reduces on-site construction risks and system maintenance costs, and adapts to long-term uninterrupted production operation requirements of process industrial plants.

Similar Series Models

Triconex output module series covers relay output and transistor output types with different channel densities, adapting to various safety loop driving scenarios. The mainstream matching and alternative models of TRICONEX 3825X are as follows:

TRICONEX 3625A: High-density transistor digital output module, suitable for low-voltage and low-current high-frequency switch output scenarios.
TRICONEX 3805E: Standard relay output module, used for conventional safety loop switch control and low-load driving scenarios.
TRICONEX DI2301 / DI3301S2: Digital input modules, forming complete closed-loop safety interlock control with 3825X.
TRICONEX 3009X / MP6004: TMR main processor modules, issuing safety output commands for 3825X to execute on-site interlock actions.
TRICONEX 4355X: Multi-protocol communication module, uploading 3825X output status and fault information remotely in real time.
TRICONEX 8311N / PM6301A: Redundant power supply modules, providing stable power guarantee for 3825X relay switching operation.

Product Summary

The TRICONEX 3825X is a SIL 3-grade TMR relay output module with high isolation and strong load capacity in the Triconex safety system product line. With triple modular redundant fault-tolerant architecture, mechanical physical isolation output, multi-voltage load adaptation and full intelligent diagnosis function, it solves the pain points of poor isolation and weak anti-interference of traditional output modules. As the core execution unit of ESD, F&G and process interlock safety loops, it provides ultra-reliable switch control and fault isolation guarantee for industrial safety systems, and is widely applied in global high-risk process industries.
