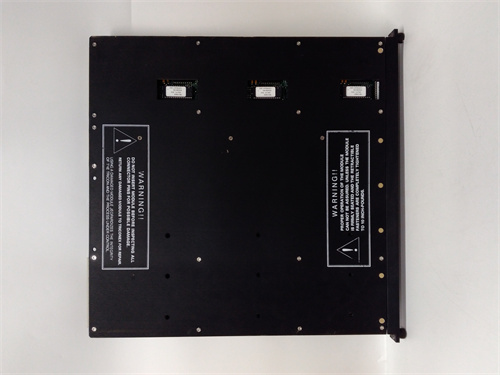

TRICONEX 3708E TMR Digital Input Module

Description

TRICONEX 3708E TMR Digital Input Module: Full Technical Introduction

The TRICONEX 3708E is a high-integrity Triple Modular Redundant (TMR) Digital Input (DI) module developed by Schneider Electric’s TRICONEX brand, purpose-built for Tricon v9 to v11 Safety Instrumented Systems (SIS). It is designed to acquire discrete field status signals with zero single-point failure risk, delivering SIL3-level functional safety performance for high-risk industrial safety loops.

Core Product Specifications

表格

Key Design Features

• ‌True TMR 2oo3 Voting Architecture‌: Three independent signal acquisition circuits process each field input simultaneously, with hardware-level 2-out-of-3 voting to validate signal consistency. This eliminates spurious signal misreading and dangerous undetected failures, delivering a PFD (Probability of Failure on Demand) lower than 10⁻⁴.
• ‌Built-In Field Power Monitoring‌: The module continuously monitors the 24 VDC field input power supply, automatically triggering an alarm if the power drops below the valid threshold to prevent invalid signal acquisition.
• ‌Configurable Anti-Chatter Filter‌: Users can adjust the input filter time via TriStation 1131 engineering software, effectively filtering out transient electrical noise and contact bounce from mechanical field switches.
• ‌Hot-Swap Support‌: The module supports online replacement without shutting down the safety system, as the redundant TMR channels maintain normal signal acquisition during the replacement process.
• ‌Channel-Level Diagnostics‌: Real-time detection of open-loop field wiring, short-circuit faults and internal circuit anomalies, with granular fault localization reported directly to the Tricon host controller.

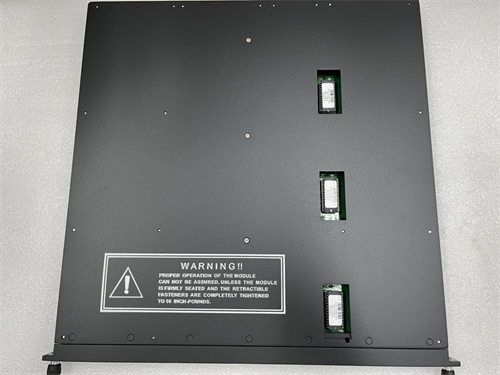

TRICONEX 3708E

Typical Industrial Applications

The 3708E serves as the core discrete signal acquisition interface for safety-critical loops, with widespread deployment across high-risk process industries:

• ‌Oil & Gas Facilities‌: Acquires status signals from emergency shutdown (ESD) pushbuttons, valve position limit switches and fire & gas (F&G) detectors
• ‌Power Generation Plants‌: Collects turbine trip interlock status, boiler safety switch signals and generator protection discrete inputs
• ‌Petrochemical Refineries‌: Monitors safety interlock switch status for distillation columns, reactors and high-pressure process units
• ‌Offshore Platforms‌: Captures critical safety discrete signals in corrosive, high-vibration offshore environments for continuous safety monitoring
• ‌Chemical Manufacturing Sites‌: Acquires emergency stop (E-stop) signals and hazardous material release detection discrete inputs for process safety protection

Installation Guidelines

1. ‌Slot Placement‌: Insert the 3708E module into a standard Tricon I/O chassis slot, ensuring full engagement with the backplane connector and secure locking of the module latch.
2. ‌Field Wiring‌: Connect 24 VDC discrete field signals to the corresponding channel terminals using shielded twisted-pair cables, maintaining minimum 250V isolation clearance between signal lines and high-voltage power lines.
3. ‌Grounding Configuration‌: Connect the module’s dedicated shield terminal to the system safety grounding grid to suppress electromagnetic interference from high-noise field environments.
4. ‌Pre-Commissioning Test‌: Complete signal loop verification via TriStation 1131 software, confirming each channel correctly reads both “ON” and “OFF” field states before activating the safety loop.

Maintenance & Troubleshooting

• ‌Routine Inspection‌: Conduct quarterly checks to verify front-panel channel status LEDs, terminal screw tightness and chassis ventilation conditions, preventing overheating that may degrade signal accuracy.
• ‌Fault Diagnosis‌: A steady red channel LED indicates an open field loop, short circuit or internal signal mismatch. Operators can isolate the faulty field loop first, and perform hot-swap replacement if the module itself is confirmed faulty.
• ‌Safety Procedure Compliance‌: All maintenance operations must follow formal Lockout/Tagout (LOTO) protocols to avoid unintended disruption to active safety loops.
• ‌Repair Notes‌: Field disassembly of the 3708E module will invalidate its SIL3 functional safety certification. All faulty units must be returned to TRICONEX authorized service centers for certified component-level maintenance.

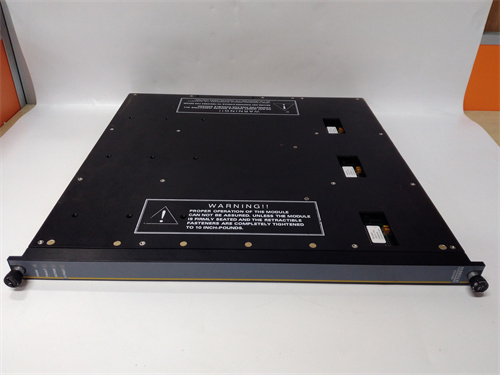

TRICONEX 3708E

Related Tricon Series Digital Input Modules

The 3708E belongs to TRICONEX’s Tricon TMR digital input family, with peer models tailored for different field signal scenarios:

• ‌3700A‌: 16+16 channel dual-redundant 24 VDC DI module, for ultra-high availability safety loops requiring 100% signal redundancy
• ‌3701‌: 115 VAC TMR digital input module, designed for AC-powered field safety switches commonly found in legacy industrial facilities
• ‌3702‌: 230 VAC TMR digital input module, optimized for high-voltage AC discrete signal acquisition in large-scale process plants
• ‌3703E‌: 16-channel non-TUV certified digital input module, for non-safety auxiliary discrete signal monitoring loops
