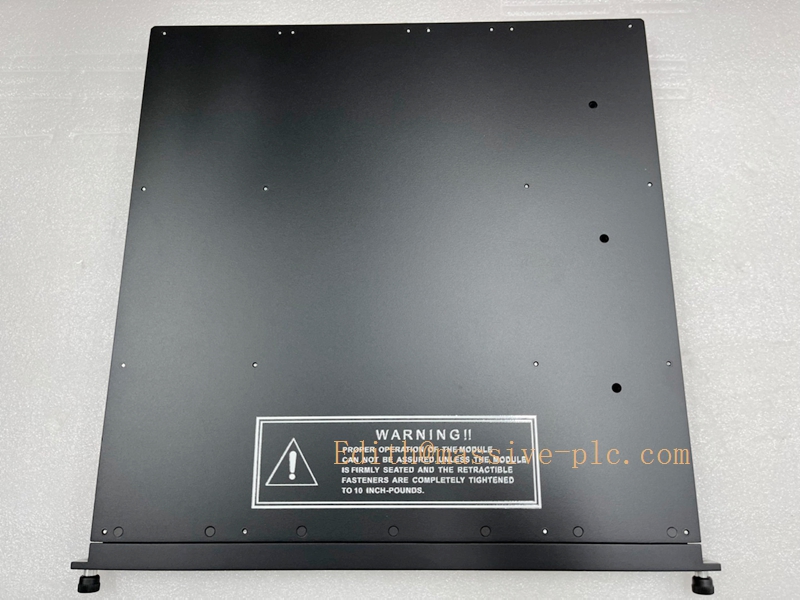

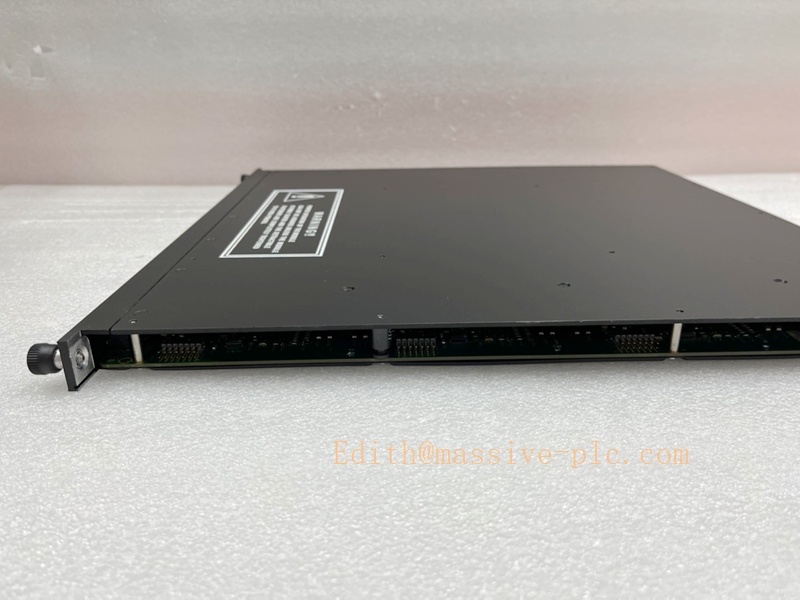

TRICONEX 3625A TMR Digital Output Module

Description

TRICONEX 3625A TMR Digital Output Module Product Introduction



Product Overview

The TRICONEX 3625A is an upgraded high-reliability TMR (Triple Modular Redundancy) 24VDC Digital Output Module in the Tricon 36xx series, fully adapted to Tricon and Trident Safety Instrumented Systems (SIS). As the iterative enhanced model of the classic 3625, it serves as the core on-site execution unit for safety interlock loops, converting SIS logic commands into standard 24VDC switching signals to drive field solenoid valves, safety relays, alarm indicators and low-power actuators.

Adopting a full triple-modular redundant hardware architecture and industry-standard 2oo3 fault-tolerant voting mechanism, the 3625A completely eliminates single-point output failure, misoperation and loop outage risks. It retains full-loop load supervision and online hot-swap functions, while adding exclusive analog copy function, pulse output function and 100Hz high-speed switching response. Certified with IEC 61508 SIL 3 functional safety and TÜV safety approval, it is widely used in ESD emergency shutdown, FGS fire and gas linkage and process safety interlock systems, delivering more flexible and stable safety control performance than standard 3625 modules.



Same-Series Model Classification & Peer Models

The TRICONEX 3625A belongs to the Tricon 36xx TMR Digital I/O Series, positioned as a high-speed multifunctional enhanced digital output module, with clear version iteration and differentiated performance positioning:

2.1 Product Positioning: 32-channel high-density TMR digital output enhanced version, supporting high-speed pulse output and analog signal copying, optimized for frequent switching and precise linkage safety control scenarios, fully backward compatible with standard 3625.

2.2 Same-Series Typical Peer Models & Version Differences

3625 (Standard Version): Basic high-density DO module, conventional switching response, no pulse and analog copy functions, suitable for ordinary static safety switching control.

3625A (Enhanced Version): Upgraded iteration model, adding 100Hz high-speed switching, pulse output and analog copy functions, optimized load detection logic, wider voltage adaptability, stronger scene versatility.

3625C1: Environmentally enhanced version of standard 3625, focusing on high-temperature and anti-interference optimization, without high-speed pulse function, different from 3625A’s functional upgrade orientation.

3604E: Standard-density digital output module with basic diagnosis, suitable for low-point conventional safety control scenarios.

3511: Relay-type high-power DO module, for high-load actuator driving, complementary with 3625A low-power high-speed control.

2.3 System Compatibility: Fully compatible with classic Tricon racks, Trident systems, CX/EX series safety systems, perfectly matched with 3008 main processor module, supporting full-version TriStation 1131 configuration, programming and online debugging, plug-and-play replacement for 3625/3625C1.

Core Technical Specifications & Product Specifications

Parameter Item	Technical Specifications
Product Model	3625A TMR Digital Output Module
Safety Architecture	Full Triple Modular Redundancy (TMR), 2oo3 fault-tolerant voting logic
Output Channel	32 independent high-density digital output channels (common terminal design)
Rated Output Voltage	24VDC industrial standard voltage
Working Voltage Range	16VDC ~ 32VDC, maximum withstand 36VDC transient overvoltage
Single Channel Rated Current	Max 1.7A per channel, 7A 10ms surge current support
Module Total Load Current	Maximum 4A total module output current
Minimum Load Current	10mA (minimum load for normal diagnosis)
Maximum Leakage Current	≤4mA
Output Switching Frequency	Up to 100Hz high-speed response (unique upgrade of 3625A)
Core Extended Functions	Pulse output, analog signal copy function
Voltage Drop	≤2.8V DC @ 1.7A load
Power Consumption	≤13W typical power consumption
Diagnostic Function	Full-channel open circuit, short circuit, load loss, overcurrent real-time supervision
Safety Certification	IEC 61508 SIL 3, TÜV, CE, UL, CSA Functional Safety Certified
Hot-Swap Function	Support online hot-swap replacement, zero downtime maintenance
Isolation Mode	Channel-to-bus electrical isolation, anti-surge and anti-crosstalk interference
Working Temperature	-40℃ ~ +70℃ ultra-wide industrial temperature range
Working Humidity	5%~95% RH, non-condensing
Industrial Grade	G3 harsh environment grade, enhanced EMC anti-interference design



Core Product Features

4.1 TMR Triple Redundant Fault-Tolerant Safety Architecture

The 3625A inherits the industry-leading full TMR triple redundant safety design, with three completely independent synchronous output processing channels. All switching and pulse control commands execute real-time 2oo3 voting logic. When a single channel suffers circuit failure, transient electromagnetic interference or signal distortion, the system automatically isolates the faulty channel and outputs consistent and accurate control signals. It completely eliminates single-point failure risks of safety loops, fully complying with SIL3 high-level safety standards and ensuring zero misoperation and zero failure of key safety equipment.

4.2 Exclusive High-Speed Switching & Extended Functional Upgrade

As the core upgrade of the 3625A compared with standard versions, it supports100Hz ultra-high-speed switching response, which is suitable for frequent linkage and fast protection control scenarios that standard 3625 cannot adapt to. It integrates two exclusive extended functions: pulse output for precise intermittent control of field equipment, and analog copy function for signal backup and loop debugging, greatly expanding the application boundary of safety digital output modules and solving the functional limitations of traditional static switching DO modules.

4.3 32-Channel High-Density Integrated Output

Equipped with 32 high-density independent output channels and unified common terminal design, the 3625A greatly saves SIS rack slot resources and system integration costs. The integrated wiring structure simplifies on-site construction, reduces wiring nodes and fault points, and improves the standardization and operational stability of large-scale safety control loops. It is the preferred high-density output module for multi-point safety interlock projects.

4.4 Full-Loop Intelligent Load Supervision & Accurate Diagnosis

The module supports full-coverage real-time load status supervision, accurately identifying common on-site faults such as channel open circuit, short circuit, load loss and overcurrent overload. It sets professional threshold judgment based on 10mA minimum load and 4mA maximum leakage current parameters, avoiding false alarms and missed alarms. It automatically generates standard fault codes and event logs, supporting local indicator alarm and upper computer remote query, helping maintenance personnel quickly locate wiring and equipment hidden dangers.

4.5 Strong Load Driving & Overvoltage Resistance

With a single-channel 1.7A continuous driving capacity and 7A short-time surge current tolerance, the 3625A stably drives various 24VDC low-power safety actuators. It supports 16–32VDC wide voltage normal operation and withstands 36VDC transient overvoltage impact, effectively resisting on-site power supply fluctuation and instantaneous surge, ensuring long-term stable driving output without heat generation and overload failure.

4.6 Zero-Downtime Online Hot-Swap Maintenance

Retaining the standard hot-swap function of the series, the 3625A can be inspected, maintained and replaced during normal SIS system operation without rack shutdown, production suspension or safety loop interruption. The TMR redundant architecture ensures that the system maintains complete control and diagnosis capability during maintenance, realizing 24/7 uninterrupted operation of industrial safety systems and zero maintenance downtime loss.

4.7 Excellent Harsh Environment Adaptability & High Compatibility

Adopting industrial-grade anti-aging components and enhanced EMC electromagnetic compatibility design, the module operates stably in -40℃ to +70℃ ultra-wide temperature range and high-humidity non-condensing environment, resisting industrial vibration, dust corrosion and strong electromagnetic interference. It is fully backward compatible with 3625/3625C1 modules, supporting plug-and-play replacement for old system renovation, with low upgrade cost and strong system adaptability.

Industrial Application Scenarios

The TRICONEX 3625A high-speed multifunctional TMR digital output module is widely used in SIL3-level high-risk process industrial safety instrumented systems, covering petrochemical, natural gas gathering and transportation, coal chemical, thermal power generation, metallurgy and pharmaceutical industries. It is specially applicable to conventional static switching control and high-frequency frequent linkage control scenarios that ordinary DO modules cannot support.

Specific application scenarios include: driving safety solenoid valves, interlock relays and alarm lights; executing ESD emergency shutdown and process parameter over-limit interlock commands; realizing FGS fire and gas linkage protection; high-speed pulse intermittent control of special safety actuators; on-site signal analog copy debugging and loop backup monitoring. It is especially suitable for large industrial projects with both conventional switching and high-frequency precise control demands, realizing multi-scene integrated safety execution control.



Standard Installation Guidelines

6.1 Pre-Installation Preparation

Before installation, verify the 3625A module model and system configuration matching, check the circuit board for damage, pin oxidation and complete accessories. Completely cut off the rack auxiliary power supply, arrange a dust-free, dry and vibration-isolated installation environment, and use anti-static tools to prevent static damage to internal high-speed processing circuits. Prepare shielded cables for switching signal wiring to ensure high-frequency signal transmission stability.

6.2 Rack Installation Steps

Adopt standard Tricon/Trident rack plug-in installation. Align the module with the rack guide rail, push it horizontally and smoothly into the slot until it fits closely with the backplane bus, and tighten the fixing screws on both sides to avoid poor contact caused by equipment vibration. Ensure full in-place insertion to guarantee stable bus data interaction and normal operation of TMR redundant channels and high-speed functions.

6.3 On-Site Wiring Specification

Use dedicated shielded cables for signal wiring, strictly separate signal lines from power lines to avoid high-frequency crosstalk interference. Standardize common terminal and single-channel wiring, ensure firm terminals without bare wire and virtual connection, and mark channels independently. Complete insulation test and continuity test after wiring to eliminate short circuit, open circuit and wiring errors, ensuring high-speed switching signal transmission accuracy.

6.4 Post-Installation Debugging

Power on the rack slowly after installation, check the module indicator status, and connect TriStation 1131 for online debugging. Test conventional switching output, 100Hz high-speed pulse output and analog copy functions respectively, verify the accuracy of load supervision and fault diagnosis, simulate open circuit/short circuit faults to check alarm response, and confirm all extended and basic functions work normally.



Daily Maintenance & Fault Maintenance Guidelines

7.1 Daily Routine Maintenance

Regularly check the module operating status, indicator lights and rack temperature and humidity to ensure operation within the standard range. Clean dust inside the rack and module surface to avoid affecting high-speed circuit heat dissipation and signal stability. Inspect wiring firmness and shielding grounding status to prevent high-frequency signal interference. Regularly back up configuration parameters and fault logs to ensure data traceability.

7.2 Common Fault Diagnosis & Maintenance

Load Loss Alarm: Caused by loose wiring, open circuit of actuator lines or load current lower than 10mA minimum threshold. Re-tighten terminals, check line integrity and load matching, and reset the alarm.

High-Speed Pulse Output Abnormality: Mostly caused by poor shielding grounding or mismatched load parameters. Optimize grounding and signal line isolation, confirm load current meets the standard, and recalibrate high-speed output parameters via software.

Short Circuit & Overcurrent Alarm: Triggered by on-site line short circuit or overload. Cut off the power supply to troubleshoot line and load faults, check insulation performance, and restart the module to restore output.

Analog Copy Function Failure: Check module function configuration items and bus communication status, reconfigure extended functions, and clean slot pins to ensure stable data interaction.

7.3 Hot-Swap Replacement Maintenance

For unreparable faulty modules, perform online hot-swap replacement without system shutdown. Loosen fixing screws, smoothly pull out the faulty 3625A, insert the new module in place and lock tightly. The system automatically completes configuration matching and function synchronization. After replacement, test basic switching, high-speed pulse and diagnosis functions to ensure normal safety loop operation.

7.4 Spare Module Storage & Aging Maintenance

Spare 3625A modules must be stored in constant-temperature, dry, dust-free and anti-static environments to avoid moisture and static damage to high-speed circuits. For long-term operating modules, regularly check high-speed switching sensitivity, load diagnosis accuracy and extended function stability, and replace aging modules in advance to prevent control failure.



Common FAQs

8.1 What is the essential difference between 3625A and standard 3625?

The 3625A is a functional upgraded version of the standard 3625. It adds exclusive 100Hz high-speed switching, pulse output and analog copy functions, optimizes load current threshold judgment logic and overvoltage resistance performance. The standard 3625 only supports conventional static switching, without high-speed and extended functions. The 3625A is fully backward compatible and can replace standard 3625 directly.

8.2 What scenarios is the 3625A high-speed pulse function suitable for?

The 100Hz high-speed pulse output function is suitable for industrial scenarios requiring frequent intermittent control and fast linkage response, such as precision safety actuator periodic adjustment, fast reset linkage of interlock equipment, and pulse signal synchronization control. It makes up for the defect that ordinary DO modules only support static on/off control.

8.3 Why does the 3625A occasionally trigger load loss alarms?

8.4 Can 3625A be hot-swapped online during system operation?

Yes. The 3625A supports standard online hot-swap function. Module replacement will not cause system shutdown, safety loop interruption or function loss. The TMR redundant architecture ensures complete safety control and diagnosis capability during maintenance, realizing zero-downtime maintenance.

8.5 What is the maximum load capacity of the 3625A?

Single channel supports 1.7A continuous current and 7A 10ms surge current, with the whole module limited to 4A total current. It is suitable for all conventional 24VDC low-power safety loads such as safety solenoid valves and interlock relays, with stable driving and no overload heat generation.

8.6 What is the use of the 3625A analog copy function?

The analog copy function realizes real-time copying and backup of field control signals, which is convenient for on-site loop debugging, signal verification and fault troubleshooting. It can assist engineers in quickly judging the authenticity and stability of control signals, improving the efficiency of system debugging and daily operation and maintenance.
