TRICONEX 3624 Monitoring digital output module

Description

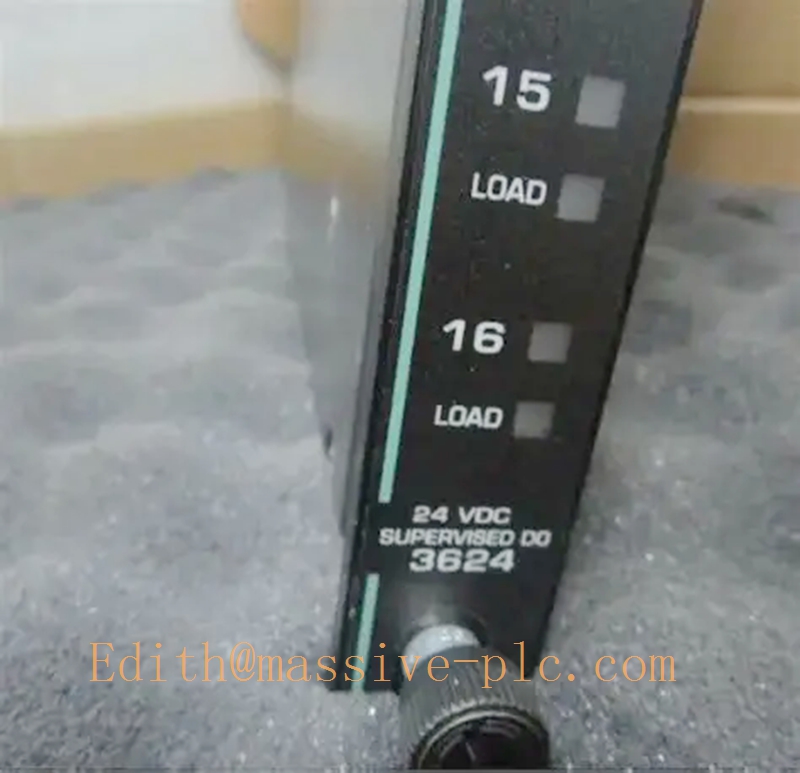

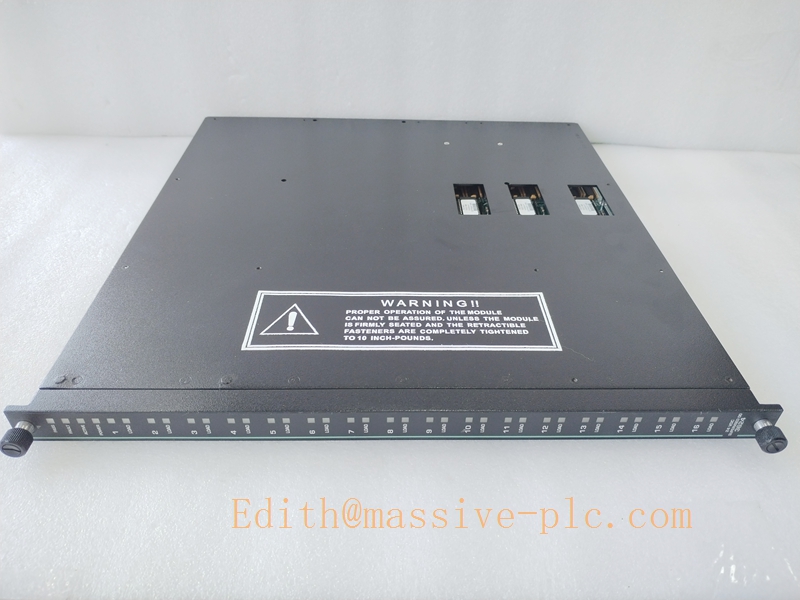

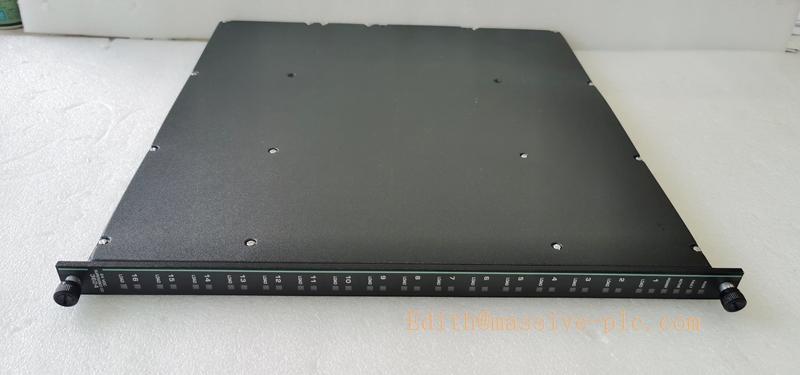

TRICONEX 3624

Application Information: The TRICONEX 3624 is a TMR (Triple Modular Redundant) supervised digital output module designed for Tricon safety instrumented systems (SIS) and ESD emergency shutdown systems. It converts internal safety logic commands into field discrete switching signals to drive solenoid valves, safety relays and emergency trip actuators, serving as the core safety execution output unit for high-reliability industrial safety interlock systems.

Technical Parameters: 16-channel supervised digital output; nominal operating voltage 24 VDC (operating range 16–30 VDC); single-point continuous current 0.7A, peak surge current 4.8A (10ms maximum); minimum load current 30mA, maximum leakage current 4mA; point-to-point isolation voltage 1500 VDC; no built-in fuse with self-protection circuit; compliant with IEC 61508 SIL 3 safety certification; operating temperature range -40°C to +70°C; typical on-state voltage drop ＜1.5 VDC; low power consumption＜10W.

TRICONEX 3624

Main Features: Adopts full TMR triple-channel redundant fault-tolerant architecture to eliminate single-point output failure; full-channel supervised circuit design supports real-time diagnosis of open circuit, short circuit and abnormal load; self-protection design avoids module burnout from overload and surge impact; hot-swappable capability supports online replacement without system shutdown; LED status indicators for power, operation and fault alarm; high electromagnetic interference resistance and industrial environmental adaptability.

Application Scenarios: Petrochemical ESD emergency shutdown systems, fire & gas protection linkage control, oil and gas pipeline safety valve cut-off control, thermal power plant unit safety trip protection, chemical high-risk reactor interlock execution, industrial furnace emergency protection systems and other safety-critical process scenarios.

Supporting Components: Dedicated 24VDC redundant power supply module, shielded field output wiring harness, load surge suppression module, safety terminal base, system diagnostic configuration software, module mounting bracket.

Related Models: 3623, 3625, 3664, 3515
