Name: TRICONEX 3601E 115VAC TMR Digital Output Module - MASSIVE
Brand: Triconex

Description

TRICONEX 3601E 115VAC TMR Digital Output Module

The TRICONEX 3601E is a high-performance TMR (Triple Modular Redundancy) AC digital output module designed for Triconex Tricon SIS safety instrumented systems. Serving as a 115VAC high-reliability field driving unit, it is dedicated to controlling international standard AC safety actuators in ESD, F&G and process interlock loops. Adopting triple redundant fault-tolerant architecture, optoelectronic isolation design and full-channel loop supervision capability, the 3601E fully complies with IEC 61508 SIL 3 functional safety standards. It delivers stable, diagnosable and fail-safe AC output control for high-risk industrial safety loops that adopt 115VAC global control specifications.

Product Applications

The TRICONEX 3601E is widely applied in global process industries following 115VAC AC control standards, including offshore oil & gas, international petrochemical projects, chemical processing, power generation and energy industries. It serves as the core AC safety output module for standard overseas SIS configurations, with typical application scenarios as follows:

115VAC ESD Emergency Shutdown Loop Control: Drives 115VAC AC solenoid valves, trip relays and emergency shutdown actuators commonly used in overseas imported equipment, executing accurate safety trip and isolation actions during process overruns and equipment faults.
International F&G Fire and Gas Linkage System: Controls 115VAC fire alarm horns, indicator lights, ventilation fans and fire suppression auxiliary units, realizing rapid hazard response and risk isolation for fire and toxic gas leakage incidents.
Overseas Standard Safety Loop Matching: Perfectly adapts to North American and international 115VAC industrial control power specifications, solving the incompatibility problem of conventional 24VDC DC output modules in global EPC project configurations.
Medium-Current AC Safety Load Driving: Supports stable medium-current AC load output, suitable for industrial safety actuators with higher operating power that cannot be driven by low-power DC modules, expanding SIS system field driving adaptability.
High-Integrity Process Interlock Protection: Equipped with real-time loop fault diagnosis function, it ensures long-term healthy standby and reliable trigger response for key 115VAC process interlock loops, eliminating dormant failure risks.

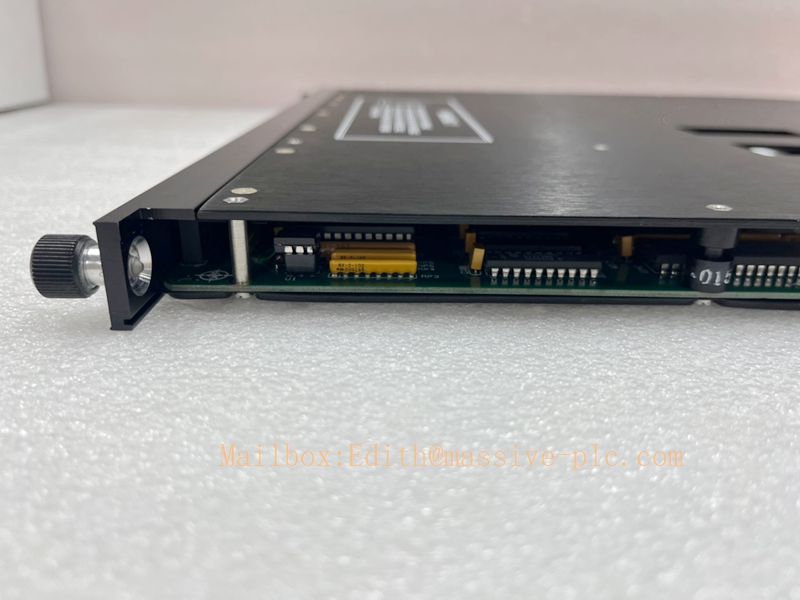

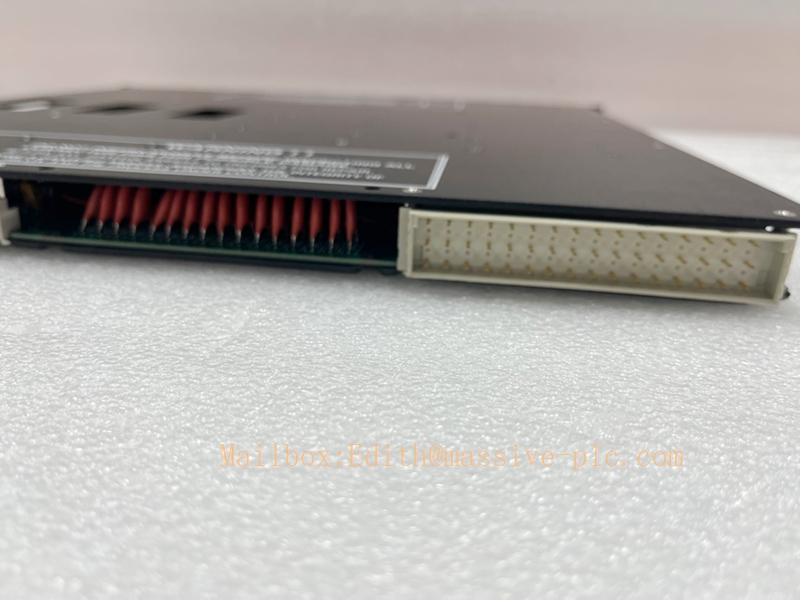

TRICONEX 3601E

Technical Specifications & Parameters

The TRICONEX 3601E adopts standard TMR triple redundant synchronous output architecture, professional 115VAC wide-range AC driving circuit and full-channel intelligent supervision diagnosis. With excellent load stability, strong surge resistance and industrial environmental adaptability, it fully meets SIL 3 high-standard AC safety loop control requirements. Detailed specifications are listed below:

2.1 Electrical & Output Parameters

Module Type: TMR triple redundant AC digital output module (DO)
Channel Density: 16 independent non-commoned 115VAC output channels
Rated Output Voltage: 115VAC nominal industrial control voltage
Wide Voltage Adaptation Range: 80VAC ~ 155VAC
Applicable Power Frequency: 47Hz ~ 63Hz universal industrial frequency
Single Channel Continuous Current: 1A rated continuous load per channel
Surge Current Resistance: 12A maximum surge/cycle impact resistance
Output Voltage Drop: ≤3V typical low drop-out output
Static Load Leakage Current: 2mA typical leakage current
Control Mechanism: Triple-channel synchronous output + 2-out-of-3 hardware voting judgment
Loop Supervision: Real-time detection of field open circuit, short circuit, load loss and abnormal loop state
Isolation Performance: Built-in optoelectronic isolation and surge suppression protection
Field Wiring: Matches external termination panel (ETP) for standard field connection
Output Characteristic: Fail-safe de-energized safe state, compliant with SIS safety design norms
Communication Bus: High-speed dedicated TriBus safety bus for low-delay command transmission

2.2 Environmental Parameters

Operating Temperature: -40°C to +70°C
Storage Temperature: -40°C to +85°C
Relative Humidity: 5% to 95% (non-condensing)
Anti-Interference Performance: Compliant with IEC industrial EMC electromagnetic immunity, vibration and mechanical shock standards
Working Adaptability: Industrial dust-proof, moisture-proof and anti-aging reinforced design for long-term continuous unattended operation

2.3 Mechanical & Certification Parameters

Installation Method: Standard slot mounting for Triconex TMR system chassis with anti-misplug mechanical key
Hot-Swap Support: Supports online module replacement without SIS system shutdown
System Compatibility: Fully compatible with Triconex Tricon v9/v10/TR11 series chassis, controllers and TriStation software
Safety Certification: IEC 61508 SIL 3 certified, TÜV, CE, UL, ATEX compliant
Design Service Life: More than 10 years under standard industrial operating conditions

Core Product Features

3.1 Standard TMR Triple Redundant Fault-Tolerant Architecture

The 3601E adopts three fully independent synchronous AC output control channels with hardware 2-out-of-3 voting logic. All channels synchronously execute safety output commands and state verification. In case of single-channel circuit failure, AC signal distortion or transient electromagnetic interference, the faulty channel is automatically isolated and shielded. The module maintains consistent and accurate 115VAC switch output through healthy channel consensus, completely eliminating single-point failure risks and ensuring zero misoperation of AC safety loops.

3.2 Global 115VAC Standard Loop Adaptation

Specially optimized for international 115VAC industrial control standards, the module supports wide-range AC voltage adaptation, perfectly matching imported 115VAC solenoid valves, trip coils and linkage actuators widely used in overseas EPC projects. It effectively solves the voltage mismatch and insufficient driving problems of conventional DC modules in international standard safety loops, serving as the core dedicated AC output unit for global SIS system configurations.

3.3 Full-Channel Supervision & Surge Protection

Each independent channel of the 3601E integrates loop supervision and surge suppression circuits. It continuously monitors field circuit open circuit, short circuit and load loss faults in real time, realizing active fault early warning. The built-in overcurrent limiting and surge resistance mechanisms effectively resist AC grid surge impact and instantaneous current fluctuation, protecting module circuits and field actuators from damage and greatly improving the stability and anti-risk capability of AC safety loops.

3.4 High-Density Independent Isolation Output

Featuring 16 non-commoned independent AC output channels with optoelectronic isolation design, the module avoids inter-channel crosstalk and fault diffusion. The high-density channel layout optimizes cabinet space utilization, meeting multi-point AC safety control demands of medium and large-scale international SIS projects. The optimized drive circuit ensures low heat generation and stable long-term full-load operation without performance attenuation.

3.5 Strict Industrial Fail-Safe Mechanism

Following universal SIS fail-safe design principles, the 3601E automatically switches to de-energized safe state and locks output upon module failure, TriBus communication interruption or three-channel voting inconsistency. It ensures all 115VAC safety loops maintain safe protection status during system abnormalities, effectively preventing equipment misoperation and production accidents, and maximizing industrial process safety integrity.

3.6 Zero-Downtime Hot-Swap Maintenance

Supports online hot-swap replacement during normal SIS system operation without shutdown or affecting other safety loops. Equipped with mechanical anti-misplug structure to avoid installation errors, it realizes zero-downtime module maintenance, reduces on-site construction risks and system operation costs, and fully adapts to long-term uninterrupted production requirements of process industrial plants.

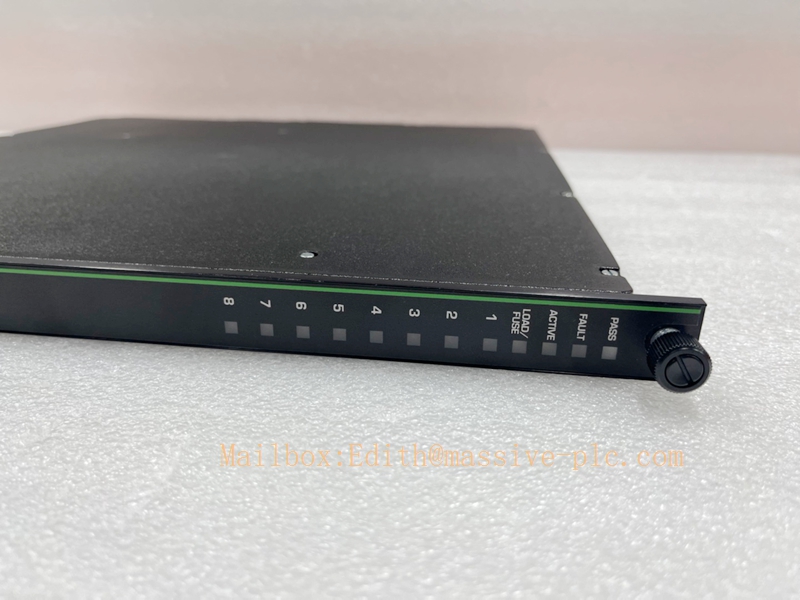

TRICONEX 3601E

Similar Series Models

Triconex 3600 series AC/DC output modules cover multi-voltage and multi-performance versions to meet global diversified safety loop standards. The mainstream matching and alternative models of TRICONEX 3601E are as follows:

TRICONEX 3601T: 120VAC high-density digital output module, used for conventional 120VAC domestic and overseas safety loop scenarios.
TRICONEX 3623T: Enhanced high-current AC output module, suitable for high-power 115/120VAC load driving requirements.
TRICONEX 3617E: 48VDC supervised DC output module, for medium-voltage DC safety loop matching.
TRICONEX 3624 / 3625A: 24VDC standard digital output modules, for conventional low-voltage DC safety control loops.
TRICONEX 3825X: High-isolation relay output module, for cross-system isolation switch control scenarios.
TRICONEX DI2301 / DI3301S2: Digital input modules, forming complete closed-loop interlock control with 3601E.
TRICONEX 3009X / MP6004: TMR main processors, issuing safety logic commands for 3601E AC output execution.

Product Summary

The TRICONEX 3601E is a SIL 3-grade high-density TMR 115VAC dedicated digital output module for international standard SIS safety systems. Featuring triple modular redundant fault-tolerant architecture, global 115VAC voltage standard adaptation, full-channel loop supervision protection and independent isolation output capability, it solves the matching difficulties of overseas imported AC safety equipment and hidden failure risks of traditional AC loops. As the core control unit for international high-integrity 115VAC safety loops, it provides ultra-reliable AC driving and loop health monitoring guarantee for ESD, F&G and process interlock systems, and is widely applied in global high-risk process industrial projects.
