Name: TRICONEX 3101 Main Processor Module - MASSIVE
Brand: Triconex

Description

TRICONEX 3101 Main Processor Module Product Introduction

The TRICONEX 3101 is a high-performance, TMR-based redundant main processor module serving as the core control brain of Triconex Triple Modular Redundancy Safety Instrumented Systems (SIS). Adopting industrial 32-bit high-speed RISC processing architecture, this module undertakes full-system logic operation, safety loop judgment, I/O data scheduling and system communication management tasks. With triple redundant fault-tolerant computing, ultra-high diagnostic coverage and strict SIL 3 safety compliance, it ensures continuous, error-free and high-stability operation of critical industrial safety control systems under long-term and harsh working conditions.

Product Applications

The TRICONEX 3101 main processor module is widely deployed in high-risk process industries that require ultra-high system availability and safety integrity, including oil & gas, petrochemical, chemical processing, thermal power generation, nuclear power, pharmaceutical and energy industries. As the core control unit of SIS, ESD, F&G and HIPPS systems, it undertakes core system operation tasks with typical application scenarios as follows:

Emergency Shutdown (ESD) Core Control: Executes customized safety logic programs, monitors real-time status of all safety loops, and triggers accurate emergency shutdown and isolation actions when process parameters exceed thresholds, preventing major safety accidents and equipment damage.
Fire & Gas (F&G) System Operation: Processes field gas concentration and fire detection signals, realizes hazard judgment, graded alarm and linkage protection logic, and uniformly schedules fire suppression and exhaust equipment linkage actions.
High-Integrity Pressure Protection (HIPPS): Undertakes high-speed pressure safety loop logic judgment and command output, meeting the ultra-high reliability operation requirements of high-pressure process protection systems.
Full-System I/O Data Scheduling: Collects, verifies and processes all analog and digital I/O module data in real time, completes TMR voting calculation, and issues accurate control instructions to field actuators.
Cross-System Data Interaction & Management: Acts as the core communication scheduling node of the SIS system, realizing stable data exchange and coordinated control with DCS, SCADA, PLC and upper monitoring platforms.
Large-Scale Safety System Integrated Operation: Supports complex multi-loop safety logic operation and large-scale system expansion, adapting to centralized safety control requirements of large petrochemical and power generation plants.

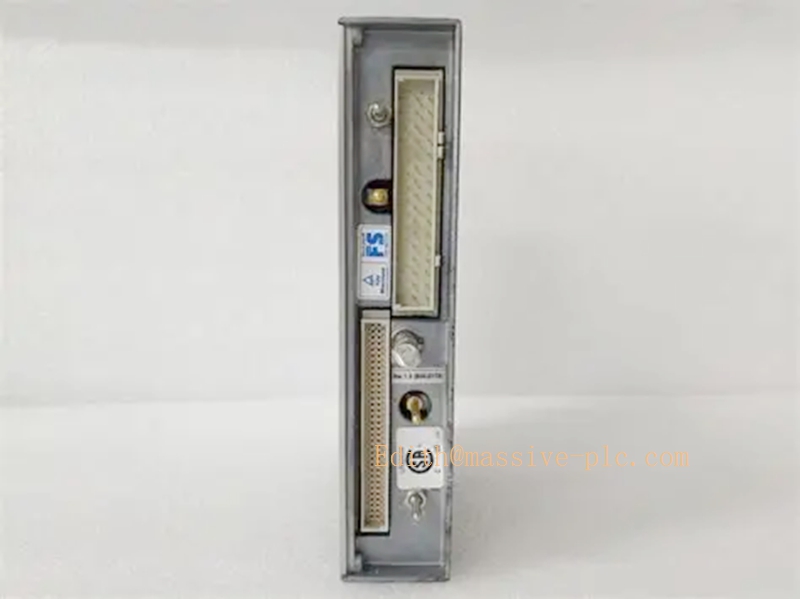

TRICONEX 3101

Technical Specifications & Parameters

The TRICONEX 3101 adopts industrial-grade high-speed processor design and strict TMR fault-tolerant architecture, with standardized electrical, environmental and mechanical parameters. It delivers excellent computing performance and extreme operational stability, fully meeting IEC 61508 SIL 3 high-standard safety control requirements. Detailed specifications are listed below:

2.1 Core Computing & Electrical Parameters

Module Type: TMR triple redundant main processor module
Processor Core: 32-bit high-performance industrial RISC processor
Main Frequency: 100MHz high-speed operating frequency
Memory Configuration: 8MB program memory, 4MB data memory (expandable)
Flash Storage: 6MB built-in Flash PROM for system program and logic storage
Rated Power Supply: 24VDC industrial standard power supply
Operating Voltage Range: 18VDC to 32VDC wide voltage tolerance
System Bus: High-speed dedicated TriBus for internal I/O data interaction
Diagnostic Coverage: Up to 99.999% ultra-high fault diagnostic coverage
Operation Mode: Triple-channel synchronous operation + two-out-of-three voting logic

2.2 Environmental Parameters

Operating Temperature: -40°C to +85°C
Storage Temperature: -40°C to +100°C
Relative Humidity: 5% to 95% (non-condensing)
Environmental Resistance: Compliant with IEC industrial vibration, shock and EMC electromagnetic interference resistance standards
Protection Performance: Industrial reinforced dust-proof, moisture-proof and anti-corrosion design

2.3 Mechanical & Certification Parameters

Dimensions: 178mm × 145mm × 75mm (W × H × D)
Weight: Approximately 1.5kg
Installation Method: Standard Triconex TMR chassis slot mounting
Hot-Swap Support: Supports online hot-swap replacement without system shutdown
System Compatibility: Fully compatible with all Triconex TMR series I/O and communication modules
Safety Certification: IEC 61508 SIL 3 certified, CE, UL, ISO 9001 compliant
Design Service Life: More than 10 years under standard industrial operating conditions

Core Product Features

3.1 TMR Triple Modular Redundancy Fault-Tolerant Architecture

The TRICONEX 3101 adopts three completely independent synchronous computing channels with built-in hardware two-out-of-three voting mechanism. The three processor channels synchronously execute safety logic operation, data calculation and command output. Single-channel hardware failure, calculation deviation or transient signal abnormality will be automatically identified, isolated and masked. The system maintains normal and accurate control based on the consensus of healthy channels, completely eliminating single-point failure risks and ensuring zero interruption of safety system operation.

3.2 High-Speed & High-Precision Computing Capability

Equipped with 32-bit high-frequency RISC processor and dedicated industrial computing architecture, the module supports fast iteration of complex safety logic and high-frequency real-time data scheduling. With large-capacity program and data storage space, it can stably run multi-loop interlock logic and large-scale safety control programs for a long time, ensuring rapid response and accurate execution of safety commands, and meeting the high real-time requirements of industrial safety loops.

3.3 Ultra-High Full-Coverage Self-Diagnosis

Featuring 99.999% ultra-high diagnostic coverage, the 3101 realizes full-range real-time monitoring of processor operation status, internal circuit health, bus communication status, I/O channel abnormality and power supply fluctuation. All fault codes and system status data are uploaded to the upper monitoring platform in real time, supporting precise fault location, hidden danger early warning and rapid troubleshooting, greatly improving system safety transparency and maintainability.

3.4 Excellent Multi-Protocol Communication Scheduling

As the core communication scheduling hub of the SIS system, the module supports seamless docking with multiple communication modules and multiple industrial protocols. It stably processes data interaction between I/O modules, local systems and external DCS/SCADA platforms, realizes unified scheduling of system internal and external data, and ensures efficient and error-free transmission of safety control data and monitoring information.

3.5 Harsh Environment Super Adaptability

Adopting industrial-grade reinforced hardware design and wide-temperature working specification, the module can operate stably in extreme environments such as low temperature, high temperature, high humidity, strong vibration and complex electromagnetic interference. It has outstanding anti-interference and anti-aging performance, adapting to long-term unattended continuous operation of industrial safety systems.

3.6 Hot-Swap Maintenance & Strong Scalability

Supports online hot-swap replacement without shutting down the SIS system, effectively avoiding production downtime caused by processor maintenance and replacement. The modular design supports free expansion of system I/O points and communication ports, flexibly adapting to system upgrade, capacity expansion and logic function iteration in the later stage, with low operation and maintenance costs and high system flexibility.

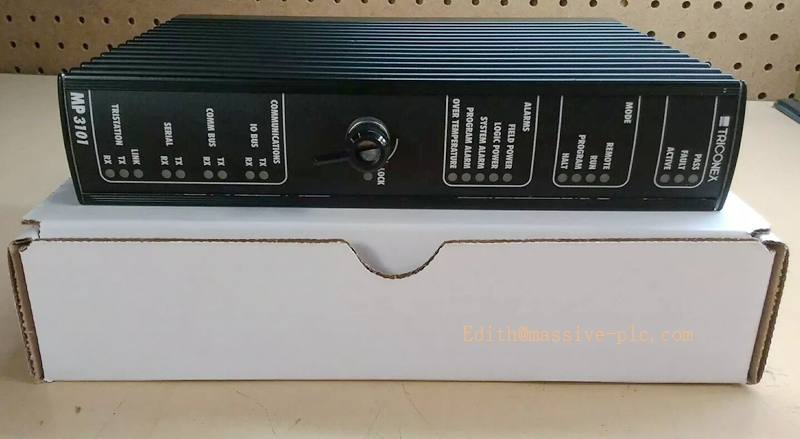

TRICONEX 3101

Similar Series Models

Triconex 3000 series covers core processor and control modules for TMR safety systems, forming a complete safety system operation solution. The mainstream similar and matching models of the TRICONEX 3101 are listed below for system configuration, replacement and expansion reference:

TRICONEX 3102: Enhanced high-performance processor module, with higher operating frequency and larger storage space, suitable for large-scale complex safety logic operation scenarios.
TRICONEX MP3101S2: Upgraded redundant processor version, optimized for anti-interference and long-term stability, applicable to ultra-harsh industrial environments.
TRICONEX 5101S2: Safety Ethernet communication module, matched with 3101 to realize high-speed data upload and cross-system interconnection.
TRICONEX 4119A: Intelligent serial communication module, cooperating with 3101 to expand multi-protocol external docking capability.
TRICONEX 3301: Digital input module, supporting 3101 system signal acquisition and logic judgment.
TRICONEX 3723X: High-precision analog input module, providing accurate process data for 3101 core computing.

Product Summary

The TRICONEX 3101 is a core SIL 3-grade TMR main processor module for Triconex safety instrumented systems. With triple modular redundant fault-tolerant architecture, high-speed industrial computing performance, ultra-high diagnostic coverage and excellent environmental adaptability, it undertakes the core tasks of SIS system logic operation, data scheduling, safety judgment and communication management. It effectively avoids system single-point failures and operation errors, ensures long-term stable and reliable operation of industrial safety loops, and is the indispensable core control brain of Triconex TMR safety systems, widely used in global high-risk process industries.
