TRICONEX 3002 Product Overview
Product Applications
The TRICONEX 3002 is a high-performance Triple Modular Redundant (TMR) main processor module, purpose-built for safety-critical industrial scenarios that demand zero unplanned downtime and strict compliance with global functional safety standards. It is extensively deployed across oil and gas upstream/downstream operations, petrochemical refining, large-scale chemical processing, thermal and nuclear power generation, and high-risk process manufacturing sectors. As the core logic execution unit of the Triconex SIS (Safety Instrumented System), it undertakes full safety logic computation for critical systems including Emergency Shutdown (ESD), Burner Management Systems (BMS), High Integrity Pressure Protection Systems (HIPPS) and Turbine Control Safety Interlocks. It has been validated in thousands of global high-risk industrial sites, delivering uninterrupted safety protection even under extreme operating conditions.

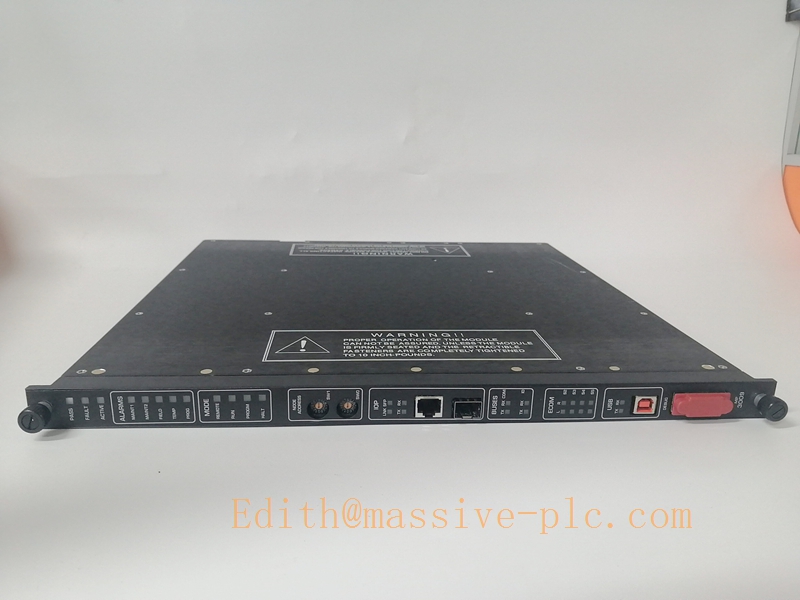

TRICONEX 3002
Technical Specifications and Parameters
| Parameter Category | Detailed Specifications |
|---|---|
| Manufacturer | Invensys (now part of Schneider Electric TRICONEX product line) |
| Product Type | TMR Fault-Tolerant Main Processor Module |
| Safety Integrity Level | IEC 61508 SIL 3 certified, TÜV Rheinland approved for safety applications |
| Architecture | Triple Modular Redundant (3 isolated parallel processing lanes) |
| Processing Speed | 99μs typical logic execution cycle |
| Program Memory | 1MB SRAM with built-in SOE (Sequence of Events) recording function |
| I/O Processing Capacity | Supports up to 99 local and remote I/O points, compatible with full Triconex I/O series |
| Operating Voltage | 5V DC internal backplane power supply |
| Operating Temperature Range | 0°C to +60°C |
| Relative Humidity | 5% to 95% non-condensing |
| Vibration Resistance | 10g peak, 10-2000Hz, compliant with IEC 60068-2-6 |
| EMC Compliance | Meets IEC 61326 industrial electromagnetic compatibility standards |
| Weight | Approximately 1.8kg |
| Installation Form | Rack-mounted, fits standard Triconex 8100/8101 series system racks |
Core Features
The TRICONEX 3002 adopts a fully isolated triple-channel parallel processing architecture, with a dedicated 2-out-of-3 hardware voting mechanism for all logic operations and data transmission. This design ensures that the system can automatically isolate any single-point hardware fault without interrupting normal safety logic execution, completely eliminating single-point failure risks. It supports full hot-swap operation, allowing on-site engineers to replace a faulty processor module while the system remains online, no process shutdown or safety function suspension is required. The module integrates comprehensive self-diagnostic functions covering all three processing lanes, memory units and communication interfaces, with a dangerous fault diagnostic coverage rate higher than 99%, which can quickly locate and report anomalies to the upper HMI or TriStation configuration platform. It is fully compatible with the TriStation 1131/1231 programming software, supporting IEC 61131-3 standard programming languages including Ladder Diagram, Function Block Diagram and Structured Text, to meet different engineering configuration habits. Its built-in high-precision SOE recording function can capture event timestamps with 1ms resolution, which greatly simplifies post-fault root cause analysis for complex industrial safety incidents.
Installation Guidelines
First, confirm the target Triconex system rack is fully de-energized before initial installation, and select a dedicated CPU slot that matches the backplane pin definition of the 8100 main rack or 8101 expansion rack. Align the module with the slot guide rails, insert it smoothly and push it firmly until the front panel locking latch clicks into place, to ensure a reliable electrical connection between the module and the system backplane. After physical installation, connect the dedicated TriStation programming communication cable to the module front port, then power on the system step by step. Complete hardware identification, application program download and redundant processor synchronization configuration through the TriStation software. After configuration, perform a full system redundancy switching test to verify that the 2-out-of-3 voting logic works normally, and confirm all status indicators on the module front panel show green “RUN” state before formally putting the system into operation.

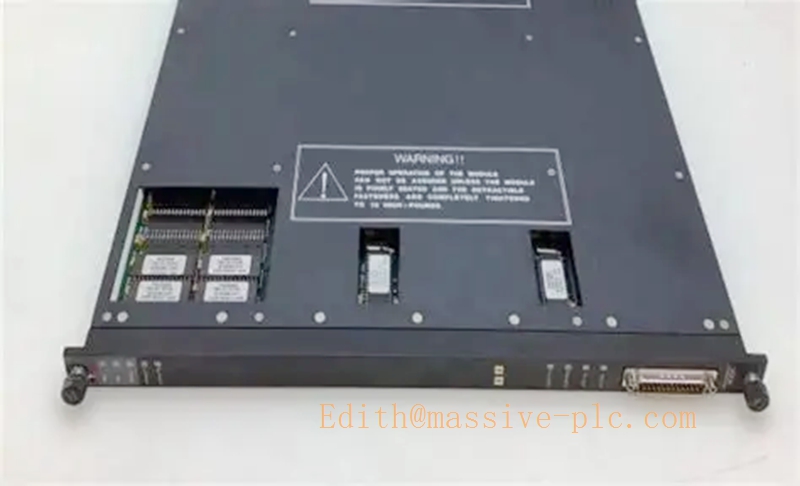

TRICONEX 3002
Maintenance Instructions
Establish a monthly routine inspection workflow: check the three groups of status LEDs on the module front panel to confirm no fault or alarm indicators are activated, and verify that the module operating temperature and rack ventilation status are within the specified allowable range. The system will automatically push fault alarm information to the upper monitoring platform once the module detects internal anomalies; when a fault is triggered, you can directly replace the faulty 3002 module with a pre-configured spare unit while the system is running. The new module will automatically synchronize the latest application program, process data and configuration parameters from the other two healthy processing lanes within a few seconds, and rejoin the TMR voting loop without any manual intervention. It is strictly forbidden to disassemble the module housing on site, as all internal components are not user-serviceable; all faulty modules must be returned to the manufacturer or authorized service center for professional repair, component replacement and safety performance re-calibration. It is recommended to conduct a full functional verification test for the 3002 processor module during the annual SIS safety loop audit, to ensure its performance always meets the SIL 3 safety integrity requirements.
Related Series Models
The TRICONEX 3002 belongs to the classic Tricon main processor family, with a complete compatible product portfolio covering different performance levels: the 3004 Enhanced Tricon Main Processor II with 1MB SRAM and SOE function, the 3005 Enhanced Tricon Main Processor II with 2MB SRAM and extended SOE storage, the 3006 CPU, the 3007 CPU dedicated for Honeywell UCN system communication, and the 3008 CPU dedicated for Foxboro DCS system communication. All these main processor modules share the same TMR architecture, installation dimensions and software compatibility, which can be seamlessly upgraded on the original system rack without modifying existing field wiring or application logic, to meet different system scale and performance expansion demands.
