Description
Product Overview & Applications
The TRICONEX 2354AS2 is a high-integrity Digital Output Module designed for the Tricon Safety Instrumented System (SIS). Engineered for mission-critical applications, it serves as the final control element interface, driving field devices such as solenoid valves, relays, and motor starters. Operating within a Triple Modular Redundant (TMR) architecture, this module ensures maximum safety and availability for Emergency Shutdown (ESD) and Fire & Gas (F&G) systems.
Typical Applications:
- Emergency Shutdown (ESD): Driving final control elements to safely shut down process units during hazardous conditions.
- Fire & Gas (F&G): Activating suppression systems, alarms, and ventilation controls upon detection of fire or toxic gas.
- Burner Management Systems (BMS): Controlling fuel valves and ignition sequences in boilers and furnaces.
- Critical Process Interlocks: Executing safety logic to prevent equipment damage or unsafe operating conditions.
Technical Specifications & Parameters
| Parameter | Specification |
|---|---|
| Module Type | Digital Output Module (DO) |
| Signal Type | 24VDC Discrete Output |
| Safety Integrity | IEC 61508 SIL3 Compliant |
| Redundancy | Triple Modular Redundant (TMR) Architecture |
| Output Voting | Quad Voter Circuit (2oo3 Logic) |
| Mounting | Standard Tricon Rack Slot, Hot-Swappable |
| System Platform | Tricon v9.x, v10.x, v11.x |

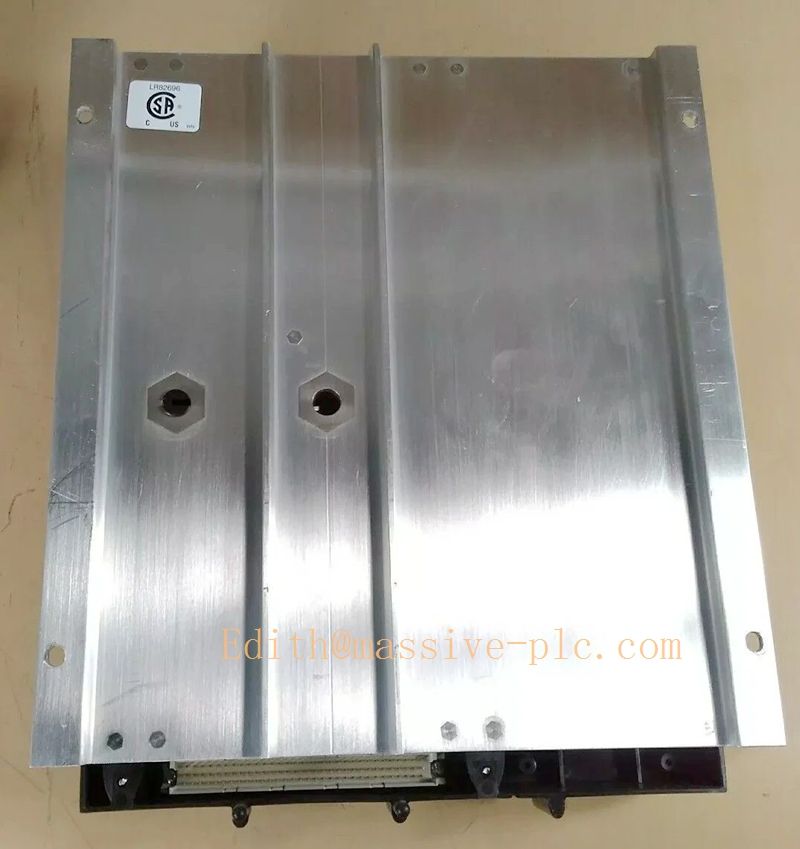

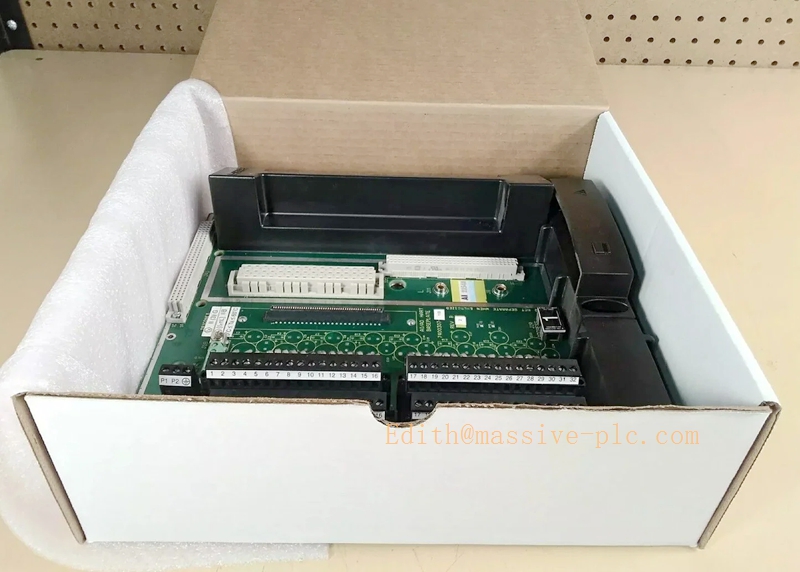

TRICONEX 2354A
Key Features
- TMR Fault Tolerance: Operates within the Tricon TMR architecture, where three independent channels drive outputs in parallel. The built-in quad voter circuit passes power only when at least two legs agree, ensuring continuous safe operation and preventing spurious trips even if a single channel fails.
- Opto-Isolated Outputs: Features galvanic isolation between field wiring and the internal logic, providing robust protection against ground loops and electrical noise in harsh industrial environments.
- Advanced Diagnostics: Continuously monitors the health of each output channel and the voter circuit. It can detect open circuits, short circuits, and voter faults, triggering alarms to facilitate rapid troubleshooting.
- Hot-Swappable Design: Supports online maintenance, allowing the module to be replaced without powering down the rack or shutting down the process, significantly reducing downtime.
- Seamless Integration: Communicates with the main processor via the dedicated TriBus, ensuring real-time synchronization and deterministic response times for safety-critical actions.
Installation Guidelines
- Rack Installation: Insert the module into a compatible Tricon rack slot, ensuring it is securely seated and locked in place for reliable backplane communication.
- Field Wiring: Use shielded cables for field connections and ensure proper grounding to minimize electromagnetic interference (EMI). Verify the common terminal configuration matches the system design.
- Software Configuration: Utilize TriStation 1131 software to configure output parameters, voting logic, and diagnostic settings. Ensure the module’s firmware version is compatible with the main processor.
- Environmental Protection: Ensure the control cabinet maintains appropriate temperature and humidity levels. In dusty environments, use compressed air to clean module surfaces quarterly.
Maintenance & Troubleshooting
- Diagnostic Monitoring: Regularly check the module’s PASS, FAULT, and ACTIVE LEDs. A FAULT indicator typically points to a specific channel issue or a voter fault rather than a complete module failure.
- Voter Fault Diagnosis: If a “Voter Fault” alarm is triggered, use the TriStation 1131 diagnostic tools to identify the specific leg (A, B, or C) causing the disagreement. The system will continue to operate on the healthy legs while isolating the faulty one.
- Terminal Inspection: Periodically inspect terminal connections for looseness or corrosion, especially in high-vibration environments.
- Spare Parts Management: Maintain an adequate stock of 2354AS2 modules to minimize downtime during unexpected hardware failures.

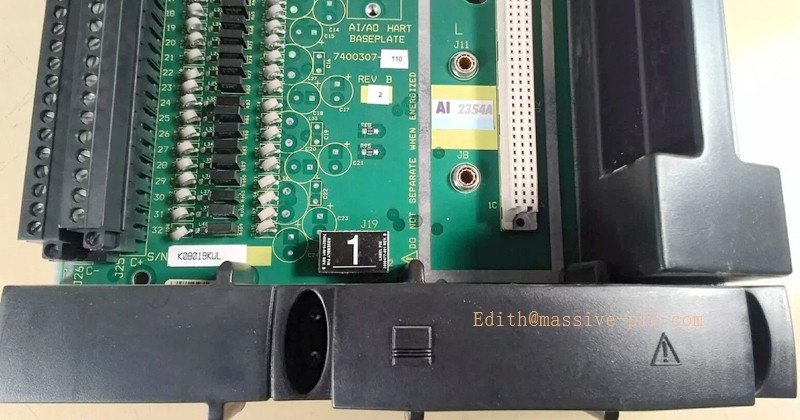

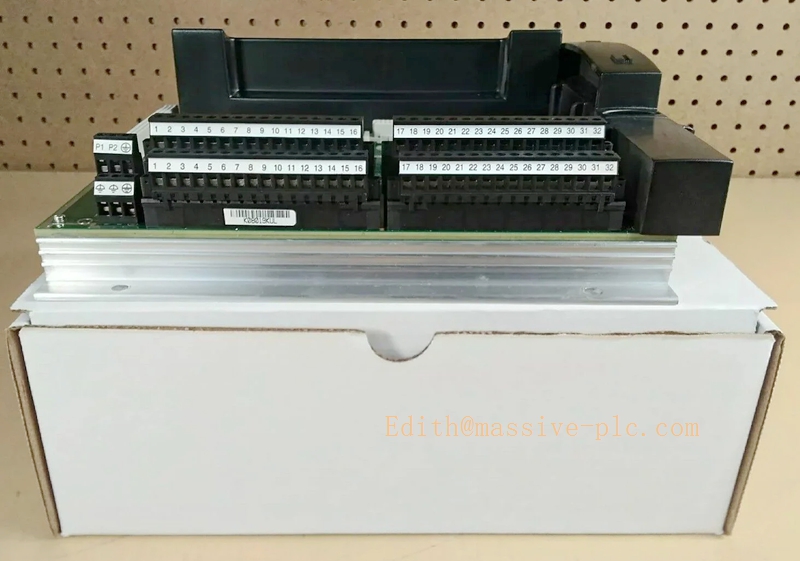

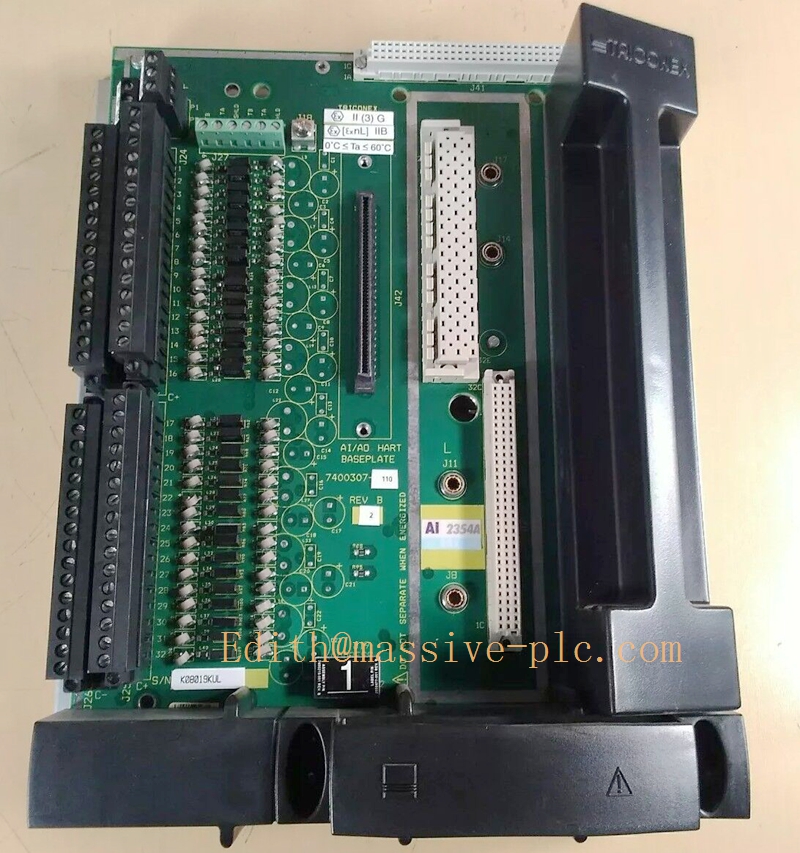

TRICONEX 2354A
Related Series Models
The 2354AS2 is part of the Tricon digital output family. Common related models include:
- 3603T: Digital Output Module, 24 VDC, Opto-Isolated, Commoned, TMR.
- 3603E: Digital Output Module, 120 VDC, Opto-Isolated, Commoned, TMR.
- 3604E: Digital Output Module, 24 VDC, Opto-Isolated, Non-Commoned, TMR.
- 3623T: Digital Output Module, 120 VDC, Opto-Isolated, Commoned, Supervised, TMR.
