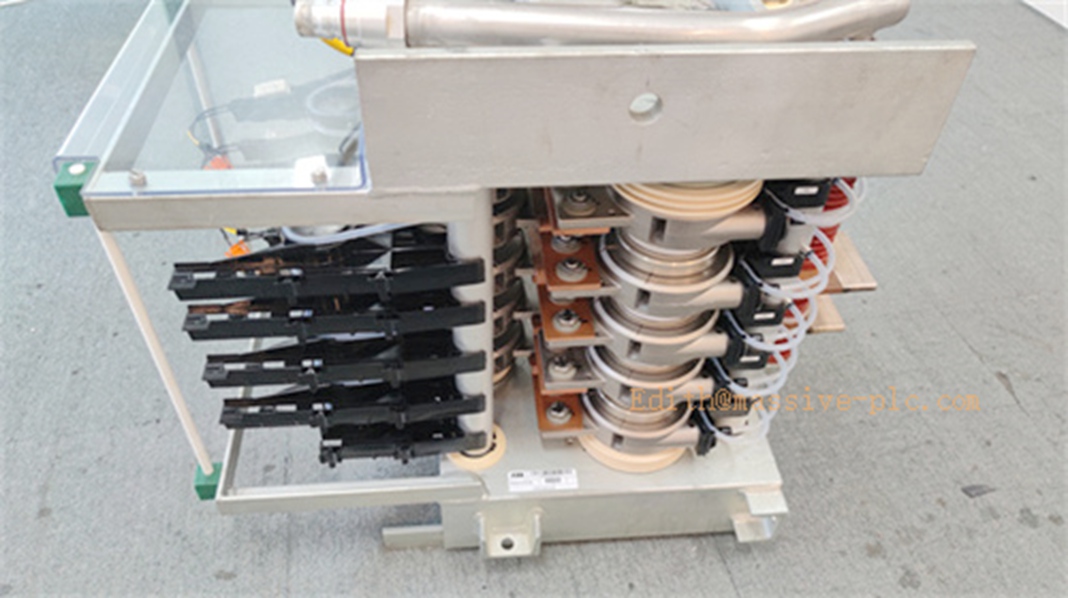

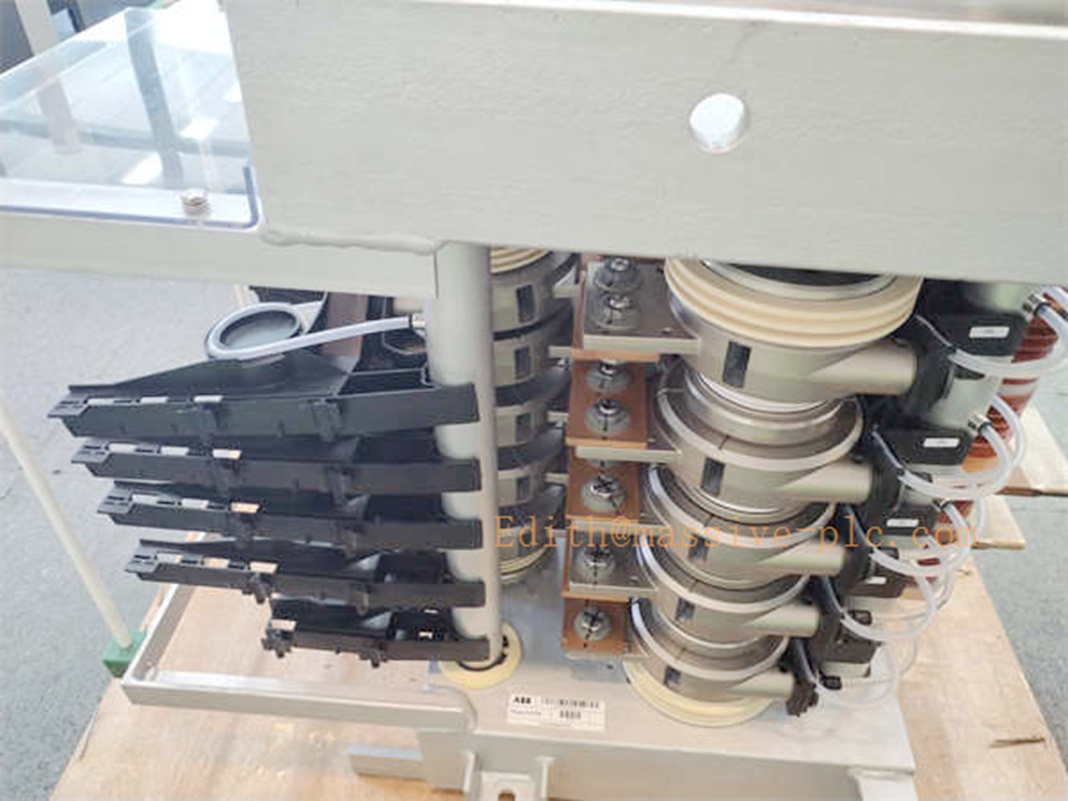

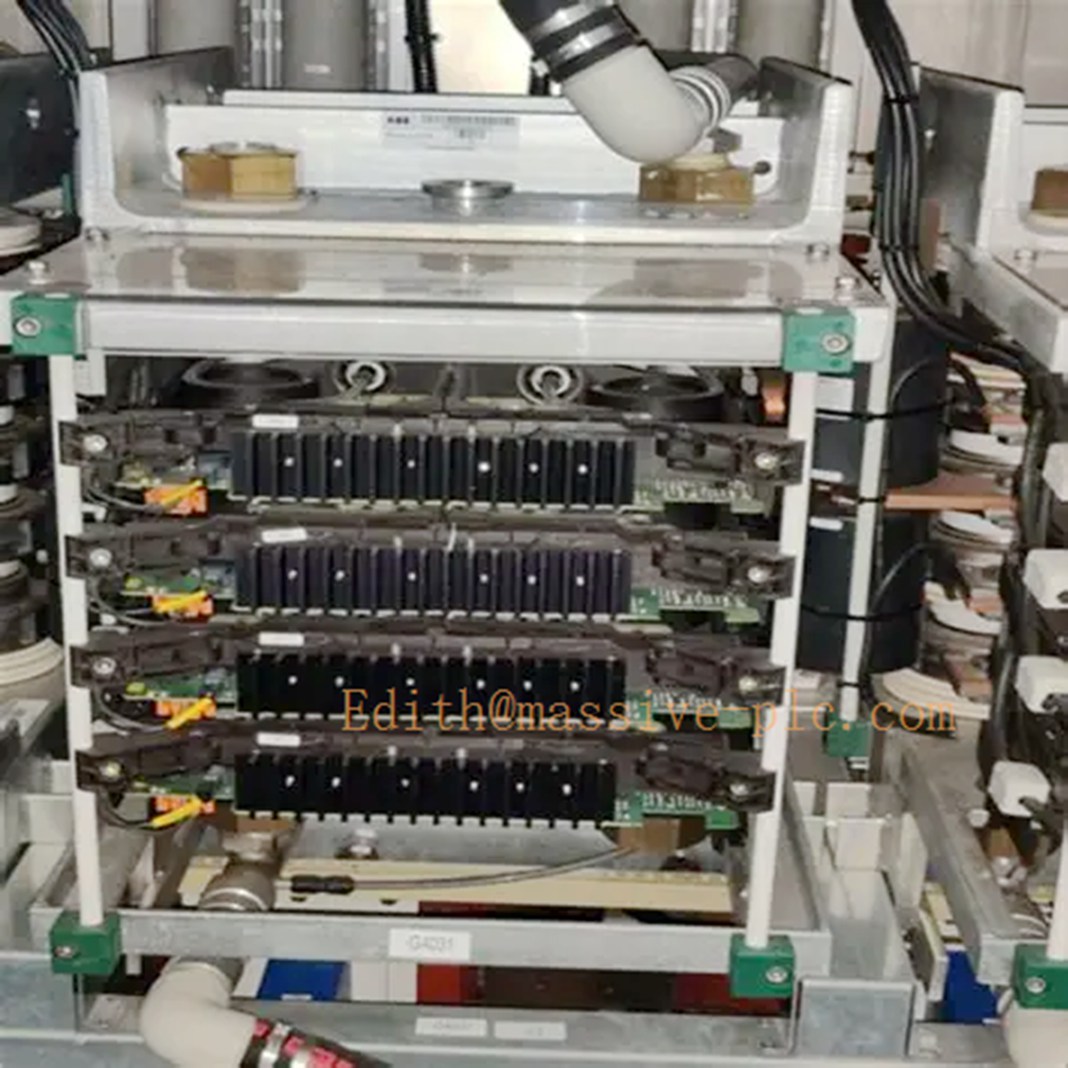

S-093H, part number 3BHB009885R0004, is ABB high-power IGCT phase module designed for ACS6000 medium voltage drive systems

Description

S-093H 3BHB009885R0004 Product Technical Manual

Product Core Introduction

The S-093H, part number 3BHB009885R0004, is ABB high-power IGCT phase module designed for ACS6000 medium voltage drive systems. This complete phase power unit integrates IGCT power semiconductor, gate drive unit (GDU), snubber circuit, water cooling heat exchanger, voltage/current sensing and local protection logic. It executes high-power AC/AC power conversion under the command of the system control unit, handling high-voltage high-current switching for large synchronous motor speed regulation. Widely deployed in mining conveyors, large compressors, fans and rolling mill medium voltage drive cabinets. It is a critical spare component for maintenance and retrofit of legacy ABB ACS6000 high-power drive systems.

S-093H 3BHB009885R0004

Main Technical Specifications

• Model: S-093H, Order Code: 3BHB009885R0004
• Power Device: Integrated Gate Commutated Thyristor (IGCT)
• Rated System Voltage: 3.3kV medium voltage class
• Cooling Method: Deionized water double-sided cooling
• Auxiliary Control Power: 24VDC, operating range 19.2–28.8VDC
• Communication Interface: Fiber optic link to drive control unit
• Sensing Signals: Phase current, DC-link voltage, module temperature, water flow & temperature
• Protection Functions: Overcurrent, overvoltage, overtemperature, water flow loss, GDU fault, snubber failure
• Operating Temperature: 0°C ~ +55°C
• Storage Temperature: -20°C ~ +70°C
• Relative Humidity: 5%–95% RH, non-condensing
• Insulation Withstand: Medium voltage reinforced insulation per IEC62477
• MTBF: ≥85,000 hours
• Mounting: Draw-out rack installation inside MV drive cabinet
• Dimension: 850 mm × 550 mm × 650 mm
• Net Weight: 190 kg
• Status Indicators: Power, Ready, Fault, GDU Status LED indicators

Recommended Homologous Series Models

• S-093H 3BHB009885R0005: Updated hardware revision, improved thermal performance and IGCT screening, form-fit-function compatible replacement.
• S-073N 3BHB009884R0021: Smaller power rating phase module for lower power ACS6000 variants.
• S-103H: Higher current heavy-duty phase module for ultra-large power medium voltage drives.
• 3BHE009681R0001: Matching main control board of ACS6000 to work with S-093H phase modules.

S-093H 3BHB009885R0004

Professional Quality Control & Test Standard Operating Procedures (SOP)

4.1 General Test Standard

All S-093H phase modules are inspected complying with ISO9001, IEC61000 EMC and IEC62477 power electronic standards. Each unit carries unique serial number for full lifecycle traceability.

4.2 Core Test SOP

1. Visual & Mechanical Inspection: Inspect IGCT stack, water pipeline, sealing joints, fiber connectors, copper busbars and GDU board for leakage, cracks, oxidation and loose fasteners; verify drawer rail fit and interlock mechanism.
2. Auxiliary Power-On Basic Function Test: Apply 24VDC auxiliary supply; validate power, ready and fault LED; check GDU self-test pass status, confirm no short-circuit of control circuit.
3. Water Circuit Leakage & Flow Test: Connect deionized cooling water loop; test pipeline sealing under rated pressure, verify flow switch and temperature sensor feedback.
4. GDU & Fiber Communication Test: Link fiber cable to ACS6000 controller; verify optical command reception and fault signal upload, test gate pulse transmission integrity.
5. Low-Power Electrical Test: Inject low voltage test signal; check current and voltage sensor measurement accuracy, verify protection threshold trigger function.
6. EMC Immunity Test: Conduct ESD, electrical fast transient burst, surge and radiated interference test per IEC61000; confirm no false protection or pulse misfire.
7. Temperature Cycling Test: 0°C ↔ +55°C thermal cycling for 40 cycles, 2 hours per cycle; validate sensor reading stability and GDU operation.
8. Vibration & Shock Test: 10–150Hz sinusoidal vibration and mechanical shock test to verify busbar bolts, water fittings and PCB solder joints for heavy industry cabinet environment.
9. Continuous Burn-In Aging: 160 hours burn-in with cooling water circulation and simulated switching sequence; monitor temperature, sensor and fault signals to screen intermittent hidden faults.
10. Final Inspection & Packaging: Drain residual water, dry pipeline, record serial number, apply anti-static and moisture-proof packaging, attach inspection certificate.

New Module Installation Guidelines

5.1 Pre-installation Preparation

Cut off medium voltage main power and cabinet 24VDC auxiliary power; confirm model and part number match purchase order; inspect module for water leakage, damage and fiber connector integrity. Wear anti-static wristband and insulated safety tools. Prepare torque wrench, deionized water pipeline fittings, fiber optic cable and ACS6000 commissioning laptop.

Safety reminder: High voltage danger. Only certified medium voltage drive technicians are allowed to perform replacement.

5.2 Installation Steps

1. Confirm cabinet earthing is reliable; pull out the old phase module from the drawer rack.
2. Insert S-093H module slowly along drawer guide rail until fully seated; engage mechanical interlock.
3. Torque the main copper busbar connection bolts to specified value for low contact resistance.
4. Connect inlet/outlet deionized cooling water pipes; tighten fittings and perform pressure leak test.
5. Install fiber optic cables between GDU and main control unit; avoid sharp bending of optical fiber.
6. Wire 24VDC auxiliary control power; tighten terminals, confirm polarity correct and no bare copper exposure.
7. Check water flow, interlock switch and all sensor wiring before closing cabinet door.

5.3 Post-installation Commissioning

Restore 24VDC auxiliary power, keep medium voltage disconnected; energize module and observe LED indicators to confirm GDU self-test passes. Run diagnostic software, read temperature, water flow and sensor values. Execute fiber communication test and protection function simulation. Perform dry-run test without main high voltage. Run continuous 60-minute stability test; verify no leakage and no fault alarm before applying medium voltage and full-load online operation.

S-093H 3BHB009885R0004

Application Scenarios & Product Features

6.1 Core Application Scenarios

• Large mining belt conveyor medium voltage drive phase power unit
• Petrochemical large compressor and high-power fan variable speed drive
• Metallurgy rolling mill main drive medium voltage power conversion
• Water pumping station high-power synchronous motor speed regulation
• Legacy ABB medium voltage drive spare replacement and cabinet retrofit

6.2 Core Product Features

• Complete drawer-type IGCT phase power module for ABB medium voltage drives
• Integrated IGCT + gate drive unit, snubber, water cooling and measuring sensors
• Deionized double-sided water cooling design for high heat dissipation under heavy load
• Fiber-optic control link, strong isolation between high-power main circuit and low-voltage control
• Comprehensive built-in protection: overcurrent, overvoltage, overtemperature, cooling water loss and GDU fault
• Draw-out structure for convenient maintenance and spare swap, with mechanical high-voltage interlock safety
• High EMC immunity, stable switching performance in heavy industry high electromagnetic interference environment

Frequently Asked Questions (FAQ)

Q1: Ready LED off and Fault LED lit after installation A1: Check 24VDC auxiliary power polarity and voltage; inspect fiber optic cable connection and bending radius; run GDU self-test via drive diagnostic tool. If GDU hardware fails, replace phase module.

Q2: Water pipeline leakage after installation A2: Depressurize system immediately; inspect pipe fitting sealing ring, check for scratch or over-torque damage; re-assemble and repeat water pressure leak test.

Q3: Drive reports phase module communication loss A3: Inspect fiber end face for dust or contamination; check fiber breakage and routing bending; verify matching fiber port between phase module and control unit.

Q4: Overtemperature alarm occurs during operation A4: Check cooling water flow, inlet water temperature and filter blockage; inspect temperature sensor wiring; check scaling inside water channel.

Q5: Drive trips with overcurrent fault immediately after closing MV A5: Verify busbar connection torque and insulation resistance; check IGCT and snubber circuit; confirm current sensor wiring polarity.

Q6: Can S-093H work in other brands of medium voltage inverters? A6: No. This phase module is specially designed for ABB drive system. It can only operate with matched main control hardware and firmware.
