PP885R 3BSE069296R1 Product Technical Manual
Product Core Introduction

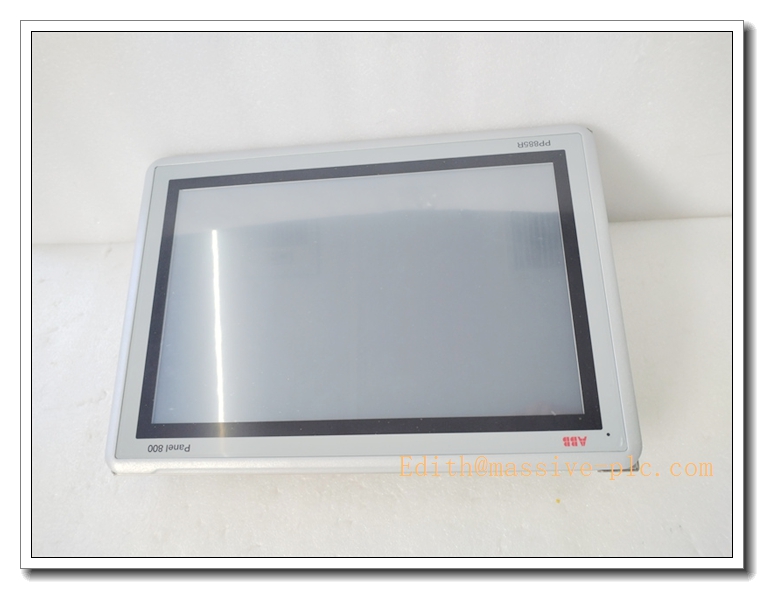

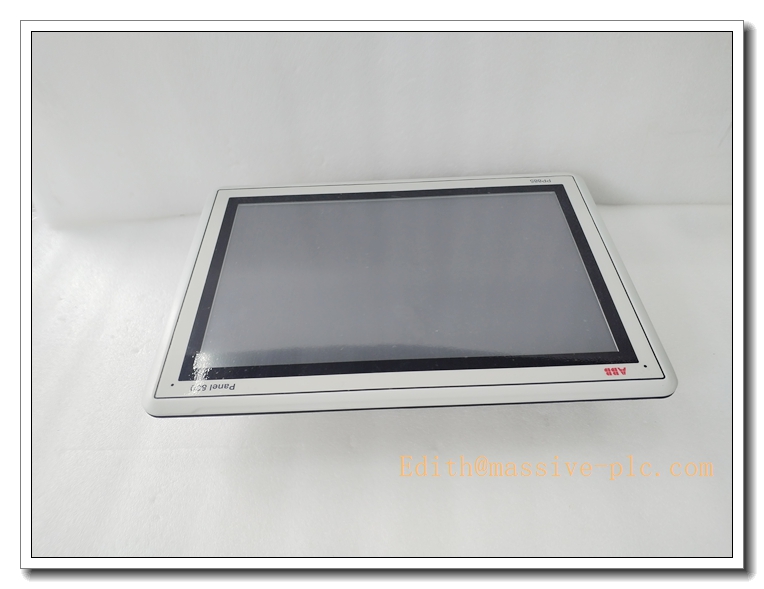

The PP885R, part number 3BSE069296R1, is ABB Panel800 Version6 rugged marine-grade operator HMI panel for ABB 800xA DCS platform. This heavy-duty 15.4-inch widescreen touch panel is built for harsh industrial, offshore and marine environments, used for real-time process monitoring, setpoint adjustment, alarm acknowledgement, trend display and recipe management. It runs Panel Builder runtime and communicates with AC800 controllers via dual Ethernet or serial interfaces. It is widely used as critical spare for power plants, offshore platforms, ship propulsion control and heavy industry DCS cabinets, with DNV marine certification for maritime applications.
PP885R 3BSE069296R1
Main Technical Specifications
- Model: PP885R, Order Code: 3BSE069296R1
- Display: 15.4″ TFT widescreen, 1280 × 800 WXGA, LED backlight, 16.7M colors
- Touch: Analog resistive touchscreen, glove operable
- Processor: Intel Atom 1.0/1.6GHz
- Memory: 1GB RAM, 4GB SLC flash memory, optional SD card slot
- Power Supply: 24VDC, operating range 18–32VDC
- Power Consumption: Max 28W typical
- Communication Interfaces: 1×10/100Mbps Ethernet, 1×Gigabit Ethernet, 3×USB2.0, RS232, isolated RS422/485
- Supported Protocols: ABB proprietary 800xA protocol, Modbus TCP, Modbus RTU, PROFIBUS DP
- Operating Temperature: -20°C ~ +60°C
- Storage Temperature: -40°C ~ +70°C
- Relative Humidity: 5%–95% RH, non-condensing
- Protection Rating: Front IP66 / NEMA4X; Rear housing IP20
- Certifications: CE, UL, CSA, DNV marine certification
- MTBF: ≥88,000 hours
- Mounting: Cabinet door flush panel mounting
- Dimension: 410 mm × 286 mm × 83 mm
- Net Weight: 4.5 kg
- Status Indicators: Power, Run, Network, Fault LED indicators
Recommended Homologous Series Models
- PP885M: Marine version with similar hardware, optimized for ship vibration environment.
- PP886R: Larger 19-inch rugged HMI of Panel800 series for multi-window complex monitoring.
- PP875H: Compact 12.1-inch rugged panel for cabinet with limited cutout space.
- PP883: Standard non-rugged 15.4-inch Panel800 HMI for ordinary indoor industrial control.
Professional Quality Control & Test Standard Operating Procedures (SOP)
4.1 General Test Standard
All PP885R panels are inspected complying with ISO9001, IEC61000 EMC and DNV marine standards. Each unit carries unique serial number for full lifecycle traceability.
4.2 Core Test SOP
- Visual & Mechanical Inspection: Inspect aluminum front frame, touch foil, sealing gasket, terminal blocks and communication connectors for scratches, dents and corrosion; verify cabinet cutout dimension and mounting bracket fit.
- Power-On Basic Function Test: Apply minimum, rated and maximum 24VDC supply; validate power/run LED status; test LCD backlight and touch response, confirm no overcurrent or short-circuit.
- Display & Touch Calibration Test: Check full-screen uniformity and dead pixels; perform full-surface touch calibration, verify no touch drift, blind spots or mis-trigger.
- Multi-Interface Communication Test: Connect to 800xA controller via Ethernet and RS485; verify tag reading, setpoint write and alarm upload, monitor communication error counters.
- EMC Immunity Test: Conduct ESD, EFT, surge and radiated interference test per IEC61000; confirm no screen flicker, touch misoperation or network dropout.
- Temperature Cycling Test: -20°C ↔ +60°C thermal cycling for 40 cycles, 2 hours per cycle; validate display, touch and memory stability under wide temperature swing.
- Vibration & Shock Test: 10–150Hz sinusoidal vibration and mechanical shock test to meet marine heavy vibration specification, verify PCB solder joints and cable retention.
- Continuous Burn-In Aging: 160 hours burn-in at 50°C with continuous tag refresh and alarm simulation; monitor backlight and network stability to screen intermittent hidden faults.

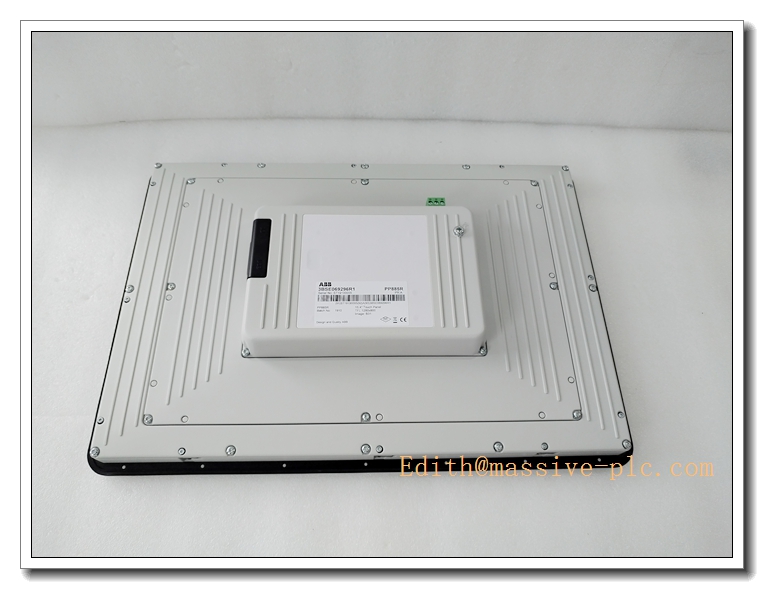

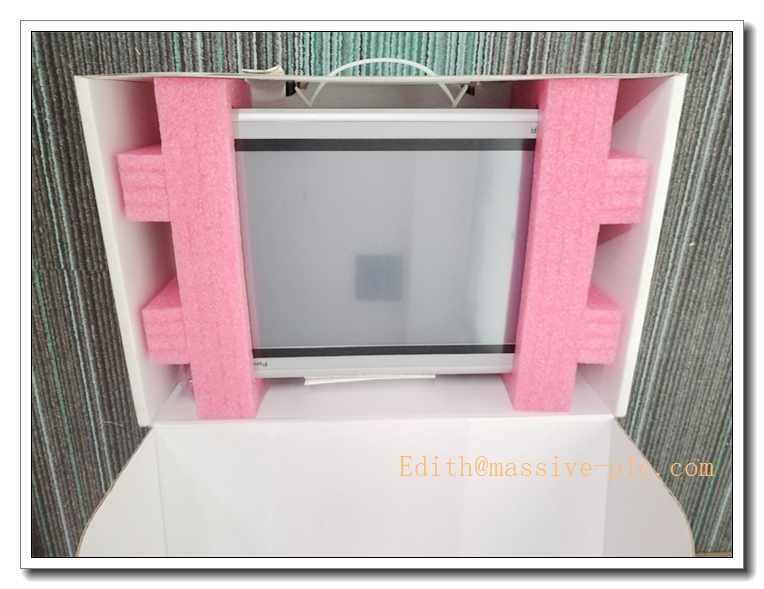

- Final Inspection & Packaging: Reset factory parameters, re-calibrate touch screen, record serial number, anti-static packaging with inspection certificate.
PP885R 3BSE069296R1
New Module Installation Guidelines
5.1 Pre-installation Preparation
Cut off cabinet control power and DCS controller power; confirm model and part number match purchase order; inspect panel, gasket and connectors for integrity. Wear anti-static wristband before handling internal circuit board. Prepare screwdriver, torque wrench, shielded network cable and Panel Builder programming laptop for project download.
5.2 Installation Steps
- Process cabinet door cutout per dimension drawing; deburr and clean aperture edge.
- Install rubber sealing gasket on front frame; insert PP885R from cabinet front into the cutout.
- Tighten rear mounting brackets evenly with specified torque to compress gasket and maintain IP66 front protection.
- Wire 24VDC control power to terminals; connect redundant Ethernet or serial cable to ABB 800xA AC800 controller.
- Tighten terminal screws; confirm power polarity correct and no bare copper exposure. Separate communication cables from high-power cables.
5.3 Post-installation Commissioning
Restore cabinet control power and energize HMI panel; observe LED indicators to confirm normal power and boot status. Download HMI project by Panel Builder software, configure IP address and communication parameters. Test real-time data reading, setpoint modification and alarm acknowledgement. Run continuous 60-minute stability test; verify touch, trend and event log function before formal online operation.
Application Scenarios & Product Features
6.1 Core Application Scenarios
- Offshore oil & gas platform DCS local operator station
- Marine vessel propulsion and auxiliary machinery control cabinet
- Thermal / hydro power plant 800xA DCS main control room and local cabinet HMI
- Petrochemical heavy-duty process monitoring and operation
- Legacy ABB Panel800 rugged HMI spare replacement and cabinet retrofit
6.2 Core Product Features
- ABB Panel800 Version6 rugged 15.4-inch widescreen touch HMI for 800xA DCS system
- IP66 front panel + DNV marine certification, adapted to high vibration, dust, humidity and salt mist environment
- Dual Ethernet ports support redundant network, improving communication reliability for critical control systems
- Rich onboard interfaces: Gigabit Ethernet, USB, RS232 / isolated RS485 for legacy device connection
- Supports trend curves, event logs, alarm management and recipe functions via Panel Builder
- Die-cast aluminum front housing, long-life LED backlight and resistive touch for glove operation
- High EMC immunity, stable performance in power plant and offshore strong electromagnetic interference environment
PP885R 3BSE069296R1
Frequently Asked Questions (FAQ)
Q1: Power LED off after installation A1: Verify 24VDC supply voltage and polarity; inspect loose terminals or damaged wiring; measure terminal voltage. If input voltage normal while LED remains off, replace the panel.
Q2: Touch screen unresponsive or touch position drifts A2: Execute touch calibration; check touch foil for scratch, salt mist corrosion or liquid contamination; inspect internal touch ribbon connector. Replace touch assembly if hardware damage occurs.
Q3: HMI cannot communicate with 800xA controller A3: Check shielded network cable and grounding; verify IP address and protocol match controller setting; check redundant network switch status and eliminate ground loop interference.
Q4: Screen flickers or abnormal dark/bright spots A4: Check power supply ripple; check interference from adjacent high-power cables; confirm ambient temperature within rated range. Replace backlight unit if aging.
Q5: HMI project download failed A5: Check USB/Ethernet physical connection; verify Panel Builder software version compatibility; confirm flash storage has enough free space.
Q6: Can PP885R work with non-ABB PLC without 800xA DCS? A6: It supports Modbus TCP / Modbus RTU for third-party controllers, but native visualization runtime is optimized for ABB 800xA. Full function compatibility requires re-development of HMI project.
