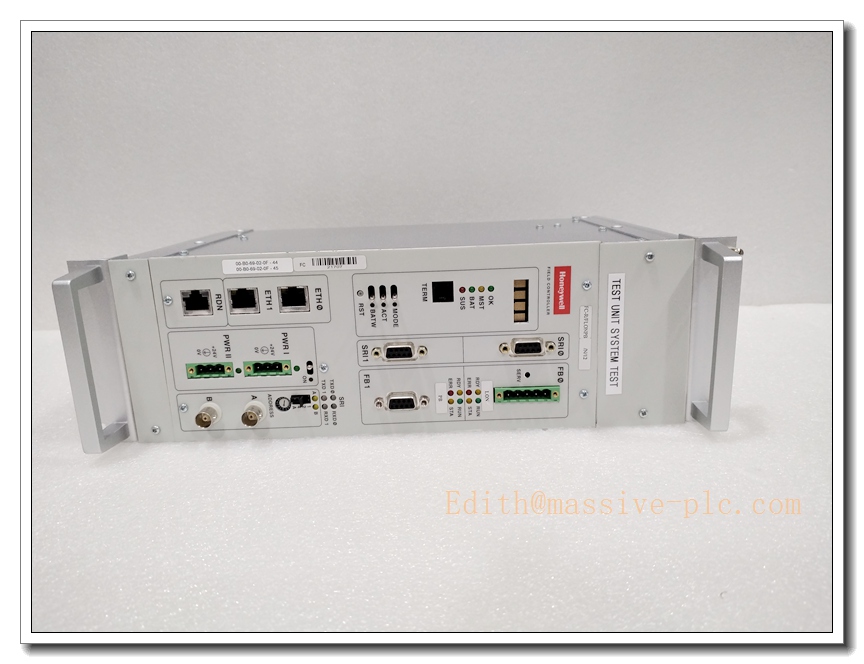

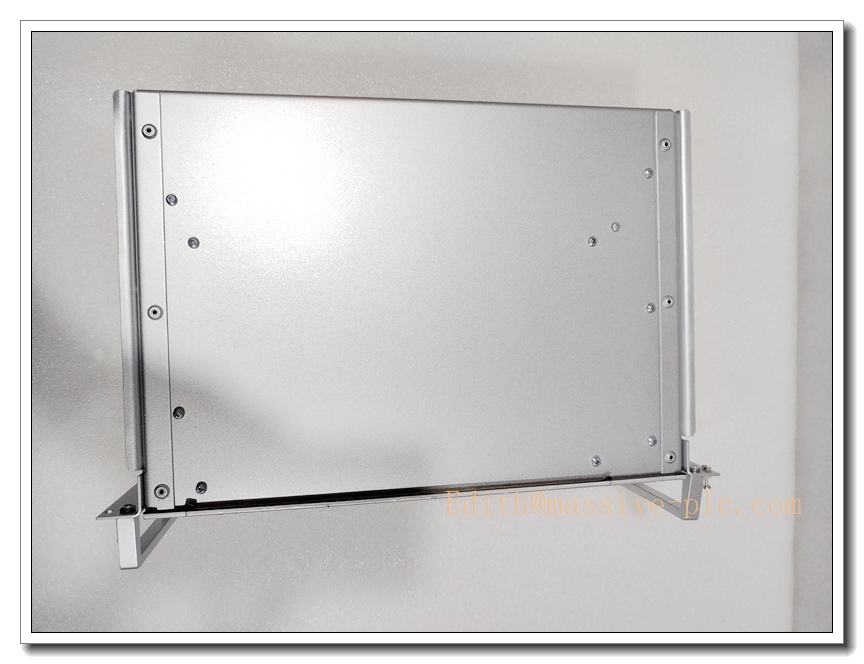

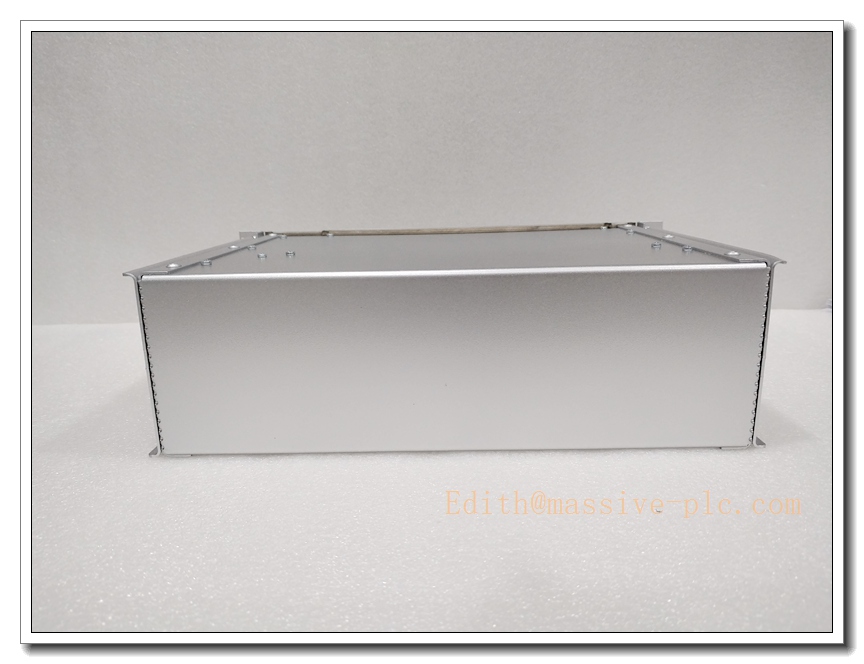

Honeywell FC-R/PB2/N/12 Redundant Safety Field Controller, FSC / Safety Manager Platform
Core Product Overview
FC-R/PB2/N/12 is a Honeywell FSC (Fail Safe Controller) redundant field safety processor, part of the legacy Safety Manager SIS family. It adopts dual redundant hot standby architecture for safety instrumented functions, executing ESD, FGS, HIPPS interlock logic, scanning local and remote safety I/O, and communicating via SafeNet safety bus. This is an older generation SIS controller, predecessor to FC-QPP-0001 Safety Manager Quad Processor. It is certified SIL3 for petrochemical and power plant safety systems. It is safety SIS controller, not Experion PKS C300 DCS controller.
Main Technical Specifications
- Part Number: FC-R/PB2/N/12
- Manufacturer: Honeywell
- Device Type: FSC Redundant Safety Field Controller
- Safety Certification: TÜV SIL 3 (IEC 61508 / IEC 61511)
- Architecture: Dual redundant hot standby, bumpless automatic switchover
- Communication: SafeNet safety fieldbus, serial interface for HMI/DCS
- Programming Software: Honeywell FSC Tool / Safety Manager engineering software
- Power Supply: 24 VDC
- Diagnostic Coverage: High diagnostic coverage for safety circuits
- Operating Temperature: 0°C ~ +50°C
- Humidity: 10%–90% non-condensing
- Form Factor: FSC rack plug-in safety controller module
- Status: EOL / discontinued original production; spare stock available as new surplus or professionally refurbished bench-tested units
FC-R/PB2/N/12
Same-Series Model Recommendations (8 Models)
- FC-R/PB2/N/12: FSC redundant safety field controller (subject model)
- FC-QPP-0001: Safety Manager QPP quad safety processor (newer generation)
- FC-USI-0001: Safety Manager universal serial interface
- FC-BKM-0001: Safety Manager backplane
- CC-PCNT01: C300 Experion PKS DCS controller
- CC-TUIO01: Series C universal IOTA base
- LG1093AC01: UV flame detector probe
- EG1033AC01: UV flame amplifier
Professional Quality Control & Testing Standard Operating Procedures
All surplus and refurbished Honeywell FC-R/PB2/N/12 modules follow this inspection workflow:
- Visual Inspection: Inspect PCB, gold edge fingers, front LED indicators, capacitors and soldering; verify Honeywell FSC part label and revision.
- Backplane Power Bench Test: Install on FSC compatible rack, apply 24VDC, confirm stable power rails, no overcurrent or cycling.
- Boot & Firmware Validation: Complete power-on self-test, read firmware revision, confirm no permanent hardware fault codes.
- Redundancy Pair Test: Pair two FC-R/PB2/N/12 controllers, verify bumpless primary/secondary failover.
- SafeNet Bus Communication Test: Connect with FSC safety I/O modules, validate cyclic safety data exchange and fault reporting.
- Safety Logic Function Test: Load FSC safety project, verify SIF scan, interlock trip and safe-state response.
- Thermal Soak Test: Run module at upper ambient temperature to expose intermittent memory, timing or connector faults.
- Final Cleaning & Packaging: Clean edge contacts, reset configuration, ESD packaging with printed test certificate.
New / Refurbished Module Installation Guidelines
- Pre-Installation Safety: Execute lockout-tagout; isolate rack 24V supply and all field safety circuits to prevent spurious SIS trips.
- Rack & Backplane Check: Confirm matching Honeywell FSC chassis, protective earth and cabinet ventilation.
- Mechanical Insertion: Align FC-R/PB2/N/12 edge connector with FSC backplane, insert smoothly, secure front panel fasteners.
- Network & I/O Wiring: Terminate SafeNet bus cables with shielded wiring; segregate safety wiring from high-power cables.
- System Configuration: Use FSC / Safety Manager engineering software to configure hardware, compile safety application and CRC signature.
- Offline Functional Test: Power rack offline; verify self-diagnostics, SafeNet link status and I/O wire-break detection.
- Safety Acceptance: Perform fault injection and redundant takeover test, archive safety project and audit records.
Application Scenarios & Product Features
Typical Application Scenarios
- Emergency Shutdown System (ESD) for refineries, chemical plants and offshore assets
- Fire and Gas System (FGS) flame and gas detection safety interlocks
- High Integrity Pressure Protection System (HIPPS)
- Burner safety interlock systems for boilers and turbines
- Retrofit and maintenance of legacy Honeywell FSC safety racks
Core Product Features
- SIL3 certified dual redundant hot standby safety controller for FSC platform
- Deterministic execution of safety instrumented functions
- SafeNet safety bus for communication with FSC I/O modules
- Comprehensive self-diagnostics for CPU, memory, bus and I/O channels
- Automatic bumpless switchover upon primary controller failure
- Safety application with tamper-proof CRC signature for audit trail
- Hot-swap hardware capable; replacement requires SIS bypass and approved work permit
- Legacy FSC platform; not drop-in compatible with FC-QPP-0001 Safety Manager racks
Frequently Asked Questions (FAQ)
Q1: What is the difference between FC-R/PB2/N/12 and FC-QPP-0001? A1: FC-R/PB2/N/12 is older FSC redundant field controller. FC-QPP-0001 is the later Safety Manager QPP quad processor with 2oo4D voting. They run different firmware and are not interchangeable without rack and project migration.
Q2: Is FC-R/PB2/N/12 a DCS controller? A2: No, it is SIS safety controller for ESD/FGS. DCS process control uses C300 series like CC-PCNT01.
Q3: What software programs this controller? A3: Honeywell FSC configuration tool, compatible with early Safety Manager engineering environments.
Q4: Is it hot-swappable? A4: Mechanically supports hot swap. If primary controller is removed, the secondary unit takes over. Always apply SIS bypass before replacement.
Q5: What are common failure modes? A5: Gold finger oxidation, capacitor ageing, ESD damage to SafeNet bus port, firmware corruption from voltage transients, redundant sync communication drift.
