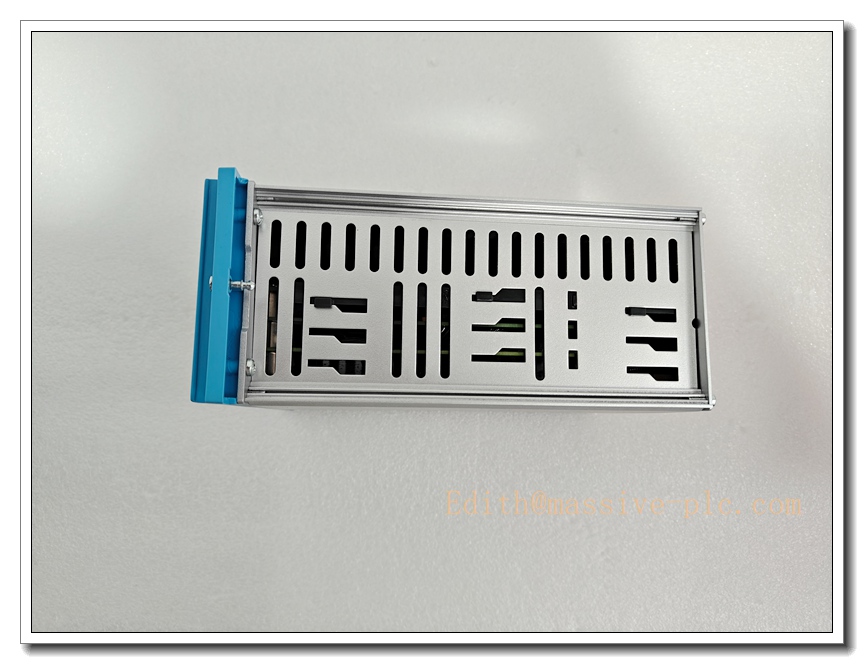

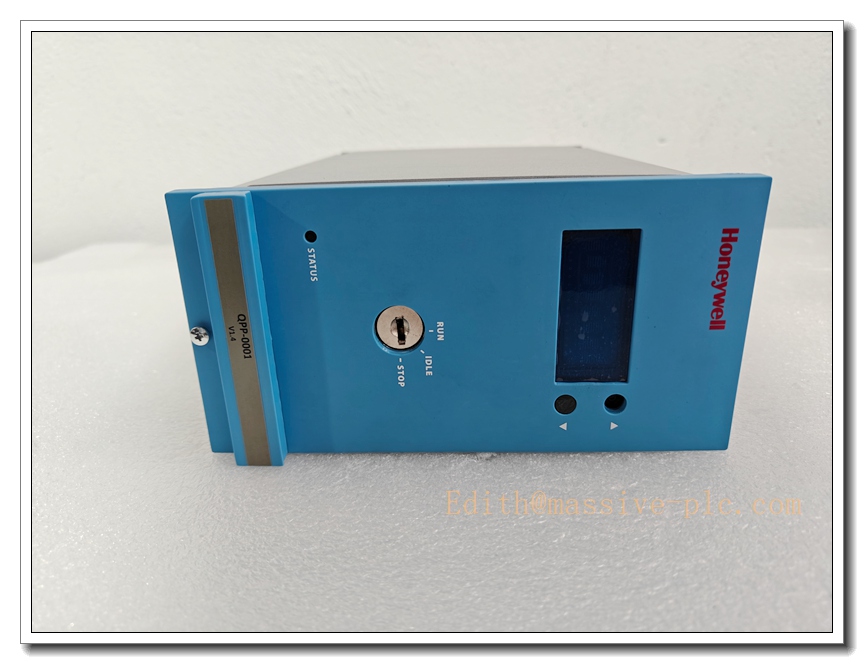

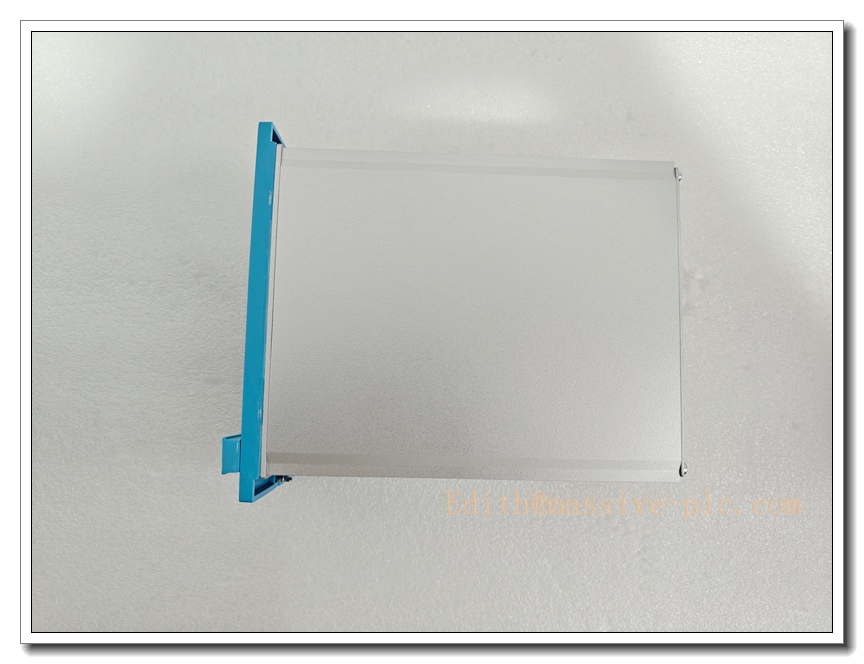

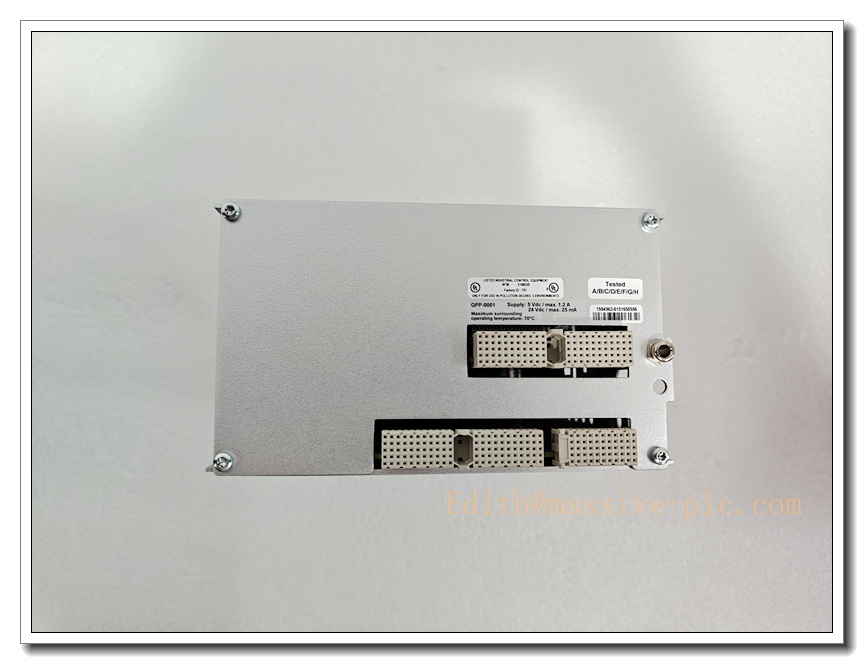

Honeywell FC-QPP-0001 Quad Processor Pack (QPP) Module, Safety Manager SIS Main Safety Processor

Description

Honeywell FC-QPP-0001 Quad Processor Pack (QPP) Module, Safety Manager SIS Main Safety Processor

Core Product Overview

FC-QPP-0001 is the primary safety CPU for Honeywell Safety Manager safety instrumented system (SIS). It adopts 2oo4D quad redundant voting architecture (four processors with cross-comparison and diagnostics) to execute safety interlock logic, manage SIF (Safety Instrumented Function), handle I/O scanning, self-diagnostics and system communication. It communicates with Safety Manager I/O modules, FTE fault-tolerant Ethernet, and connects to Experion DCS/SCADA. This is a first-generation Safety Manager processor; the upgraded successor model is FC-QPP-0002. It is certified SIL3 per IEC 61508 / IEC 61511, widely used in ESD, FGS, HIPPS and BMS for oil & gas, refinery, chemical and power plants.

Important note: This is Honeywell Safety Manager hardware, not HIMA HIMax. Earlier confusion arose from the same model name but different manufacturers and platforms.

Main Technical Specifications

• Part Number: FC-QPP-0001
• Manufacturer: Honeywell
• Device Type: Quad Processor Pack, Safety Manager Main Safety Controller
• Safety Level: SIL 3 (IEC 61508, IEC 61511)
• Architecture: 2oo4D, four processing channels with cross-voting and comprehensive diagnostics
• Software Platform: Honeywell Safety Manager configuration tool
• Network: Dual FTE (Fault Tolerant Ethernet) ports, supports Modbus TCP for DCS/Experion interface
• Power Supply: 24 VDC
• Cooling: Rack forced air cooling
• Operating Temperature: -20°C ~ +60°C
• Humidity: 10%–95% non-condensing
• Form Factor: Rack mount Eurocard for Safety Manager chassis
• Status: Obsolete / end of active production; spare stock available as new surplus or professionally refurbished bench-tested units

FC-QPP-0001

Same-Series Model Recommendations (8 Models)

• FC-QPP-0001: 1st gen Safety Manager main safety CPU (subject model)
• FC-QPP-0002: 2nd gen upgraded Safety Manager QPP processor
• FC-USI-0001: Safety Manager universal serial interface
• FC-BKM-0001: Safety Manager backplane module
• FC-PSU-240516: Safety Manager power supply
• FC-PDIO-0001: Safety Manager digital I/O module
• FX-USI-0002: Updated universal interface for FC-QPP-0002
• FC-SCNT01: Honeywell Safety Manager SC compact safety controller

Professional Quality Control & Testing Standard Operating Procedures

All surplus and refurbished Honeywell FC-QPP-0001 modules follow this inspection workflow:

1. Visual Inspection: Inspect PCB, edge connectors, front status LEDs, capacitors and solder joints; verify Honeywell part label and SIL certification marking.
2. Backplane Power Bench Test: Install on Safety Manager compatible chassis, apply 24VDC, confirm stable power rails, no overcurrent or cycling.
3. Boot & Firmware Validation: Complete power-on self-test, read firmware revision, confirm no permanent hardware fault codes.
4. 2oo4D Quad Channel Voting Test: Verify four internal processor cross-comparison; inject fault conditions to validate voting and safe-state response.
5. FTE Ethernet & Backplane Test: Connect with Safety Manager I/O modules, validate cyclic safety data exchange and fault reporting.
6. Safety Logic Function Test: Load Safety Manager test project, run SIF scan, validate interlock trip and alarm behaviour.
7. Thermal Soak Test: Run module at elevated cabinet temperature to expose intermittent memory, timing or connector faults.
8. Final Cleaning & Packaging: Clean edge contacts, reset configuration, ESD packaging with printed test certificate.

New / Refurbished Module Installation Guidelines

1. Pre-Installation Safety: Execute lockout-tagout; isolate Safety Manager rack 24V supply and all field safety circuits to prevent spurious SIS trips.
2. Rack & Backplane Check: Confirm matching Honeywell Safety Manager chassis, proper protective earth, cabinet cooling fan and ventilation clearance.
3. Mechanical Insertion: Align FC-QPP-0001 edge connector carefully with backplane, insert smoothly without force, secure front panel fasteners.
4. Network & I/O Wiring: Terminate dual FTE Ethernet cables; use shielded cables and proper grounding, segregate safety wiring from high-power cables.
5. System Configuration: Use Honeywell Safety Manager software to configure hardware, assign SIF logic, compile safety application and generate safety CRC signature.
6. Pre-Commissioning Functional Test: Power rack offline; verify self-diagnostics, I/O wire-break detection, FTE link failure response and safe trip action.
7. Safety Acceptance: Perform site fault injection test, verify redundant processor takeover, archive Safety Manager project and safety signature for audit.

Application Scenarios & Product Features

Typical Application Scenarios

• Emergency Shutdown System (ESD) for refineries, chemical plants and offshore platforms
• Fire and Gas System (FGS) flame and gas detection interlocks
• High Integrity Pressure Protection System (HIPPS)
• Burner Management System (BMS) for gas turbines and industrial boilers
• Power plant critical safety interlock racks
• Spare replacement and retrofit for legacy Honeywell Safety Manager SIS installations

Core Product Features

• SIL 3 certified 2oo4D quad redundant processor for Safety Manager
• Four independent processing channels with continuous cross-voting and fault diagnosis
• Deterministic safety scan for safety instrumented functions
• Dual FTE fault-tolerant Ethernet for high-availability communication with Experion DCS
• Comprehensive diagnostics covering CPU, memory, clock, backplane and I/O channels
• Supports redundant QPP hot standby for bumpless takeover
• Safety project with tamper-proof signature and traceable change log
• Hot-swap hardware capable; replacement must follow approved SIS bypass and work permit procedures

Frequently Asked Questions (FAQ)

A1: They are completely different platforms. Honeywell FC- is the Safety Manager main safety CPU with 2oo4D architecture. HIMA does not make an FC-; the earlier confusion came from matching part number text. HIMA HIMax uses F8650X, X-SB01, X-FAN series.

A2: FC- is first-generation Safety Manager processor (legacy, EOL). FC-QPP-0002 is the later upgraded version with newer firmware, improved diagnostics and higher performance. They are not directly plug-and-play compatible without software and chassis review.

A3: The Safety Manager chassis supports module hot-swap mechanically, but removing an active primary QPP will trigger safety logic transfer. Always apply SIS bypass and follow site work permits before replacement.

A4: Honeywell Safety Manager engineering software.

Q5: What are common failure modes? A5: Edge connector oxidation, ESD damage to FTE Ethernet ports, ageing capacitors, flash firmware corruption from voltage transients, internal processor voting channel drift.
