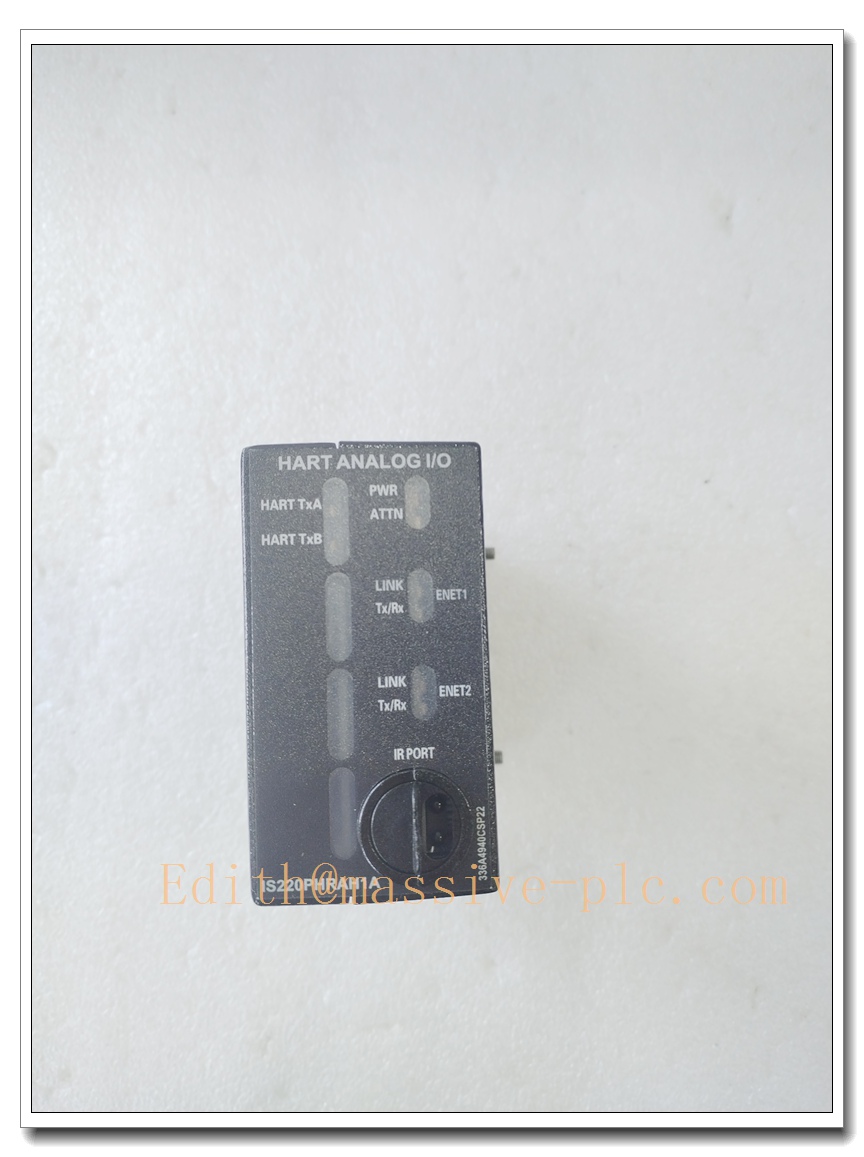

GE IS220PHRAH1A I/O Pack Power Distribution Module for Mark VIe Speedtronic Turbine Control System

Description

GE IS220PHRAH1A I/O Pack Power Distribution Module for Mark VIe Speedtronic Turbine Control System

Core Product Overview

The IS220PHRAH1A is a dedicated power distribution I/O pack board within the GE Speedtronic Mark VIe turbine control platform. It distributes conditioned, isolated DC power to local I/O circuits on the terminal board assembly, supporting both simplex and triple-redundant turbine control architectures. This module works alongside other Mark VIe I/O packs to supply clean power for field signal conditioning, transducer interfaces and communication transceivers. It features built-in diagnostic circuits to detect overvoltage, undervoltage and overcurrent faults, reporting status over the dual redundant 100Mbps Ethernet Mark VIe control network. It is widely used as a spare replacement in power generation gas and steam turbine control cabinets; OEM production is discontinued, with available stock as surplus or fully refurbished bench-tested units.

IS220PHRAH1A

Main Technical Specifications

• Part Number: IS220PHRAH1A
• Manufacturer: GE, Speedtronic Mark VIe Series
• Device Type: I/O Pack Power Distribution Board
• System Compatibility: Mark VIe Gas / Steam Turbine Control
• Input Power: 24 VDC nominal redundant control power
• Power Consumption: Max 8.5 W
• Communication: Dual 100 Mbps Full-Duplex Ethernet for Mark VIe control network
• Diagnostics: On-board fault monitoring for overcurrent, under-voltage, power rail failure
• Mounting: Mark VIe terminal board backplane plug-in module
• Operating Temperature: 0°C ~ +60°C
• Humidity: 5%–95% non-condensing
• Dimensions: 147 mm × 51.5 mm × 114 mm
• Weight: Approx. 0.6 kg
• Certifications: CE, UL
• Status: Obsolete OEM production; surplus and professionally refurbished tested stock

Same-Series Model Recommendations (8 Models)

• IS220PHRAH1A: Standard I/O pack power distribution module (subject model)
• IS220PHRBH1A: Revised power distribution variant with enhanced over-current protection
• IS220PSCAH1A: Mark VIe analog input I/O pack
• IS220PSSCH1A: Digital contact input I/O pack for discrete turbine signals
• IS220PDOAH1A: Digital output I/O pack for solenoid and relay actuation
• IS220PTAOH1A: RTD / thermocouple temperature input I/O pack
• IS220PPDAH1A: High-speed pulse and speed measurement I/O pack
• IS220UCSAH1A: Mark VIe controller core processor pack

Professional Quality Control & Testing Standard Operating Procedures

All surplus and refurbished IS220PHRAH1A modules follow this inspection workflow:

1. Visual & Backplane Inspection: Check PCB traces, edge connectors, solder joints, capacitors and power components for burn marks, corrosion, bent pins or mechanical damage; verify part marking and revision label.
2. DC Power Bench Test: Apply 24VDC redundant input, validate all regulated output rails are within tolerance.
3. Overcurrent Fault Simulation: Apply controlled load to trigger overcurrent protection and confirm fault latch and LED indication.
4. Ethernet Interface Test: Validate both Ethernet ports link and communicate with Mark VIe network simulator.
5. Diagnostic Register Test: Verify power fault bits are correctly published over the Mark VIe network.
6. Thermal Soak Test: Run module at elevated cabinet temperature to expose intermittent power rail drift or cold solder faults.
7. Backplane Compatibility Check: Mate with matching Mark VIe terminal backplane to confirm proper pin alignment and insertion.
8. Final Cleaning & Packaging: Clean edge connectors, reset fault states, apply ESD shielding with printed test certificate.

IS220PHRAH1A

New / Refurbished Module Installation Guidelines

1. Pre-Installation Safety: Execute lockout-tagout procedures; isolate all Mark VIe control power and trip circuits to prevent unplanned turbine actuation.
2. Terminal Board & Backplane Inspection: Confirm backplane revision compatibility, cabinet grounding and adequate airflow, keep away from high-current SCR and relay stacks.
3. Mechanical Insertion: Align the module edge connector carefully with the terminal board backplane; insert smoothly without forcing, secure front panel fasteners gently.
4. System Wiring Verification: Confirm redundant 24VDC control power wiring and shielded Mark VIe Ethernet cabling are properly terminated. Separate low-voltage I/O cables from high-power wiring.
5. System Configuration: No software configuration required for basic power distribution; verify module identification and fault reporting in the Mark VIe Toolbox software.
6. Pre-Commissioning Functional Test: Power up the terminal board assembly offline; confirm power-good LEDs, no fault alarms and healthy Ethernet link status.
7. Commissioning & Trip Test: After integration into the turbine control rack, perform full system fault simulation to verify that power supply faults generate correct system alarms and interlock actions.

Application Scenarios & Product Features

Typical Application Scenarios

• GE Speedtronic Mark VIe gas turbine and steam turbine control cabinets
• Combined-cycle power plant main turbine and BOP auxiliary control systems
• Oil & gas pipeline compressor turbine control panels
• Retrofit and spare replacement for legacy Mark VIe I/O terminal assemblies
• Critical turbine safety and control redundant I/O networks
• Industrial power generation turbine predictive maintenance and spare inventory

Core Product Features

• Local regulated power distribution for Mark VIe terminal board I/O packs
• Dual redundant 24VDC input capability for high-reliability turbine controls
• Built-in hardware overcurrent and under-voltage fault detection
• Dual 100Mbps Ethernet ports for Mark VIe redundant control network
• Plug-in backplane design for fast field replacement and maintenance
• Continuous diagnostic status reporting to the main Mark VIe controller
• Rugged PCB construction for power plant cabinet vibration and EMI environments
• Compatible with simplex, dual and triple modular redundant Mark VIe configurations

Frequently Asked Questions (FAQ)

Q1: What is the role of IS220PHRAH1A in a Mark VIe rack? A1: It is the I/O pack power distribution board. It takes the 24VDC control supply and generates stable internal supply rails for the other I/O packs on the same terminal board, while monitoring for power faults and communicating status over the Mark VIe network.

A2: No, this Mark VIe I/O pack is obsolete. Available stock consists of surplus used or professionally refurbished, fully bench-tested units.

Q3: Can I mix different revision levels of I/O packs on the same terminal board? A3: Cross-revision mixing is possible in many cases, but must be validated against the Mark VIe release notes; mismatched revisions can cause diagnostic misreports or communication issues.

Q4: What are common failure modes for this module? A4: Typical failures include electrolytic capacitor ageing causing rail drift, edge connector pin corrosion from cabinet humidity, overstress from transient voltage spikes, and Ethernet transceiver damage from ESD or lightning surges.

Q5: Can this module be hot-swapped in an energized Mark VIe terminal board? A5: Hot swap is not recommended. Removing the module while powered will drop local I/O power and can trigger turbine trips. Isolate control power and lock out protection circuits before replacement.
