Bently Nevada 3500/93 (135785‑02C) System Display Unit (Revision‑C)

Description

Bently Nevada 3500/93 (135785‑02C) System Display Unit (Revision‑C)

Model Introduction

Model: 3500/93 System Display Unit, Hardware Revision‑C Part Number: 135785‑02C Device Type: External backlit LCD local‑operator panel for 3500 machinery‑protection rack Manufacturer: Bently Nevada (Baker Hughes) System Compatibility: Must pair with rack‑insert DIM module 135799‑01 (Display Interface Module) installed in slot‑15 of full‑size 3500 rack, communicates over proprietary RS‑485 bus. Not compatible with 3500 mini‑rack. One DIM supports maximum two display units. 135785‑02C is hardware revision‑C of base part 135785‑02, form‑fit‑function drop‑in replacement for 135785‑01 / 135785‑02. Application Scenarios: TSI turbine supervisory instrumentation, thermal‑power steam turbines, oil‑gas centrifugal compressors. Provides local operator HMI, shows real‑time vibration, displacement, speed, temperature, channel alert/danger status and system alarm‑event log, compliant with API‑670 standard. Country of Origin: United States Lifecycle Status: Obsolete OEM production, only aftermarket spare‑part supply available. Revision‑C contains minor firmware/hardware tweaks for backlight stability and RS‑485 bus noise immunity versus earlier‑02 versions.

Note on part‑number suffix:

• 135785‑01: Non‑backlight reflective‑LCD (early revision)
• 135785‑02: Base backlit‑LCD unit
• 135785‑02C: Revision‑C backlit‑LCD, improved backlight drive circuit & EMC performance, fully interchangeable with 135785‑02, works with same DIM‑135799‑01, no rack‑hardware modification required. This is only local display panel; NOT Modbus gateway, cannot output data to DCS/PLC.

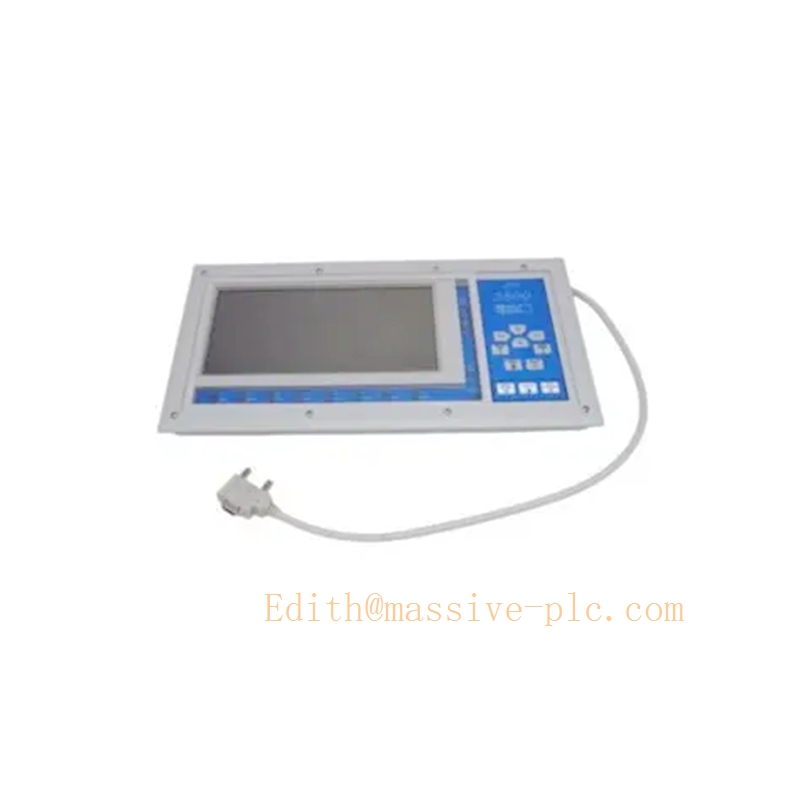

BENTLY 135785-02

Technical Introduction

Core Functions

‑ Real‑time display of all rack channel measured values: vibration, displacement, speed, temperature, keyphasor data. ‑ Front‑panel LED status indicators: Unit OK, Rack OK, Rack Alert, Rack Danger. ‑ Membrane keypad for local navigation; view channel data, alarm‑event log and system‑event log locally. ‑ Four mounting options: face‑mount over full‑size‑rack front, 19‑inch EIA rack‑mount, cabinet‑panel‑mount, wall‑mount. ‑ Communication distance: up to 100 ft powered from DIM; with external 24 VDC power supply extend up to 4000 ft over RS‑485 shielded twisted‑pair cable. ‑ Receive data exclusively from DIM‑135799‑01 via Bently proprietary RS‑485 protocol. Revision‑C optimizes back‑light long‑term reliability and bus‑noise rejection.

Key Technical Specifications

Mechanical Feature

Stand‑alone external panel‑mount display unit, does not insert into 3500 rack slots. Connect to rack‑internal DIM‑135799‑01 by shielded RS‑485 twisted‑pair cable. Multiple mounting styles for cabinet‑door or independent console installation. Display unit itself is non‑hot‑swap; power‑off before wiring modification.

Adaptive Quality Assurance & Test Protocol

3.1 Factory Adaptive QA Procedure

1. Visual inspection: Check LCD panel, back‑light uniformity, membrane keypad, LED indicators, housing mechanical integrity.
2. RS‑485 communication interoperability test: Pair with genuine 135799‑01 DIM module; verify stable data reception under simulated long‑distance cable and noise‑injection condition (revision‑C EMC screening enhanced).
3. Full‑data synchronization test: Verify real‑time value, alert/danger LED trigger, system‑event‑list synchronization.
4. Keypad functional test: Navigate menu, browse channels, view event‑records, confirm no dead‑key.
5. Alarm‑simulation test: Simulate channel alert / danger / trip; validate LED status and screen alarm prompt.
6. Back‑light endurance test: Verify revision‑C back‑light drive circuit stability.
7. Serial‑number traceability, part‑number marking verification, full functional‑test report archived.

3.2 On‑site Acceptance Test Protocol

1. Visual inspection: Check housing, LCD screen, keypad and LED indicators for physical damage.
2. System‑wiring test: Connect RS‑485 cable between 135785‑02C display unit and 135799‑01 DIM front‑module edge connector; apply correct bus termination resistor.
3. Power‑on test: Confirm Unit‑OK LED lights up normally; screen loads rack‑channel information, back‑light operates normally.
4. Data‑consistency cross‑check: Compare display readings against 3500 Rack Configuration Software online values.
5. Alarm‑trigger test: Force channel‑alarm condition; verify corresponding Alert/Danger LED and screen‑alarm‑message activate.
6. Event‑list verification: Browse system‑event‑log and alarm‑event‑log via front keypad.
7. Communication‑break simulation: Disconnect and reconnect RS‑485 cable; confirm communication‑loss prompt, auto‑recover after cable restore.
8. Test‑record filing: Log part‑number, hardware‑revision‑C, test‑result snapshot for site QA archive.

Field Engineer Technical Notes

Installation Guidance

‑ Mandatory matching rule: 135785‑02C must pair with DIM‑135799‑01 installed in slot‑15 (right‑most slot) of full‑size‑3500 rack. Cannot work without DIM board. Direct drop‑in swap with older 135785‑01 / 135785‑02 without hardware modification. ‑ RS‑485 wiring: Use shielded twisted‑pair cable; set bus‑termination resistor; single‑end shield grounding, avoid multi‑point ground‑loop. ‑ Cable length over 100 ft: must add external 24 VDC power supply for display unit. ‑ Important note: This is local‑operator display only. It cannot output Modbus signal to DCS/PLC. For DCS communication, additional gateway module (3500/91 /91M /92) is required.

Field note: 135785‑02C is revision‑C back‑light version, better performance under continuous‑operation compared to original‑02 unit. OEM manufacturing discontinued; spare‑parts come from aftermarket inventory.

Commissioning Tips

‑ After DIM‑module installation, download complete rack‑configuration; DIM automatically transmits rack dataset to connected 135785‑02C display. ‑ Verify RS‑485 cable polarity and termination‑resistor; wrong polarity causes no‑communication. ‑ Cross‑validate: channel‑value, alarm‑status, event‑list must be consistent between display unit and configuration‑software. ‑ Multi‑display application: maximum two 3500/93 display units can be connected to one DIM‑135799‑01.

Troubleshooting Common Issues

1. Power‑on but no rack‑data: Check RS‑485 cable polarity, termination‑resistor, confirm DIM‑135799‑01 sits in slot‑15 and no hardware‑fault.
2. Back‑light abnormal / flickering: This unit is revision‑C with improved drive circuit; check display‑unit power source and cable condition.
3. LED‑indicator abnormal: Read rack‑system‑event‑log for DIM‑communication‑fault codes.
4. Partial‑channel missing on display: Re‑download rack‑configuration; confirm all monitor‑modules are healthy.
5. Intermittent‑communication dropout: Check cable‑shielding and grounding; eliminate ground‑loop interference.

Diagnostic reference: Read rack‑system‑event‑log in 3500 Rack Configuration Software for DIM‑communication‑fault‑information.

Maintenance & Spare‑part Recommendation

‑ No user‑serviceable components inside display‑unit; replace complete 135785‑02C unit upon hardware‑failure. ‑ Spare‑part suggestion: Maintain matched full‑set: 135799‑01(DIM) + 135785‑02C(display) for legacy‑racks. For new‑spare‑procurement, evaluate migration to PC‑based‑monitoring‑software to avoid obsolete‑hardware risk. ‑ Preventive‑inspection during shutdown: Check RS‑485‑connector tightness, cable‑aging and shielding‑integrity, keypad‑aging‑condition, back‑light working‑status.

3500/93 Display‑Unit Hardware‑Revision Comparison Table
