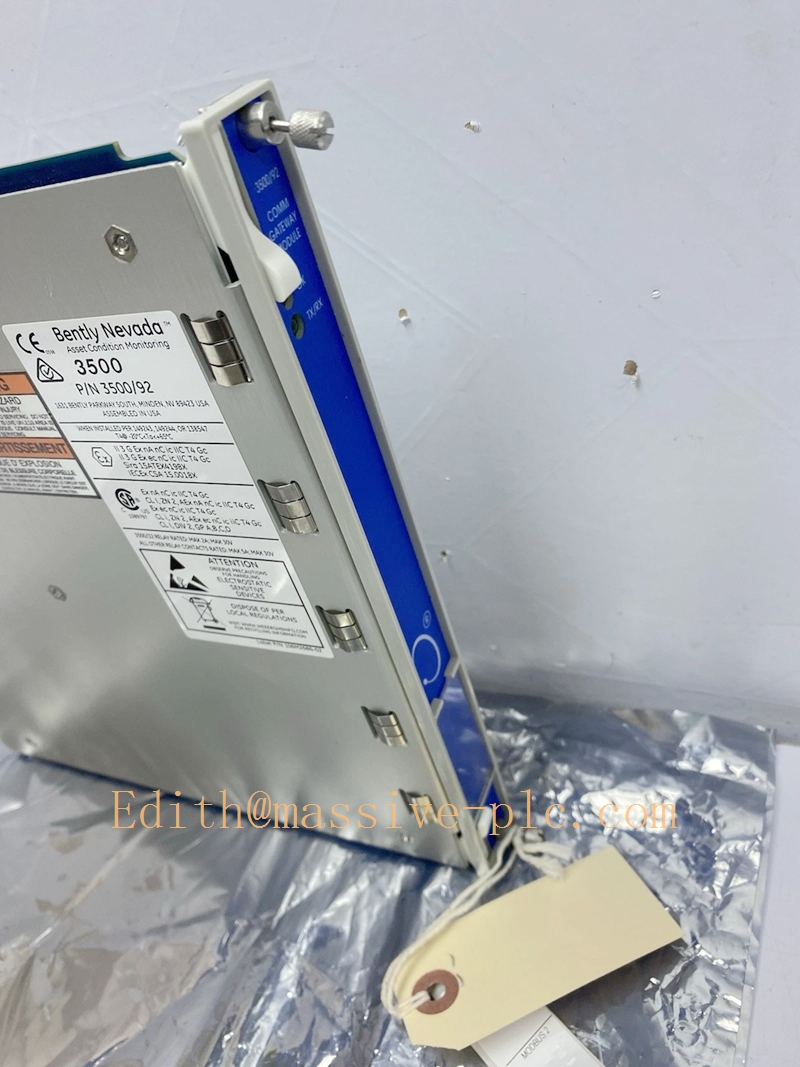

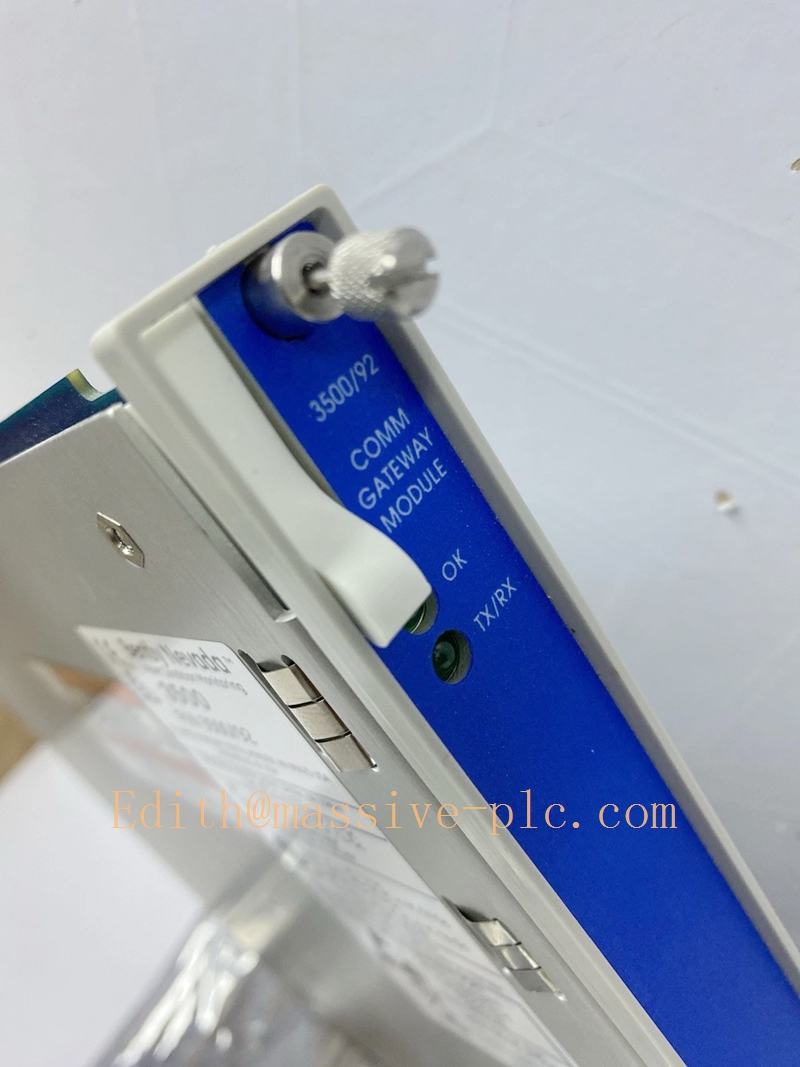

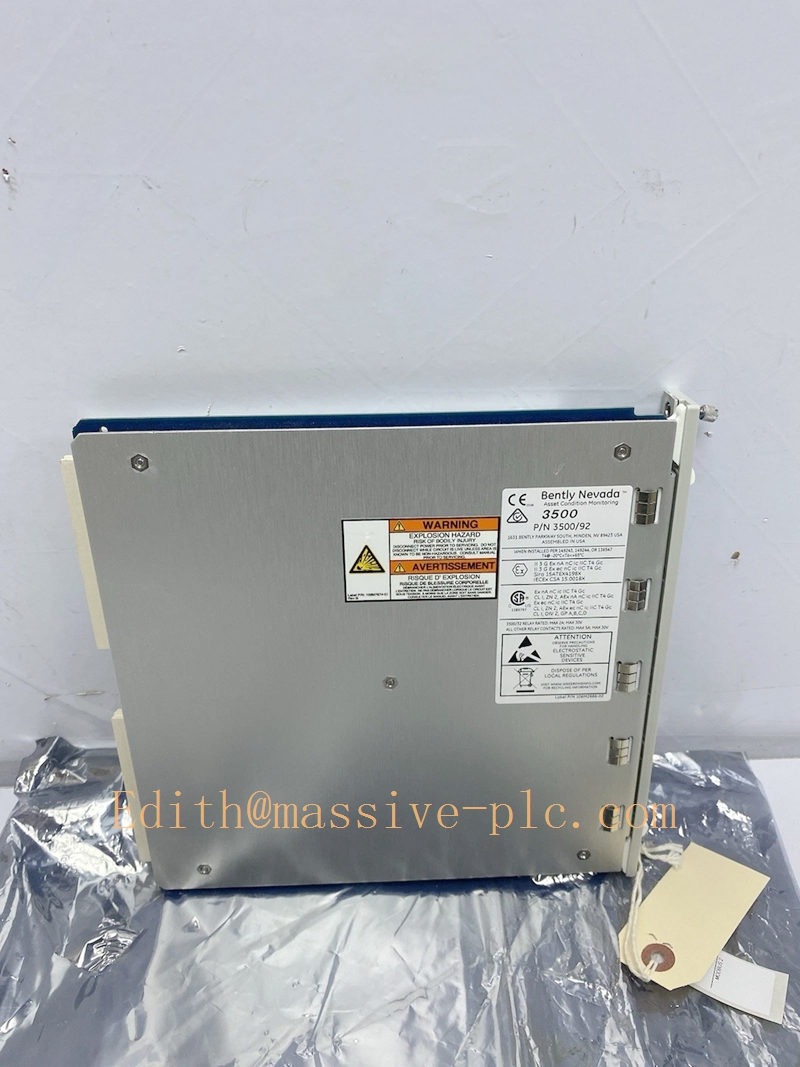

Bently Nevada 3500/92 (136180‑01) Communication Gateway Main Module

Description

Bently Nevada 3500/92 (136180‑01) Communication Gateway Main Module

Model Introduction

Model: 3500/92 Part Number: 136180‑01 Device Type: Multi‑Protocol Communication Gateway Main Module (front‑slot main board) Manufacturer: Bently Nevada (Baker Hughes) System Compatibility: 3500 Series Machinery Protection System. Must be paired with dedicated rear I/O card 136188‑01 / 136188‑02. Cannot operate standalone; incompatible with 3500/91 & 3500/91M rear cards. Application Scenarios: TSI turbine supervisory instrumentation, thermal‑power steam turbines, oil‑gas centrifugal compressors, large‑scale rotating equipment condition‑monitoring systems. Realizes data interaction between 3500 rack and external DCS, PLC, SCADA, monitoring host via Ethernet and multi‑mode serial interfaces. Country of Origin: United States Lifecycle Status: Legacy mature spare‑part, not end‑of‑life; OEM spare‑part support maintained.

136180-01

Technical Introduction

Core Functions

‑ Collects real‑time rack data including vibration, displacement, speed, temperature, alarm status and system event logs from 3500 internal backplane bus. ‑ Supports multi‑protocol conversion: Modbus‑TCP, Modbus‑RTU (RS232/RS422/RS485), native Bently Nevada proprietary protocol. ‑ Configurable Modbus register mapping utility; users customize data content exposed to upper‑level systemsBaker Hugh…. ‑ Simultaneous communication over Ethernet and serial ports; supports multi‑host access for plant control network integration. ‑ Supports remote rack configuration, parameter download and data acquisition via 3500 Rack Configuration Software. ‑ Built‑in module self‑diagnosis, fault alarming and event logging function.

Key Technical Specifications

Mechanical Feature

Front‑insert main gateway module occupying one single slot of 3500 rack. All field‑wiring interfaces locate on dedicated rear I/O card (136188‑01/02). Main module completes bus data acquisition, protocol parsing and register mapping; rear‑card provides physical signal termination. Hot‑swap supported under powered‑on rack condition, strictly follow official maintenance procedure.

136180-01

Adaptive Quality Assurance & Test Protocol

3.1 Factory Adaptive QA Procedure

1. Backplane bus continuity test: Verify signal integrity between front main‑module connector and rack backplane, detect open‑circuit / short‑circuit fault.
2. Communication interface adaptive test: Pair with matched rear‑I/O card; verify Ethernet auto‑negotiation, serial‑port baud‑rate & mode switching for RS232/422/485.
3. Multi‑protocol adaptive validation: Modbus‑TCP register read‑write test; Modbus‑RTU master‑slave communication test; Bently‑proprietary protocol configuration‑software connection test under 3500 rack simulation environment.
4. Configurable register mapping test: Load custom Modbus register table, confirm correct data output for vibration, displacement and alarm bits.
5. Stress cycle test: Repeated link‑up / link‑down for Ethernet and serial channels; verify automatic reconnection without module crash.
6. Built‑in self‑diagnostic execution: Trigger internal self‑test; check fault flag reporting and event‑log generation.
7. Environmental screening: Temperature cycling test; surge‑immunity test for communication ports.
8. Final compliance check: Serial‑part‑number traceability, label verification, full functional‑test report archived.

3.2 On‑site Acceptance Test Protocol

1. Visual inspection: Check main‑module physical integrity, connector pin condition, no mechanical damage.
2. Rack installation test: Install 136180‑01 front module together with matched 136188‑01/02 rear‑I/O card; power‑on, connect via 3500 Rack Configuration Software, confirm no hardware mismatch alarms.
3. Ethernet communication test: Assign static IP, establish Modbus‑TCP connection; verify real‑time measurement & alarm‑register reading.
4. Serial‑port function test: Configure RS232/422/485 mode, baud‑rate, parity and stop‑bit; execute Modbus‑RTU read‑write validation.
5. Custom register mapping verification: Cross‑check DCS/SCADA reading against rack local display value.
6. Self‑test execution: Launch module self‑test from configuration software; confirm zero critical faults inside system event list.
7. Communication fail‑over simulation: Simulate network cable disconnection & reconnection; verify module auto‑recovery performance.
8. Test‑record filing: Log part‑number, firmware version, register‑map snapshot for site QA archive.

Field Engineer Technical Notes

Installation Guidance

‑ Mandatory pairing rule: 136180‑01 front main module must work exclusively with rear‑I/O card 136188‑01 or 136188‑02. Mismatched rear‑card will trigger hardware fault alarm and total communication failure. ‑ Insert front‑module firmly into rack slot, tighten locking screws to avoid intermittent poor‑contact faults. ‑ Ethernet wiring: Use industrial shielded CAT5e/CAT6 cable; implement single‑end shielding grounding per plant drawing, avoid multi‑point ground‑loop. ‑ Serial wiring: For RS422/RS485 adopt shielded twisted‑pair cable; terminate bus terminal resistor as required. ‑ No external power connection to module; power is fully supplied by rack backplane.

Commissioning Tips

‑ After hardware installation, download complete rack configuration; activate 3500/92 gateway in slot configuration table. ‑ Assign static IP address for Ethernet port; avoid IP address conflict within plant LAN. ‑ Set serial‑port parameters strictly consistent with upper‑level controller (baud‑rate, parity, stop bit, slave ID). ‑ Apply Configurable Modbus Register Utility to define required measurement points, alarm bits and status signals before downloading configuration. ‑ Verify data consistency between rack local readings and DCS receiving values.

Troubleshooting Common Issues

1. Module Mismatch Alarm: Front‑rear part‑number mismatch; confirm correct matched rear‑I/O card (136188‑01 / 02).
2. Ethernet link down: Inspect RJ45 connector, cable integrity, switch‑port status and IP subnet matching.
3. Serial communication unstable: Check wiring polarity, bus terminal‑resistor setting; verify serial‑parameter consistency at both sides.
4. Register‑data abnormal / missing: Recheck Modbus register mapping configuration; re‑download rack configuration.
5. Intermittent data loss: Check cable shielding & grounding, eliminate ground‑loop interference; adjust network‑switch storm‑control parameters.

Diagnostic reference: Read rack system event‑log inside 3500 configuration software to locate hardware or configuration faults.

Maintenance & Spare‑part Recommendation

‑ No user‑serviceable components onboard; replace complete front‑module plus matched rear‑I/O‑card set upon hardware failure. ‑ Spare‑part suggestion: Keep full matched set (136180‑01 + 136188‑01/02) for site turnaround maintenance. ‑ Preventive inspection during unit shutdown: Check slot‑locking condition, rear‑card terminal screw tightness, cable aging and shielding integrity.
