Bently Nevada 3500/46M 169459-01 Product Technical Profile (English Version)
1. Product Description
The Bently Nevada 3500/46M 169459-01 is a dedicated Multimode Differential Expansion / Axial Position Monitor module within the 3500 Series Machinery Protection System. It is designed for high-precision, continuous monitoring of differential expansion and axial position on large rotating machinery, such as steam turbines and centrifugal compressors. The module natively accepts input from eddy current displacement transducers, processes raw sensor signals, and compares them against user-programmable alarm and danger setpoints to initiate protective actions. Assembled as a half-height industrial-grade unit, it installs seamlessly into any valid slot of a standard 3500 system rack and is powered directly from the rack backplane.
2. Technical Specifications
- Channel Configuration: 4 fully independent differential expansion / axial position monitoring channels
- Measurement Range: Supports multiple configurable ranges (e.g., ±25mm, ±50mm) to accommodate various machine shaft travel requirements
- Measurement Accuracy: Typical full-scale accuracy of ±0.2%, with a maximum allowable error of ≤±0.5%
- Frequency Response: -3dB bandwidth from DC to 1 kHz, capable of capturing both slow axial movement and dynamic fluctuations
- Power Consumption: Typical rated power consumption of 8.2W, supplied directly by the 3500 rack backplane
- Operating Environment: Operating temperature range from -30°C to +70°C, with 95% non-condensing humidity tolerance
- Certifications: Fully compliant with API 670 standards; available with SIL 2 certification for safety-critical applications

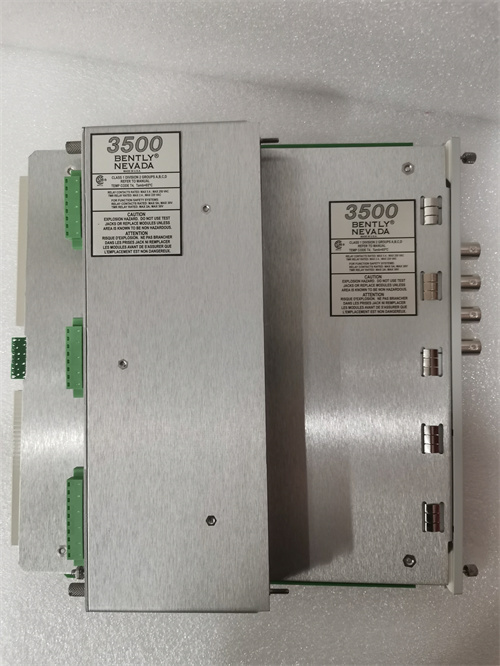

350046M 169459‑02
3. Main Features and Advantages
- High-Precision, Long-Range Measurement: Optimized for large-displacement differential expansion monitoring, providing accurate signal processing for long-range eddy current probes without measurement overflow.
- Integrated Temperature Drift Compensation: Features built-in automatic temperature compensation across the full operating temperature range, ensuring stable measurement accuracy despite ambient temperature variations.
- Hot-Swappable for Zero Downtime: Supports hot-swap replacement under powered conditions in redundant configurations, allowing module maintenance or replacement without system shutdown.
- Fully Configurable Parameters: All alarm setpoints, measurement ranges, and transducer scaling factors are user-configurable via the official 3500 Rack Configuration Software, ensuring adaptability to various machinery monitoring needs.
4. Application Fields
- Steam Turbine Protection in Power Generation: Deployed on steam turbine-generator sets in thermal and nuclear power plants for continuous monitoring of rotor axial position and casing differential expansion, providing early warning of rubs between rotating and stationary parts.
- Safety Monitoring for Centrifugal Compressors: Widely used in petrochemical and chemical industries as a core safety monitoring unit for large centrifugal compressor trains, safeguarding against axial thrust failures.
- Condition Monitoring for Industrial Turbines: Integrated into comprehensive condition monitoring systems for industrial gas turbines and large expanders, providing critical axial position data during startup, shutdown, and transient operations.
- Predictive Maintenance Data Foundation: Transmits all trend data for differential expansion and axial position to the System 1® machinery condition monitoring platform, supporting historical analysis and predictive maintenance decisions.
5. Related Product Recommendations
- Same Series Variants: 3500/46M 169459-00 (basic 2-channel axial position monitor), 3500/46M 169459-02 (standard 4-channel version), 3500/46M 169459-03 (ATEX-certified version for hazardous areas).
- Matching I/O Termination Options: Non-isolated internal termination module, isolated external termination module, intrinsically safe barrier termination module to suit different field wiring and hazardous area requirements.
- Cross-System Compatible Units: 3500/25 Enhanced Keyphasor® Module (provides phase reference for synchronous measurement), 3500/33 16-Channel Relay Module (executes custom alarm and trip logic), 3500/42M Proximitor Seismic Monitor (enables correlated monitoring of vibration and axial position).
6. Installation and Maintenance Guidelines
- Installation Procedure: Ensure the target slot in the 3500 rack is powered off. Align the module with the rack guide rails and firmly push it into the slot until it locks into place. Connect the eddy current probe cables to the corresponding I/O terminals per the official wiring diagram. Power on the rack, then use the 3500 Rack Configuration Software to configure channels, calibrate transducer scaling, and set alarm setpoints. Perform a full signal loop verification test before placing the system into operation.
- Routine Maintenance: Visually inspect the module’s front-panel LED status monthly to confirm the “OK” indicator is illuminated steadily. Perform a quarterly channel accuracy check using a standard calibration fixture. Clean the module surface with dry compressed air every six months. Do not open the module housing. Replace the module immediately if persistent fault codes are reported by the system.
- Troubleshooting Tips: If a channel shows no signal, first check the field wiring for open or short circuits. If measured values exhibit abnormal drift, verify the scaling factor configuration and check for ground loop interference in the signal path. In redundant configurations, a faulty module can be replaced via hot-swap without shutting down the entire 3500 system.
