Bently Nevada 3500/44M (126599‑01) Aero GT I/O Assembly

Description

Bently Nevada 3500/44M (126599‑01) Aero GT I/O Assembly

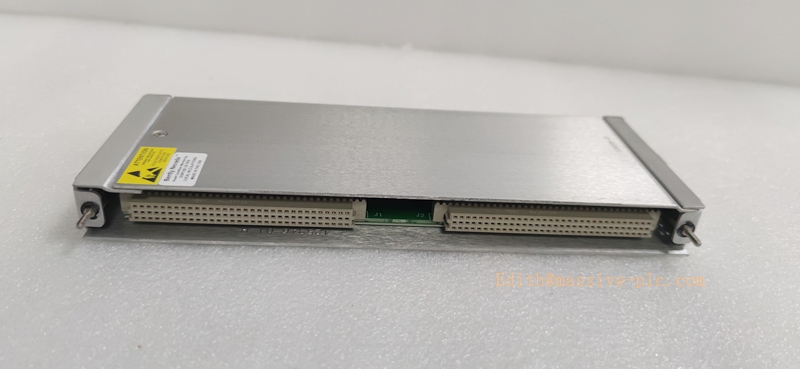

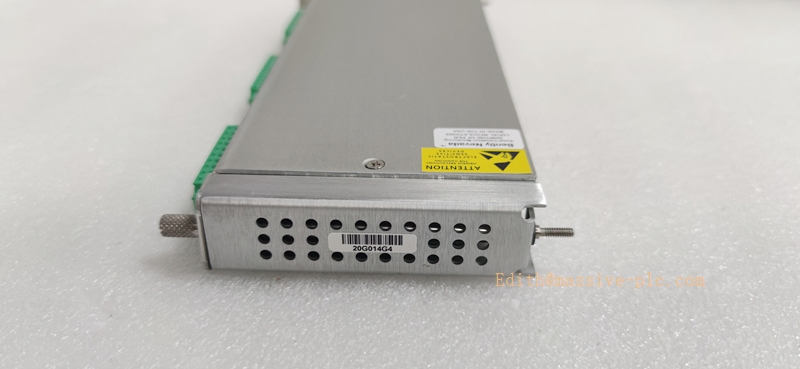

3500/44M 126599-01

Product Introduction

126599‑01 is the dedicated rear‑mount Aero GT I/O assembly exclusively for the Bently Nevada 3500/44M Aeroderivative Gas Turbine Vibration Monitor mainboard. It provides field‑wiring termination, signal routing and electrical interface for accelerometers and Velomitor velocity sensors. This I/O assembly cannot operate independently; it must mechanically lock and electrically mate with a 3500/44M mainboard (e.g.140734‑03). It is not mechanically‑functionally compatible with 3500/42M mainboards. Compliant with API‑670 and SIL‑2 capable, it is widely deployed for aeroderivative gas turbine units (GE LM‑series, Rolls‑Royce and other OEM GT packages) in power generation and oil‑gas industries for high‑speed casing vibration protection and condition‑based monitoring.

Typical Applications ‑ Field sensor signal termination for aeroderivative gas turbine vibration monitoring ‑ Interface accelerometers and Velomitor transducers to 3500/44M mainboard for 1X tracking‑filter measurement ‑ Casing acceleration, velocity and band‑pass filtered vibration monitoring for high‑speed gas turbines ‑ Transducer signal path for turbine start‑up, shutdown and variable‑load transient‑condition monitoring ‑ Deliver vibration signals to 3500/44M mainboard; measurement data transmitted to DCS / PLC over rack backplane bus

Technical Specifications

Important Note: 126599‑01 has no built‑in IS barriers. For hazardous‑area installations, external certified intrinsic‑safety barriers shall be installed between field transducers and I/O assembly terminals. It shall never be paired with 3500/42M mainboard.

Key Features

1. Aero‑GT dedicated hardware: purpose‑designed I/O assembly matching 3500/44M tracking‑filter algorithm for high‑speed gas‑turbine vibration measurement.
2. 4‑channel flexible sensor interface: all four channels support accelerometer or Velomitor sensors, configured as two independent channel‑pairs in software.
3. Screw‑type internal termination: field cables terminate directly on rear‑rack terminal blocks for convenient cabinet wiring and maintenance.
4. Strict mechanical‑electrical interlock: physical locking structure guarantees reliable contact with 3500/44M mainboard; cross‑series mating with 3500/42M leads to signal failure.
5. Full signal‑path diagnostics support: sensor open‑circuit, short‑circuit fault detection; fault events time‑stamped and logged within 3500 system.
6. High‑EMI‑immunity industrial hardware, adapted to high‑noise gas‑turbine package environments.
7. Supports full‑function 3500/44M measurement: signal integration, 1X amplitude‑phase tracking, band‑pass filter vibration measurement.

Adaptive Quality Assurance and Test Protocol (AQAT)

The Adaptive Quality Assurance and Test Protocol covers factory and site acceptance tests for 126599‑01 I/O assembly, verifying mechanical mating, signal‑path integrity and channel‑sensor compatibility.

4.1 Factory‑Side Adaptive QA Test

‑ Mechanical fit test: mate with qualified 3500/44M mainboard, verify locking mechanism and back‑contact integrity. ‑ Power‑on self‑diagnostic cycle: validate internal circuit self‑check and system backplane bus communication. ‑ Channel‑wise signal injection: apply simulated acceleration and velocity vibration signals; verify signal transmission, gain and linearity against datasheet tolerances. ‑ Tracking‑filter associated signal‑path test: cooperate with mainboard to verify signal transmission for 1X‑tracking measurement. ‑ Transducer‑fault simulation: simulate open‑circuit / short‑circuit conditions to validate sensor‑fault alarm reporting. ‑ Powered temperature‑cycling burn‑in screening to eliminate early‑life component‑failure risk. ‑ Generate formal factory test report before product shipment.

4.2 Site‑Side Adaptive QA Procedure

‑ Installation Qualification (IQ): confirm secure mechanical locking between 126599‑01 and 3500/44M mainboard; inspect terminal torque, grounding scheme, cable separation. For hazardous‑area projects, verify external IS‑barrier parameter matching. ‑ Operational Qualification (OQ): inject test vibration signals at field terminals; cross‑validate measured readings, 1X‑tracking output, alarm‑trigger performance and host‑system data consistency. ‑ Performance Qualification (PQ): long‑run observation under real gas‑turbine operating conditions; cross‑compare module readings with portable vibration‑analyser data. ‑ Adaptive retest: perform full‑channel verification after I/O‑assembly replacement, sensor swap or configuration modification; archive all test records for audit traceability.

All test documentation shall be retained for asset‑management and audit purposes.

Field Engineer Technical Instructions

5.1 Installation Guidance

‑ Mount 126599‑01 I/O assembly at the rear side of 3500 rack, fully lock together with front‑side 3500/44M mainboard, confirm latches are fully engaged. ‑ Do not install with 3500/42M mainboard, even though physical slot size is identical. ‑ Connect accelerometers or Velomitor velocity sensors to rear screw terminals, strictly follow drawing pin‑out definition. ‑ For hazardous‑area deployment: install certified external intrinsic‑safety barriers between field sensors and I/O terminals, comply with local hazardous‑area wiring codes. ‑ Separate analog sensor cables from high‑voltage power cables; observe maximum transducer‑cable‑length limits. ‑ Follow plant‑site grounding specification: separate analog‑signal grounding from heavy‑power grounding to minimize noise‑coupling effects.

5.2 Commissioning

‑ Complete mechanical assembly of 3500/44M mainboard plus 126599‑01 I/O assembly and field‑sensor wiring. ‑ Launch 3500 Rack Configuration Software, select module type 3500/44M, configure channel‑pair measurement modes, set transducer sensitivity, filter parameters, Alert and Danger alarm thresholds, assign Keyphasor reference source for each channel pair. ‑ Download configuration parameters to mainboard and reset module to activate parameters. ‑ Verify Keyphasor signal quality before enabling 1X tracking‑filter functions. ‑ Validate raw vibration readings; force‑test each channel to confirm relay‑output action and DCS / HMI indication consistency.

5.3 Typical Field Troubleshooting

‑ Sensor‑fault alarm: inspect field‑cable open‑circuit / short‑circuit, terminal looseness and transducer physical damage. ‑ Abnormal vibration readings / poor 1X tracking: check wiring pin‑assignment, grounding and EMI interference; verify software sensitivity matches physical‑transducer specification; inspect Keyphasor signal integrity. ‑ Communication loss: check mechanical locking condition between I/O assembly and 3500/44M mainboard, rack‑backplane health and system‑controller operating status.

Warning: Bypass protection alarms only for short‑duration maintenance work. Restore full‑protection functions before aeroderivative gas turbine returns to normal‑operation status.

5.4 Maintenance

‑ Observe front‑panel LED‑status indicators of 3500/44M mainboard during routine site rounds. ‑ No user‑serviceable components inside I/O‑assembly housing; do not disassemble. ‑ Keep complete configuration‑backup file for rapid hardware replacement upon failure.
