Bently Nevada 3500/42M (128240‑01) External Termination I/O Assembly

Description

Bently Nevada 3500/42M (128240‑01) External Termination I/O Assembly

350042M 128240-01

Product Introduction

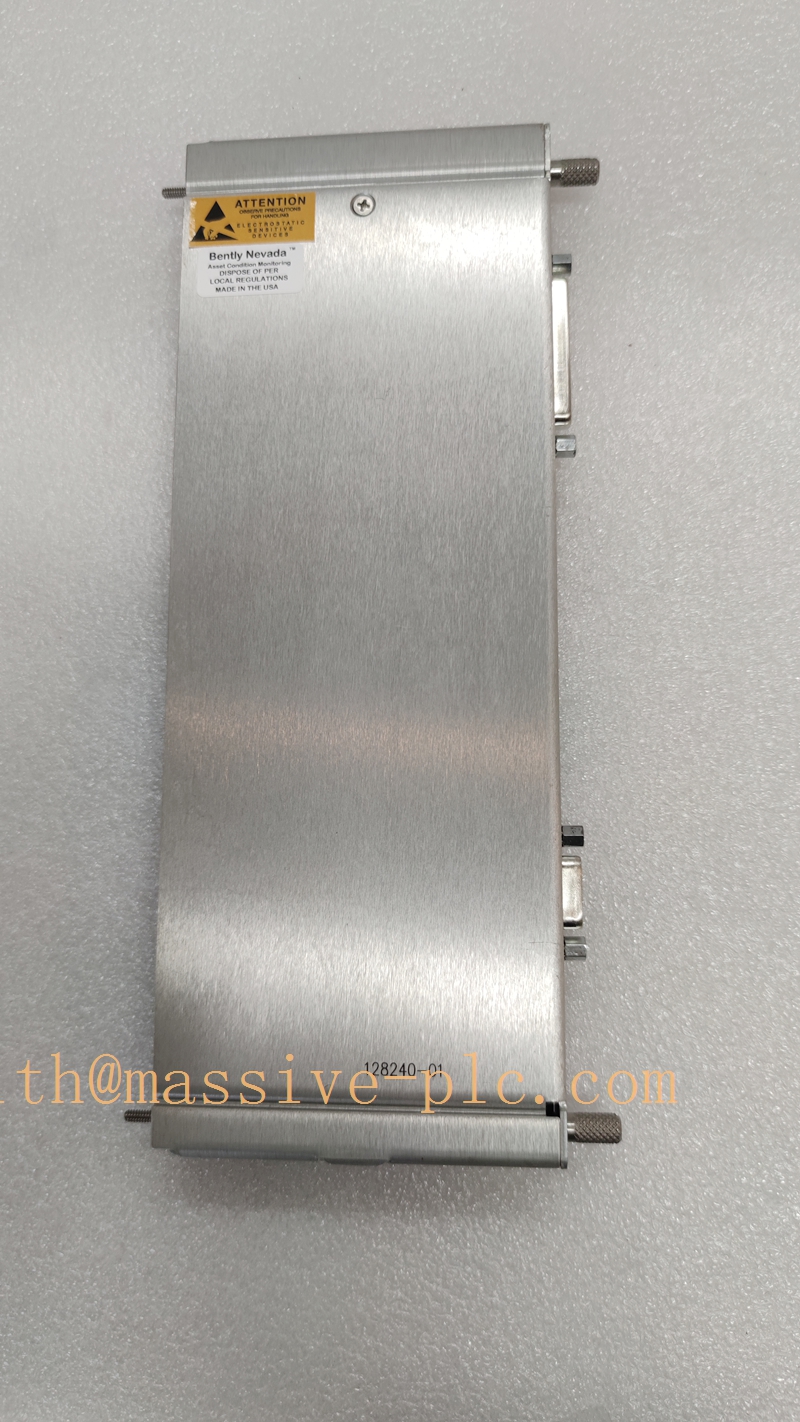

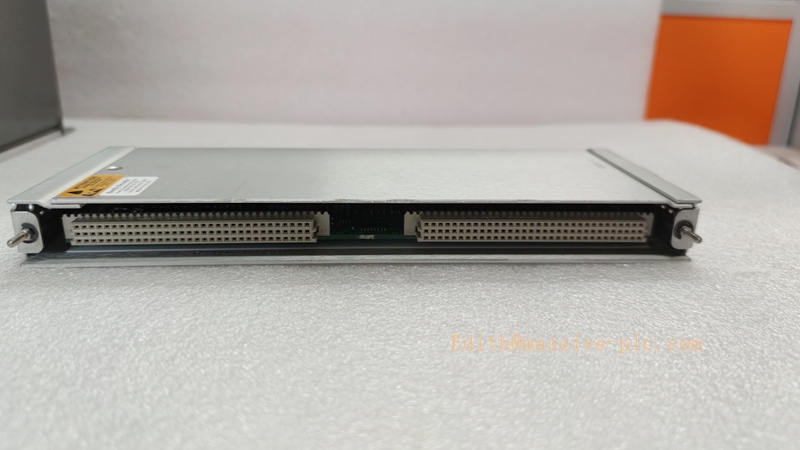

128240‑01 is the rear‑mount external‑termination I/O assembly for Bently Nevada 3500/42M Proximitor / Seismic monitor mainboard, without built‑in intrinsic safety barriers. It routes 4‑channel sensor signals via 25‑pin and 9‑pin ribbon cables to external field terminal blocks, separating rack‑internal hardware wiring from field‑sensor cabling. It cannot operate independently and must mechanically mate with a 3500/42M monitor mainboard to build complete measurement loops. Compliant with API‑670 and SIL‑2 capable system requirements, it is widely used in power generation, oil & gas, petrochemical industries for turbines, centrifugal compressors, generators and large process pumps machinery protection.

Typical Applications ‑ Radial vibration, thrust position, differential expansion, eccentricity monitoring for steam / gas turbines ‑ Shaft displacement and casing seismic‑vibration protection for centrifugal compressors and generators ‑ Acceleration, velocity, shaft‑absolute vibration, REBAM and circular‑acceptance‑region measurement ‑ Non‑hazardous area monitoring cabinets; external IS barriers shall be added separately for hazardous‑zone field sensors ‑ Signal routing between field transducers and 3500/42M mainboard; transmit processed data to DCS / PLC over rack backplane bus

Technical Specifications

Important Note: 128240‑01 provides only signal routing function. For hazardous‑area applications, external intrinsic‑safety barriers must be installed between field sensors and external terminal blocks.

Key Features

1. External‑termination architecture: field cables land on separate external terminal blocks instead of rack rear terminals, simplifying cabinet wiring, maintenance and cable replacement without opening the rack rear compartment.

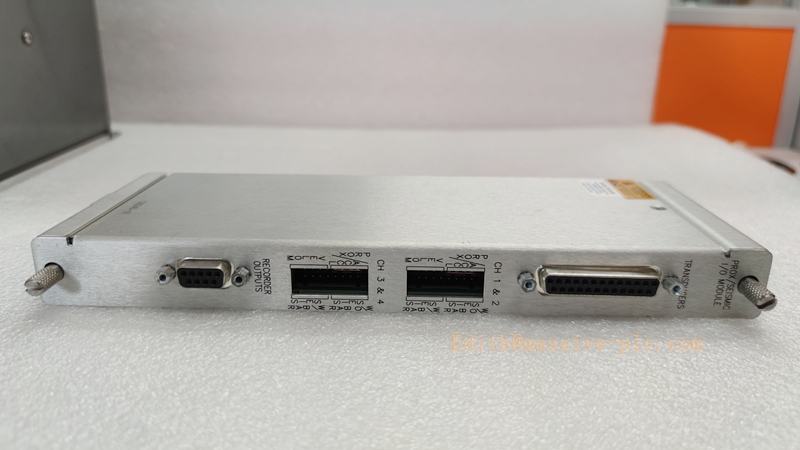

2. Standard multi‑pin ribbon‑cable interface: adopt 25‑pin & 9‑pin dedicated cables to connect I/O assembly and external terminal blocks, standardized pin‑out definition.
3. Full 4‑channel flexible configuration: all four channels support proximity probes or seismic sensors, configurable in channel pairs by 3500 Rack Configuration Software.
4. No internal IS barriers: cost‑effective solution for non‑hazardous‑area installations; external barriers can be added for hazardous‑zone projects.
5. Per‑channel buffered recorder outputs routed to external terminals for portable instrument connection and on‑site troubleshooting.
6. Rich hardware diagnostics: sensor open‑circuit, short‑circuit detection; fault events time‑stamped and logged in 3500 system.
7. Mechanical‑electrical interlock design: must fully lock with matched 3500/42M mainboard; mismatched I/O assembly causes signal failure.
8. High‑EMI‑immunity industrial hardware, suitable for heavy‑noise plant‑floor environments.

Adaptive Quality Assurance and Test Protocol (AQAT)

The Adaptive Quality Assurance and Test Protocol covers factory and site acceptance tests for 128240‑01 I/O assembly, verifying mechanical mating, signal‑path continuity and cable‑interface reliability.

4.1 Factory‑Side Adaptive QA Test

‑ Mechanical fit test: mate with qualified 3500/42M mainboard, verify locking mechanism and back‑contact integrity. ‑ Power‑on self‑diagnostic cycle: validate internal circuit self‑check and system bus communication. ‑ Channel‑wise signal injection: apply simulated proximity and seismic signals; verify signal transmission performance, gain and linearity against datasheet tolerances. ‑ Cable‑interface verification: test 25‑pin and 9‑pin connector continuity, confirm recorder‑output signal transmission. ‑ Transducer‑fault simulation: simulate open‑circuit / short‑circuit conditions to validate sensor‑fault alarm reporting. ‑ Powered temperature‑cycling burn‑in screening to eliminate early‑life component‑failure risk. ‑ Generate formal factory test report before shipment.

4.2 Site‑Side Adaptive QA Procedure

‑ Installation Qualification (IQ): verify mechanical locking of I/O assembly and mainboard; inspect ribbon‑cable connection, external‑terminal‑block wiring torque, grounding scheme and cable separation requirements. For hazardous‑area projects, check external‑barrier parameter matching. ‑ Operational Qualification (OQ): inject test signals at external terminal blocks; cross‑validate measured readings, alarm‑trigger performance and host‑system data consistency. ‑ Performance Qualification (PQ): long‑run observation under real‑process operating conditions; cross‑compare module readings with portable vibration‑analyser data. ‑ Adaptive retest: perform full‑channel verification after I/O‑assembly replacement, cable swap or configuration modification; archive all test records for audit traceability.

All test documents shall be retained for asset‑management and audit purposes.

Field Engineer Technical Instructions

5.1 Installation Guidance

‑ Mount 128240‑01 I/O assembly at rack rear side, fully lock together with front‑side 3500/42M monitor mainboard, confirm latches are fully engaged. ‑ Connect 25‑pin cable for transducer signals and 9‑pin cable for recorder outputs between I/O assembly and external termination blocks; strictly follow pin‑out documentation. ‑ For hazardous‑area deployment: install certified external intrinsic‑safety barriers between field sensors and external terminal blocks; strictly comply with local hazardous‑area wiring codes. ‑ Separate analog sensor cables from high‑voltage power cables; observe maximum transducer‑cable‑length limits. ‑ Follow plant‑site grounding specifications: separate analog‑signal grounding from heavy‑power grounding to minimize noise coupling.

5.2 Commissioning

‑ Complete mechanical installation of 3500/42M mainboard plus 128240‑01 I/O assembly, connect ribbon cables and external terminal‑block field wiring. ‑ Launch 3500 Rack Configuration Software, select 3500/42M module type, configure channel‑pair measurement modes, set transducer sensitivity, measuring range, Alert and Danger alarm thresholds. ‑ Download configuration parameters to monitor module and reset module to activate parameters. ‑ Perform gap‑voltage check for proximity‑probe channels; validate raw‑signal readings before enabling protection alarms. ‑ Force‑test each channel, confirm relay‑output action and DCS / HMI indication consistency.

5.3 Typical Field Troubleshooting

‑ Sensor‑fault alarm: inspect external‑terminal‑block wiring, ribbon‑cable loose or damaged connectors, field‑cable open / short‑circuit faults. ‑ Abnormal measurement reading: check cable‑pin connection integrity, grounding and EMI interference; verify software‑configured sensitivity matches physical‑transducer specification. ‑ Communication loss: check mechanical locking condition between I/O assembly and mainboard, rack‑backplane health and system‑controller status.

Warning: Bypass protection alarms only for short‑duration maintenance work. Restore full‑protection functions before rotating equipment returns to normal‑operation status.

5.4 Maintenance

‑ Observe front‑panel LED‑status indicators of 3500/42M mainboard during routine site rounds. ‑ No user‑serviceable components inside I/O‑assembly housing; do not disassemble. ‑ Keep complete configuration‑backup file for rapid hardware replacement upon failure.
