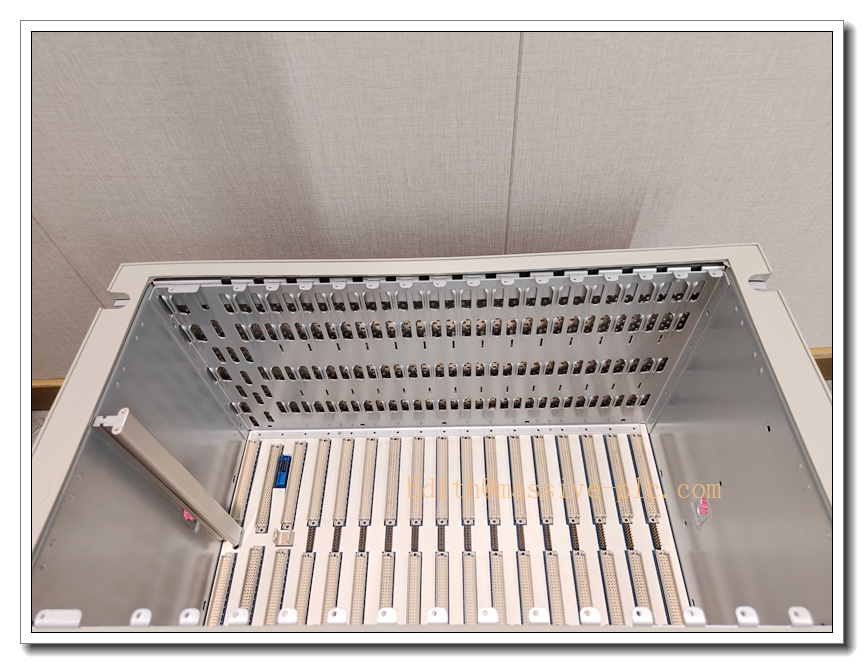

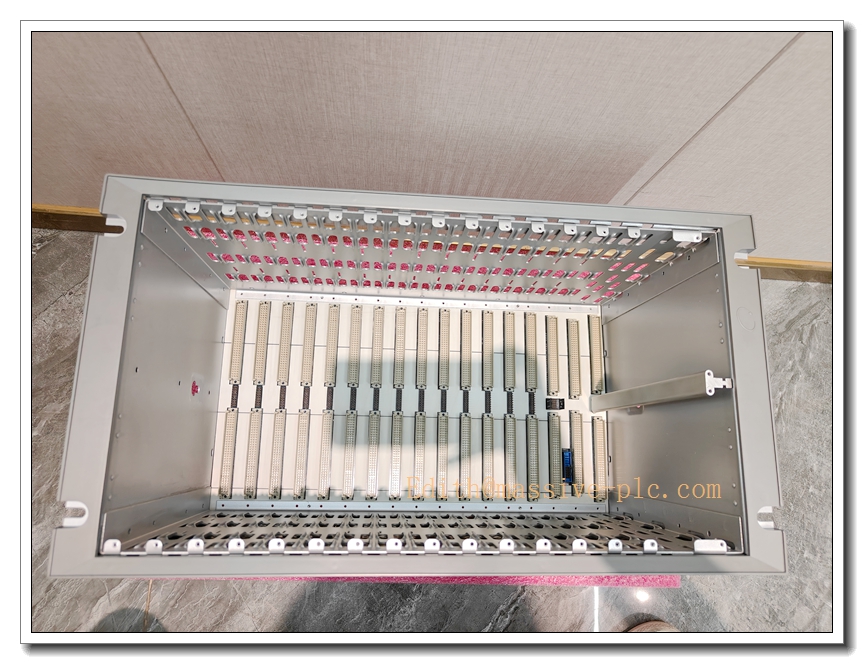

Bently Nevada 3500/05-01-02-00-00-01 System Rack Technical Profile
1. Product Details
- Core Identity: A full-size 19-inch EIA standard instrument rack, the mandatory foundational housing unit for the Bently Nevada 3500 Machinery Protection System.
- Physical Specs: 19-inch EIA standard rack mount form factor, with 14 available module slots, supporting centralized installation of all 3500 series monitoring modules and power supplies.
- Certification & Compliance: Fully compliant with API 670 industrial machinery protection standards, certified by CSA/NRTL/C for industrial-grade operating environments.
2. Primary Applications
- System Infrastructure Deployment: Serves as the core physical carrier for all 3500 series monitoring modules, power supplies and communication units in critical rotating machinery protection systems.
- Industrial Scenarios: Widely deployed in power generation, petrochemical, oil & gas and metallurgy industries, providing stable mechanical support and reliable backplane bus communication for the entire machinery protection system.
- System Compatibility: 100% compatible with all Bently Nevada 3500 series system components, supporting hot-swappable module replacement under redundant configuration without interrupting system operation.
350005-01-02-00-00-01
3. Related Series Models
- Core Configuration Variants: 3500/05-01-01-00-00-01 (basic full-size 14-slot rack), 3500/05-01-02-00-00-01 (full-size rack with enhanced backplane bus), 3500/05-02-01-00-00-01 (12-inch mini 7-slot rack), 3500/05-03-01-00-00-01 (hazardous area certified full-size rack).
- Mounting Format Variants: Standard EIA rail rack mount, wall mount, and desktop installation options to adapt to different on-site cabinet layout requirements.
- Backplane Version Variants: Standard backplane, high-speed redundant backplane for different system communication bandwidth and redundancy configuration demands.
4. Core Features
- Centralized Power Distribution: Built-in dedicated backplane power distribution circuit, automatically allocating stable power to all installed modules, eliminating the need for separate power wiring for each unit.
- High-Speed Backplane Communication: Integrated dedicated backplane bus, realizing high-efficiency real-time data interconnection between all modules in the rack, no extra communication cables required.
- Redundancy Support: Designed to support redundant power supply and redundant module configuration, allowing hot-swap replacement of faulty modules without system shutdown in redundant operation mode.
5. Main Functions
- Module Housing & Mechanical Support: Provides standardized installation slots and stable mechanical protection for all 3500 series monitoring modules, power supplies and communication units.
- System-Level Data Interconnection: Acts as the core data transmission backbone of the entire 3500 system, realizing high-speed real-time data exchange between different modules.
- Unified Power Management: Distributes power from rack power supplies to all installed modules in a centralized and stable manner, ensuring consistent power quality for every monitoring unit in the system.
