Bently Nevada 330500-02-00 high-precision industrial piezo velocity sensor

Description

Product Details‌

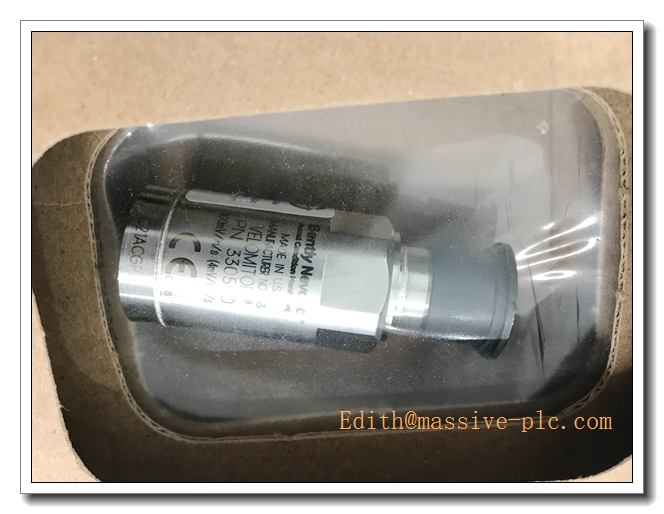

The Bently Nevada 330500-02-00 is a high-precision industrial piezo velocity sensor from the renowned VELOMITOR series, purpose-built for direct vibration and machinery condition monitoring on critical rotating equipment. As a core component of Bently Nevada’s predictive maintenance ecosystem, it delivers reliable velocity-based vibration measurement without requiring an external Proximitor sensor, making it ideal for retrofitting existing industrial monitoring systems and OEM replacement projects. It is engineered for long-term continuous operation in harsh industrial environments, helping improve equipment safety and overall operational efficiency.

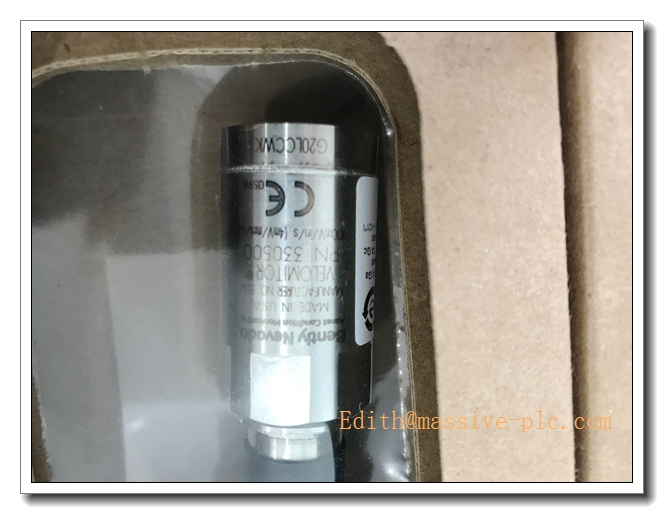

330500-02-00

‌Technical Specifications‌

‌Compatibility‌

• ‌System Compatibility‌: Natively integrates with Bently Nevada 3500 series machinery protection racks, including 3500/42M vibration monitors and 3500/32M displacement monitors you previously researched.
• ‌Platform Compatibility‌: Fully compatible with most mainstream industrial PLC, DCS and vibration data acquisition systems, no dedicated signal conditioning hardware is required for standard 4-20mA or voltage output interfaces.
• ‌Retrofit Compatibility‌: Direct drop-in replacement for legacy Bently Nevada velocity sensors, supporting seamless upgrade of existing monitoring points without modifying mounting structures.

‌Installation Pitfalls to Avoid‌

1. ‌Improper Mounting Orientation‌: The sensor must be mounted with its sensing axis perfectly aligned to the target vibration direction. Angular misalignment over 5 degrees will cause significant measurement attenuation.
2. ‌Loose Mounting Base‌: A poorly secured or thin mounting bracket will introduce resonance interference, distorting high-frequency vibration readings. Always use a rigid, thick steel mounting pad directly bolted to the machinery casing.
3. ‌Cable Routing Errors‌: Running the low-level sensor cable parallel to high-voltage power cables will induce severe electromagnetic noise. Route the signal cable in a separate grounded metallic conduit with a minimum 30cm separation from power lines.
4. ‌Over-torquing the Sensor‌: Excessive tightening torque can damage the internal piezoelectric element. Follow Bently Nevada’s official torque specification strictly during installation.
5. ‌Unprotected Cable Termination‌: Exposed cable joints in high-humidity or oily environments will cause signal drift and short circuits. Seal all termination points properly with industrial-grade waterproof connectors.

‌Standard Operating Procedures‌

1. ‌Pre-Installation Check‌: Confirm the machinery is in full LOTO (Lockout/Tagout) status, verify the part number matches the site requirement, and perform a bench sensitivity test with a vibration calibrator to confirm factory specification compliance.
2. ‌Mechanical Mounting‌: Drill and tap the mounting hole on the rigid machinery casing pad, clean the mounting surface thoroughly, then screw the sensor onto the pad and tighten it to the specified torque value.
3. ‌Cable Installation‌: Route the sensor cable with a minimum 25mm bend radius, secure it with dedicated cable clamps at 30cm intervals, and connect the cable to the monitoring system terminal block correctly.
4. ‌Commissioning Validation‌: Power on the monitoring system, verify the baseline vibration reading is stable and within the normal quiet-operation range, then perform a full functional check with a portable vibration calibrator to confirm measurement accuracy before putting the system into service.

‌Application Scenarios‌

This velocity sensor is widely deployed for vibration monitoring on steam turbines, centrifugal compressors, industrial pumps, induced draft fans, generators and other critical rotating equipment in power plants, oil refineries, petrochemical facilities and manufacturing plants. It is the ideal choice for preventive maintenance programs, system retrofit projects and OEM replacement applications, fully supporting industrial predictive maintenance workflows.

‌Supporting Components‌

1. ‌Rigid Mounting Bracket/Pad‌: Dedicated steel mounting base to ensure stable mechanical coupling between the sensor and machinery casing.
2. ‌Shielded Signal Cable‌: Industrial-grade shielded twisted pair cable for noise-free signal transmission between the sensor and monitoring rack.
3. ‌3500 Series Vibration Monitor‌: Bently Nevada 3500/42M or 3500/40M module to process the vibration signal and provide alarm/trip protection logic.
4. ‌TK-3 Vibration Calibrator‌: Portable calibration tool for on-site periodic performance verification of the velocity sensor.
5. ‌Waterproof Junction Box‌: Industrial-grade enclosure to protect cable termination points in harsh field environments.

‌Related Model Recommendations‌

1. ‌330500-01-00‌: VELOMITOR velocity sensor with 50 mV/(inch/s) sensitivity, designed for high-amplitude vibration measurement scenarios on large heavy-duty rotating equipment.
2. ‌330700 Series Accelerometer‌: Bently Nevada industrial accelerometer for high-frequency vibration and bearing fault monitoring applications.
3. ‌3500/42M 4-Channel Vibration Monitor‌: The core processing module in your existing 3500 series rack, perfectly matched to process the 330500-02-00 sensor signal.
4. ‌3300 XL 8mm Proximity Probe (330103 series)‌: Non-contact eddy current probe for shaft radial vibration and thrust position monitoring, complementing the casing-mounted velocity sensor for full-spectrum machinery health coverage.
5. ‌9200 Series Speed Sensor‌: Bently Nevada two-wire speed transducer for rotational speed monitoring, forming a complete multi-parameter machinery protection solution when deployed alongside the 330500-02-00.
