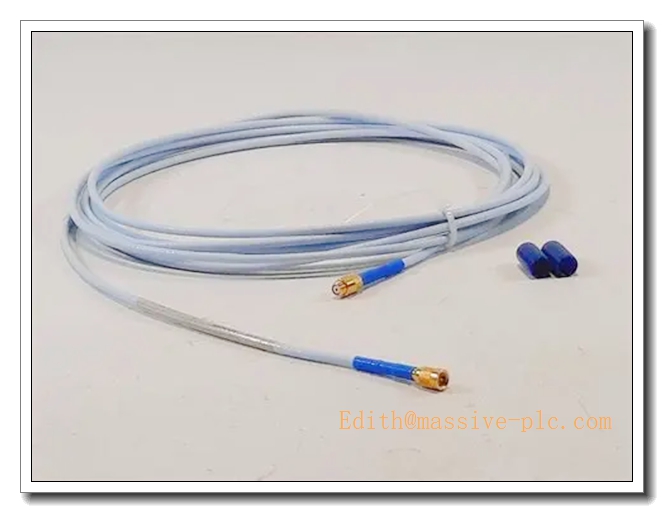

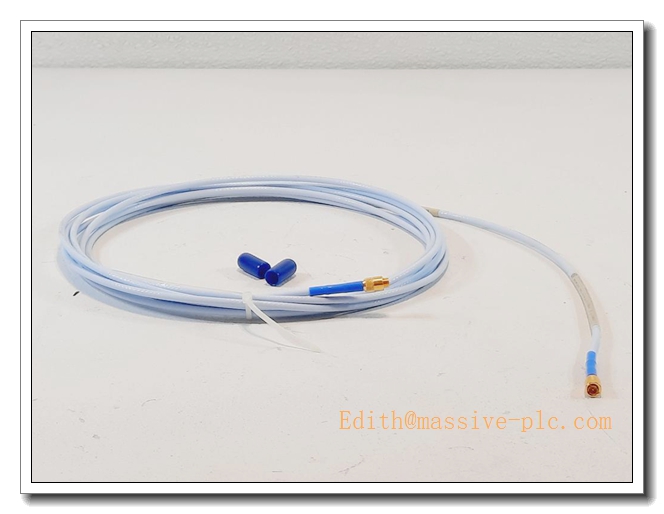

Bently Nevada 330130‑040‑00‑05 3300‑XL 8 mm Standard Tri‑axial Extension Cable (Right‑Angle Microdot Variant)

Description

Bently Nevada 330130‑040‑00‑05 3300‑XL 8 mm Standard Tri‑axial Extension Cable (Right‑Angle Microdot Variant)

Product Overview

The 330130‑040‑00‑05 is a factory‑calibrated non‑armored tri‑axial extension cable for legacy 3300‑XL 8 mm Microdot proximity transducer systems. It features right‑angle Microdot coaxial connectors at both ends, intended for tight‑clearance installation spaces where straight Microdot connectors would suffer mechanical stress or physical interference. This cable transmits high‑frequency eddy‑current sensor signals between Microdot‑type proximity probe and proximitor / monitor hardware for radial vibration, axial thrust‑position and Keyphasor phase‑reference measurement. Compliant with API‑670 turbomachinery protection standards.

Critical Compatibility Warning

• Works exclusively for 3300‑XL Microdot transducer family. NOT compatible with NSv ClickLoc hardware (330930‑xx‑xx‑xx‑xx series) nor ETR high‑temperature cable series (330190‑xx‑xx‑xx‑xx).
• Total calibrated transducer length = probe pigtail length + this extension cable length, must strictly match the length requirement of paired proximitor or 990‑series Microdot‑type transmitter. Length mismatch causes scale‑factor deviation and measurement error.
• Both ends are right‑angle Microdot (10‑32) connectors. Do not splice, cut or modify factory‑molded cable assembly. Always verify intrinsic‑safety marking on physical label before hazardous‑zone deployment.

Part Number Decoding

• 330130：3300‑XL standard‑grade tri‑axial extension‑cable base series
• ‑040：Nominal cable length = 4.0 meters
• ‑00：Non‑armored cable construction
• ‑05：Right‑angle Microdot 10‑32 coaxial connectors at both ends

Key Specifications

Main Features

• Dual‑end right‑angle Microdot 10‑32 connectors: Optimized for confined cabinet / machine‑case clearance, eliminates connector collision risk during installation.
• 4‑meter non‑armored standard‑grade tri‑axial cable: Modular building block to configure correct total transducer loop length for Microdot‑based 3300‑XL 8 mm systems.
• Tri‑axial double‑shielded structure: Excellent noise immunity against VFD, contactor and high‑power AC interference, preserves eddy‑current signal integrity.
• FEP fluoropolymer insulation: Resists turbine oil‑mist, chemical contamination and wide industrial temperature fluctuation.
• Factory‑molded right‑angle Microdot assemblies: Consistent impedance performance, vibration‑resistant for long‑term turbomachinery service.
• Full interoperability within 3300‑XL Microdot transducer ecosystem; API‑670 compliance for turbomachinery protection loops.

Typical Application Scenarios

• Signal extension for 3300‑XL Microdot‑interface 8 mm proximity probes (e.g. 21508‑02‑12‑05‑02) with limited installation clearance for straight Microdot connectors
• Radial shaft‑relative vibration monitoring, axial thrust‑position protection and Keyphasor phase‑reference signal transmission on steam turbines, gas turbines and centrifugal compressors
• Refinery, petrochemical and power‑plant sites deploying 3500 rack‑based monitoring or Microdot‑variant 990 transmitters
• Overhaul spare‑part replacement for existing right‑angle Microdot transducer loops
• Retrofit projects where cabinet junction box space is highly restricted

Related & Recommended Alternative Models

Compatible Components & Accessories

1. Proximity Probes: 21508‑xx‑xx‑xx‑02 and other 3300‑XL 8 mm Microdot‑interface probes
2. Monitoring Hardware: 330180‑xx‑00 proximitor modules, Bently Nevada 3500 rack system, Microdot‑type 990‑series transmitters
3. Casing‑penetration fitting: 43501‑02‑04‑02 low‑pressure cable‑seal assembly and 43574‑04 multi‑hole grommet
4. Installation consumables: Cable clamps for strain‑relief, high‑temperature cable ties, cable glands
5. Tooling: Specified‑torque Microdot connector tightening tool
6. Calibration tool: 8 mm 3300‑XL static gap calibration fixture

Installation and Configuration Guide

Warning: Installation must be performed by qualified instrument technicians. Always refer to original Bently Nevada 3300‑XL transducer‑system manual as primary reference. Verify intrinsic‑safety marking before deployment in explosive classified hazardous zones.

1. Pre‑installation Total‑Length Calculation
   • Calculate total transducer length = probe integral pigtail length + 4.0 m of this extension cable.
   • Confirm total length exactly matches calibrated‑length requirement of installed proximitor or transmitter. Length mismatch will produce scale‑factor error.
2. Cable Routing Requirements
   • Route tri‑axial cable separately from high‑power AC, VFD and contactor wiring to minimize EMI noise.
   • Maintain minimum static bending radius ≥50 mm. Avoid sharp bends especially near right‑angle connector housings. Do not pull cable assembly by connectors.
   • Where cable passes through machine‑case wall, install approved cable‑seal assembly (43501‑02‑04‑02) to prevent mechanical crush and oil‑mist ingress.
3. Right‑Angle Microdot Connector Mating Procedure
   • Clean Microdot contact surfaces before mating. Align pin‑keyway correctly, tighten to manufacturer‑specified torque value. Do not over‑torque right‑angle connector housing.
   • Install strain‑relief clamps within short distance of each right‑angle connector, to eliminate mechanical bending stress transferred onto connector joints.
4. System Commissioning
   • Complete full transducer‑loop assembly and power‑up proximitor / monitor hardware.
   • Read static gap voltage to verify probe mechanical gap setting. Perform static‑gap calibration test with 8 mm calibration fixture to validate system scale‑factor.
   • Confirm Not‑OK fault status clears after proper wiring and gap adjustment.
5. Maintenance & Troubleshooting
   • During machinery turnaround, inspect right‑angle Microdot connectors for oil contamination, dirt and corrosion; check FEP jacket for cracking or oil‑swelling.
   • Unstable gap‑voltage readings, high noise level or persistent Not‑OK faults may indicate damaged cable, loose Microdot joint or incorrect total‑system cable length.
   • If cable assembly is damaged, replace complete factory cable assembly; field splicing or repairing tri‑axial coaxial cable is prohibited.

Supplementary Remark

330130‑040‑00‑05 is a 4‑meter non‑armored standard‑grade tri‑axial extension cable for 3300‑XL 8 mm Microdot transducer systems, equipped with dual‑end right‑angle Microdot‑10‑32 connectors for space‑limited installation scenarios. It is incompatible with NSv ClickLoc and ETR‑series extension cables. Before commissioning, cross‑check total transducer‑system length, right‑angle connector style, temperature rating and intrinsic‑safety requirement against project BOM and mechanical drawings.
