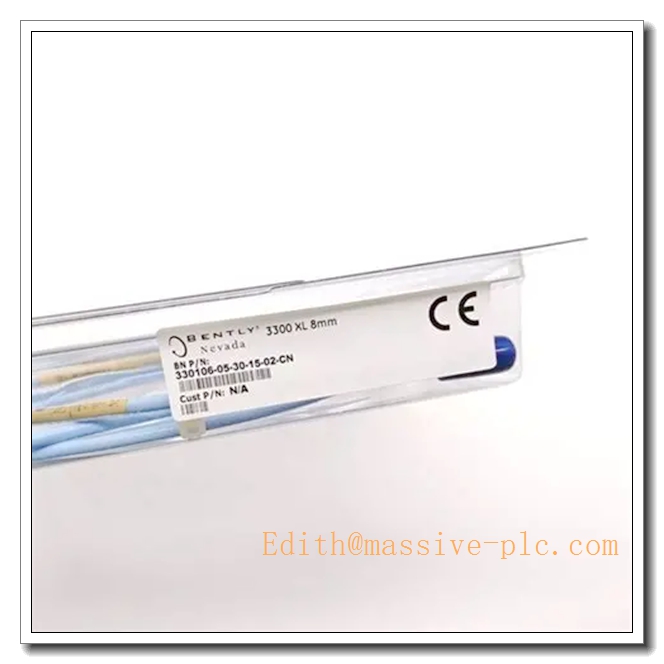

Bently Nevada 330106-05-30-15-02-00 3300 XL 8 mm Reverse Mount Proximity Probe Technical Profile

Description

Bently Nevada 330106-05-30-15-02-00 3300 XL 8 mm Reverse Mount Proximity Probe Technical Profile

Core Product Introduction

The Bently Nevada 330106-05-30-15-02-00 is a high-performance 3300 XL 8 mm reverse mount proximity probe, purpose-engineered for demanding industrial machinery monitoring environments where standard forward-mount probes cannot be installed due to strict axial space constraints. As a core component of Bently Nevada’s proven 3300 XL platform, it delivers stable, repeatable displacement and vibration measurements for critical rotating machinery operating under harsh mechanical conditions, and natively integrates seamlessly with your existing Bently Nevada 3500 series machinery protection and condition monitoring systems, ensuring consistent signal performance without compromising installation flexibility or long-term operational reliability.

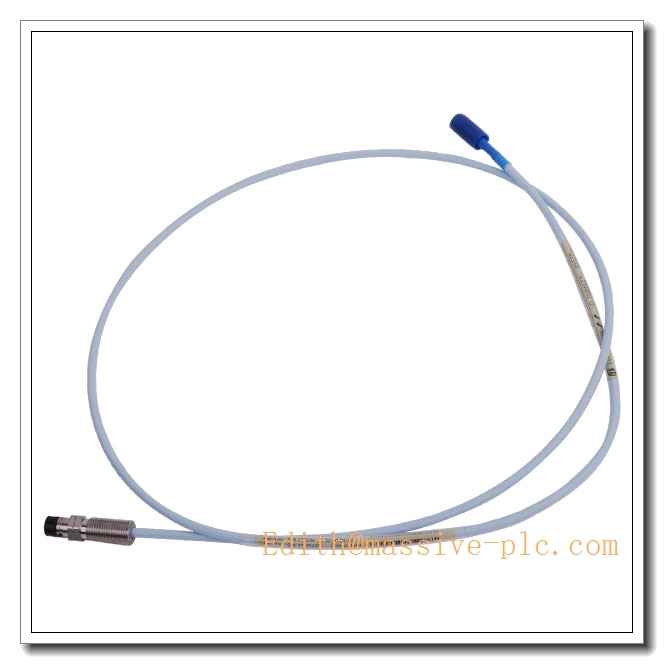

330106-05-30-15-02-00

Primary Technical Specifications

Key Product Features

• ‌Reverse Mount Design‌: The unique reverse installation structure allows the probe to be mounted from the back side of the machinery casing, perfectly solving installation problems in scenarios with extremely limited axial space that cannot accommodate standard forward-mount probes.
• ‌High Signal Stability‌: As part of the mature 3300 XL platform, it maintains consistent, repeatable measurement performance even under long-term operation in harsh industrial environments.
• ‌Native System Interoperability‌: No extra signal conversion hardware required, fully compatible with all Bently Nevada 3300 XL 8 mm Proximitor sensors and 3500 series monitoring modules you previously researched.
• ‌Miniature ClickLoc™ Connector‌: The dedicated miniature coaxial connector ensures reliable, vibration-resistant signal connection, preventing accidental disconnection during long-term equipment operation.
• ‌No Mandatory Agency Approval‌: No special hazardous area certification is required for general industrial applications, simplifying on-site deployment and compliance verification processes.

Professional Quality Control Test Standard Operating Procedure

1. ‌Pre-Power Visual Inspection‌: Verify no physical damage to the probe sensing tip, probe body, cable jacket and connector pins; confirm no cuts, abrasions or loose components along the entire 1.5-meter cable length.
2. ‌Coil Impedance Validation Test‌: Measure the internal probe coil impedance with a precision LCR meter at 1 kHz, confirm the reading falls strictly within Bently Nevada’s factory-specified tolerance range.
3. ‌Full-Range Calibration Test‌: Mount the probe on a Bently Nevada TK-3 calibration kit, adjust the target gap from 0 mm to 2.0 mm in 0.25 mm increments, validate output voltage maintains 7.87 V/mm linearity within ±5% across the full measurement range.
4. ‌Temperature Cycling Screening Test‌: Place the probe in a temperature-controlled chamber, run 10 cycles of -35°C to +175°C with 1-hour dwell time at each extreme, confirm no sensitivity drift exceeds ±2% after test completion.
5. ‌Cable Mechanical Durability Test‌: Apply specified tensile load on the cable for 10 minutes, then perform 500 cycles of 90-degree bending test, confirm no open circuit or signal discontinuity occurs during and after the test.
6. ‌72-Hour Continuous Burn-In Test‌: Power the probe with matched Proximitor sensor under rated supply voltage, operate it at mid-range gap position for 72 consecutive hours, record all output logs, and only release units with zero fault records for shipment.

New Module Installation Guidelines

1. Confirm the target rotating machinery is in full locked-out/tagged-out shutdown status before installation, select the proper reverse mounting position on the back side of the machinery casing, ensure the probe sensing tip is perpendicular to the clean, uncoated shaft surface.
2. Secure the probe in the pre-drilled reverse mounting hole, adjust the initial mechanical gap to set the gap voltage to the optimal mid-point of the linear working range, then tighten the dedicated lock nut securely to fix the probe position.
3. Route the 1.5-meter integral probe cable separately from high-voltage power cables, avoid sharp bends with radius less than 25 mm, connect the Miniature ClickLoc™ coaxial connector tightly to the matched extension cable.
4. Power on the Bently Nevada 3500 monitoring rack, verify the gap voltage reading on the corresponding monitoring module is stable and within the normal working range, then perform a full gap calibration validation before putting the system into formal operation.

Application Scenarios

This reverse mount proximity probe is widely deployed on critical rotating equipment including steam turbines, centrifugal compressors, industrial gas turbines and large generator sets, specifically for measurement points where standard forward-mount probes cannot be installed due to strict axial space limitations. It is a specialized optimized component of Bently Nevada 3300 XL proximity measurement ecosystem, fully compatible with your existing 3500 series machinery protection system to meet API 670 industrial machinery protection standard requirements.

Frequently Asked Questions

1. ‌Q: What is the total integral cable length of this probe?‌
   A: The total integral cable length is 1.5 meters (4.9 feet), which is clearly defined in the part number suffix “15”.
2. ‌Q: What type of connector does this probe use?‌
   A: It is equipped with a Miniature ClickLoc™ coaxial connector, corresponding to the “02” suffix in the part number.
3. ‌Q: Does this probe require special agency approval for general industrial use?‌
   A: No, this variant does not require mandatory agency approval for standard industrial applications, corresponding to the “00” suffix in the part number.
4. ‌Q: Can this probe be directly connected to Bently Nevada 3500 series monitors?‌
   A: Yes, it is natively designed for full compatibility with all 3300 XL 8 mm Proximitor sensors and 3500 series monitoring modules, no extra signal conversion hardware is required.
