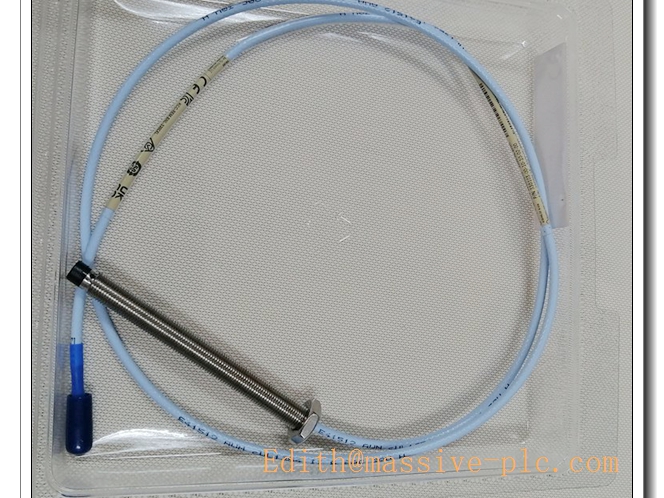

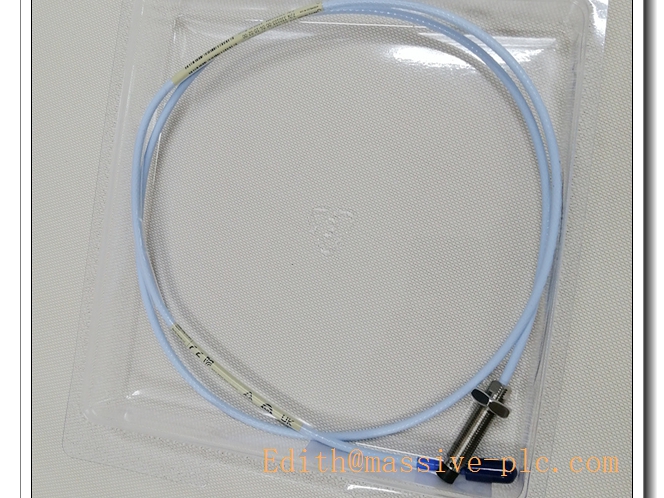

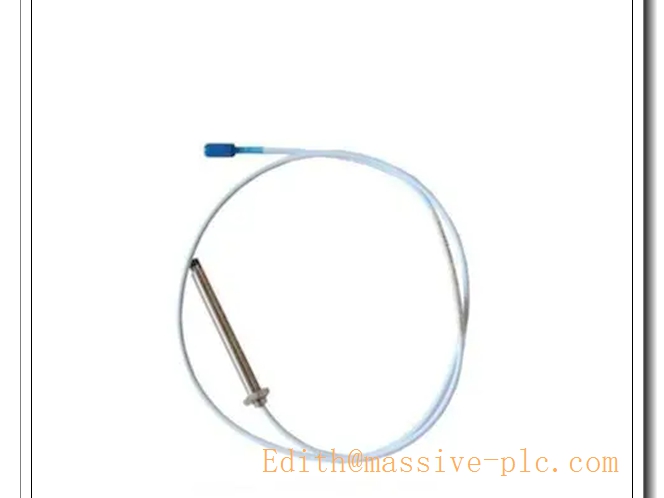

Bently Nevada 330103-00-14-10-02-00 3300 XL 8 mm Proximity Probe Full Technical Profile
Core Product Introduction
The Bently Nevada 330103-00-14-10-02-00 is a high-performance 3300 XL 8 mm compact proximity probe, a core non-contact eddy current measurement component of Bently Nevada’s industry-standard machinery health monitoring ecosystem. It delivers accurate, stable measurement of shaft radial vibration, axial thrust position and dynamic displacement on critical rotating equipment, and natively integrates seamlessly with your existing Bently Nevada 3500 series machinery protection modules, forming a fully API 670 compliant end-to-end monitoring solution for harsh industrial environments.
330103-00-14-10-02-00
Full Technical Specifications
| Specification | Exact Parameter |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Full Part Number | 330103-00-14-10-02-00 |
| Product Series | 3300 XL 8 mm Compact Proximity Probe |
| Unthreaded Length | 0 mm |
| Overall Case Length | 140 mm |
| Total Integral Cable Length | 1.0 meter (3.3 feet) |
| Connector Type | Miniature coaxial ClickLoc™ connector, standard cable |
| Probe Tip Bonding | Patented TipLoc molding process for ultra-robust tip-to-body connection |
| Cable Pull Strength | Patented CableLoc design delivers 330 N (75 lbf) pull resistance |
| Operating Temperature Range | -52°C to +100°C (-62°F to +212°F) |
| Storage Temperature Range | -52°C to +105°C (-62°F to +221°F) |
| Humidity Resistance | Less than 3% change in Average Scale Factor (ASF) after 56 days of testing in 93% humidity per IEC 68 2 3 standard |
| RFI/EMI Immunity | High immunity to radio frequency interference, meets European CE mark requirements without special shielded conduit or metallic housings |
| Certifications | ROHS compliant |
| Product Origin | USA |
| Standard Packaging | Export carton |
| Minimum Order Quantity | 1 pc |
| In Stock Supply Capacity | 100+ pcs available |
| Delivery Lead Time | On request |
| Payment Terms | T/T |
| Test Report | Factory standard test report provided |
Key Product Features
- Patented TipLoc Molding Technology: Creates an extremely robust permanent bond between the probe tip and probe body, eliminating tip separation risks even under severe vibration and temperature cycling conditions.
- High Cable Pull Strength: The patented CableLoc design provides 330 N (75 lbf) pull resistance, preventing accidental cable disconnection during field installation and long-term operation.
- High RFI/EMI Immunity: Optimized circuit design delivers exceptional resistance to radio frequency and electromagnetic interference, allowing installation in fiberglass housings without signal distortion, and meets CE mark requirements to reduce installation costs.
- Wide Environmental Adaptability: Supports extreme operating temperature range and high humidity conditions, maintaining stable measurement performance even in long-term harsh industrial operation.
- Full 3300 XL Interoperability: No individual component pre-calibration required, directly compatible with all Bently Nevada 3300 XL 8 mm Proximitor sensors and 3500 series monitoring modules you previously researched.
Professional Installation Guidelines
- Confirm the target rotating machinery is in full locked-out/tagged-out shutdown status before installation, select a mounting position perpendicular to the clean, uncoated shaft surface to avoid measurement distortion.
- Thread the probe into the pre-drilled mounting hole, adjust the initial mechanical gap to set the gap voltage to the optimal mid-point of the linear working range, then tighten the lock nut securely to fix the probe position.
- Route the 1.0 m integral probe cable separately from high-voltage power cables, avoid sharp bends with radius less than 25 mm, connect the ClickLoc™ coaxial connector tightly to the matched extension cable.
- Power on the Bently Nevada 3500 monitoring rack, verify the gap voltage reading on the corresponding monitoring module is stable and within the normal working range, then perform a full TK-3 calibration validation before putting the system into formal operation.
Application Scenarios
This proximity probe is widely deployed on steam turbines, centrifugal compressors, gas turbines, large industrial pumps, induced draft fans and other critical rotating equipment in power plants, oil refineries, petrochemical facilities and offshore oil platforms. It is a standard core component of Bently Nevada 3300 XL proximity measurement ecosystem, fully compatible with your existing 3500 series machinery protection system to meet API 670 industrial machinery protection standard requirements.
Frequently Asked Questions
- Q: What is the overall case length of this probe?
A: The overall case length is 140 mm, corresponding to the “14” segment in the part number. - Q: What is the total integral cable length of this probe?
A: The total integral cable length is 1.0 meter (3.3 feet), corresponding to the “10” suffix in the part number. - Q: What is the maximum pull strength of the probe cable?
A: The patented CableLoc design provides 330 N (75 lbf) pull resistance for enhanced mechanical durability. - Q: Can this probe be directly connected to Bently Nevada 3500 series monitors?
A: Yes, it is natively designed for full compatibility with all 3300 XL 8 mm Proximitor sensors and 3500 series monitoring modules, no extra signal conversion hardware is required.
