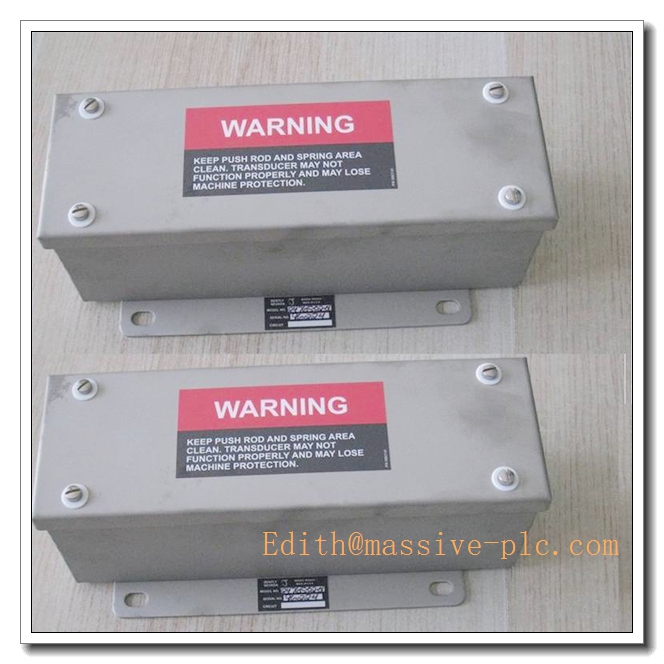

Bently Nevada 24765-02-01 Shell Expansion Channel Detector
Product Introduction
The Bently Nevada 24765-02-01 is a high-precision Shell Expansion Channel Detector module within the renowned 3300 Series machinery protection system. It is engineered for continuous, reliable monitoring of thermal growth and casing expansion in large-scale rotating equipment such as steam turbines and centrifugal compressors. By providing accurate displacement measurements of the machinery casing, it serves as a critical component for predictive maintenance strategies, enabling early detection of abnormal thermal stress and potential structural issues, thereby safeguarding operational integrity and preventing costly unplanned downtime.
24765-02-01
Primary Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Part Number | 24765-02-01 |
| Product Series | 3300 Series |
| Function | Shell Expansion / Casing Growth Monitoring |
| Compatibility | Fully integrates with Bently Nevada 3500 Series racks and monitors. |
| Measurement Principle | Linear Variable Differential Transformer (LVDT) or equivalent high-accuracy displacement transducer. |
| Channel Configuration | Typically a single-channel monitor module. |
| Input Power | Powered directly from the 3500 Series rack backplane. |
| Output Signals | 4-20 mA analog output, relay alarm/trip contacts, and digital communication via the rack’s communication modules. |
| Accuracy | High precision, typically within ±1% of full scale, ensuring reliable trend data for predictive analysis. |
| Operating Temperature | Designed for industrial control room or panel-mounted environments (e.g., 0 to 60°C). |
| Certifications | Compliant with major industrial standards (e.g., CE, ATEX for specific variants). |
| Typical Condition | New / Refurbished to OEM specifications. |
Typical Applications
This module is essential in applications where monitoring the differential expansion between the rotor and stator (casing) is critical for safe operation:
- Steam Turbines: Monitors casing thermal growth during startup, shutdown, and load changes to prevent rubbing between rotating and stationary parts.
- Gas Turbines: Tracks casing expansion due to extreme thermal gradients.
- Centrifugal Compressors: Monitors thermal growth to maintain optimal internal clearances.
- Large Generators & Pumps: Where thermal distortion of the casing could impact efficiency and safety.
Technical Pitfalls to Avoid
- Incorrect Transducer Selection & Mounting: Using an incompatible LVDT or improper mounting can lead to inaccurate readings or mechanical binding. Always use Bently Nevada-recommended transducers and follow the official mounting procedure precisely.
- Poor Calibration & Zeroing: Failure to perform initial and periodic calibration can render data meaningless. Establish a strict calibration schedule using certified calibration equipment.
- Ignoring Ambient Temperature Effects: While the detector measures relative growth, extreme ambient temperature swings near the transducer or mounting bracket can affect readings. Consider ambient temperature compensation or ensure stable environmental conditions.
- Cable Routing & Signal Integrity: Running sensor cables parallel to high-voltage power lines can induce noise. Always route low-level signal cables separately in dedicated conduits.
- Misinterpreting Trend Data: Shell expansion trends are slow. Focus on rate-of-change deviations from historical baselines rather than absolute values, and correlate data with other process parameters (e.g., metal temperature, load).
- Overlooking Mechanical Linkage Issues: The mechanical linkage between the casing and the transducer must be free and unobstructed. Regularly inspect for wear, slack, or binding in the linkage assembly.
Recommended Related Models
For a complete monitoring solution, consider these related modules from the Bently Nevada 3500/3300 ecosystem:
- 3500/42M 4-Channel Vibration Monitor: The core module for monitoring radial vibration from proximity probes, often used in conjunction with shell expansion data for comprehensive machinery analysis.
- 3500/25 Keyphasor® Module: Provides a once-per-revolution timing signal essential for phase analysis of vibration and shell expansion data relative to shaft rotation.
- 3500/32M 4-Channel Displacement Monitor: Monitors axial position (thrust) and differential expansion, complementing the casing growth data from the 24765-02-01.
- 3300 XL 8mm Proximity Probes & 3300 XL Proximitor® Sensors (e.g., 330103-00-05-10-02-00): The primary sensing subsystem for vibration and position, forming the data source for modules like the 3500/42M.
- 3500/92 Communication Gateway: Facilitates integration of all 3500 Series monitor data into plant DCS, PLC, or asset management systems for centralized monitoring and analysis.
