Bently Nevada 1900/65A General Purpose Equipment Monitor, Display Module Part No.167699-02

Description

Bently Nevada 1900/65A General Purpose Equipment Monitor, Display Module Part No.167699-02

Product Core Introduction

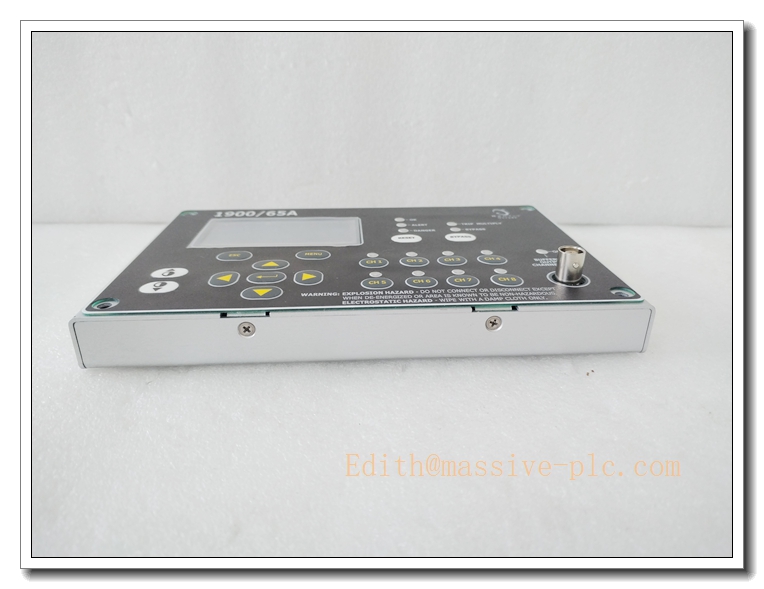

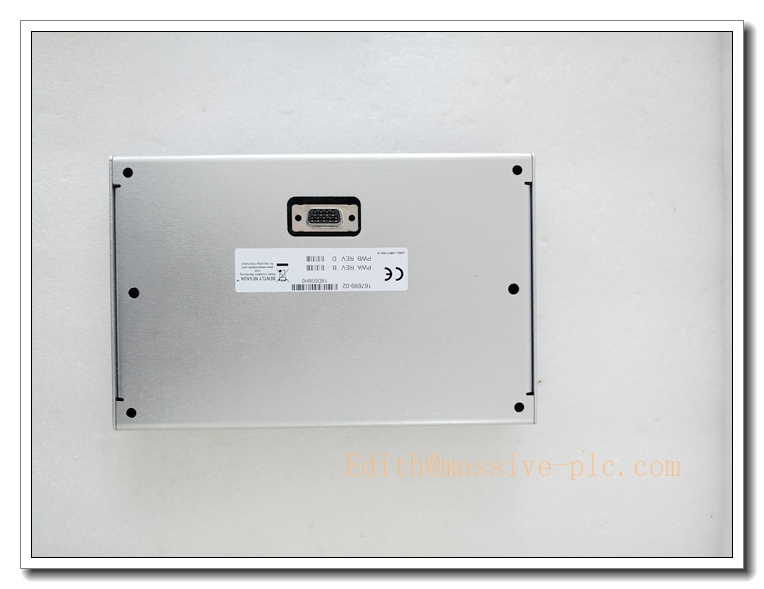

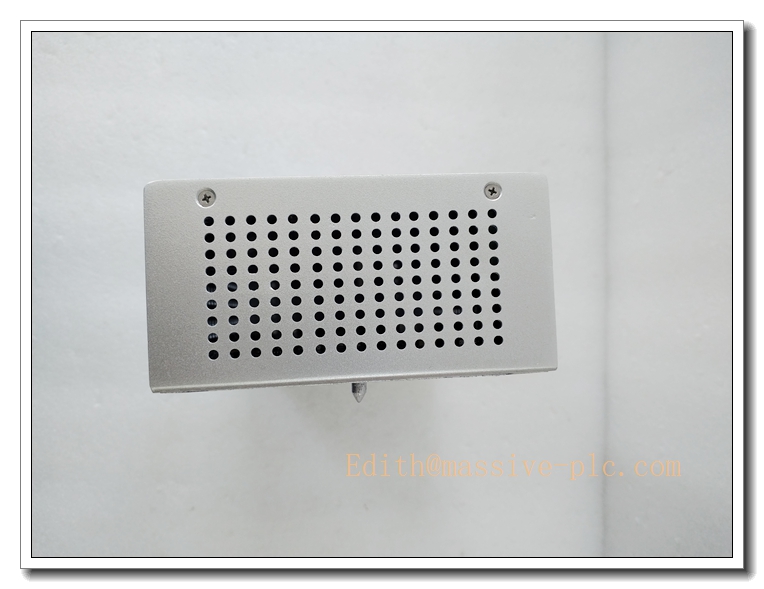

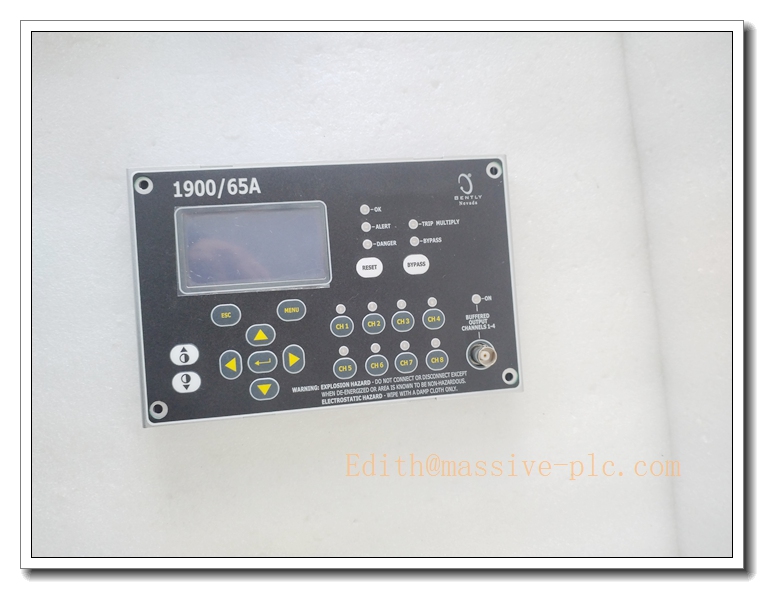

The 1900/65A is a standalone general-purpose machinery protection monitor from Bently Nevada 1900 series; 167699-02 is the matching front operator display panel for 1900/65A main unit. This monitor is designed for continuous condition monitoring and protection of non-critical auxiliary rotating machinery. It accepts up to 4 dynamic sensor inputs (proximity probe, accelerometer, velocity transducer) plus 4 RTD temperature inputs, performing vibration, shaft displacement and bearing temperature measurement. It supports local display, relay alarm/trip outputs, 4-20mA analog retransmission and serial communication for DCS/PLC host integration. The 167699-02 display panel provides local HMI for parameter configuration, real-time value reading, alarm status viewing and event log browsing. This unit is widely used for fans, pumps, small compressors and auxiliary turbines. OEM end-of-life; available stock includes fully tested refurbished and surplus spare units for plant maintenance.

190065A

Main Technical Specifications

Brand Same‑Series Model Recommendation

• 1900/65A without display: Main unit only, for remote monitoring without local HMI.
• 1900/55: 2-channel compact monitor for simple vibration measurement of small pumps/fans.
• 2300/20: Newer low-cost standalone monitor as modern replacement for 1900 series.
• 3500 series: Rack-based high-end monitoring system for critical large turbo machinery.

Professional Quality Control Test Standard Operating Procedures (SOP)

5.1 Incoming & Visual Inspection

Inspect main monitor unit, 167699-02 display PCB, keypad membrane, LCD, terminal blocks and connectors. Visual check for LCD damage, keypad wear, burnt traces, connector oxidation. Inspect cable interface continuity. Retain batch traceability records.

5.2 Low-Voltage Power-On Pre-Test

Apply rated power supply. Verify LCD boot, keypad response, LED alarm indicators. Check main unit communication handshake between display and monitor motherboard. Confirm no abnormal heating.

5.3 Burn-in Test

48-hour continuous powered burn-in at 40°C ambient. Simulate sensor input signals, verify channel reading stability, alarm triggering and relay action. Monitor event log recording function. Reject units with intermittent communication or reading drift.

5.4 Full Functional Calibration & Parameter Test

Use signal simulator to inject vibration and RTD signals for all 8 channels. Calibrate scale factor, alarm and trip thresholds. Validate relay trip, 4-20mA output, buffered BNC signal and Modbus serial communication. Test keypad parameter save/reset function on 167699-02 display.

5.5 Environmental Stress Screening

Temperature cycling (0 ℃ ↔ +60 ℃), humidity soak and low-level vibration per IEC 60068. After stress, recheck display touch/keypad function and measurement accuracy.

5.6 Final Acceptance Test

Full system integration test between 167699-02 display and 1900/65A main monitor. Verify local reading, alarm indication, parameter download and event log review. Complete appearance, label and accessory inspection before anti-static packaging.

190065A

New Unit Installation Guidelines

6.1 Pre-Installation Preparation

1. Lock-out/tag-out rotating equipment and monitor power supply.
2. Wear anti-static wristband and gloves; avoid scratching LCD surface of 167699-02 display.
3. Inspect display panel and main unit for damage; confirm compatibility of display firmware with 1900/65A main board.
4. Prepare panel cutout, shielded sensor cables, torque screwdriver.

6.2 Hardware Installation

1. Mount 1900/65A main unit inside control cabinet; install 167699-02 display on cabinet front panel.
2. Connect the dedicated communication cable between display module and main monitor.
3. Wire proximity probes / accelerometers / RTD temperature sensors, 4-20mA output, relay trip wiring and power supply, following Bently wiring diagram.
4. Separate sensor signal cables from high-power motor cables to reduce EMI noise. Good protective earth grounding is required.

6.3 Post-Installation Commissioning

1. Double-check wiring, grounding and cable connection before power-on.
2. Power up the system, confirm 167699-02 LCD boots normally and communicates with main unit.
3. Configure channel type, scale factor, alarm and trip thresholds via local keypad. Save parameters.
4. Inject simulated sensor signal to verify reading, alarm LED and relay trip action.
5. Connect to field sensors, run static signal test, then run machine continuous trending test for 30–60 minutes before putting into online protection.

Important Safety Note: This machinery monitor provides protection interlock for rotating equipment. Wrong configuration or faulty display communication may cause false trip or loss of machine protection. Only certified vibration monitoring technicians are allowed for configuration and commissioning.

Application Scenarios & Product Characteristics

7.1 Application Scenarios

• Power plant auxiliary equipment: fans, boiler feed pumps, cooling water pumps
• Petrochemical & refinery small compressors, blowers
• Water treatment, pulp & paper, general manufacturing rotating machinery
• Auxiliary rotating equipment condition monitoring and protection, predictive maintenance
• Legacy Bently 1900/65A system spare replacement (167699-02 front display panel)

7.2 Key Characteristics

• 4 dynamic vibration + 4 RTD temperature multi-channel integrated monitor
• 167699-02 front HMI: LCD + keypad for local setup and real-time status view
• Flexible input configuration: compatible with eddy current probe, accelerometer, velocity transducer
• Independent alarm/trip relays for machinery protection; 4-20mA output for DCS connection
• Modbus serial communication for host SCADA system
• Compact panel-mounted standalone design, no large card cage required
• Cost-effective protection for auxiliary rotating equipment (not critical turbo machinery)
• Critical spare part for legacy Bently 1900/65A monitoring systems (OEM discontinued)

190065A

FAQ (Frequently Asked Questions)

Q1: After replacing 167699-02 display, screen no communication with main unit. A1: Check dedicated communication cable connection and pin integrity. Verify firmware revision compatibility between display and 1900/65A main board. Reboot monitor and recheck.

Q2: Keypad does not respond, LCD shows blank. A2: Check power supply to display module. Inspect keypad membrane damage or LCD backlight failure.

Q3: Channel reading drift or unstable vibration value. A3: Check sensor cable shielding and grounding. Verify transducer and probe installation gap. Re-calibrate channel scale factor.

Q4: Relay fails to trigger alarm when exceeding threshold. A4: Check relay wiring and contact condition. Confirm alarm/trip threshold configuration and channel enable setting.

Q5: Can I replace 167699-02 with other 1900 series display? A5: Only compatible with 1900/65A main unit; other 1900 model displays cannot be used interchangeably.

Q6: Hot swap display module allowed? A6: Not recommended. Power off monitor main unit before connecting or disconnecting display communication cable to avoid ESD damage.
