Bently Nevada 1900/27 Vibration Monitor

Description

Bently Nevada 1900/27 Vibration Monitor

Model Introduction

Model: 1900/27 Single‑Channel Velocity Vibration Monitor Part Number:1900/27 Device Type: Stand‑alone panel‑mount seismic vibration monitor (Trendmaster 2000 family) Manufacturer: Bently Nevada (Baker Hughes) System Compatibility: Stand‑alone panel‑mount unit, 4‑20 mA analog output for DCS, no Trendmaster‑Pro bus communication. Accepts Trendmaster 2000 accelerometer sensor input.

Cross‑reference note: ‑ 1900/27: 4‑20 mA analog output, no Trendmaster‑Pro bus ‑ 1900/25: Trendmaster‑Pro digital bus, no 4‑20 mA output ‑ Cannot be mixed‑used with 3500 rack system.

Application Scenarios: Auxiliary machinery monitoring: fans, blowers, pumps, motors. Measures housing seismic peak velocity vibration; local display, relay alarm contacts, 4‑20 mA to DCS/PLC. Complies with API‑670. Country of Origin: United States Lifecycle Status: OEM discontinued; only aftermarket refurbished/spare‑parts available.

Important note: 1900/27 is standalone panel‑mount monitor, not a 3500 rack card.

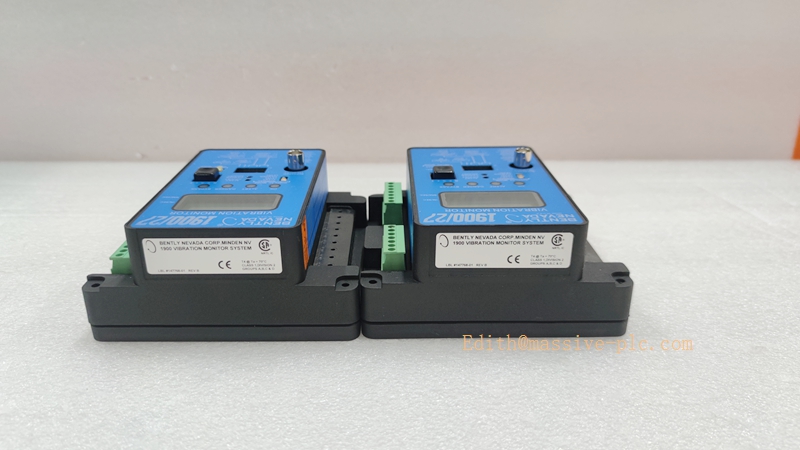

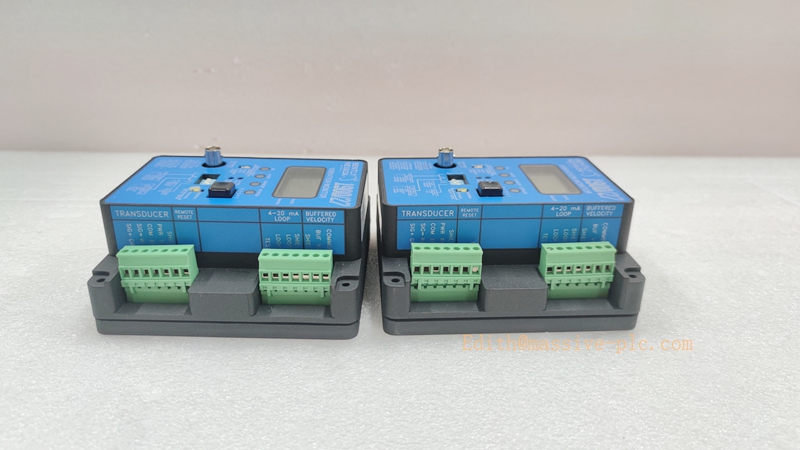

bently1900/27

Technical Introduction

Core Functions

‑ Single‑channel input for Trendmaster 2000 accelerometer sensor. ‑ Integrate acceleration to peak velocity vibration value. ‑ Local LCD digital display for vibration magnitude. ‑ Independent Alert / Danger alarm thresholds, dry‑contact relay outputs. ‑ Isolated 4‑20 mA analog output proportional to vibration value for DCS connection. ‑ Buffered transducer output for external test‑instrument connection. ‑ Front‑panel LED status: OK, Alert, Danger, Self‑test. ‑ Full standalone operation, no host system requiredManualsLib.

Key Technical Specifications

Mechanical Feature

Panel‑mount standalone unit, not rack‑insert card. Front panel with LCD display, LED indicators and configuration switches. Rear terminal block for sensor wiring, power supply, relay contacts, 4‑20 mA analog output, buffered transducer output. Not hot‑swap; power‑off before wiring modificationManualsLib.

Adaptive Quality Assurance & Test Protocol

3.1 Factory Adaptive QA Procedure

1. Power‑on self‑test verification.
2. Signal injection test with vibration simulator; verify velocity measurement accuracy.
3. 4‑20 mA output calibration & linearity test.
4. Alert / Danger relay threshold trigger & reset test.
5. Buffered transducer output signal integrity test.
6. Environmental screening: temperature cycling, EMC noise‑immunity test.
7. Serial‑number traceability, full functional‑test report archived.

3.2 On‑site Acceptance Test Protocol

1. Visual inspection: Check housing, front display, rear terminals without damage or oxidation.
2. Wiring check: Accelerometer input, DC power supply, alarm relay, 4‑20 mA to DCS.
3. Power‑on test: Confirm OK LED lit, self‑test passes.
4. Configure Alert / Danger thresholds per machinery specification.
5. Inject simulated vibration signal; verify local display reading, 4‑20 mA value, alarm LED and relay action.
6. Cross‑check 4‑20 mA loop value against DCS reading.
7. Record part‑number, hardware‑revision, test‑result snapshot for site QA archive.

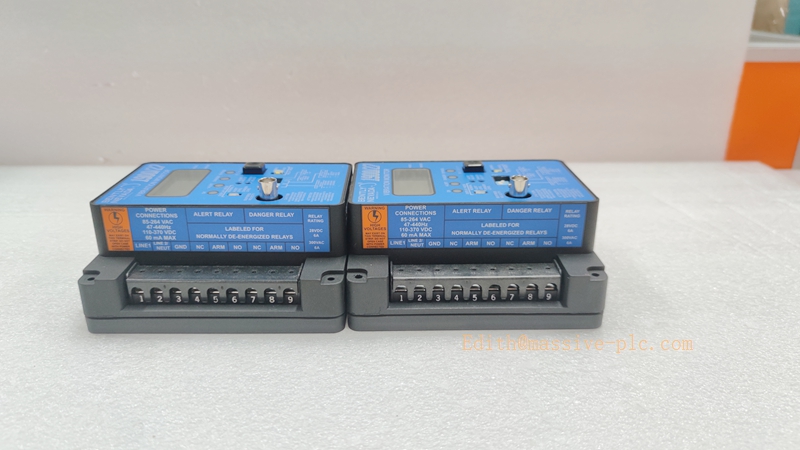

bently1900/27

Field Engineer Technical Notes

Installation Guidance

‑ Panel‑mount installation; ensure adequate rear‑side ventilation. ‑ Use matched Trendmaster accelerometer cable; route away from high‑power interference cables. ‑ 4‑20 mA loop: respect loop load resistance limits; single‑end grounding to avoid ground‑loop. ‑ No Trendmaster‑Pro bus: cannot connect to Trendmaster 2000 host system. If Trendmaster‑Pro bus is needed, choose 1900/25 instead.

Field note: 1900‑series are obsolete legacy auxiliary monitors. Many sites replace with 2300‑series monitors.

Commissioning Tips

‑ Set unit (metric / inch) via front‑panel DIP‑switch. ‑ Calibrate 4‑20 mA span according to full‑scale vibration range. ‑ Cross‑validate: local display value shall match DCS 4‑20 mA converted reading.

Troubleshooting Common Issues

1. No display / power failure: Check 18‑36 VDC power supply and rear‑terminal connection.
2. Persistent Danger alarm: Check accelerometer sensor, cable integrity and sensor power.
3. 4‑20 mA output incorrect: Re‑perform span calibration; check loop load resistance and wiring.

Diagnostic: Observe front‑panel LED status: OK / Alert / Danger / Self‑test.

Maintenance & Spare‑part Recommendation

‑ No field‑serviceable internal components; replace complete 1900/27 unit upon hardware failure. ‑ Spare‑part suggestion: Keep spare 1900/27 for legacy auxiliary‑machinery requiring 4‑20 mA output. ‑ Preventive inspection during shutdown: check rear‑terminal tightening, cable aging and shielding integrity.

1900/25 vs 1900/27 comparison table
