Bently Nevada 169715‑01 / 169715‑02 Multimode Positive Input I/O Assembly

Description

Bently Nevada 169715‑01 / 169715‑02 Multimode Positive Input I/O Assembly

350044M 140471-01

Product Introduction

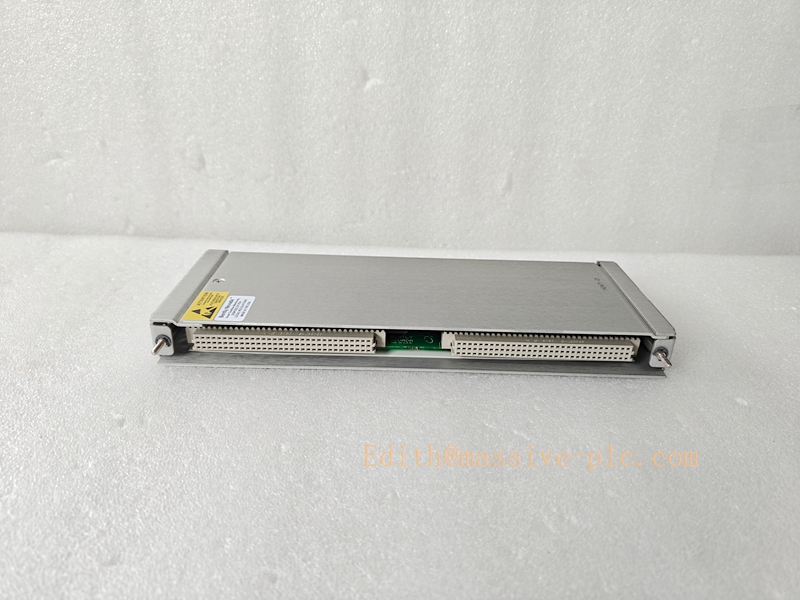

169715‑01 and 169715‑02 are rear‑rack Multimode Positive Input I/O Assemblies for Bently Nevada 3500 machinery protection system, mainly designed for 3500/46M Hydro Turbine Monitor, also compatible with 3500/42M monitor mainboard.

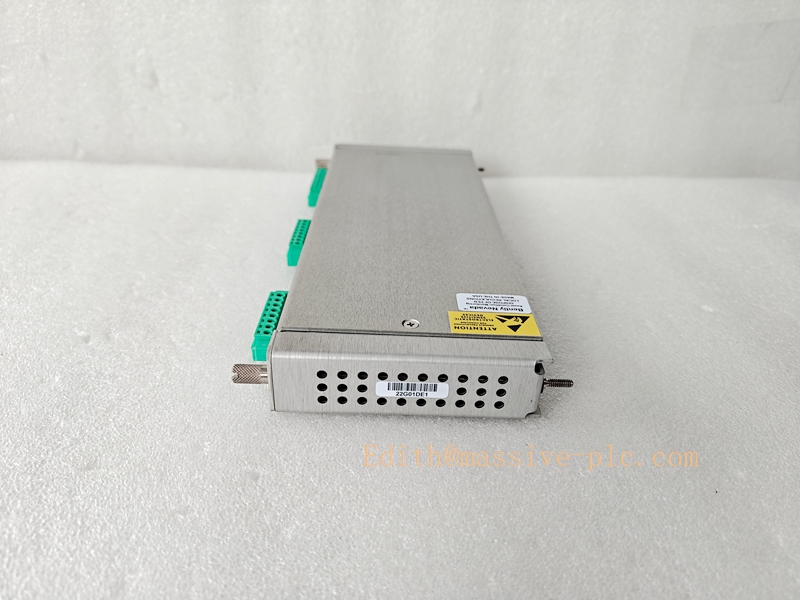

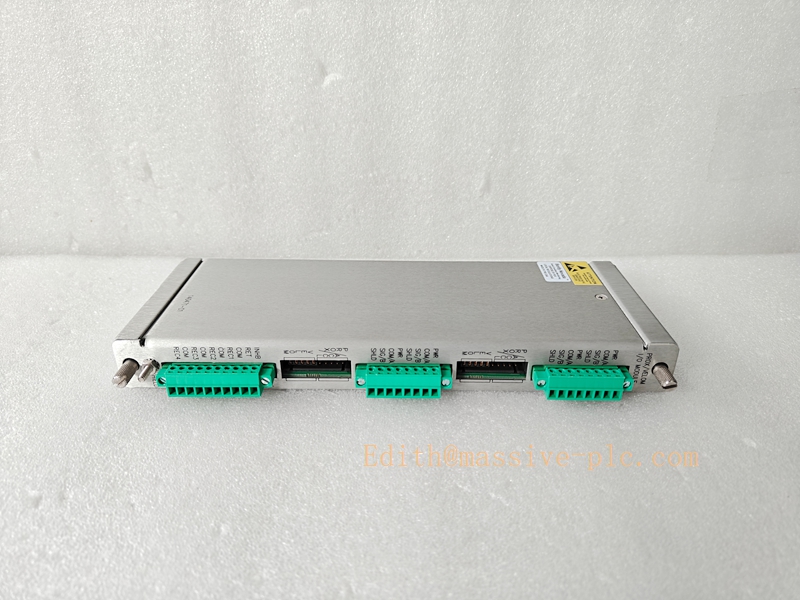

• 169715‑01: Internal screw‑type termination version, field cables connect directly to rear‑rack terminal blocks.
• 169715‑02: External termination version, connects remote terminal blocks via multi‑pin ribbon cables; ribbon cables and external terminal blocks are separately ordered accessories, not included with module hardware.

This positive‑input multimode I/O accepts positive‑supply dynamic‑pressure sensors, low‑frequency IEPE accelerometers, and provides dry‑contact multimode selection inputs to switch up to 8 groups of alarm thresholds for different machine operating conditions (turbine start‑up, loaded‑operation, shutdown). It has no on‑board intrinsic‑safety barriers and cannot operate independently; it must mechanically lock and electrically mate with front‑plug monitor mainboard. Compliant with API‑670 and SIL‑2 capable, widely deployed in hydropower plants for hydro‑turbine dynamic‑pressure, cavitation and casing vibration monitoringBaker Hugh….

Note: This is positive‑input dedicated I/O, different from 169459‑01/02 multimode prox/velom I/O. It supplies positive excitation (+24 Vdc) for IEPE accelerometers and dynamic‑pressure transducers, instead of −23 Vdc prox excitation. Multimode function is only available when paired with 3500/46M mainboard.

Typical Applications ‑ Hydro‑turbine dynamic‑pressure measurement for cavitation and rough‑load‑zone detection ‑ Low‑frequency IEPE accelerometer signal acquisition for hydro‑unit casing vibration monitoring ‑ Multimode alarm‑threshold switching controlled by dry‑contact discrete inputs for variable turbine operating modes ‑ 169715‑01: direct rear‑rack screw termination, suitable for cabinet layout allowing rear‑of‑rack wiring ‑ 169715‑02: external ribbon‑cable termination, field cables land on remote terminal blocks, convenient for maintenance without accessing rack rear compartment ‑ For non‑hazardous‑area installation; external certified IS barriers shall be fitted for hazardous‑zone field sensors ‑ Deliver transducer signals to front‑plug 3500/46M mainboard; monitoring data transmitted to DCS/PLC over rack backplane bus

350044M 140471-01

Technical Specifications

Important Remark: 169715‑xx series uses positive +24 V IEPE excitation, cannot be used for standard negative‑supply proximity probes. Multimode switching function requires both this I/O assembly and 3500/46M mainboard firmware support. Hazardous‑area applications require external intrinsic‑safety barriers. For 169715‑02, ribbon cables and external termination blocks are sold separately.

Key Features

1. Positive‑input IEPE sensor interface: provides +24 Vdc excitation for low‑frequency accelerometers and dynamic‑pressure transducers, dedicated for hydro‑turbine cavitation and casing‑vibration measurementBaker Hugh….
2. Multimode dry‑contact input: cooperates with 3500/46M mainboard to switch among 8 groups of alarm thresholds adapting to turbine start‑up, loading and shutdown operating states.
3. Two termination variants: ‑ 169715‑01: internal screw‑type terminals, direct rear‑rack field‑cable connection, no extra ribbon‑cable accessories required. ‑ 169715‑02: external ribbon‑cable termination, field wiring located on remote terminal blocks, simplifies cable replacement and onsite maintenance.
4. Positive mechanical interlock structure: guarantees stable electrical contact after full locking with front‑plug monitor mainboard.
5. Comprehensive signal‑path diagnostics: detects transducer open‑circuit / short‑circuit faults; time‑stamped fault events stored in system non‑volatile memory.
6. High‑EMI‑immunity industrial hardware, adapted to harsh high‑interference hydropower‑plant environment.

350044M 140471-01

Adaptive Quality Assurance and Test Protocol (AQAT)

4.1 Factory‑Side Adaptive QA Test

‑ Mechanical mating test: mate with qualified 3500/46M mainboard, verify locking status and back‑contact reliability. ‑ Power‑on self‑diagnosis: validate internal‑circuit self‑check and rack backplane‑bus communication. ‑ Channel signal‑injection test: simulate IEPE acceleration and dynamic‑pressure input signals, verify signal transmission, gain and linearity performance. ‑ Multimode‑logic function test: trigger dry‑contact mode‑select signals, confirm reliable threshold‑group switching. ‑ For 169715‑02: ribbon‑cable‑interface continuity test. ‑ Transducer‑fault simulation: open‑circuit / short‑circuit simulation to verify fault‑alarm reporting. ‑ Powered temperature‑cycling burn‑in screening to eliminate early‑life failure risk. ‑ Issue formal factory test report before shipment.

4.2 Site‑Side Adaptive QA Procedure

‑ Installation Qualification (IQ): confirm complete locking between I/O assembly and front‑mainboard; inspect terminal‑torque / ribbon‑cable connection, multimode dry‑contact wiring, cabinet grounding and analog‑power cable separation. Verify external IS‑barrier configuration for hazardous‑area projects. ‑ Operational Qualification (OQ): inject simulation signals at field‑terminals; cross‑check measurement readings, multimode‑switching performance, alarm‑trigger action and DCS‑data consistency. ‑ Performance Qualification (PQ): collect real‑hydro‑unit operating data; compare module readings with portable vibration‑test instrument. ‑ Adaptive retest: perform full‑channel verification after module replacement, cable modification or configuration download; archive test records for audit traceability.

All test documentation shall be retained for asset‑management and audit purposes.

Field Engineer Technical Instructions

5.1 Installation Guidance

‑ Mount 169715‑01 / 169715‑02 I/O assembly into corresponding rear slot of 3500 rack; push front‑plug 3500/46M mainboard and fasten latches to achieve full mechanical locking. ‑ For 169715‑01: connect IEPE sensor cables and multimode dry‑contact control signals directly to rear‑rack screw terminals, strictly follow official pin‑out drawings. ‑ For 169715‑02: install matched ribbon cables between I/O assembly and remote external‑terminal blocks; all field‑sensor cables and multimode‑control cables land on remote terminal blocks. ‑ Separate analog‑sensor cables from high‑voltage power cables, comply with maximum transducer‑cable‑length specifications. ‑ For hazardous‑area field‑sensors: install certified external intrinsic‑safety barriers, comply with local explosion‑proof wiring specifications. ‑ Follow site‑grounding specification: isolate analog‑signal grounding from high‑power‑equipment grounding to reduce noise‑coupling interference. ‑ Important: This I/O provides positive +24 V excitation; do not connect standard proximity probes, which require −23 V excitation.

5.2 Commissioning

‑ Complete mechanical installation, ribbon‑cable connection (‑02 version) and all field‑sensor / multimode‑control wiring. ‑ Launch 3500 Rack Configuration Software, select module type 3500/46M, configure channel‑sensor type (IEPE accelerometer / dynamic‑pressure), measuring range, Alert / Danger setpoints and delay parameters. ‑ If multimode function is required: configure 8 groups of threshold‑parameters and mode‑select logic. ‑ Download configuration to mainboard and perform module reset to activate parameters. ‑ Test multimode dry‑contact switching function, confirm threshold‑group switching matches unit operating‑mode signals. ‑ Verify raw‑measurement values; execute alarm‑forcing test, confirm relay‑output action and HMI/DCS‑display consistency.

5.3 Typical Field Troubleshooting

‑ Transducer‑fault alarm: Inspect field‑cable open‑circuit / short‑circuit faults, terminal‑screw torque, ribbon‑cable loose/damaged connectors and transducer health condition. Confirm correct +24 V excitation output. ‑ Multimode‑switching anomaly: Inspect dry‑contact wiring, mode‑select‑signal logic and multimode‑group software configuration. ‑ Abnormal measured values: Confirm sensor‑type and sensitivity‑setting match physical IEPE transducer; check grounding and EMI‑interference; inspect cable integrity. ‑ Communication loss: Confirm mainboard latches are fully locked; inspect rack backplane health and system‑controller operating status.

Warning: Bypass protection alarms only for short‑duration maintenance work. Restore full‑protection function before hydro‑turbine unit returns to normal‑operation status.

5.4 Maintenance

‑ Observe front‑panel LED‑status indicators of 3500/46M mainboard during regular‑site inspection rounds. ‑ No user‑serviceable internal components; do not disassemble I/O‑assembly housing. ‑ Keep complete‑configuration‑backup file for fast hardware replacement.
