Bently Nevada 169459‑01 / 169459‑02 Multimode Prox/Velom I/O Assembly

Description

Bently Nevada 169459‑01 / 169459‑02 Multimode Prox/Velom I/O Assembly

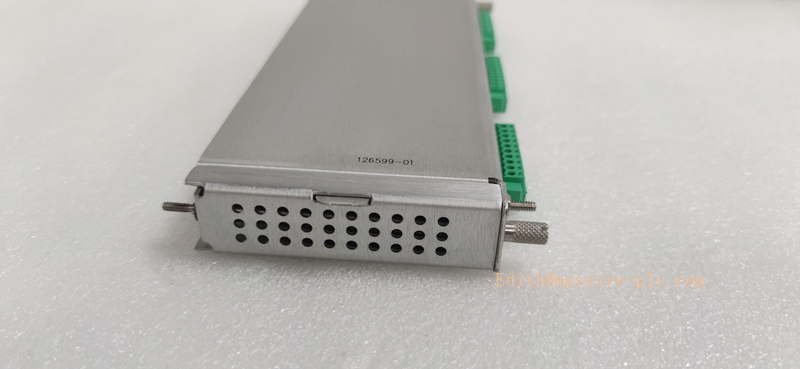

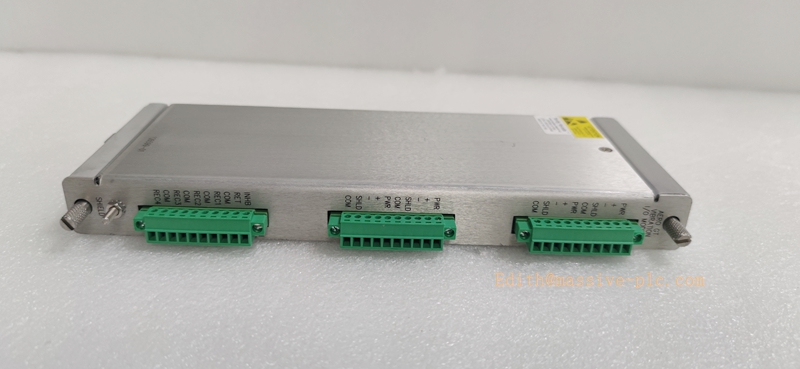

3500/44M 126599-01

Product Introduction

169459‑01 and 169459‑02 are Multimode Prox/Velom rear‑rack I/O assemblies for Bently Nevada 3500 machinery protection system.

• 169459‑01: Internal screw‑type termination version, no on‑board intrinsic‑safety barriers.
• 169459‑02: External termination version, uses multi‑pin ribbon cables to connect remote terminal blocks, no built‑in IS barriers.

This multimode I/O hardware is primarily engineered for 3500/46M Hydro Turbine Monitor, also compatible with 3500/42M, 3500/44M monitor mainboards. When paired with 3500/44M aeroderivative gas‑turbine monitor, only accelerometers and Velomitor velocity sensors are functional; proximity probe inputs are disabled by firmware. It cannot operate independently and must mechanically lock and electrically mate with front‑plug monitor mainboard. Compliant with API‑670 and SIL‑2 capable, widely deployed in hydropower, power‑generation and oil‑gas industries for hydro‑turbine and aeroderivative gas‑turbine protection systems.

Note: Multimode I/O supports machine‑mode switching function, accepts dry‑contact mode‑select signals to switch among up to 8 groups of alarm threshold sets for varying operating conditions.

Typical Applications ‑ Signal termination & routing for 3500/46M hydro‑turbine radial‑vibration, air‑gap monitoring ‑ Interface accelerometers / Velomitor transducers for 3500/44M aeroderivative gas‑turbine vibration monitoring ‑ Realize multimode alarm‑parameter switching according to unit operating conditions (start‑up, load, shutdown) ‑ Casing acceleration, velocity, 1X amplitude‑phase tracking, band‑pass filtered vibration measurement ‑ 169459‑01: field cables terminate directly on rack rear screw terminals for convenient cabinet wiring ‑ 169459‑02: adopt ribbon‑cable remote external termination, maintainable without accessing rack rear compartment ‑ For non‑hazardous‑area installation; external certified IS barriers shall be fitted for hazardous‑zone field sensors ‑ Deliver transducer signals to front monitor mainboard; measured data transmitted to DCS / PLC over rack backplane bus

Technical Specifications

Important Remark: 169459‑02 external‑termination version requires separate‑ordered ribbon cables and external termination blocks, not included with I/O assembly. When working with 3500/44M, proximity‑probe inputs are invalid. Multimode mode‑switch function is only available for mainboards supporting multimode logic (3500/46M, partial 3500/42M/44M firmware versions).

Key Features

1. Multimode architecture: hardware‑based dry‑contact mode‑select input, enables automatic switching of multi‑group alarm thresholds adapting to different machine operating states.
2. Multi‑sensor compatibility: supports proximity probes, air‑gap, Velomitor, accelerometer and dynamic‑pressure transducers; actual available sensor types depend on front‑plug mainboard firmware configuration.
3. Two termination variants: ‑ 169459‑01: internal screw‑type terminals, direct rear‑rack field‑cable connection, simple cabinet layout. ‑ 169459‑02: external‑termination via ribbon cables, separate remote terminal blocks for easy maintenance and cable replacement.
4. Strict mechanical‑electrical interlock: physical locking mechanism guarantees stable electrical contact with front‑side monitor mainboard.
5. Complete signal‑path diagnostics: sensor open‑circuit, short‑circuit fault detection; fault events time‑stamped and logged inside 3500‑system non‑volatile memory.
6. High‑EMI‑immunity industrial hardware, suitable for hydro‑power plant and gas‑turbine package high‑noise environments.
7. Full‑function support for matched mainboards: hydro‑turbine air‑gap / radial‑vibration measurement for 3500/46M; 1X‑tracking, signal integration, band‑pass filter measurement for 3500/44M.

Adaptive Quality Assurance and Test Protocol (AQAT)

The Adaptive Quality Assurance and Test Protocol covers factory and site acceptance tests for 169459‑01 / 169459‑02 multimode I/O assemblies, verifying mechanical mating, multimode switching logic, signal‑path integrity and channel‑sensor compatibility.

4.1 Factory‑Side Adaptive QA Test

‑ Mechanical fit test: mate with qualified compatible mainboard, verify locking mechanism and back‑contact integrity. ‑ Power‑on self‑diagnostic cycle: validate internal‑circuit self‑check, multimode dry‑contact input and system backplane‑bus communication. ‑ Channel‑wise signal injection: apply simulated proximity‑probe, velocity and acceleration signals; verify signal transmission, gain and linearity against datasheet tolerances. ‑ Multimode‑logic test: trigger dry‑contact mode‑select signals, verify threshold‑group switching performance. ‑ For 169459‑02: ribbon‑cable‑interface continuity test. ‑ Transducer‑fault simulation: simulate open‑circuit / short‑circuit conditions to validate sensor‑fault alarm reporting. ‑ Powered temperature‑cycling burn‑in screening to eliminate early‑life component‑failure risk. ‑ Generate formal factory test report before product shipment.

4.2 Site‑Side Adaptive QA Procedure

‑ Installation Qualification (IQ): confirm secure mechanical locking between multimode I/O assembly and front‑monitor mainboard; inspect terminal torque / ribbon‑cable connection, multimode‑select dry‑contact wiring, grounding scheme and cable separation. For hazardous‑area projects, verify external IS‑barrier parameter matching. ‑ Operational Qualification (OQ): inject test signals at field terminals; cross‑validate measured readings, multimode threshold‑switching action, alarm‑trigger performance and host‑system data consistency. ‑ Performance Qualification (PQ): long‑run observation under real‑machine operating conditions; cross‑compare module readings with portable‑vibration‑analyser data. ‑ Adaptive retest: perform full‑channel verification after I/O‑assembly replacement, cable swap or configuration modification; archive all test records for audit traceability.

All test documentation shall be retained for asset‑management and audit purposes.

Field Engineer Technical Instructions

5.1 Installation Guidance

‑ Mount 169459‑01 / 169459‑02 I/O assembly at rear side of 3500 rack, fully lock together with matched front‑plug monitor mainboard, confirm latches are fully engaged. ‑ For 169459‑01: connect field‑sensor cables and multimode‑select dry‑contact signals directly to rear screw terminals. ‑ For 169459‑02: connect signal‑ribbon‑cable and multimode‑control‑cable between I/O assembly and remote external‑termination blocks, strictly follow official pin‑out drawing. ‑ When paired with 3500/44M: only wire accelerometers / Velomitor sensors; proximity probes shall NOT be connected. ‑ For hazardous‑area deployment: install certified external intrinsic‑safety barriers between field sensors and termination points, comply with local hazardous‑area wiring codes. ‑ Separate analog‑sensor cables from high‑voltage power cables; observe maximum transducer‑cable‑length limits. ‑ Follow plant‑site grounding specification: separate analog‑signal grounding from heavy‑power grounding to minimize noise‑coupling effects. ‑ For multimode‑switch application: connect dry‑contact mode‑select control signals to corresponding terminals, confirm logic coordination with DCS / machine‑control system.

5.2 Commissioning

‑ Complete mechanical assembly of mainboard + multimode I/O assembly, field‑sensor wiring and multimode‑select‑signal wiring. ‑ Launch 3500 Rack Configuration Software, select matched monitor‑module type, configure channel‑sensor types, set multimode‑mode‑groups, alarm setpoints and delay parameters. ‑ Download configuration parameters to mainboard and reset module to activate parameters. ‑ Verify multimode dry‑contact switching function; confirm threshold‑group toggles correspond to machine‑operating‑mode signals. ‑ For 3500/44M application: verify Keyphasor‑signal quality before enabling 1X‑tracking‑filter functions. ‑ Validate raw‑measurement readings; force‑test each channel to confirm relay‑output action and DCS / HMI‑indication consistency.

5.3 Typical Field Troubleshooting

‑ Sensor‑fault alarm: Inspect field‑cable open‑circuit / short‑circuit faults, terminal‑screw tightness, ribbon‑cable loose/damaged connectors and transducer physical damage. ‑ Abnormal multimode‑switching: Check dry‑contact wiring, mode‑select signal‑logic, software multimode‑group configuration. ‑ Abnormal vibration readings: Confirm sensor‑type matches firmware configuration; inspect wiring pin‑assignment, grounding and EMI‑interference; verify transducer‑sensitivity setting. ‑ Communication loss: Check mechanical‑locking condition between I/O assembly and mainboard, rack‑backplane health and system‑controller operating status.

Warning: Bypass protection alarms only for short‑duration maintenance work. Restore full‑protection functions before unit returns to normal‑operation status.

5.4 Maintenance

‑ Observe front‑panel LED‑status indicators of front‑plug monitor mainboard during routine site rounds. ‑ No user‑serviceable components inside I/O‑assembly housing; do not disassemble. ‑ Keep complete configuration‑backup file for rapid hardware replacement upon failure.
